For sale: Telefunken M-3000 Hifi 1/4" 18CM Tape Deck
Condition: Nice cosmetics looks good. Has been tested it goes on but that's it so it's sold as is.
''Important note when tested: When we find there's either a small thing wrong, or not 100% working we offer our listings for parts or repair to avoid unwanted issues after purchase''
Specs:
General
-
Manufacturer: Fernseh und Rundfunk GmbH, Hanover-Linden, Germany
-
Model: magnetophon 3000 M hifi
-
Type: tape case (without power amplifier)
-
Years of manufacture: 1974 - 1977
-
Manufactured in: Hanover, Germany
-
Color: Black Metallic
-
Remote control: FB 3000 for start/stop
-
Power consumption: approx. 35 W
Connections
-
Number of inputs (DIN):
-
Tuner/Radio 2 x 4 mV (- 46 dB) at 40 kΩ.
-
Microphone 2 x 0.15 mV (- 74 dB) at 2 kΩ (front).
-
Phono/tape 2 x 100 mV (- 17 dB) at 1 MΩ.
-
Number of outputs (DIN):
-
Radio 2x 0.7 mV (- 1 dB) across 12 kΩ.
-
Monitor 2x 0.7 mV (- 1 dB) over 3.3 kΩ
-
Headphones (cube plug) 2 x 2.5 V (+ 10 dB) at 400 Ω (Front)
Technical Data
-
Max. Coil diameter: 18cm
-
Drive: 1 electrically controlled DC motor
-
Lamps: 4 x 12 V, 3 W
-

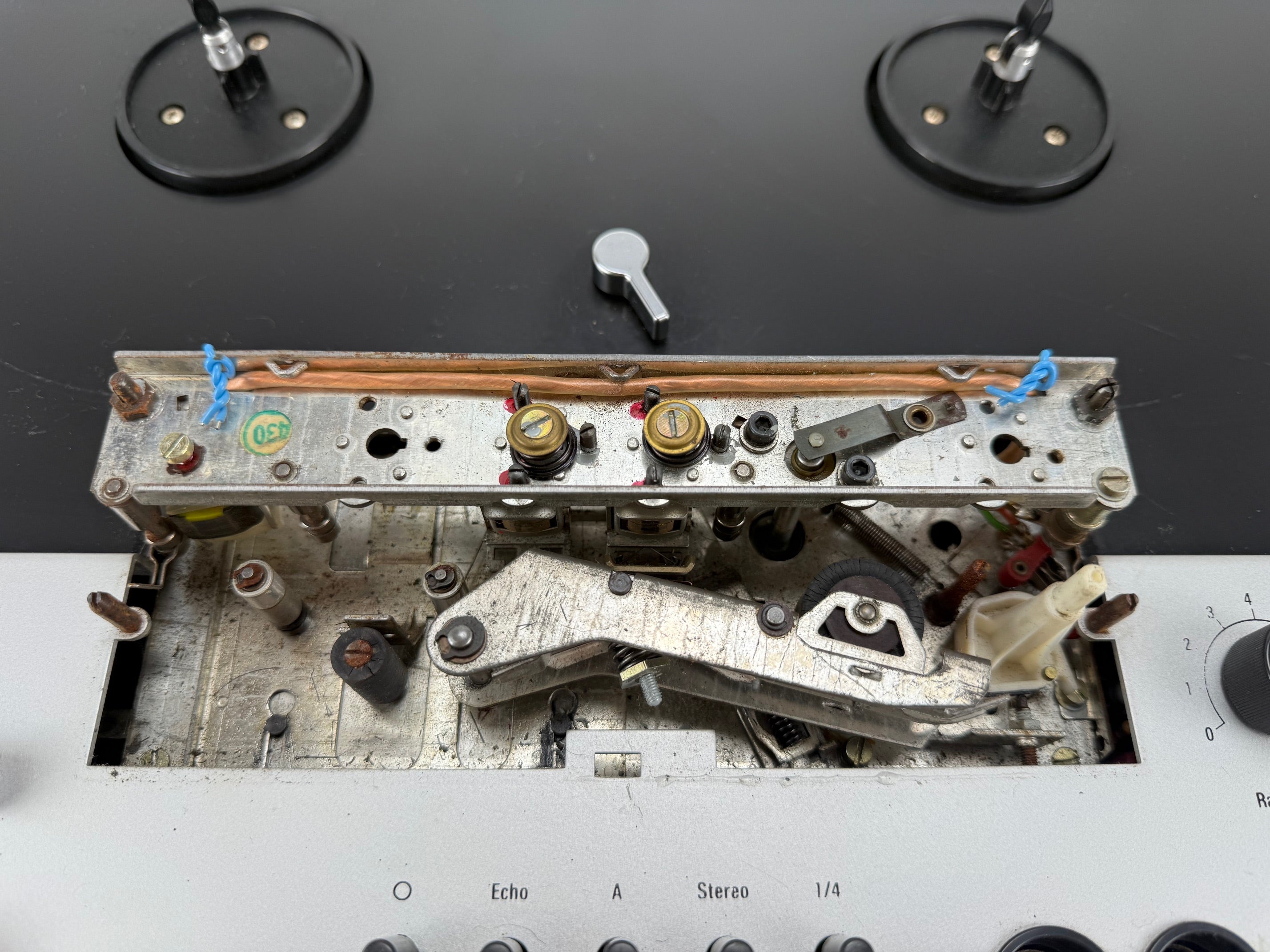

Heads: 3, 1 x recording, 1 x playback, 1 x erase
-
Premagnetization and erasing frequency: 85 kHz
-
Equalization: according to DIN 45.513
-
Tracks: 4 (quarter track)
-

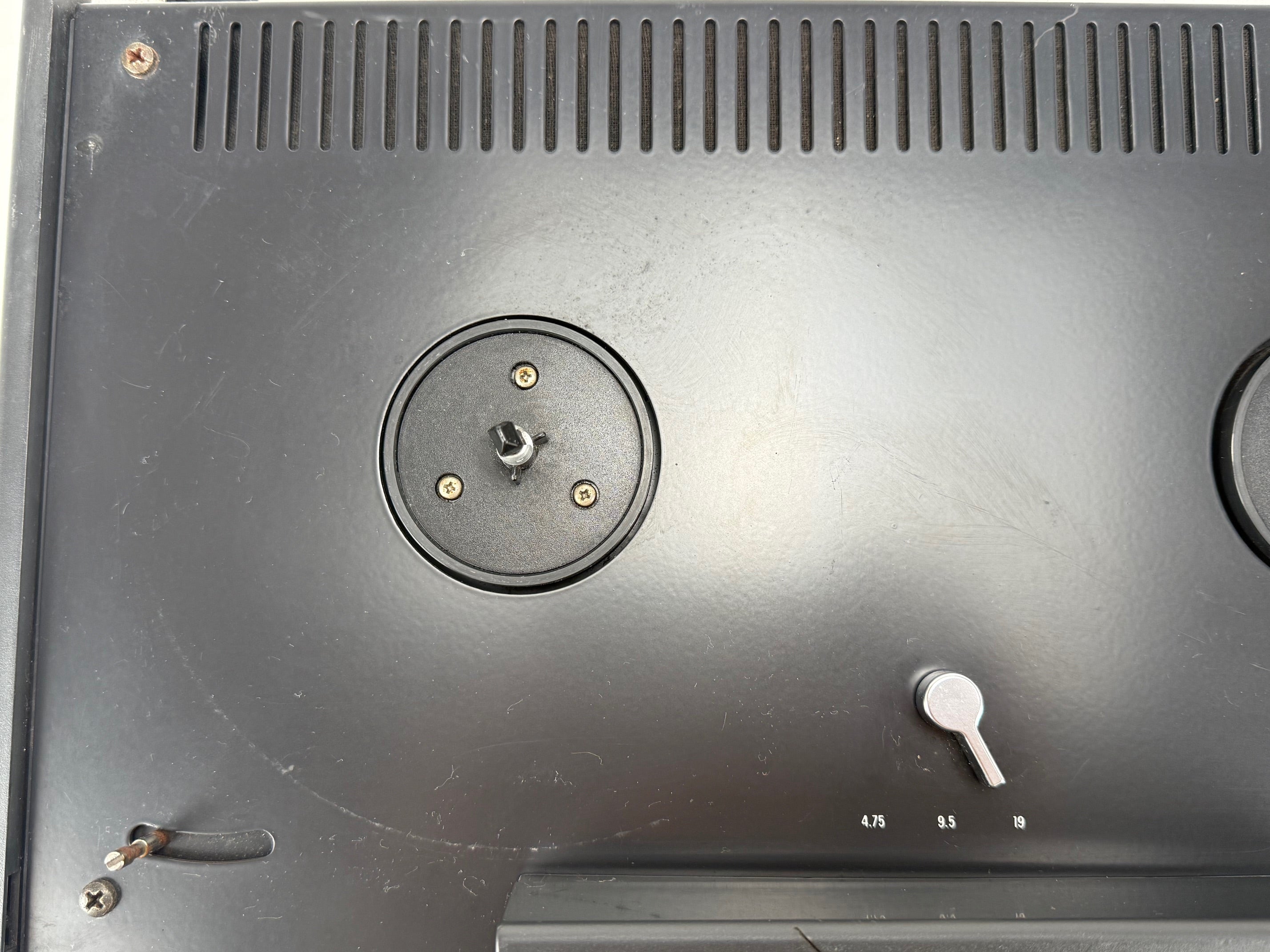

Tape speeds
-
4.75 cm/s, 9.5 cm/s, 19 cm/s
-
Slip:
-
Synchronous oscillations:
-
Frequency Unmatch (to DIN 45.500):
-
Input Micro
-
4.75 cm/s: 30 Hz - 12,500 Hz
-
9.5 cm/s: 30 Hz - 15,000 Hz
-
19 cm/s: 30 Hz - 20,000 Hz
Dimensions: 53x35x16cm
Weight: 15Kg
Volts: 110/240v 50-60hz

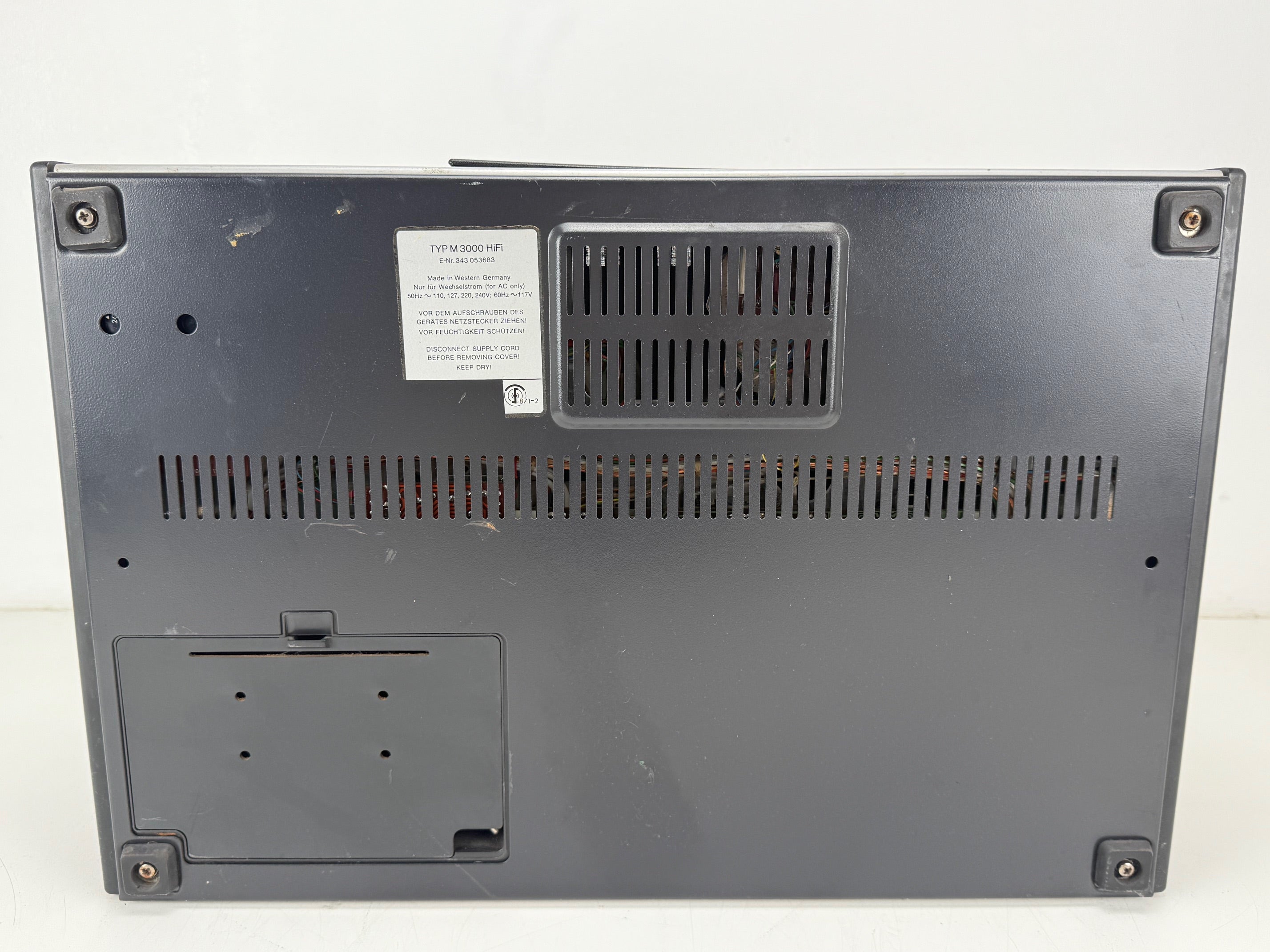

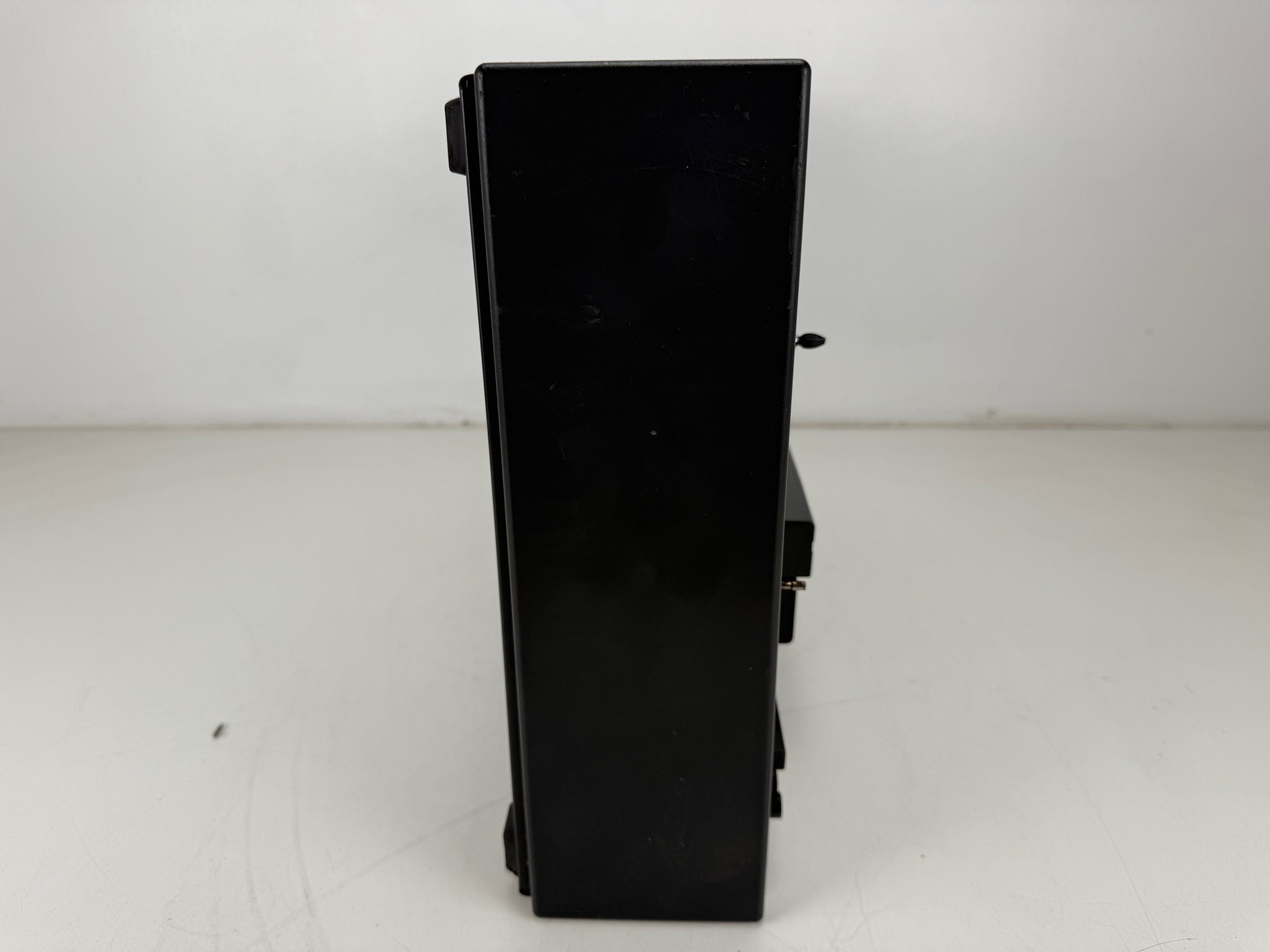

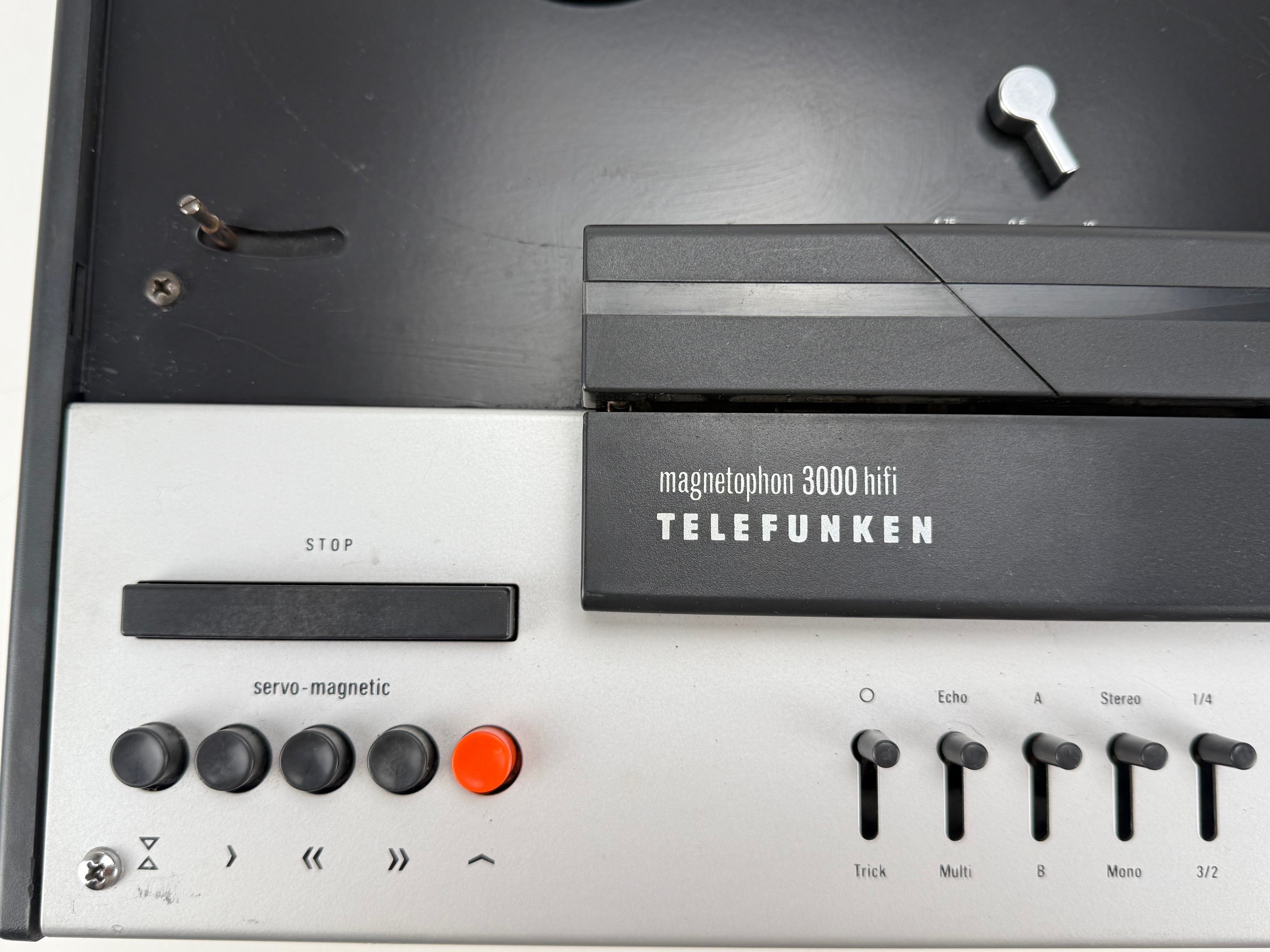

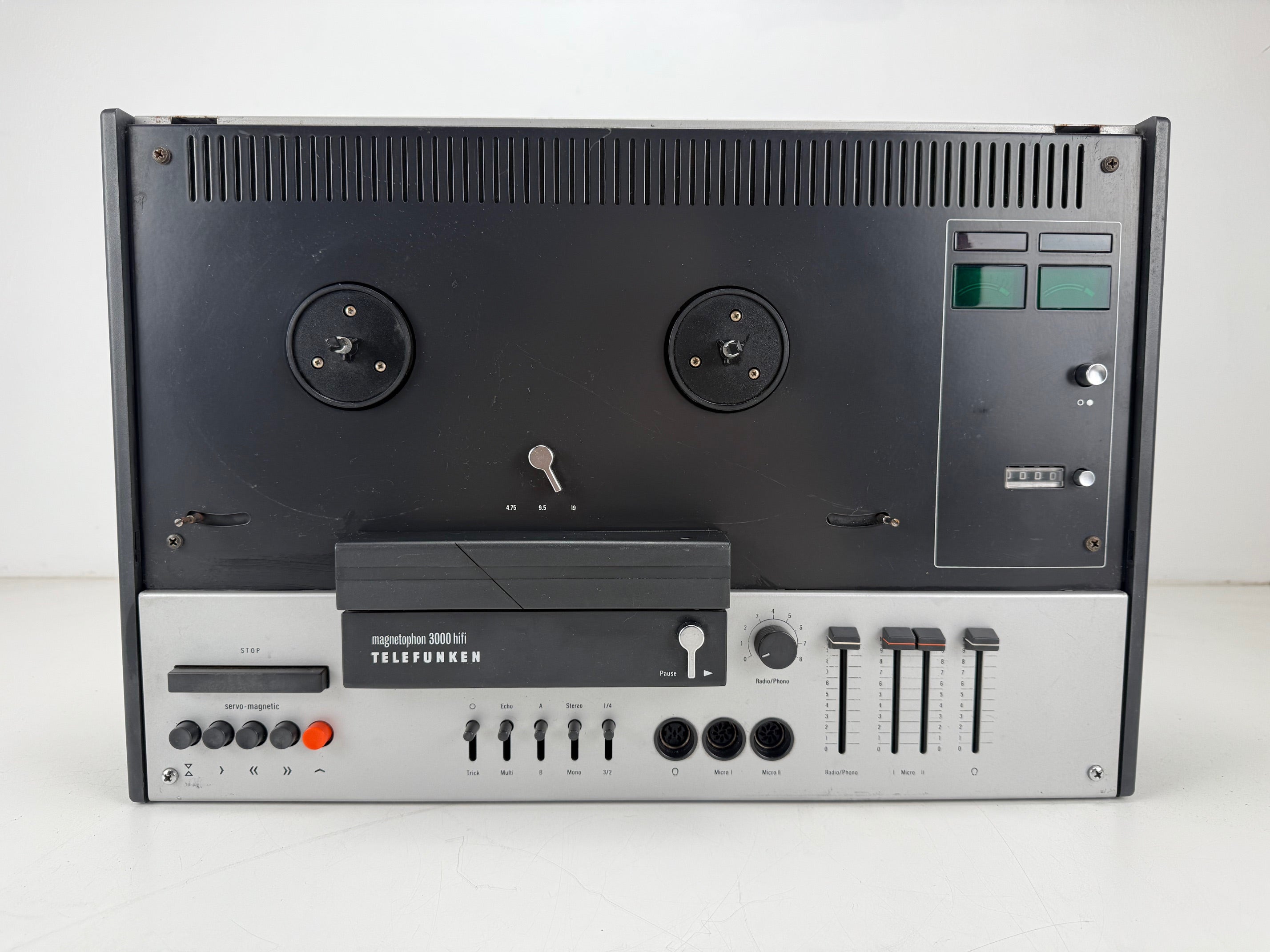

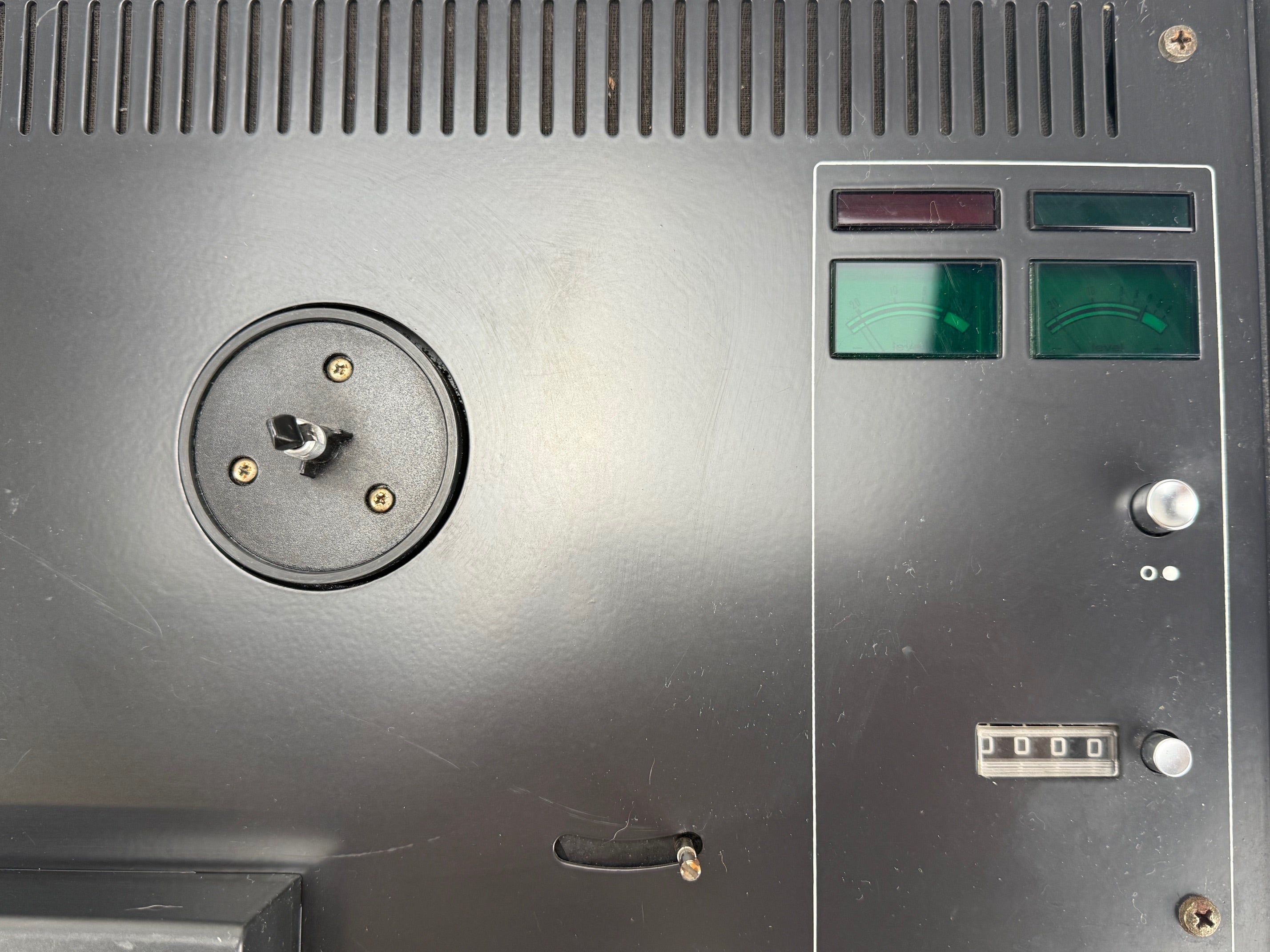

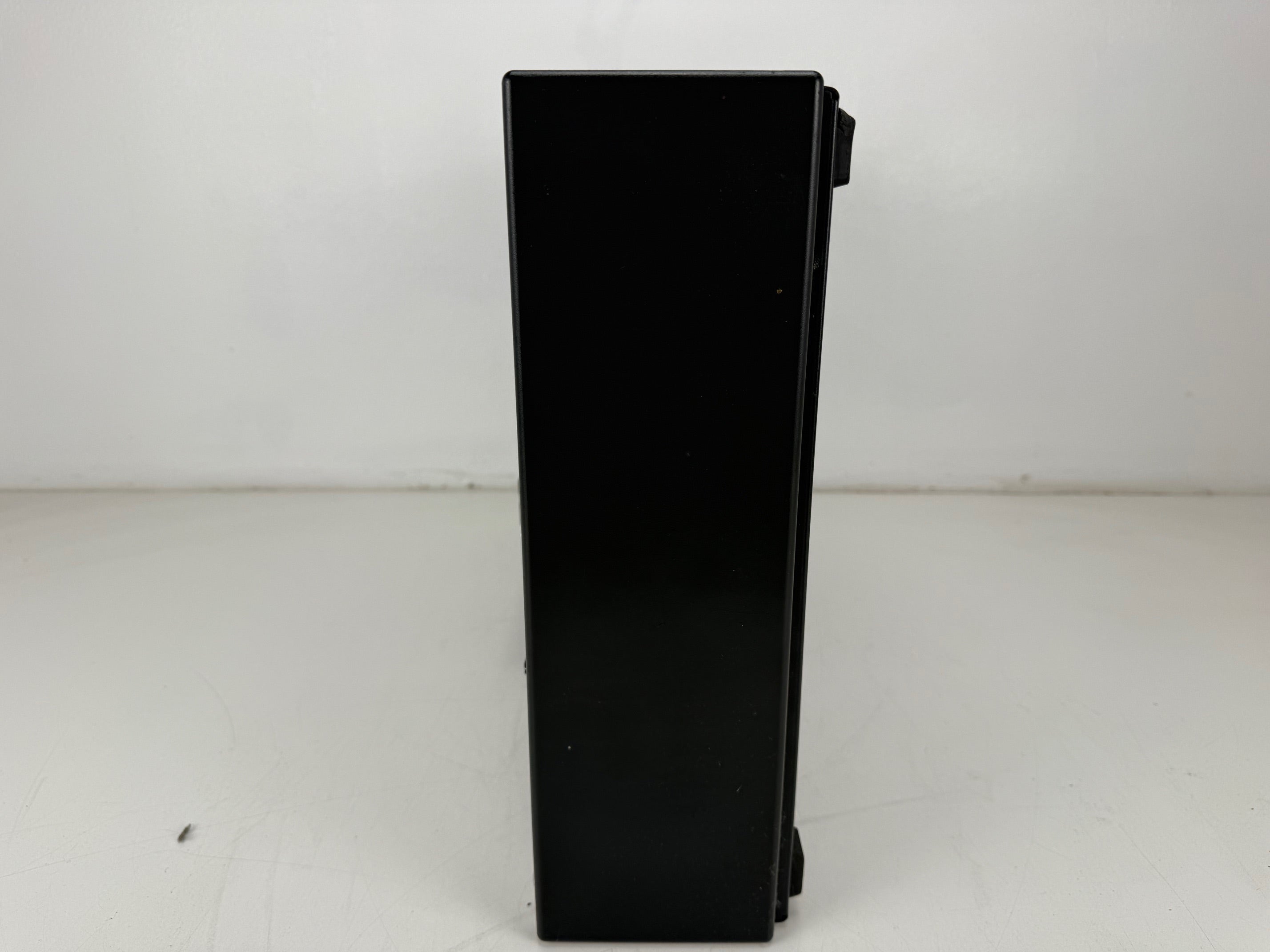

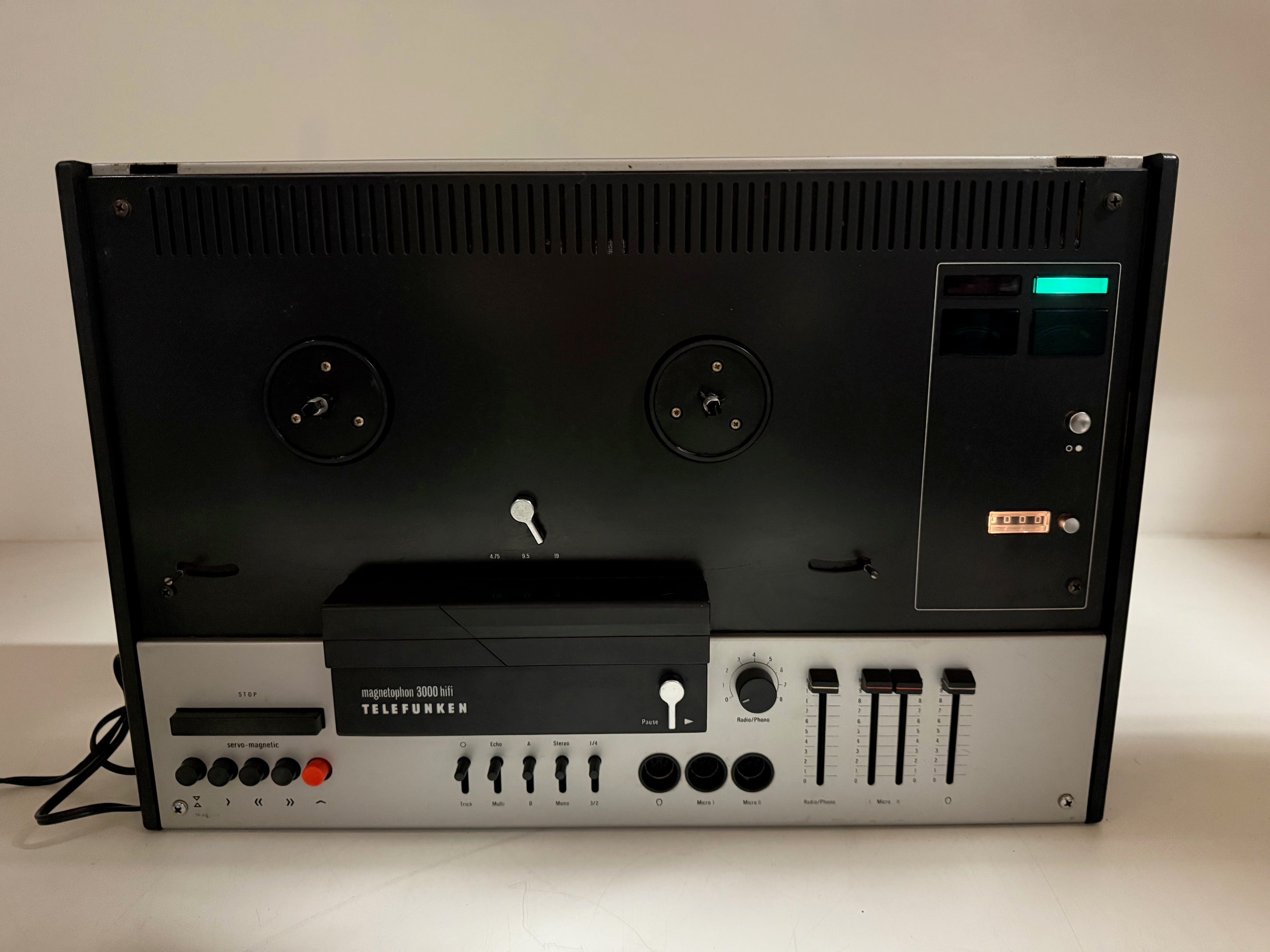

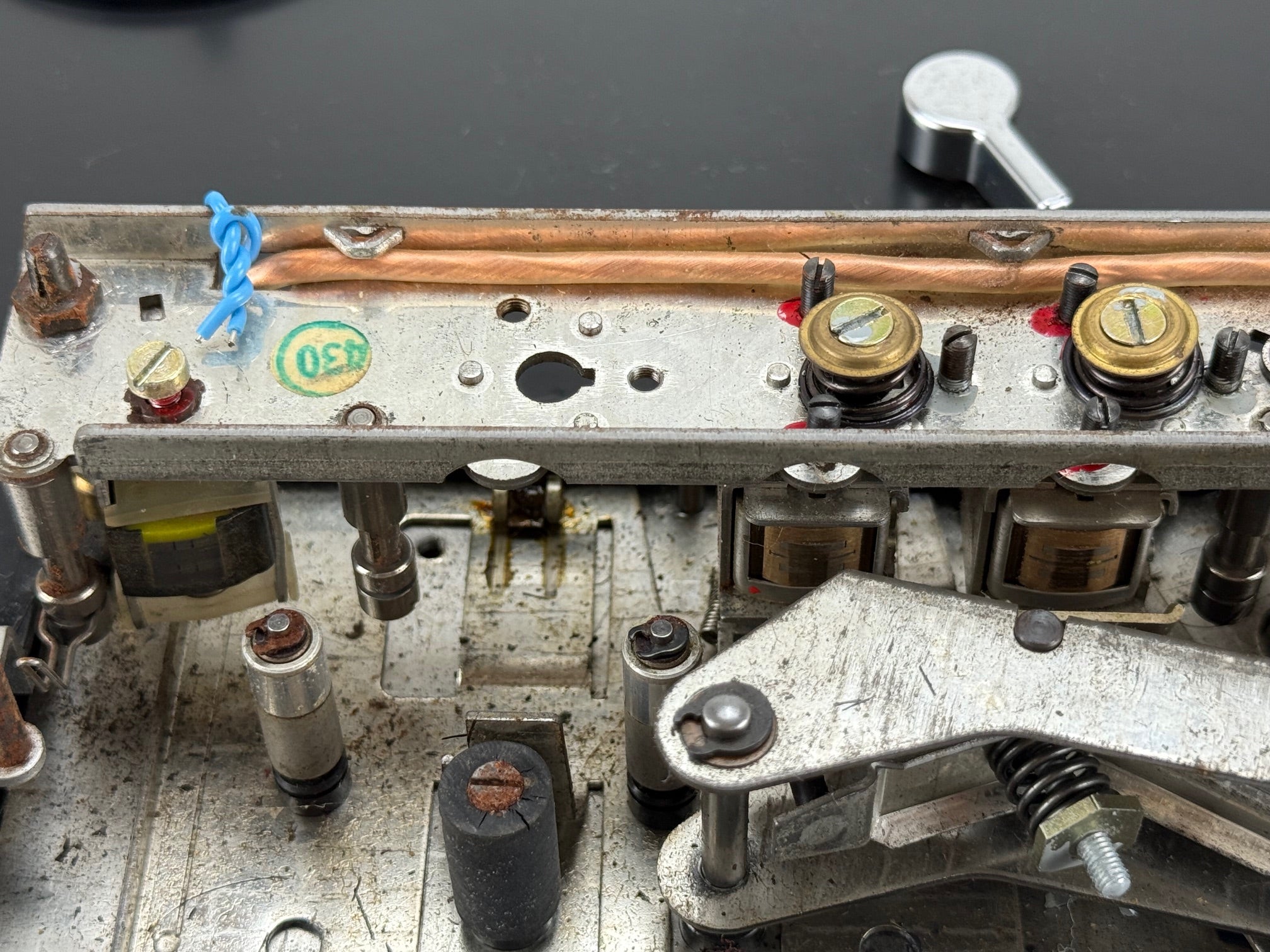

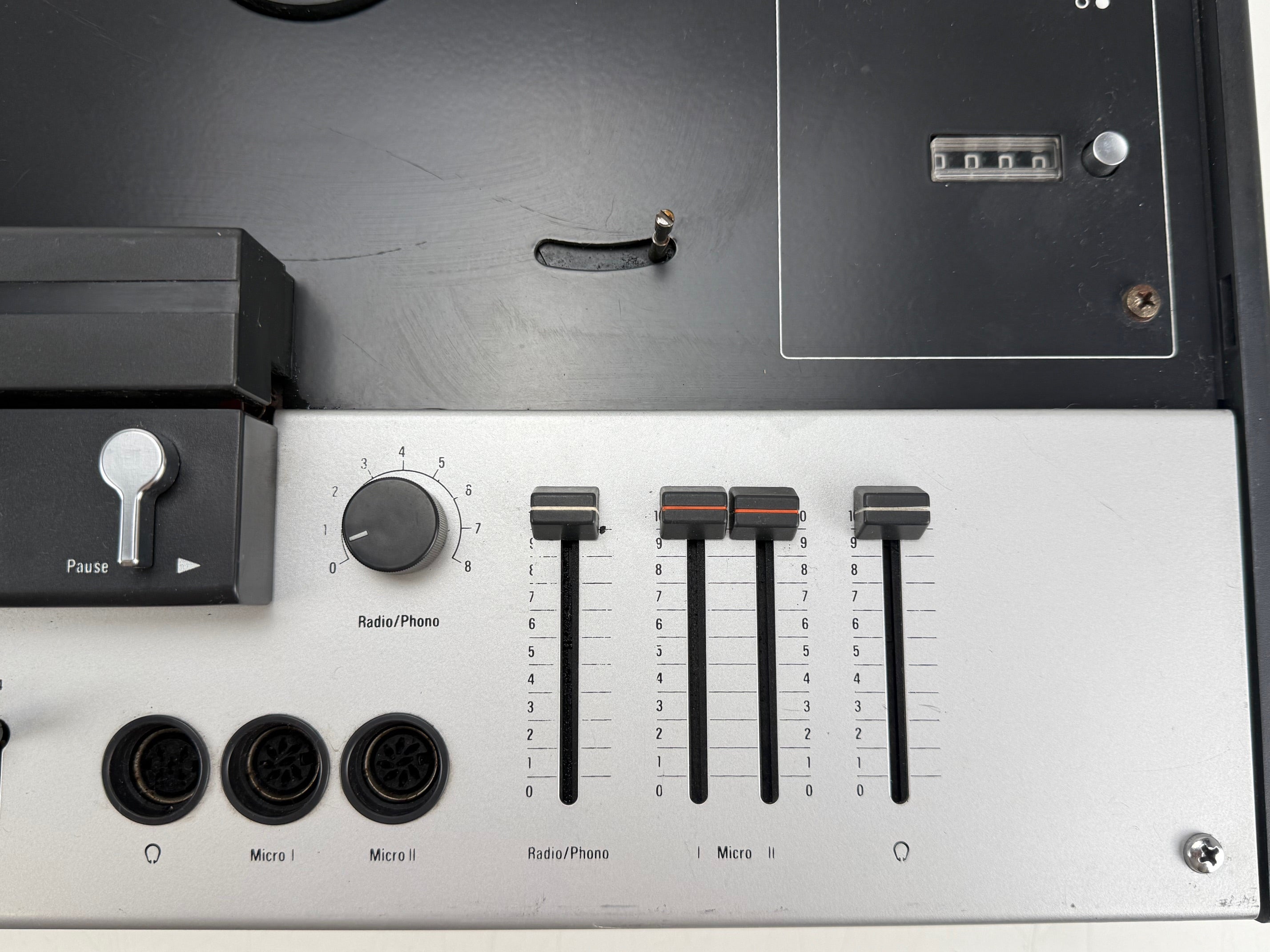

Working condition: Not working (See pictures for the cosmetic condition of this lot)
Missing or damages: Minor Usage Marks
Does come with fixed/factory power cable.
We ship worldwide.
-Shipping in the EU up to 30 KG (max)
-Shipping outside of the EU up to 20 KG (max)
''We offer combine shipping (EU 30KG max, NON EU 20KG max) for all our listings, ask us for details''
Please note: ‘'Whenever an item exceeds the weight noted above. Please ask for a shipping quote before making a purchase. The shipping costs are estimated in our shop because we do not know the shipping address.
Picking up the item is also possible. It can be picked up in Alkmaar
Delivery by us is also possible in some cases. Please reach out to us for more information about deliveries
State of listing: If a listing is listed ''for parts or not working'' returns are not accepted.
