For sale: a Sony PCM-601ESD Digital Audio Interface, a professional-grade unit designed for high-quality digital audio recording and playback. This model is well known for its reliability, precise A/D and D/A conversion, and robust studio-quality construction. Ideal for vintage digital audio workflows, archiving, and integration with compatible digital decks.

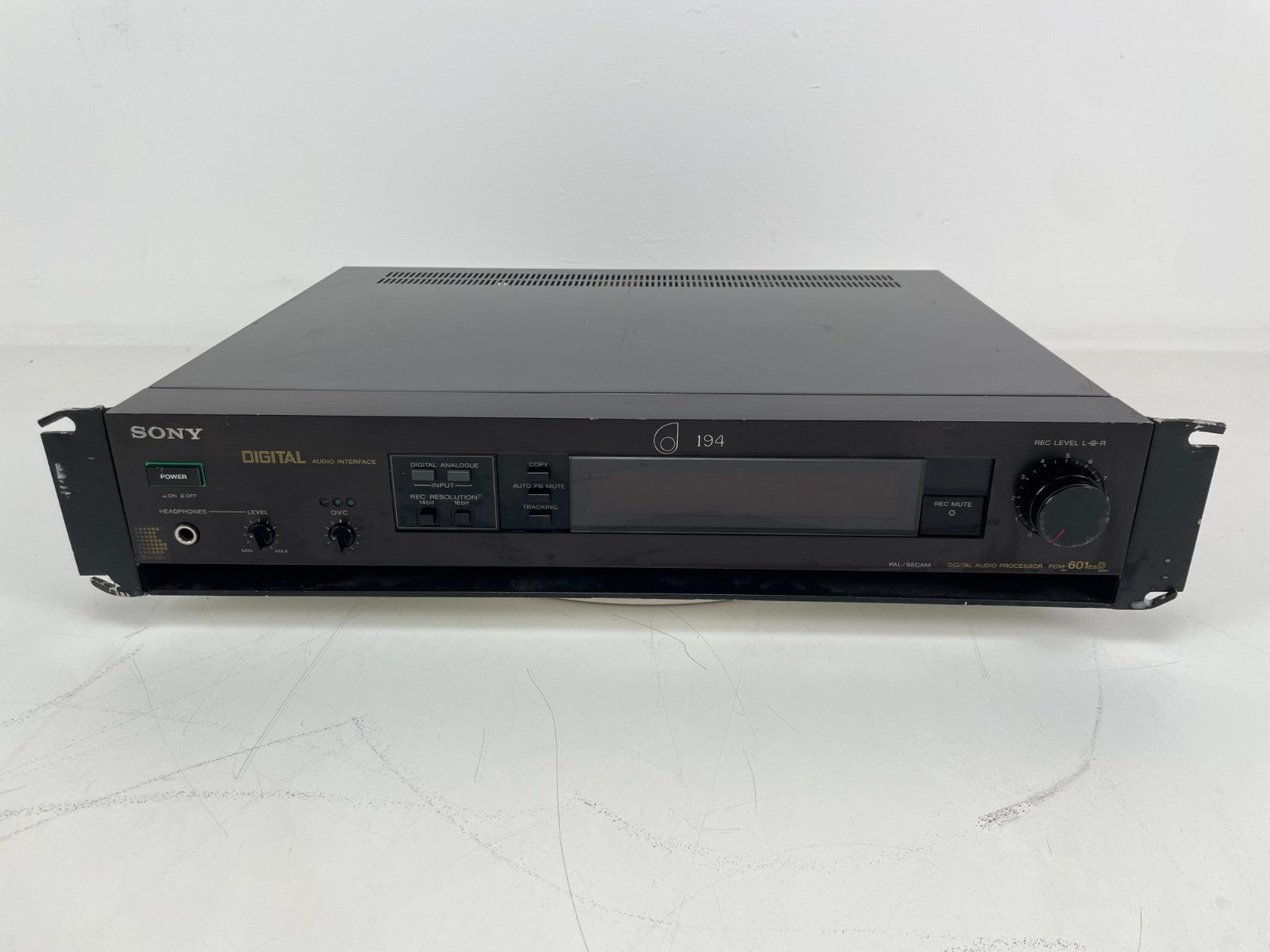

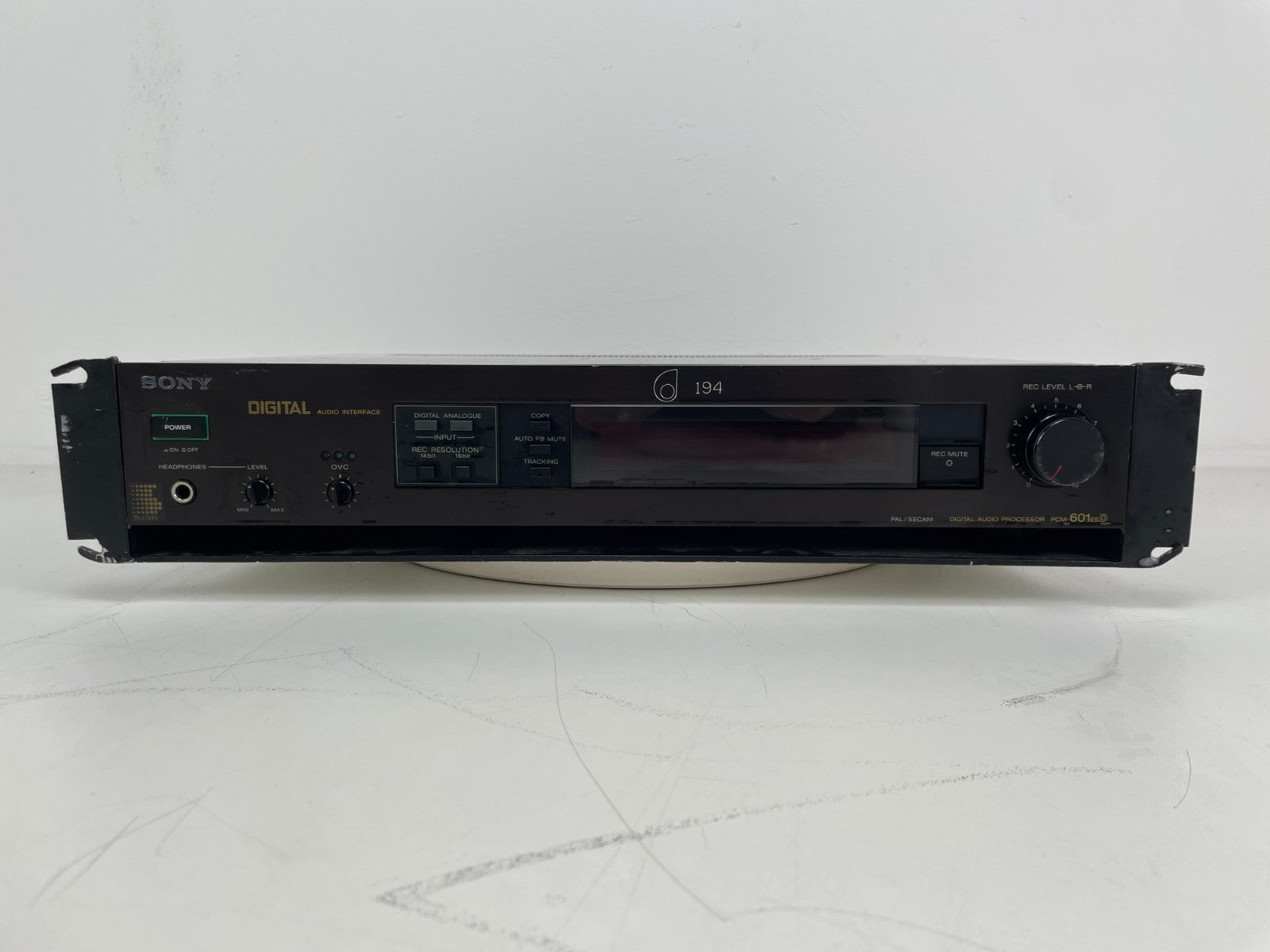

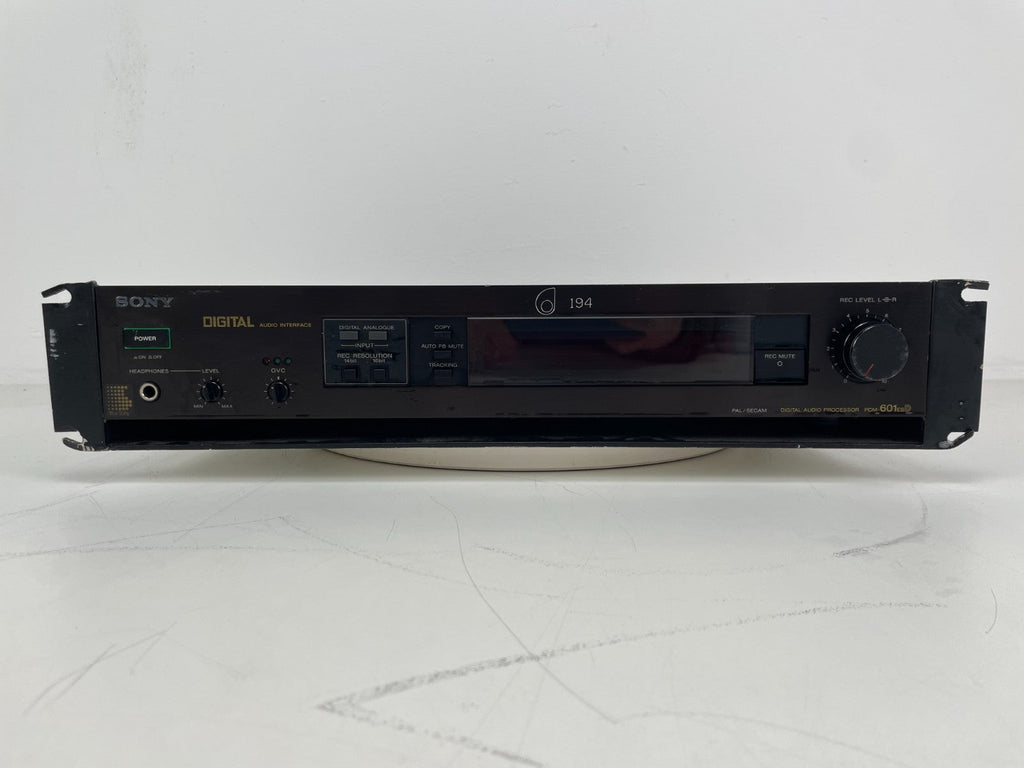

This unit includes its rack-mount brackets, making it suitable for studio installations, and has had a new power cable installed for safe and reliable operation.
Condition:
This Sony PCM-601ESD is in minor damaged cosmetic condition.

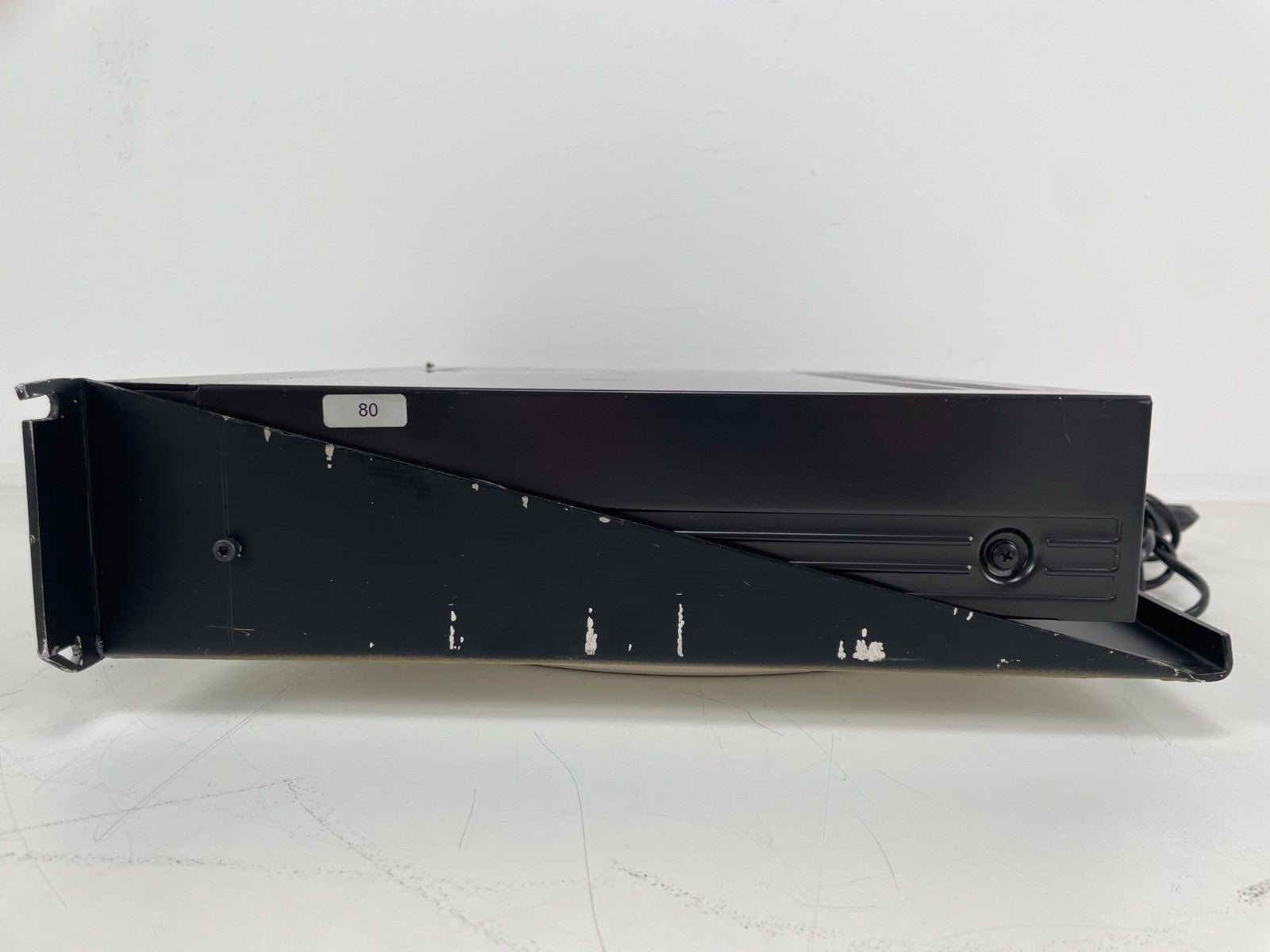

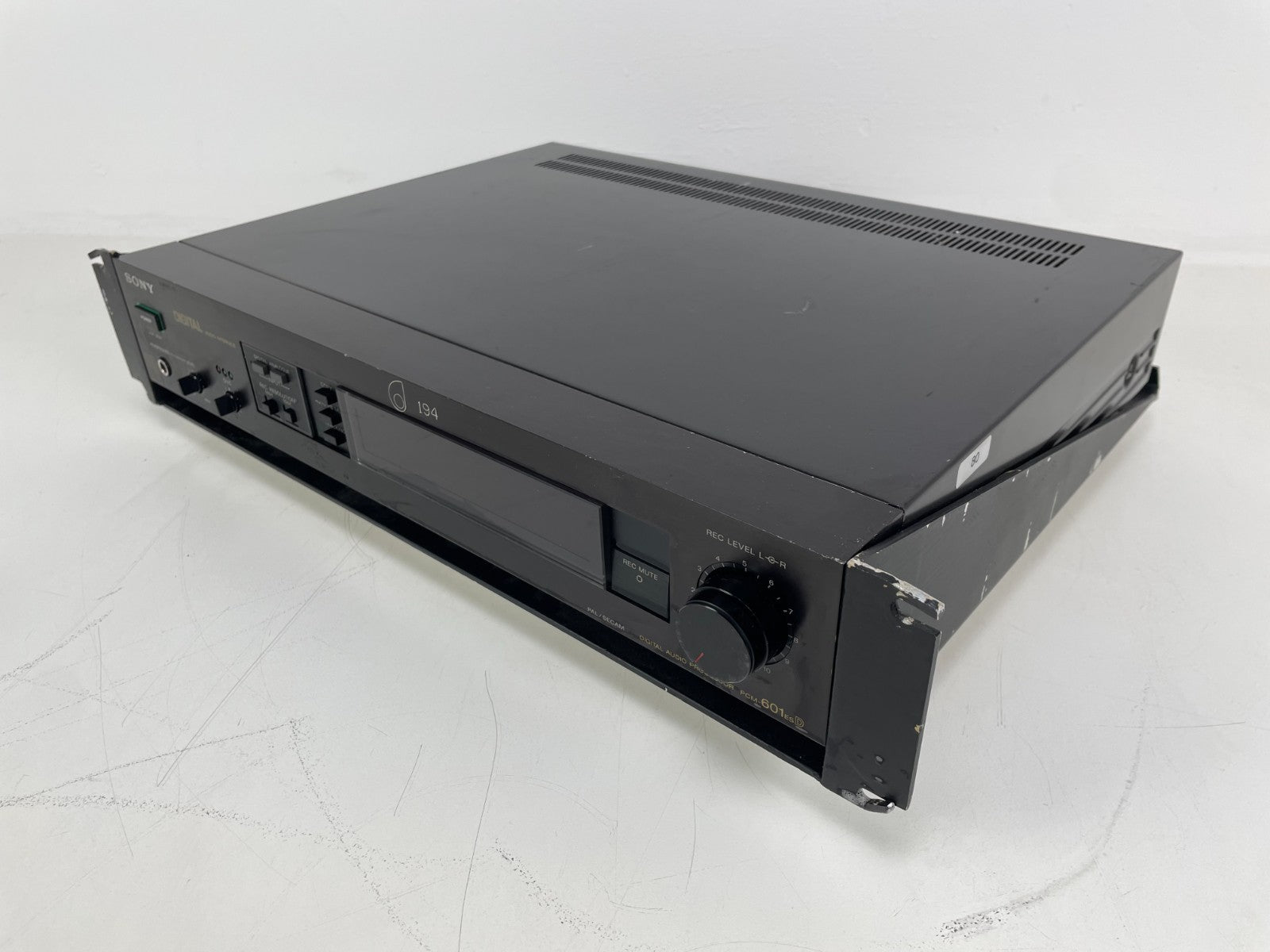

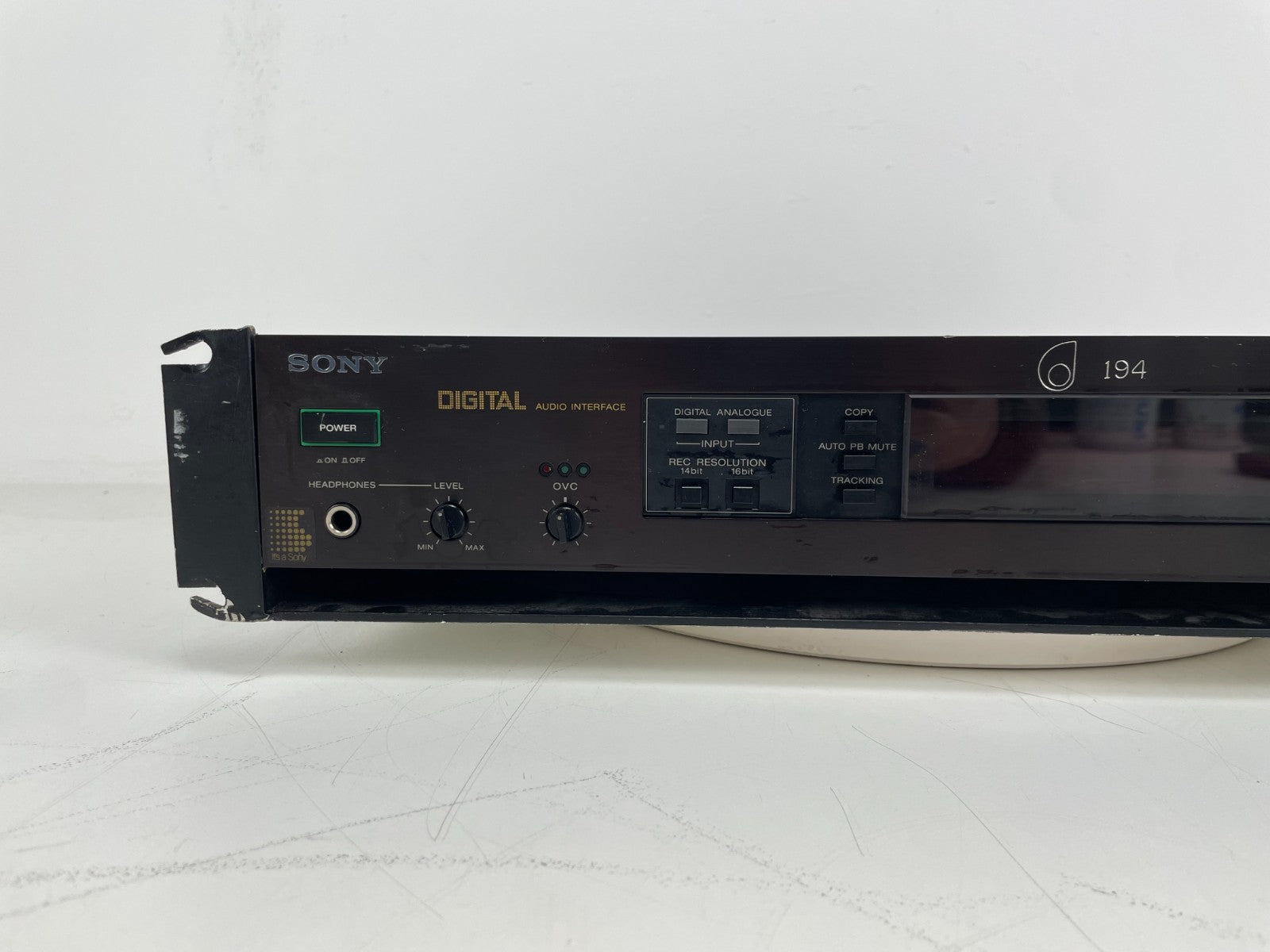

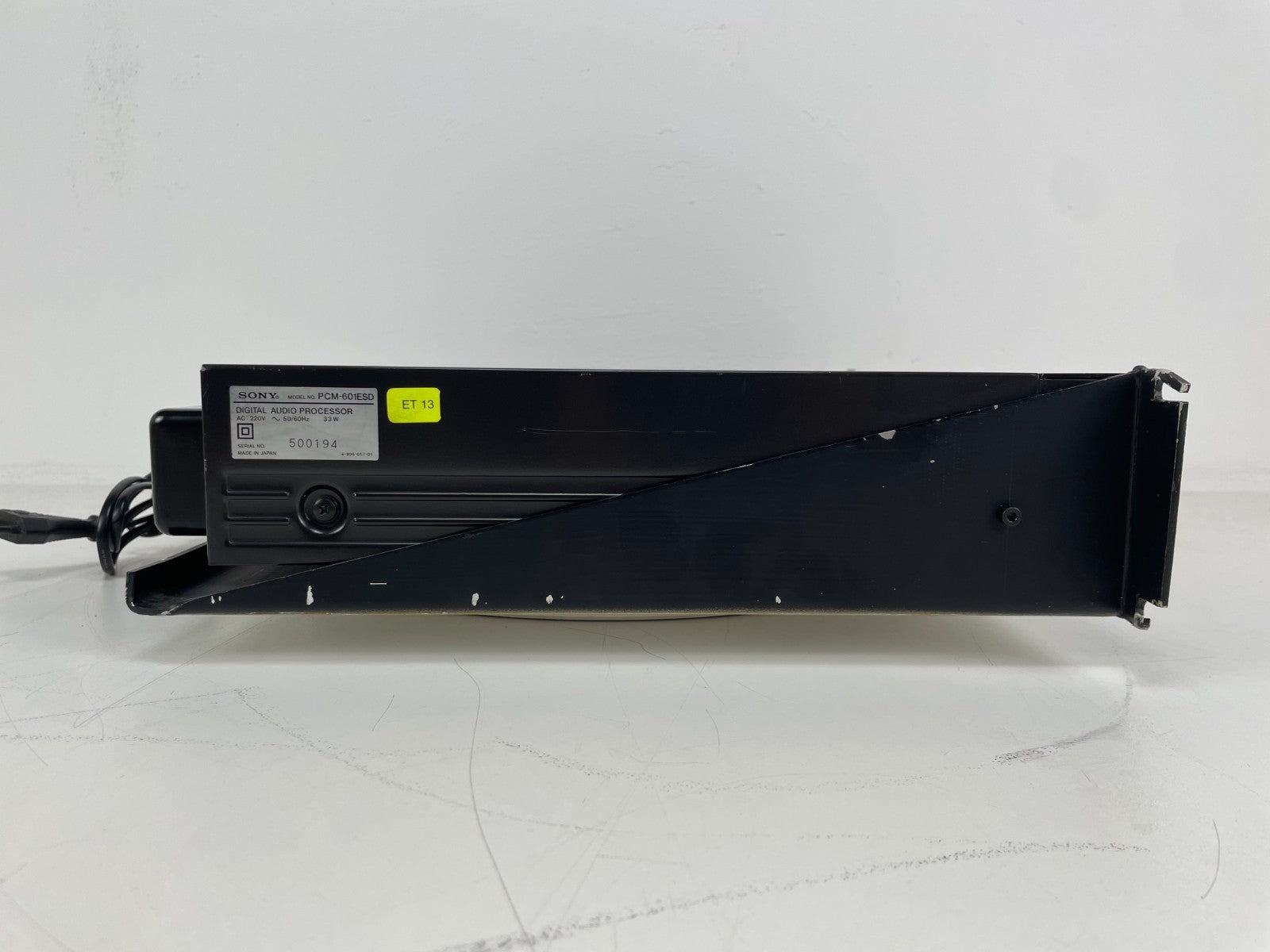

The rack-mount ears are bent at the screw posts..

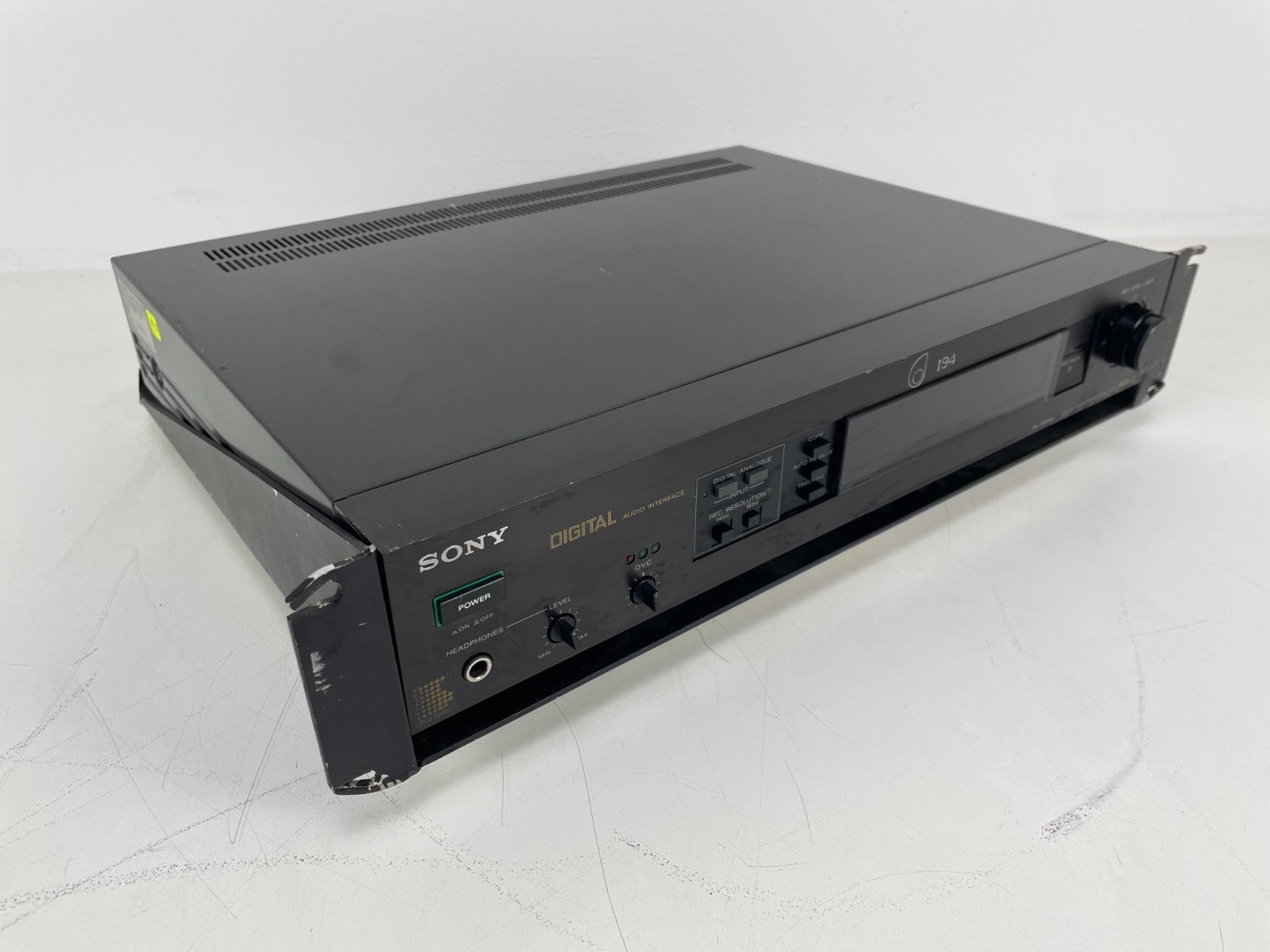

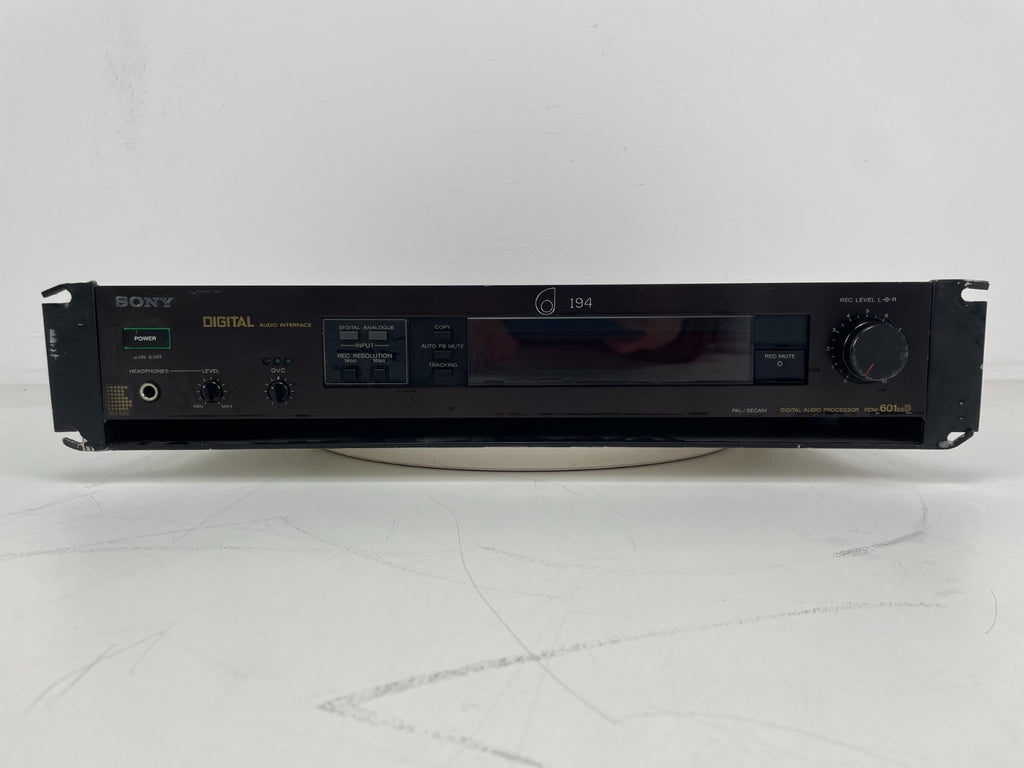

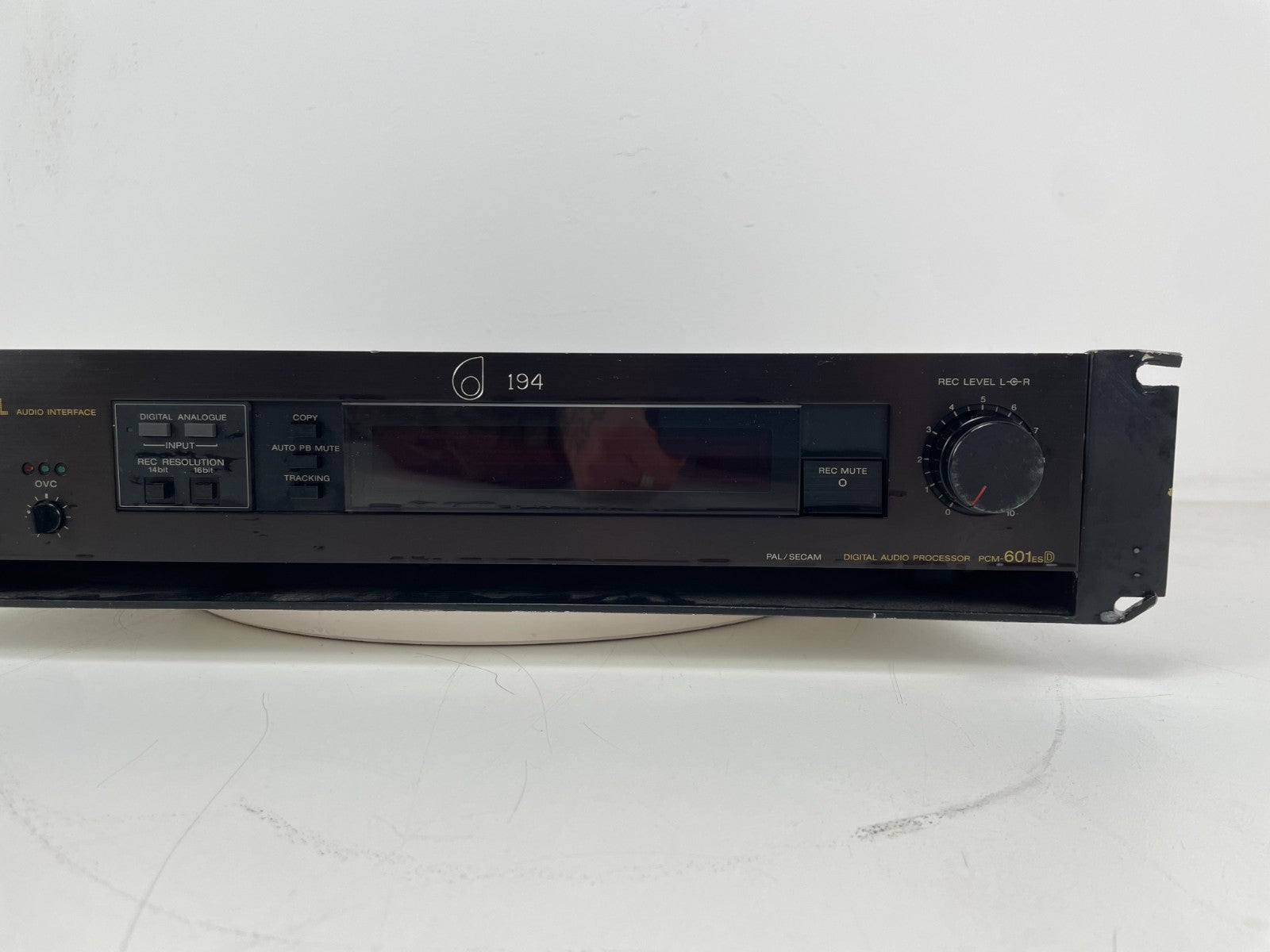

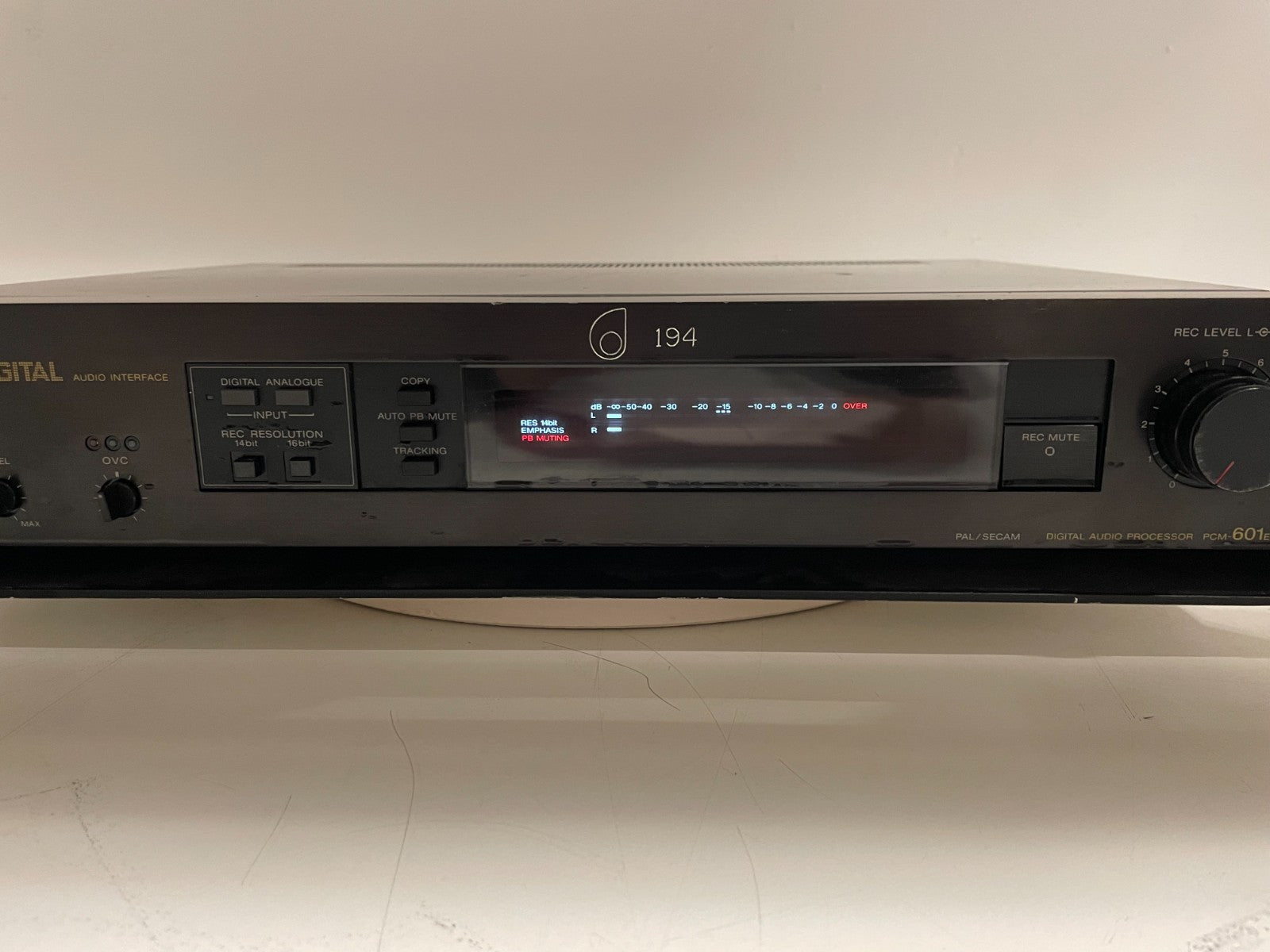

The front panel and controls show normal signs of use but no major cracks or breaks.
Functionally, the unit powers on correctly.
A new power cable has been installed.
''Important note when tested: When we find there's either a small thing wrong, or not 100% working we offer our listings for parts or repair to avoid unwanted issues after purchase''
Specs:
- Audio channels: 2
- Sampling frequency: 44.1 kHz
- Encoding: EIAJ 14-bit / 16-bit switchable
- Video signal format used for PCM encoding: CCIR, PAL, SECAM
- Dynamic range:
> 86 dB (14-bit)
> 90 dB (16-bit)
- Frequency response: 5 Hz - 20 kHz (±0.5 dB)
- Channel separation: > 80 dB
- Error correction: ORCC with parity bits
- Quantization: 14-/16-bit linear (switchable)
- Total harmonic distortion:
< 0.007% (14-bit)
< 0.005% (16-bit)
- Emphasis:
- Fixed during recording
- Automatic switching during playback

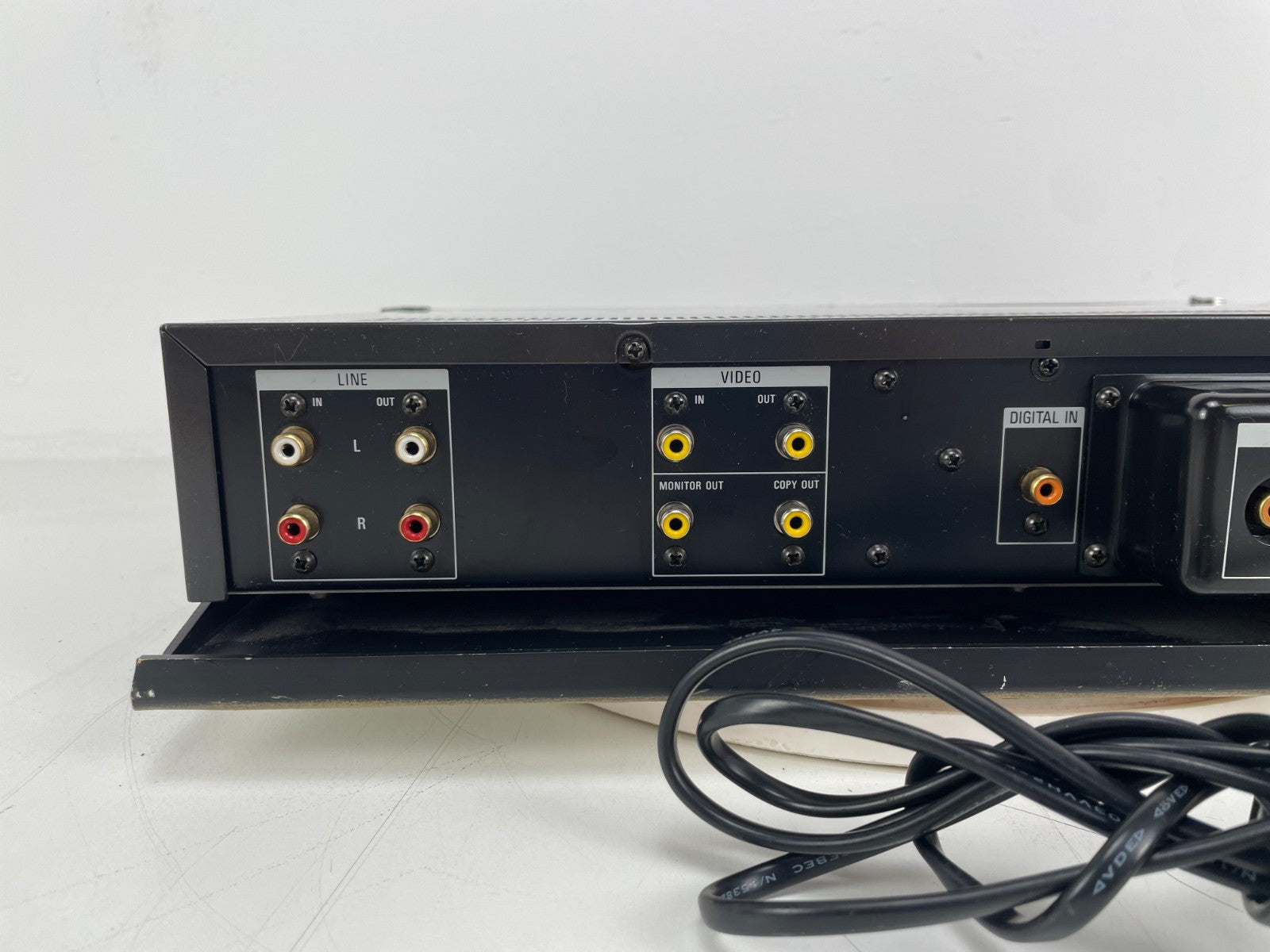

Inputs
- Line input: 0.24 V / 50 kΩ
- Video in: 1 Vss / 75 Ω
- Digital in: 0.5 Vss / 75 Ω

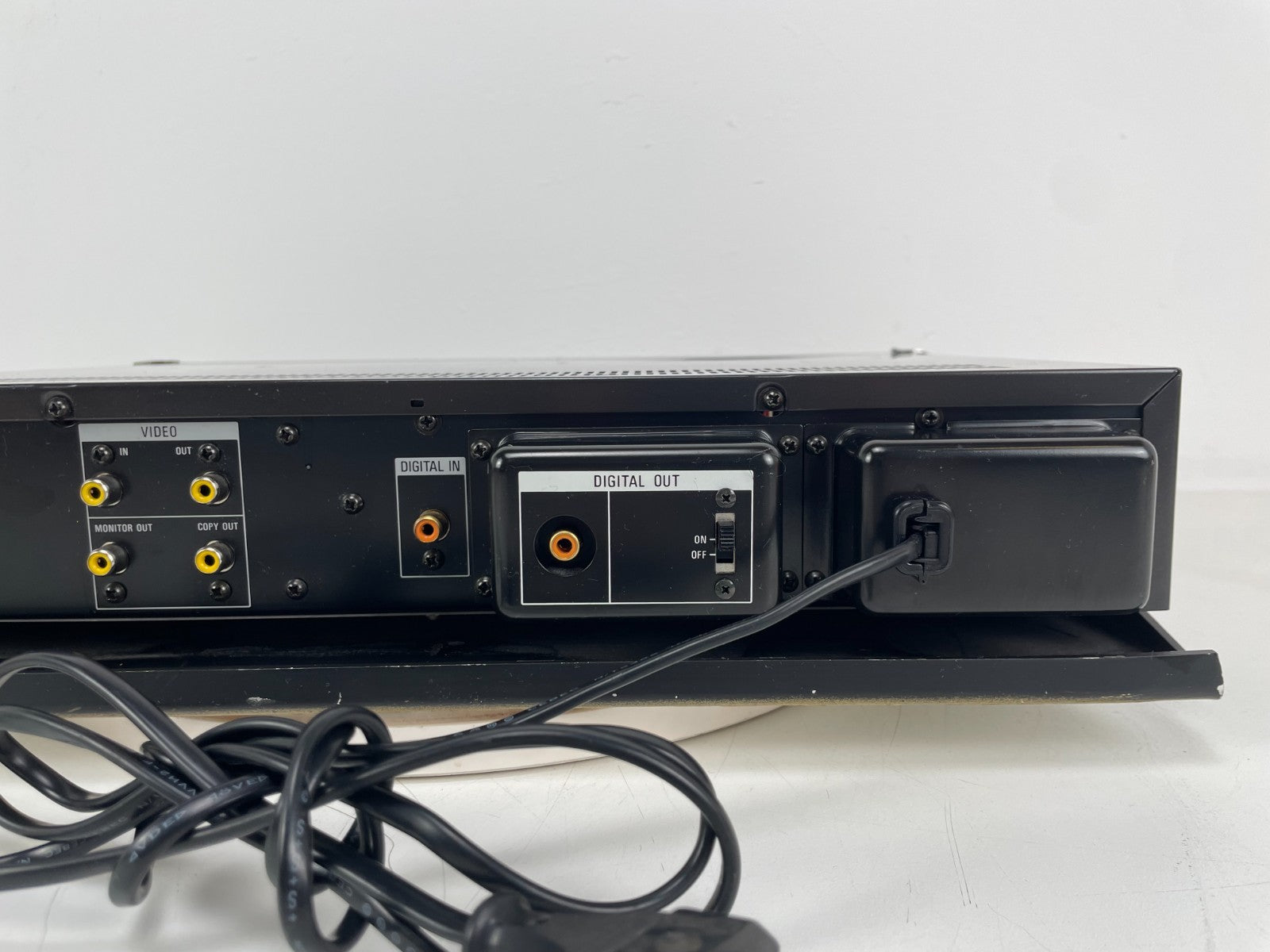

Outputs
- Line output: 0.24 V / > 10 kΩ
- Video out: 1 Vss / 75 Ω
- Monitor out: 1 Vss / 75 Ω
- Copy out: 1 Vss / 75 Ω
- Digital out: 0.5 Vss
- Headphone output: 0.003 mW - 0.9 mW / 32 Ω
Dimensions (LxWxH): 43x8.5x38.5cm
Weight: 6 Kg
Volts: 230v (in case of only 230v. in USA you will need a adapter)
Working condition: Fully working (See pictures for the cosmetic condition of this lot)
Missing or damages: Minor Usage Marks
Does come with fixed power cable.
We ship worldwide.
Will ship to the USA as well. We ship DDP bases (Delivery Dutie Paid)
-Shipping in the EU up to 30 KG (max)
-Shipping outside of the EU up to 20 KG (max)
Please note: ‘'Whenever an item exceeds the weight noted above. Please ask for a shipping quote before making a purchase. The shipping costs are estimated in our shop because we do not know the shipping address.
Picking up the item is also possible. It can be picked up in Alkmaar
Delivery by us is also possible in some cases. Please reach out to us for more information about deliveries
State of listing: If a listing is listed ''for parts or not working'' returns are not accepted.
When we offer our products with the notice ''Serviced'' or ''Fully serviced'' that means the device is either lightly ''serviced'' with a new belt, and cleaned the pots, Or ''Fully serviced'' recapped, Quiescent current adjusted etc as expected from a full service
