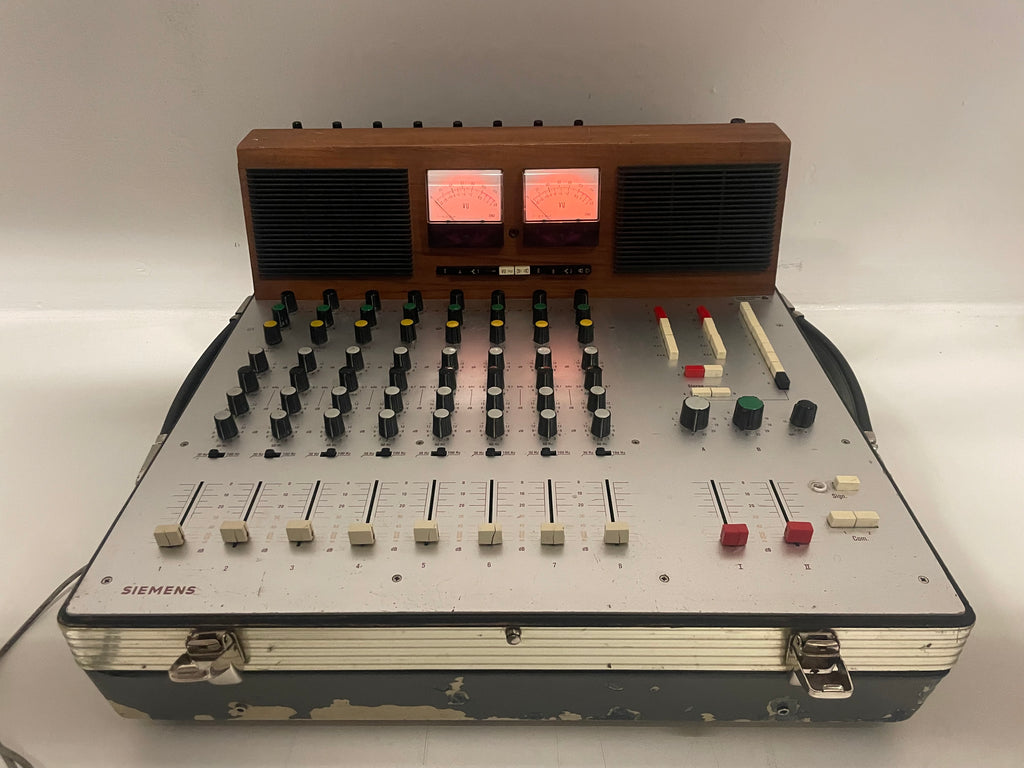

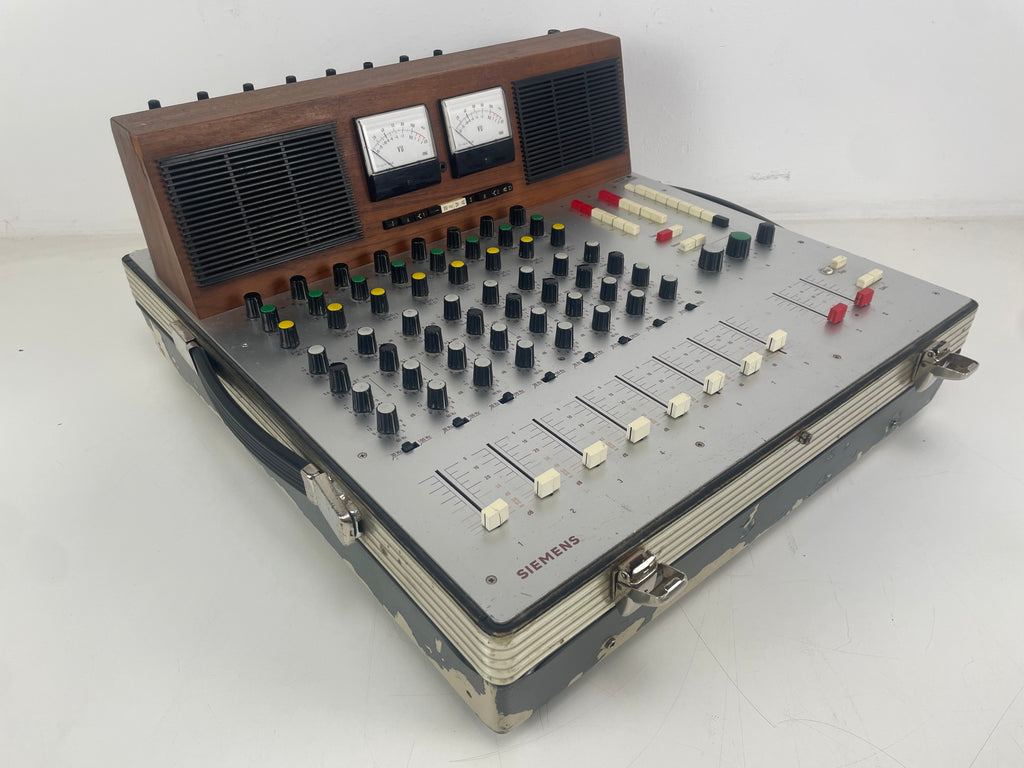

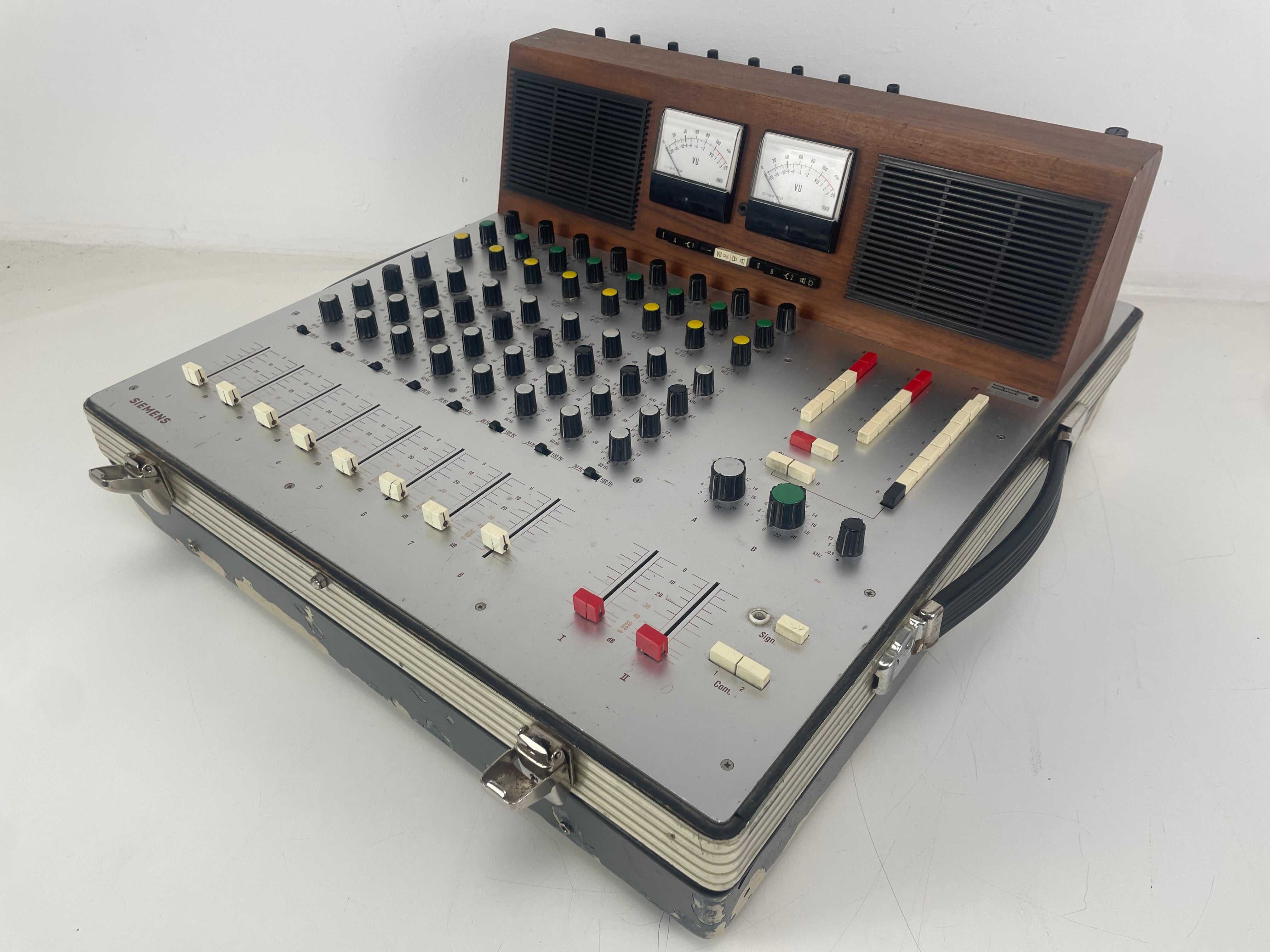

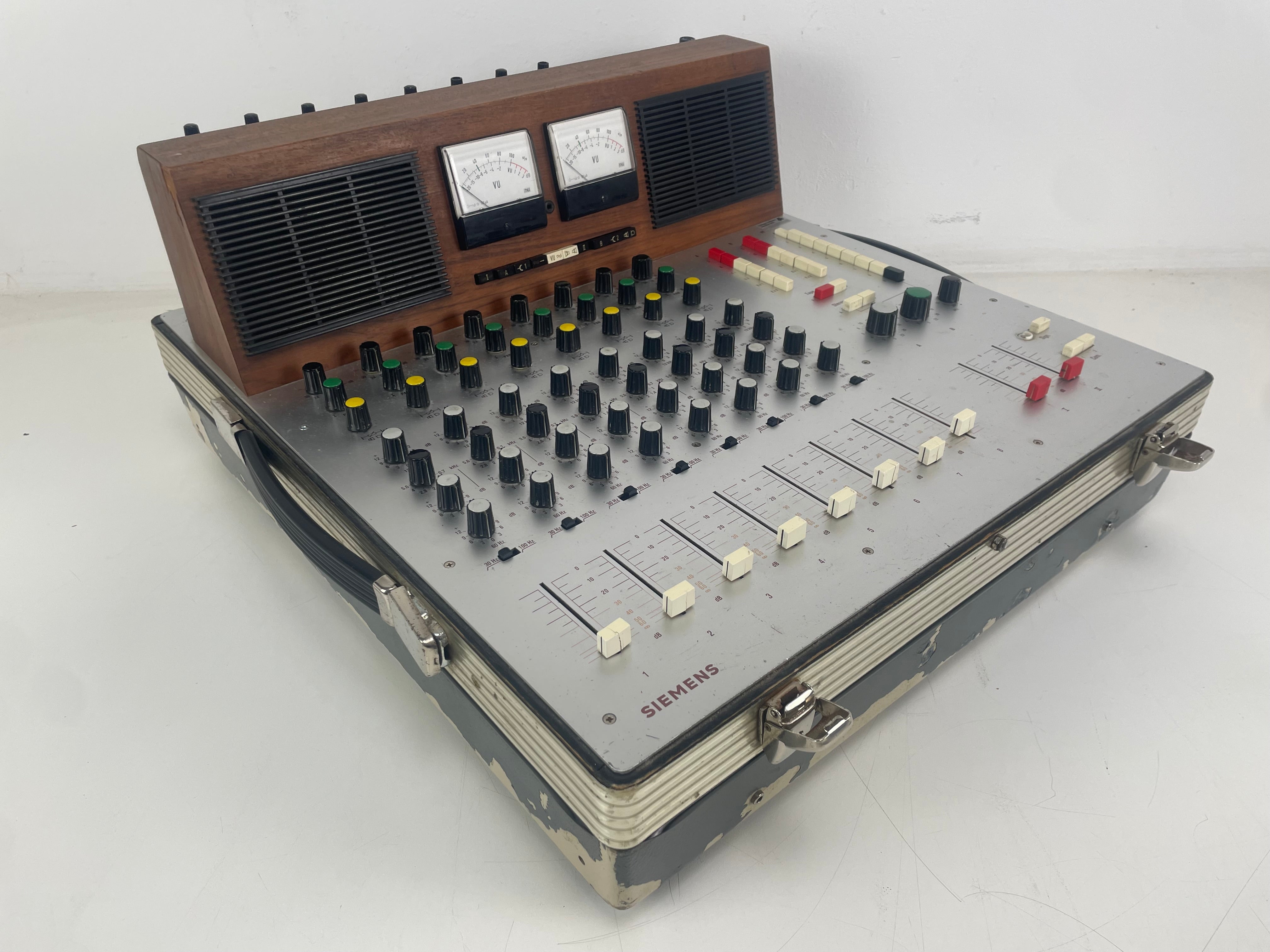

Siemens - WSW ELA 1208 - Analog Studio Mixer - Manual/Cables/PSU Serviced (Recapped)

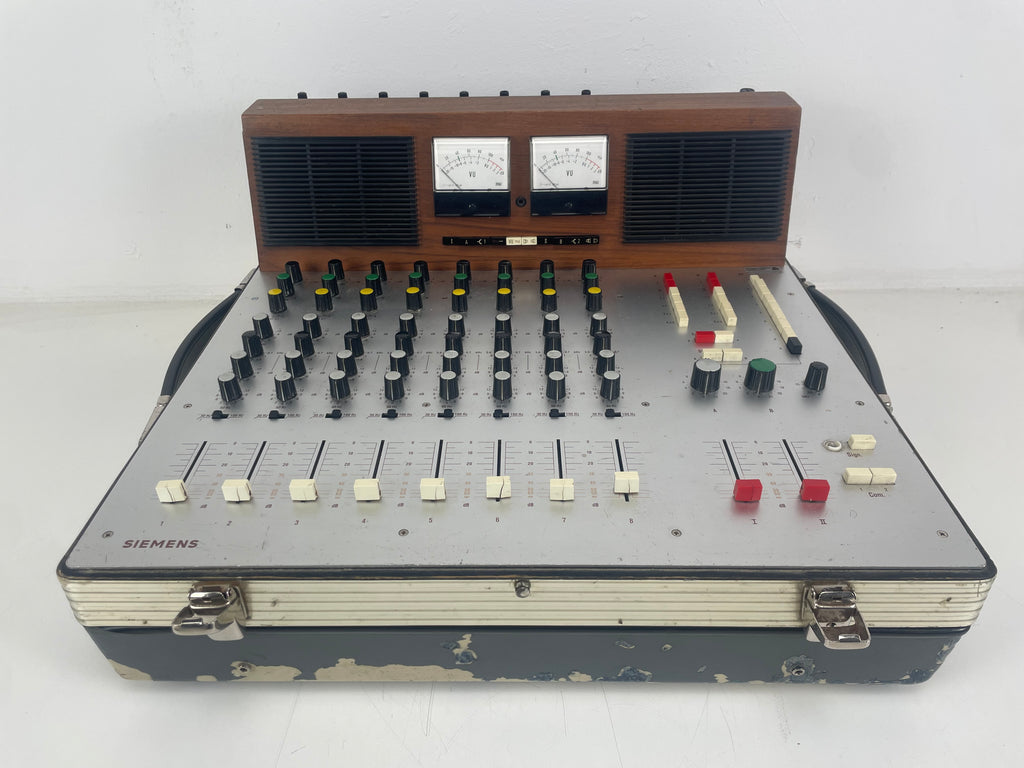

For sale: a Siemens WSW ELA 1208 analog studio mixer, a professional-grade vintage mixing console designed for broadcast, installation, and studio audio applications. This classic Siemens unit is known for its solid German engineering, reliable signal routing, and high-quality analog audio performance. It remains a sought-after piece for collectors, restoration projects, and vintage studio setups.

The mixer has been serviced and recapped to ensure stable operation, BY THE PREVIOUS OWNER.

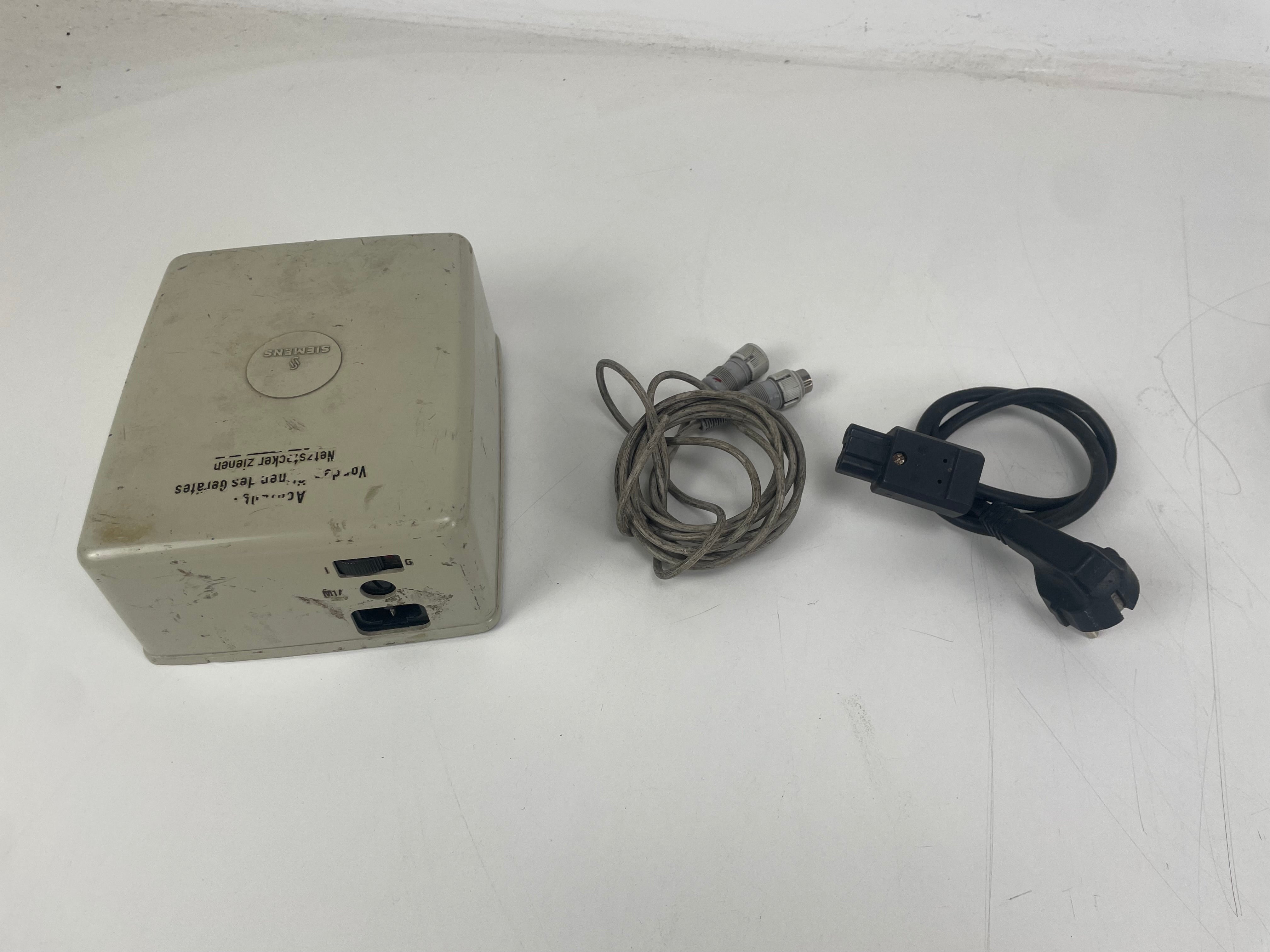

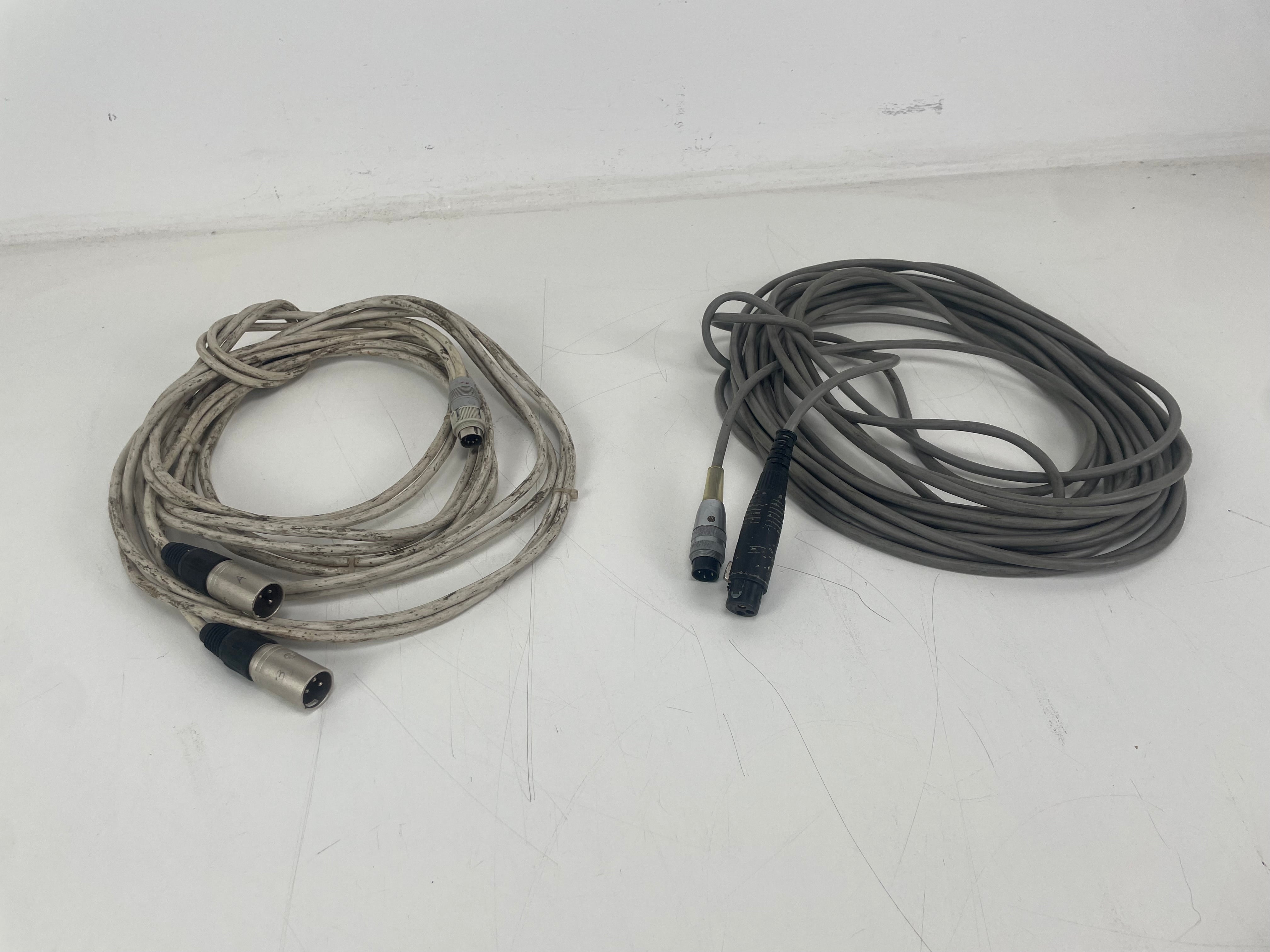

Unit Comes with the Manual (printed by us), few cables and the original powersupply.

''Due to the weight being 20/30KG or above, please ask us for a shipping quote before buying to get the best rates and options, currently shown shipping is estimated''

Cosmetic condition:

The unit is in used medium condition with visible age-related wear.

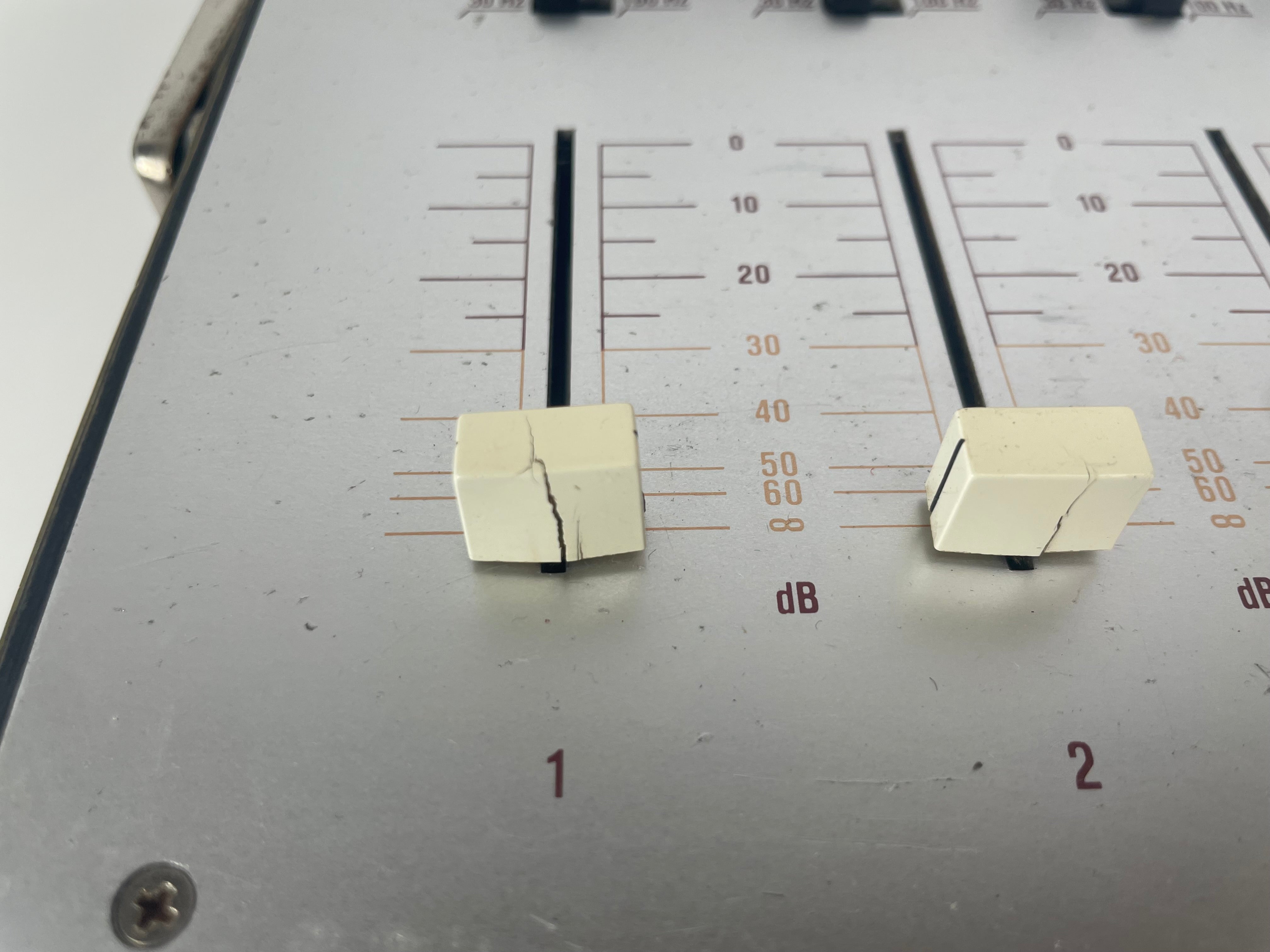

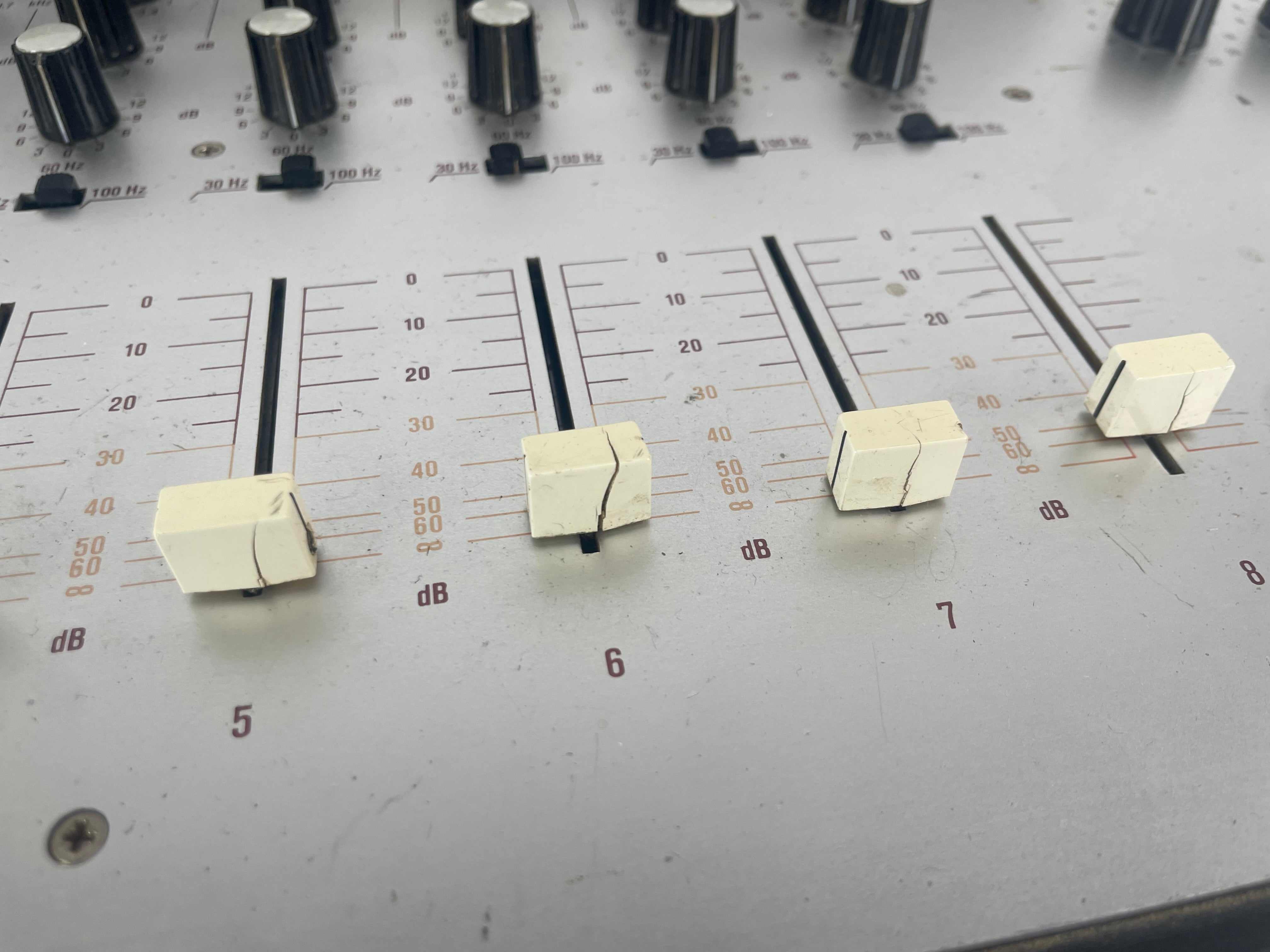

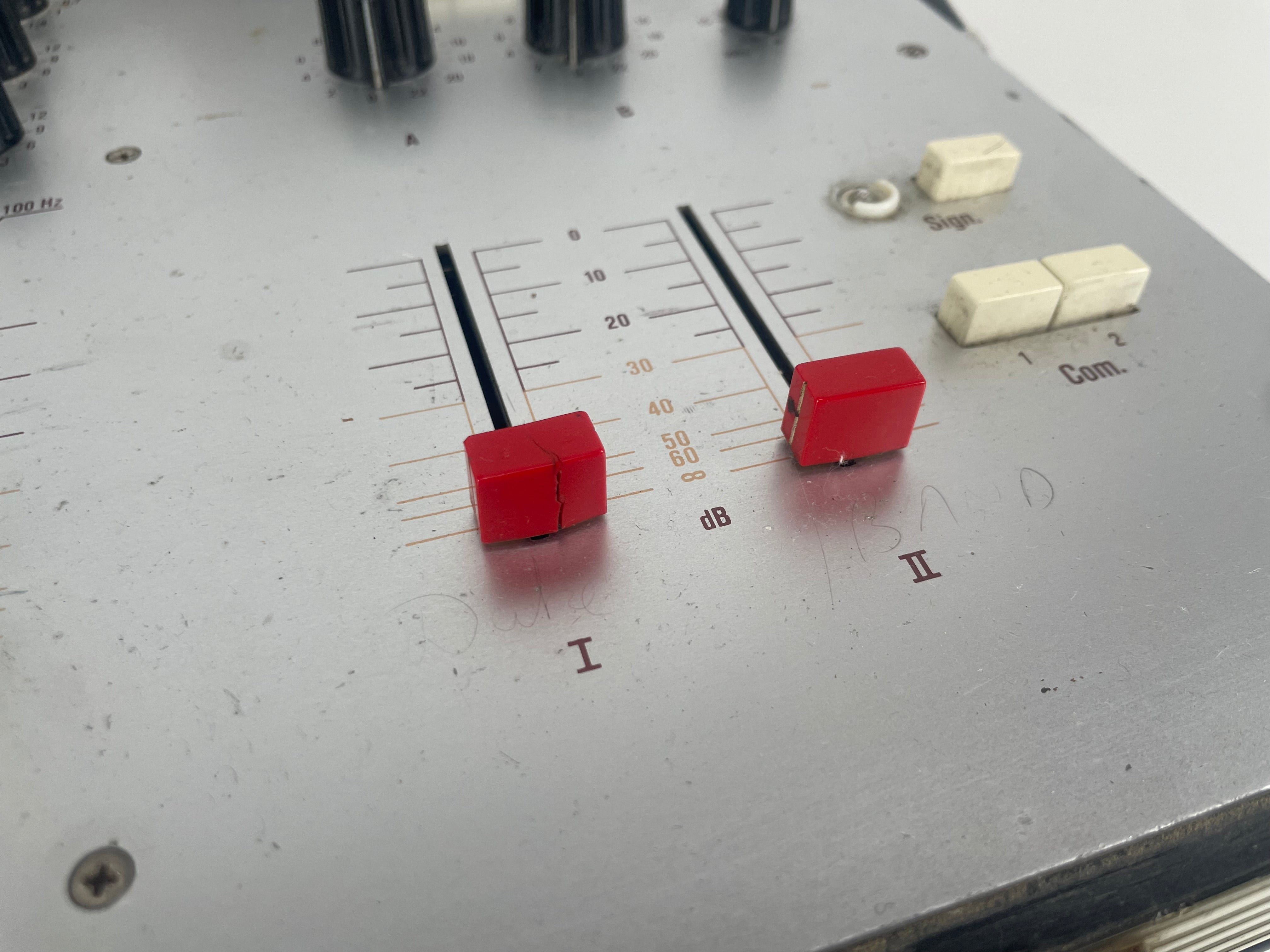

• Fader caps are cracked due to aging bakelite material

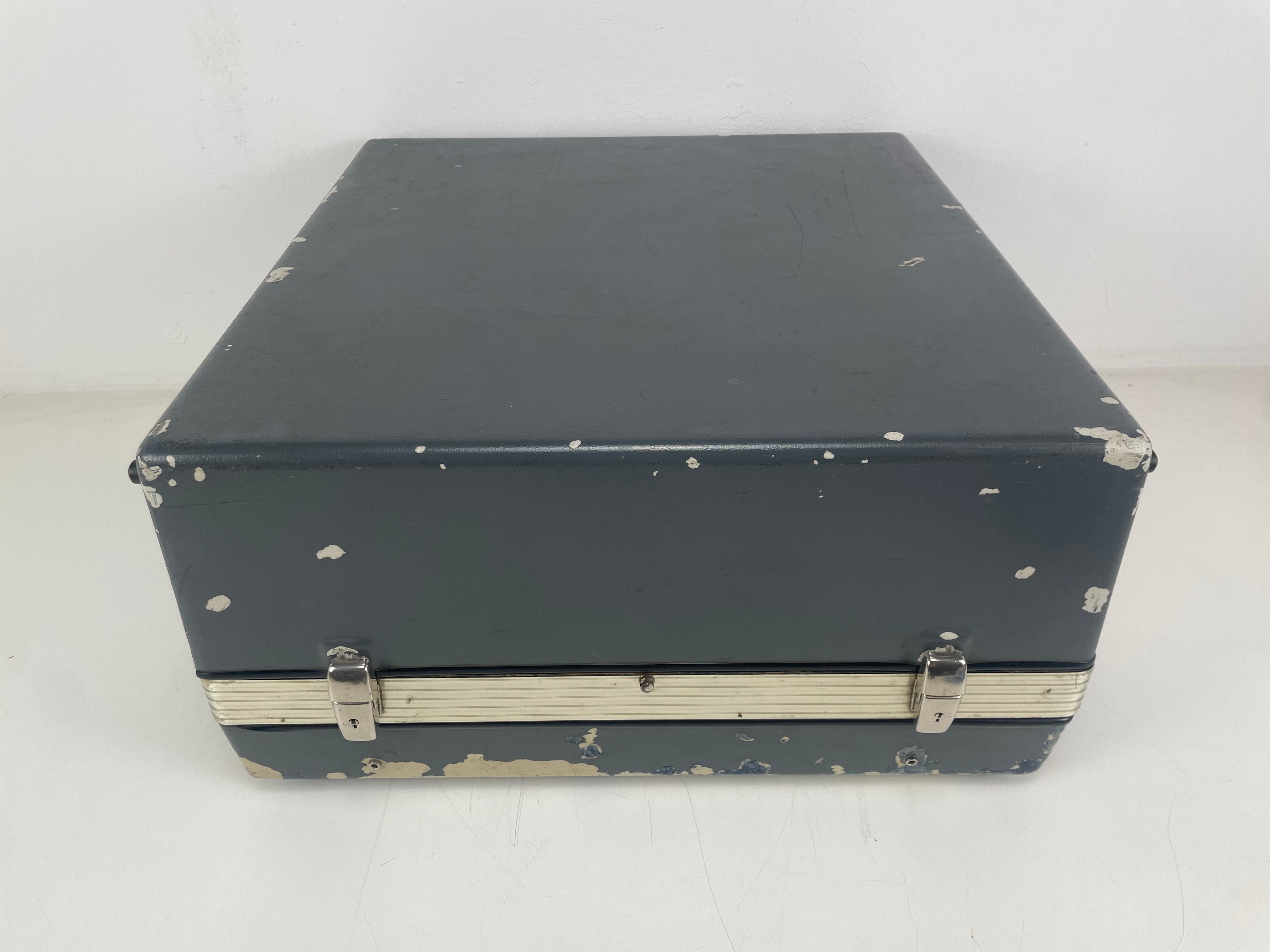

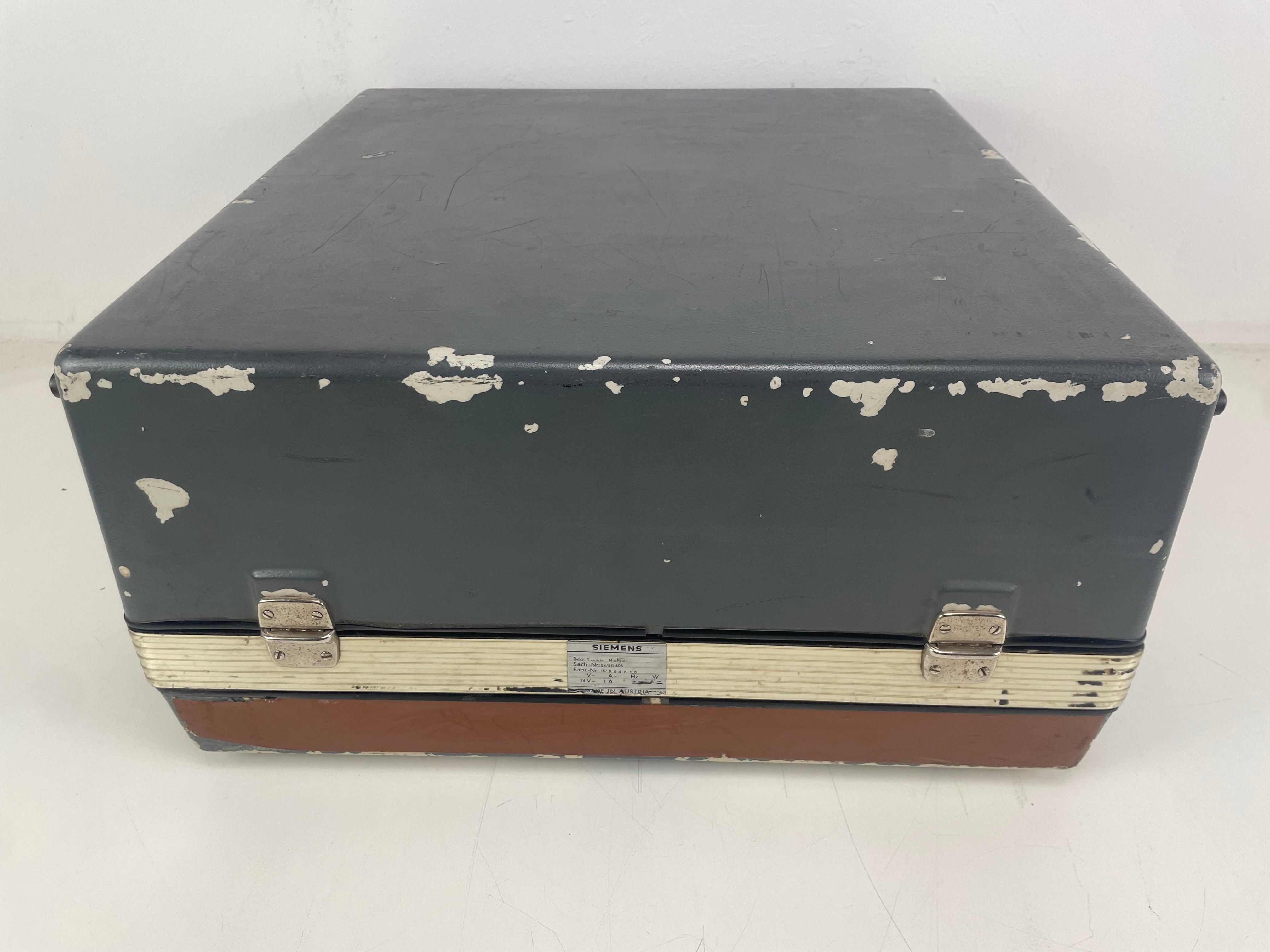

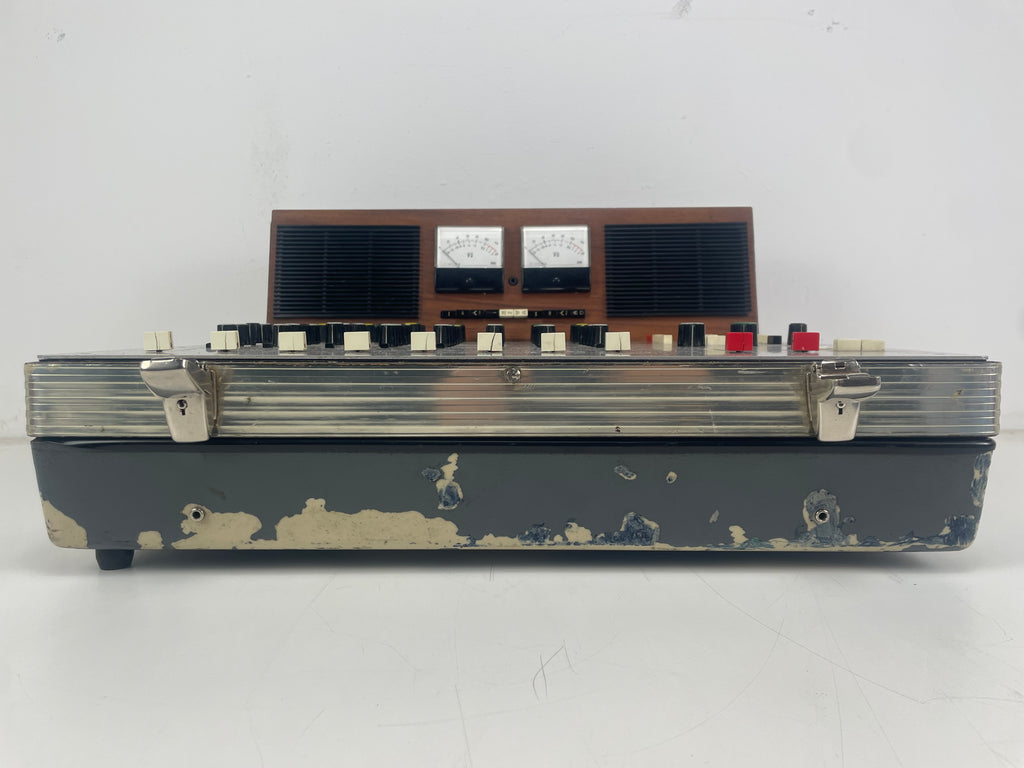

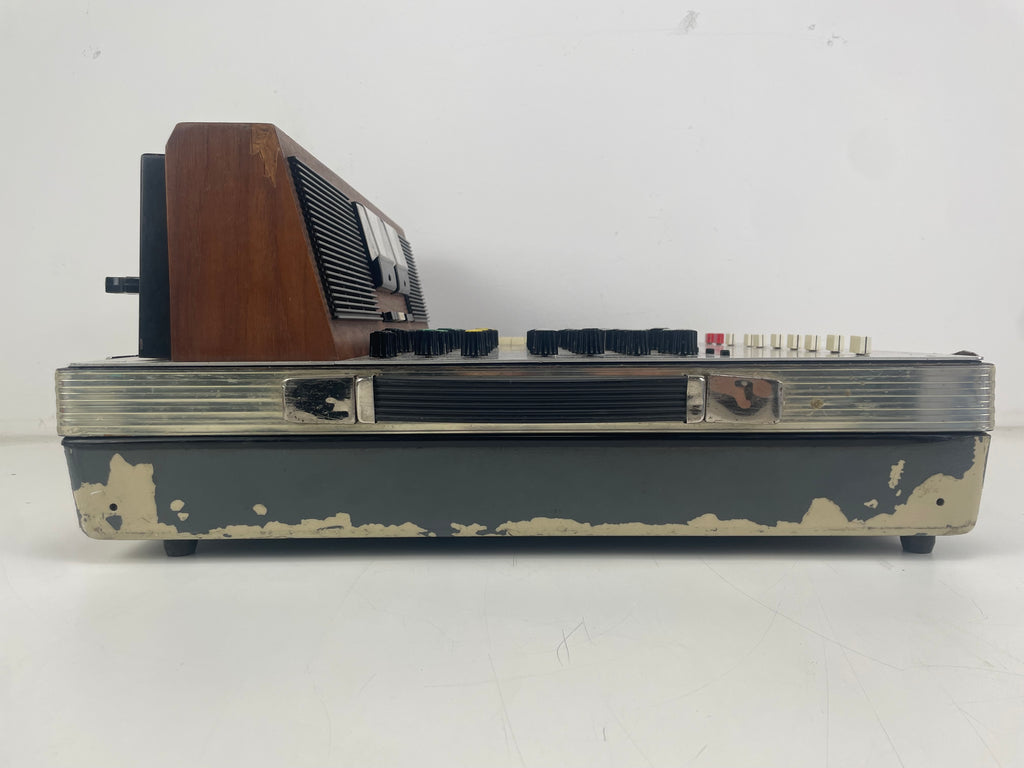

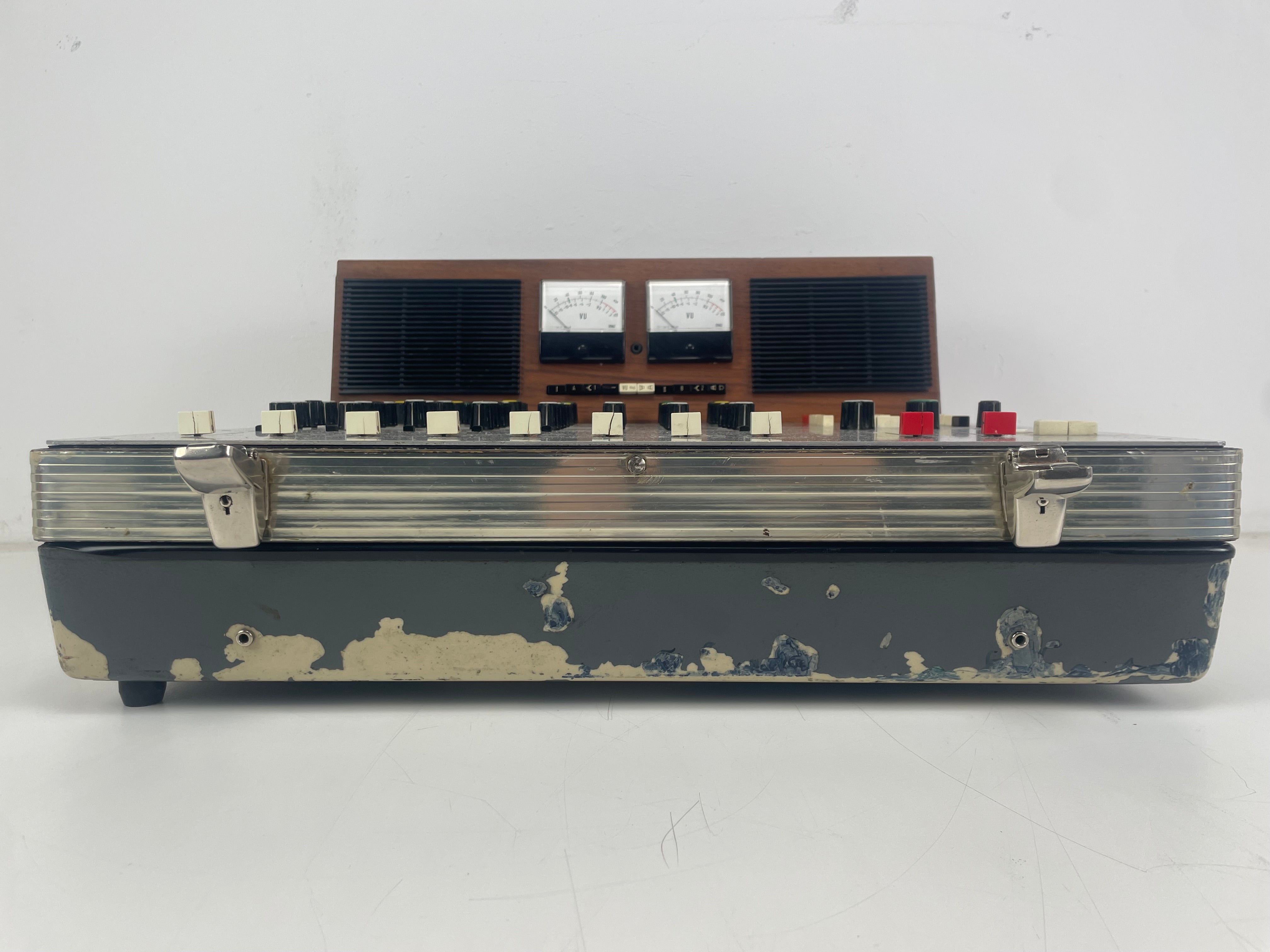

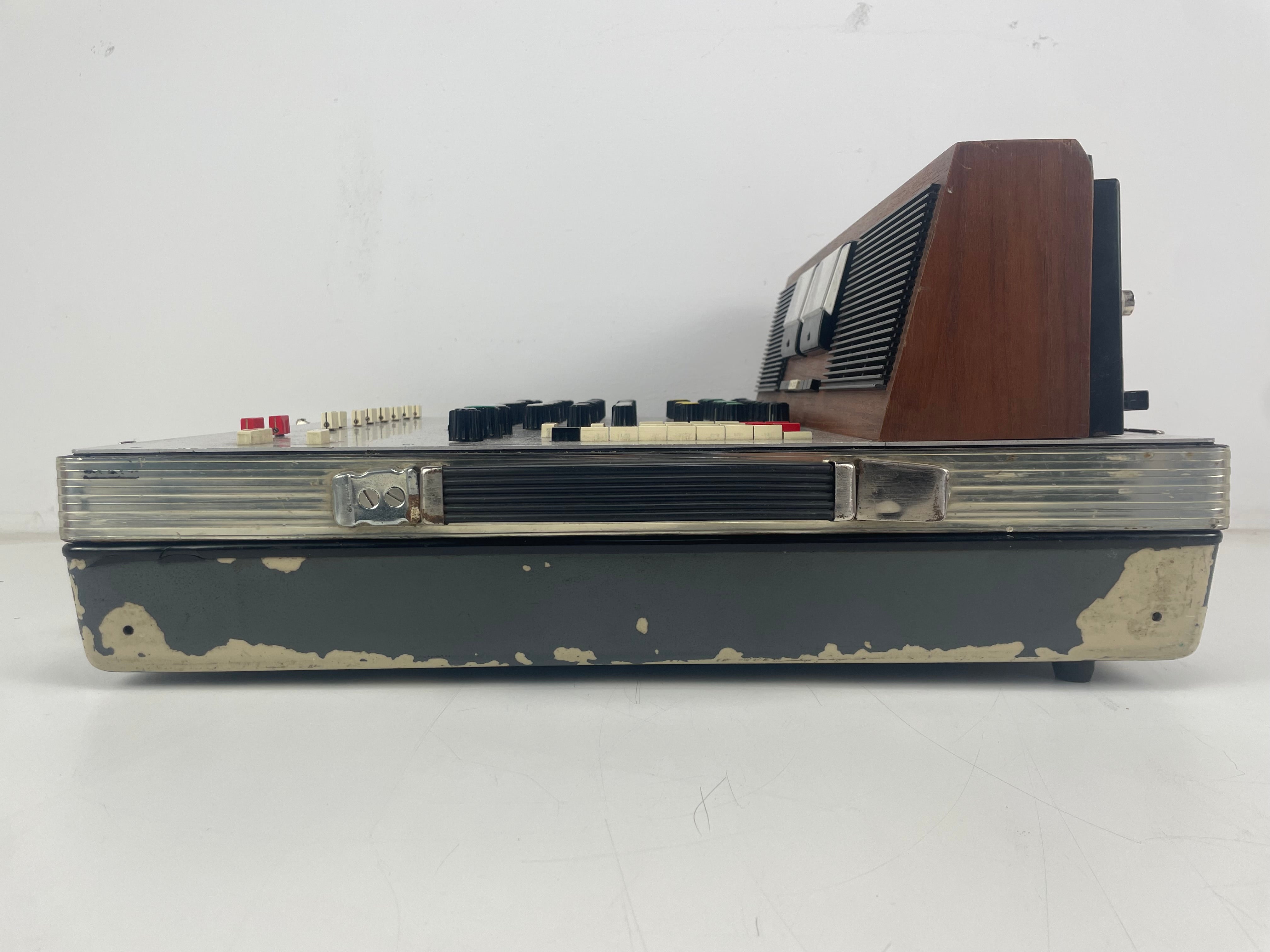

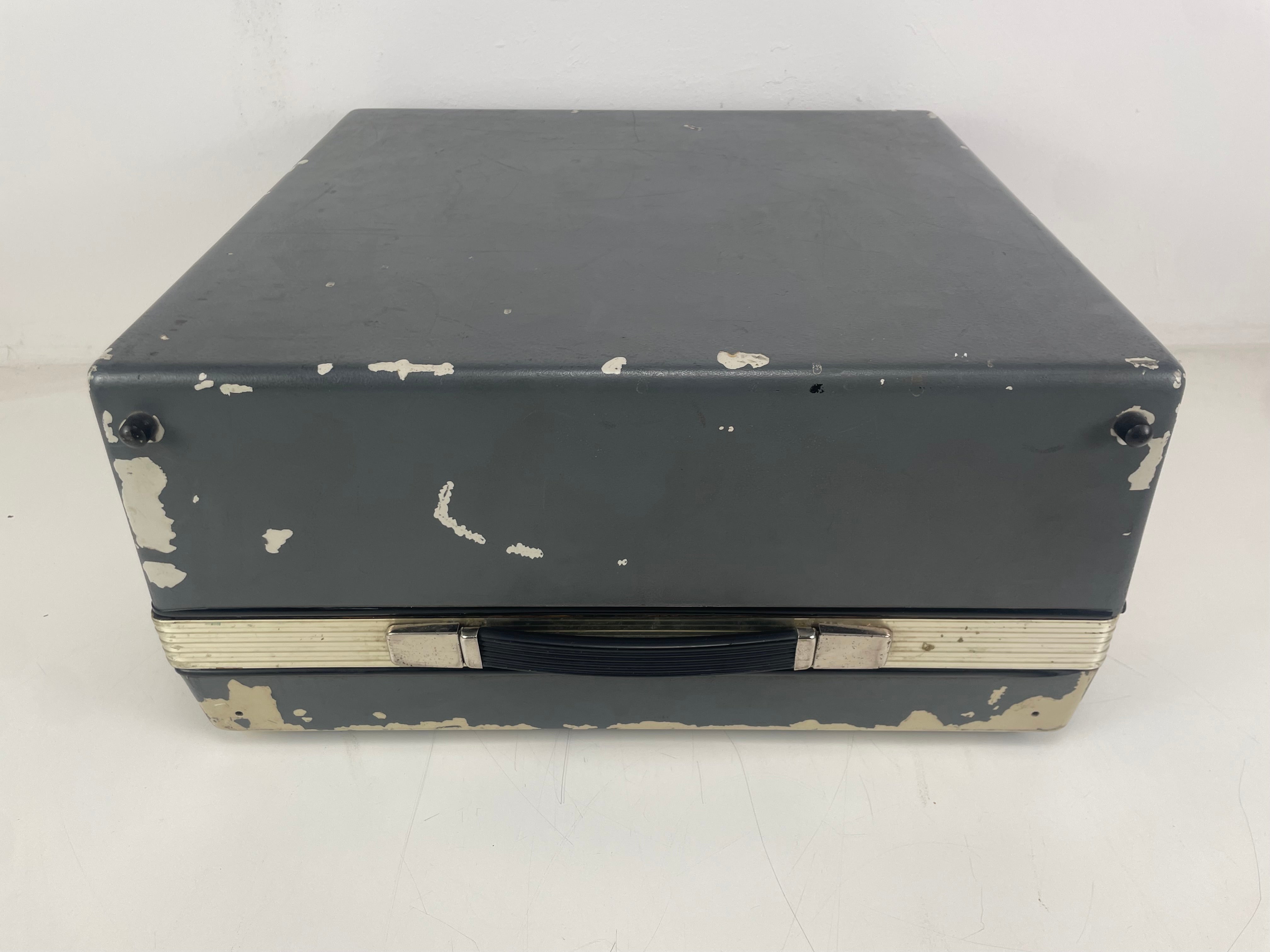

• Case shows scratches and scuffs
• Console surface has light wear consistent with age and use
• Overall structurally solid and functional

Functional status

• Fully working
• Recapped
• Ready for use or studio integration

Specs:

Specifications

• Model: Siemens Studiomischpult 8/2

• Type: Professional Analog Broadcast / Studio Mixer

• Configuration: 8 Input / 2 Output Mixing Console

• Construction: Modular Mini-Module Design

• Operation: Mono and Stereo

• Microphone Inputs: 8

• Program Outputs: 2 Summing Outputs

• Additional Output: 1 Echo / Playback Output

• Monitoring: Integrated Studio Monitoring and Signal Facilities

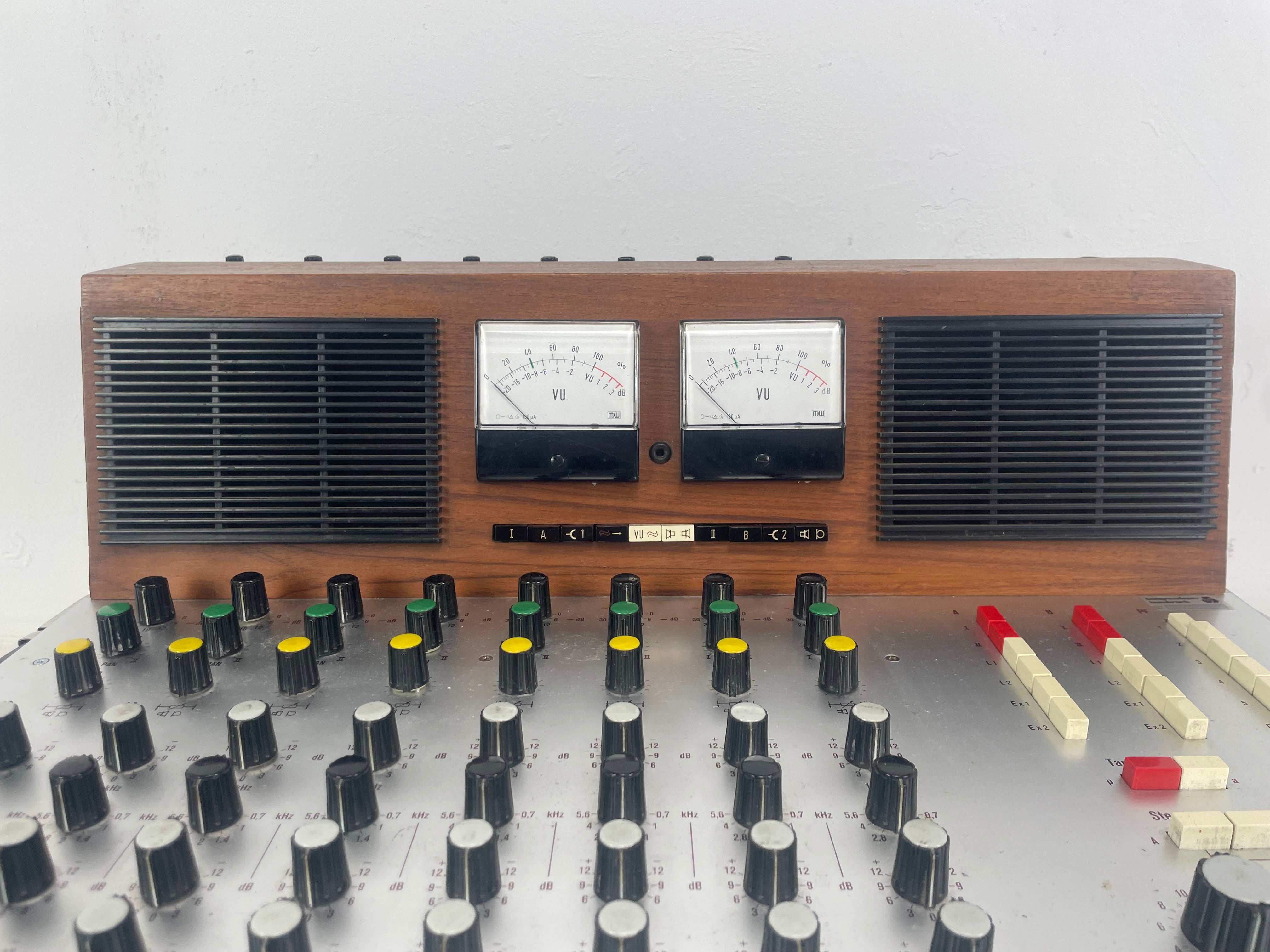

• VU Meters: Dual Professional VU Meters

• Talkback System: Integrated 2-Command Talkback Amplifier

• Phantom Power: 20 V DC microphone powering

Input Specifications

• Microphone Input Impedance: 600 Ω

• Line Input Impedance: 7 kΩ

• Input Sensitivity (Mic High): -63 dBm

• Input Sensitivity (Mic Low): -53 dBm

• Input Sensitivity (Line): -12 dBm

• Frequency Response: 30 Hz – 15 kHz

Output Specifications

• Output Impedance: ≤ 30 Ω

• Maximum Output Level: +6 dBm

• Nominal Output Level: 0 dBm (775 mV)

• Headphone Output: 2 x 400 mW @ 4 Ω

Equalization

• Bass Control: ±12 dB @ 60 Hz

• Treble Control: ±12 dB @ 12 kHz

• 7-Preset Frequency EQ: Selectable boost/cut points at:

  • 0.7 kHz

  • 1.0 kHz

  • 1.4 kHz

  • 2.0 kHz

  • 2.8 kHz

  • 4.0 kHz

  • 5.6 kHz

Performance

• Distortion (THD):

  • < 0.5% (normal operation)

  • < 1% (overload limit)

• Noise Reduction / Crosstalk:

  • Up to 67 dB

• Monitoring Frequency Response: 30 Hz – 15 kHz

• Temperature Range: -25°C to +70°C

Power Requirements

• Supply Voltage: 22 – 30 V DC

• Nominal Voltage: 24 V DC

• Power Consumption: Approx. 24 W

Physical Specifications

Portable Case Version

• Dimensions: 500 × 275 × 305 mm

• Weight: Approx. 30 kg

Tabletop Version

• Dimensions: 500 × 100 × 200 mm

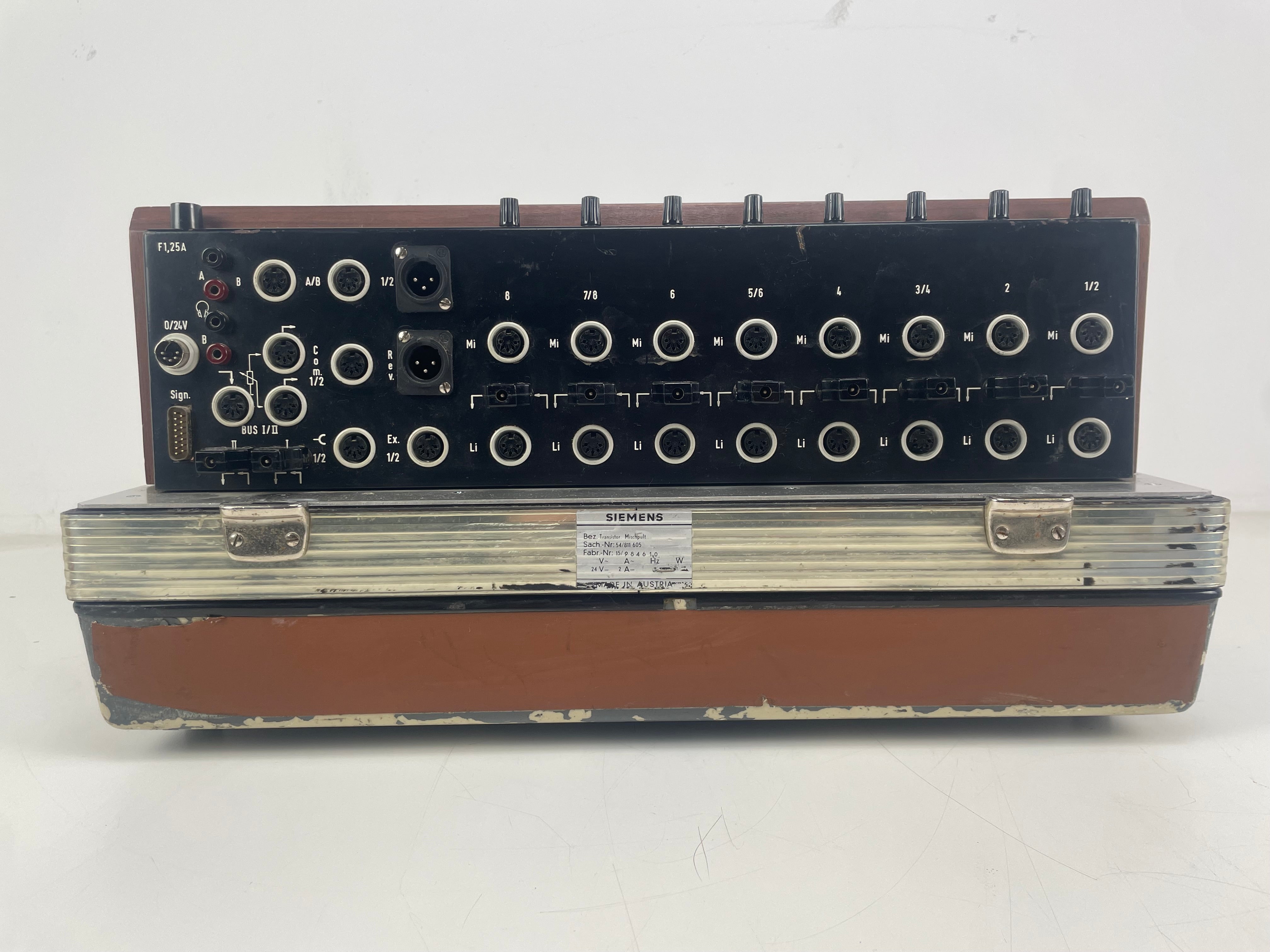

Connections

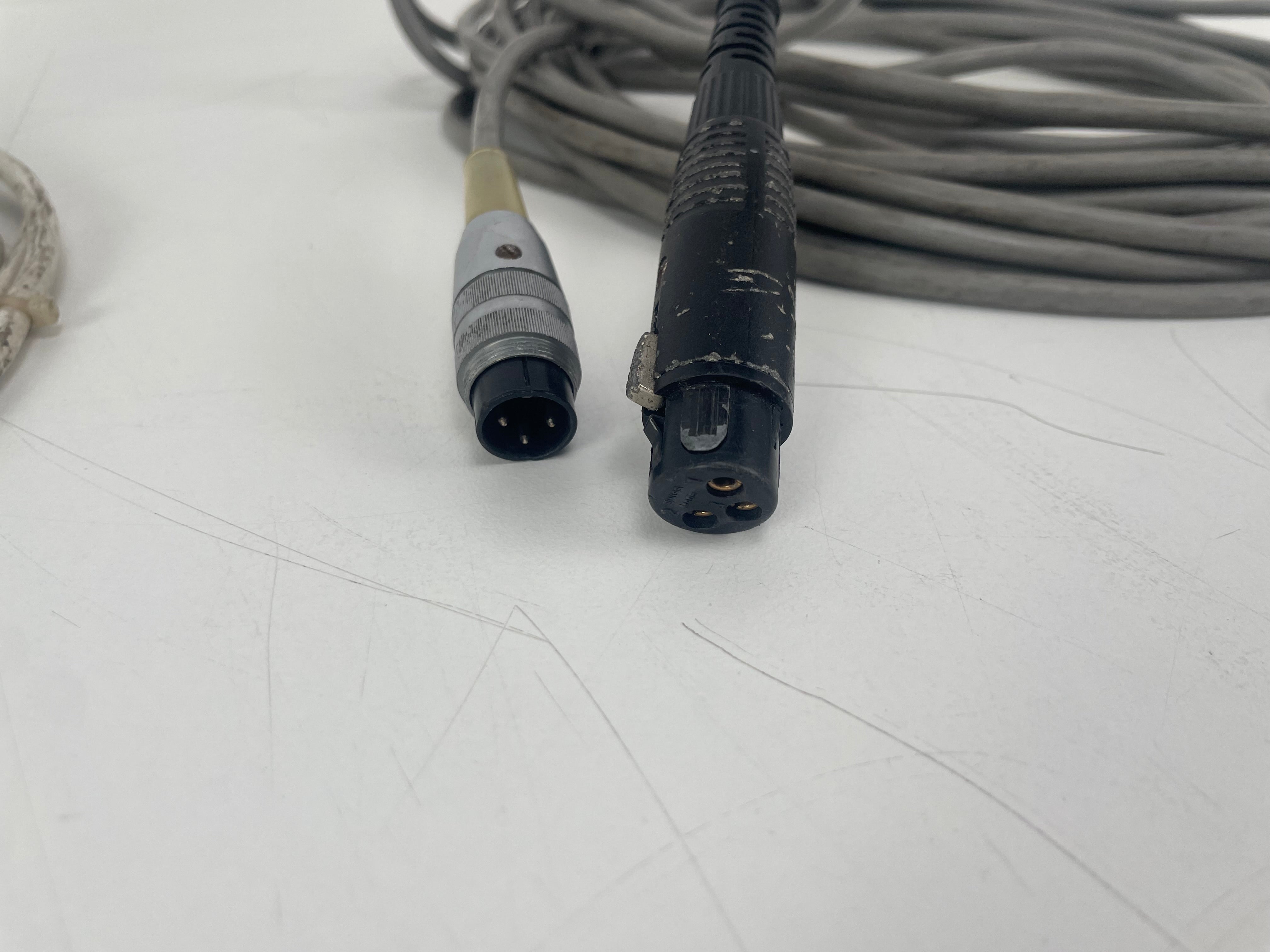

• DIN, LEMO, or Cannon (XLR-type) connector options

• 8 microphone/line inputs

• Program outputs

• Monitoring outputs

• Talkback connections

• External summing bus linking capability for multiple consoles

Features

• Broadcast-quality design

• Portable or fixed-installation operation

• Internal limiter capability

• Selectable input sensitivity

• Modular service-friendly construction

• Compatible with external monitor and control equipment

• Designed for radio, television, recording, and public-address applications

Manufactured by Siemens AG Österreich as a professional broadcast and recording mixer from the 1970s.

Dimensions (LxWxH): 500 × 100 × 200 mm
Weight: 34 Kg
Volts: 220v (If it’s 200V or higher, you’ll need an adapter in the USA)
