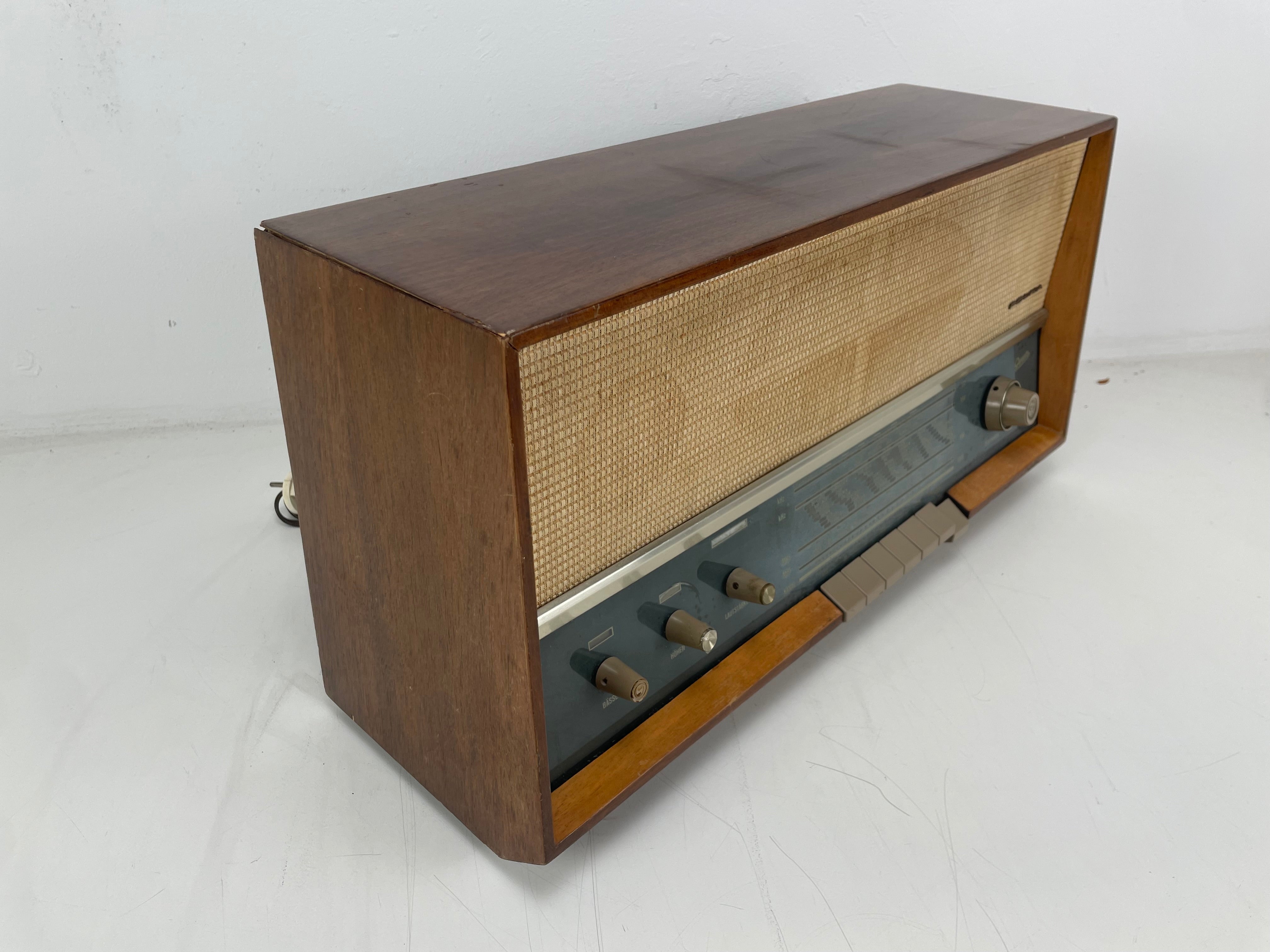

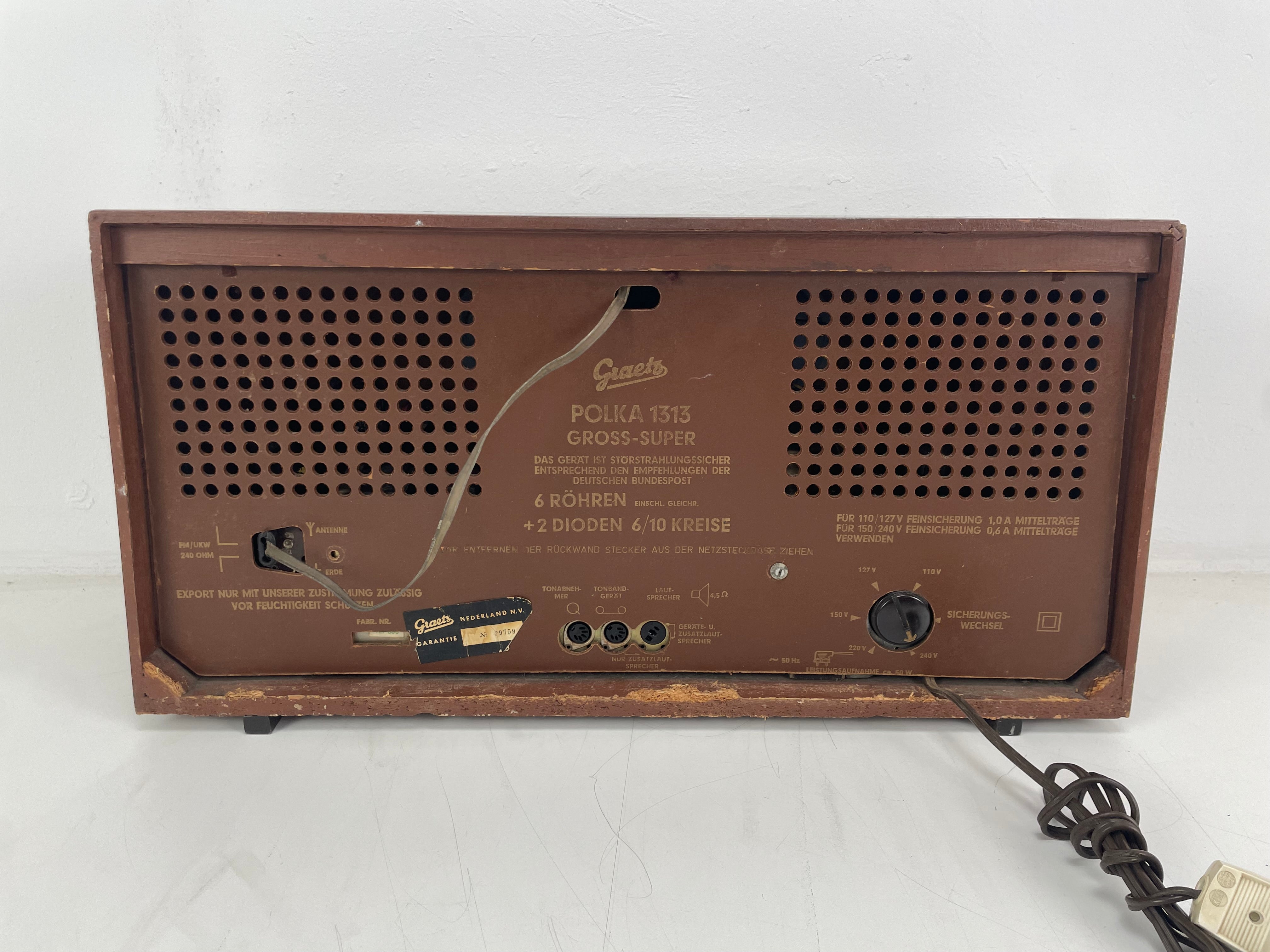

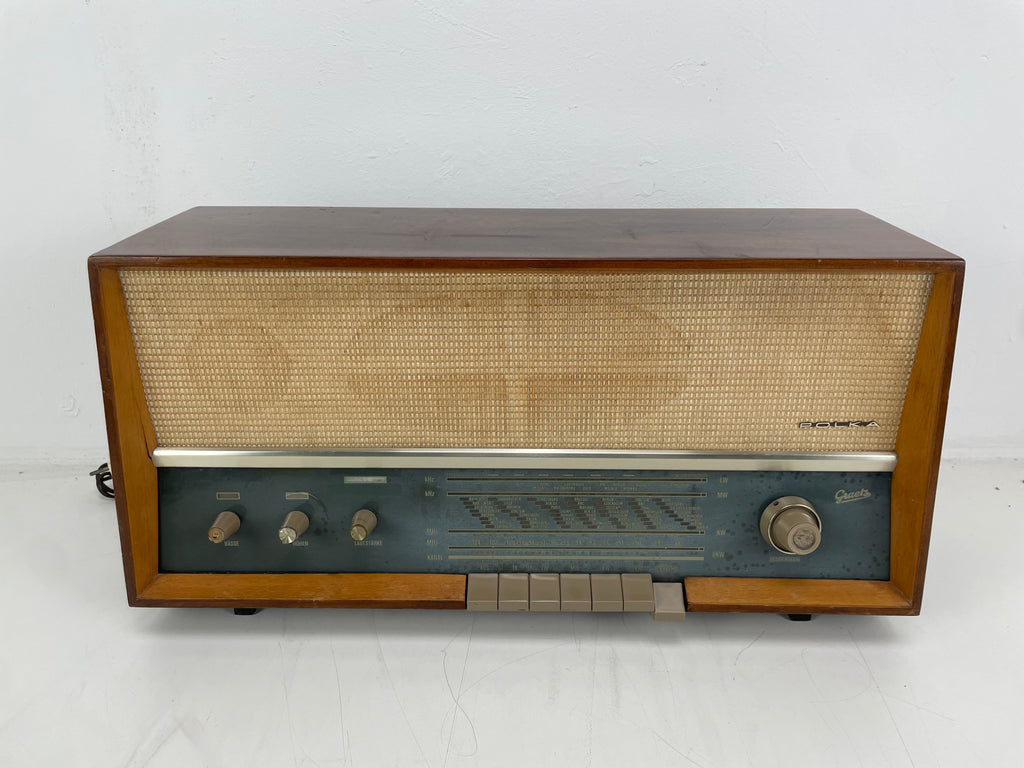

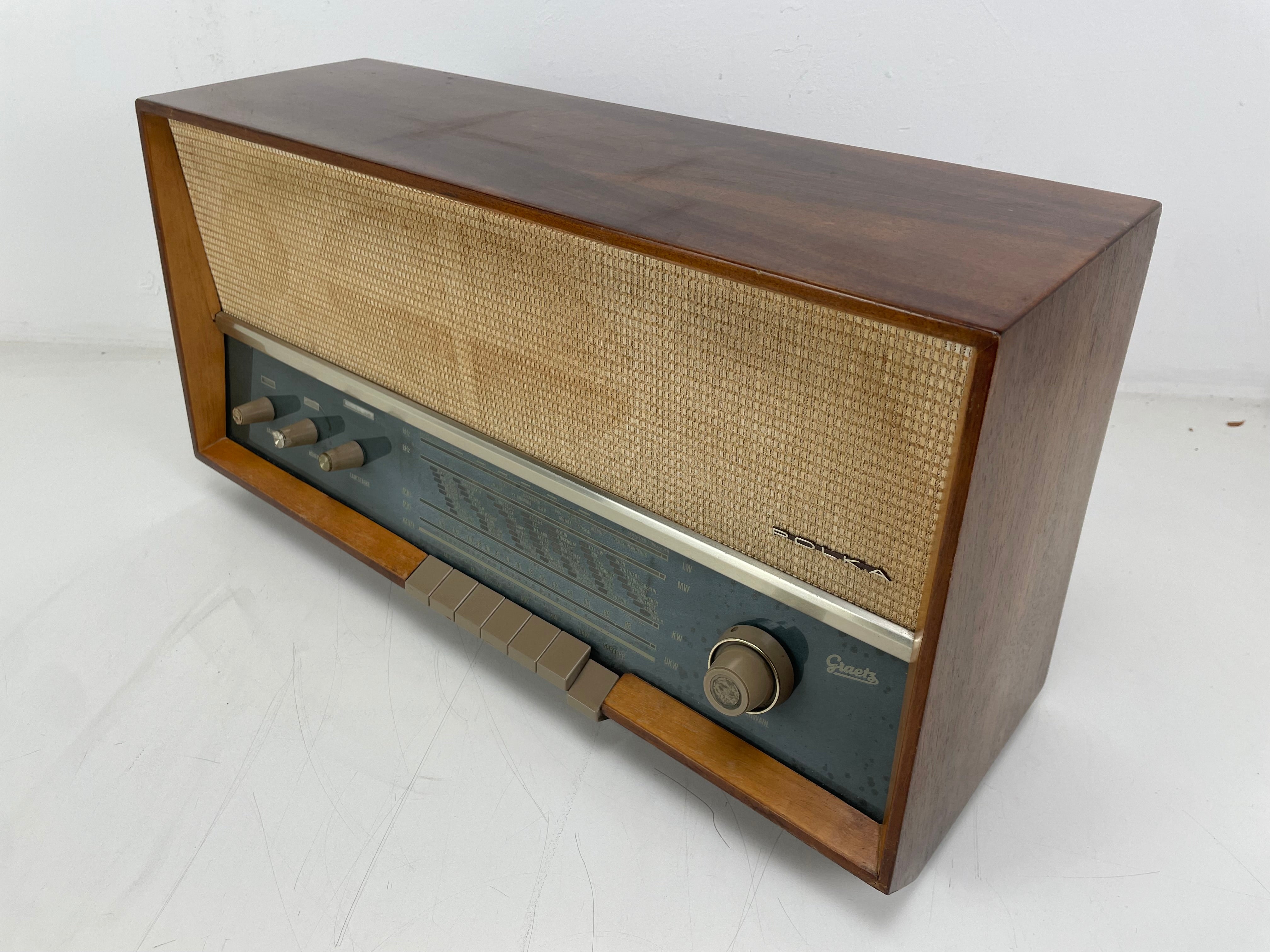

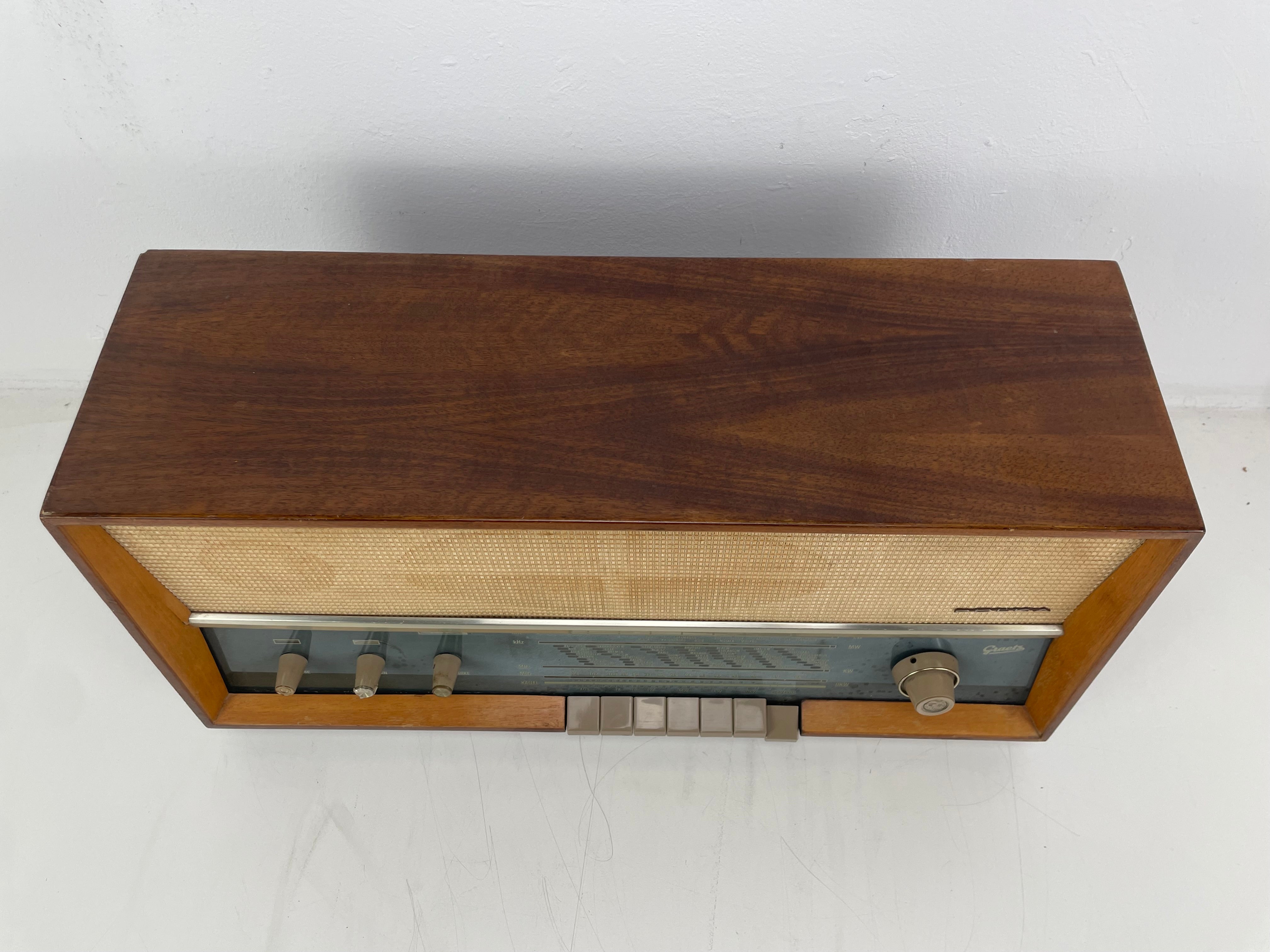

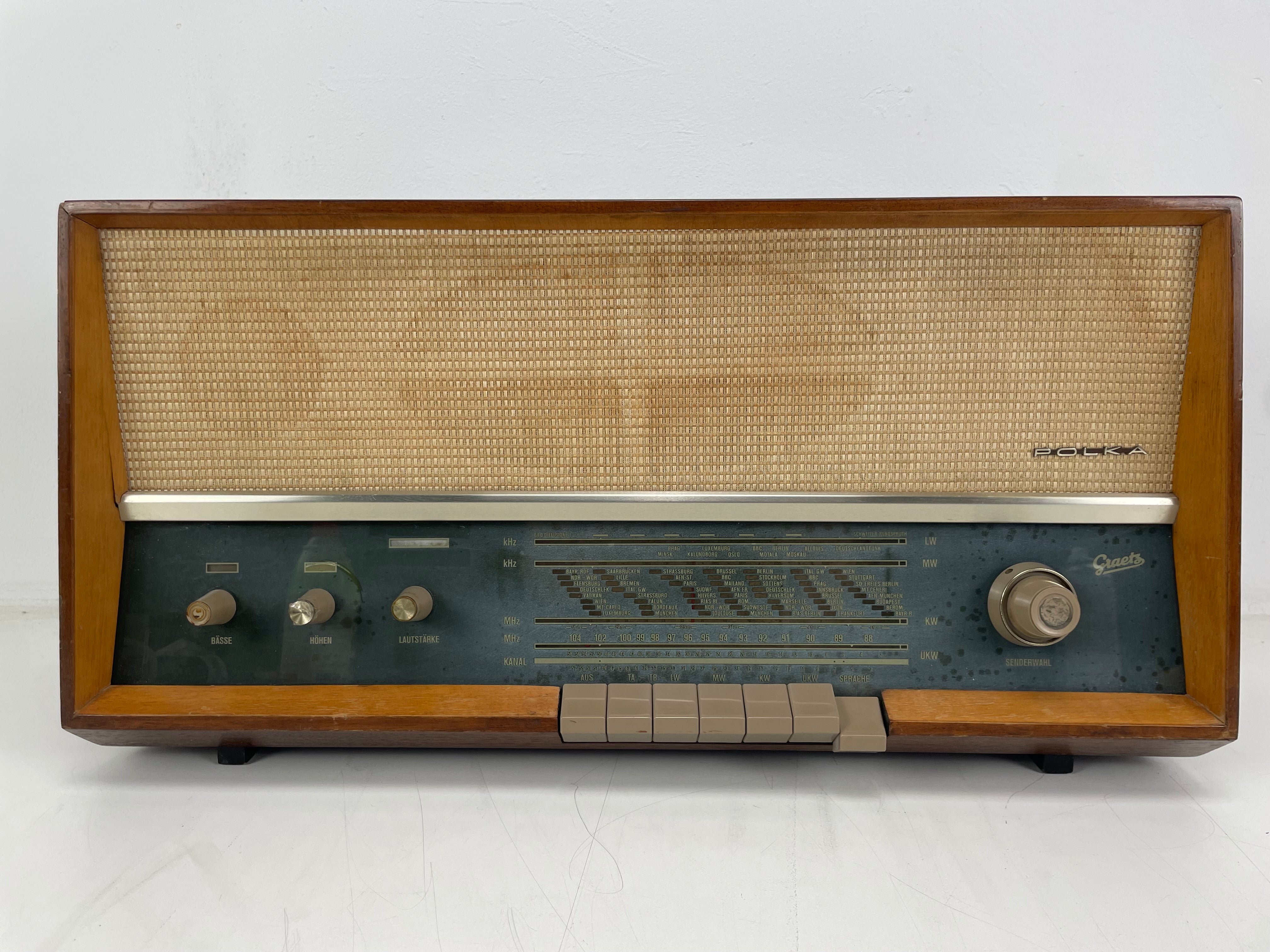

Polka - 1313 – Tube Radio – Vintage Valve Receiver

For sale: a Polka 1313 tube radio, a charming vintage valve receiver from the golden era of radio broadcasting.

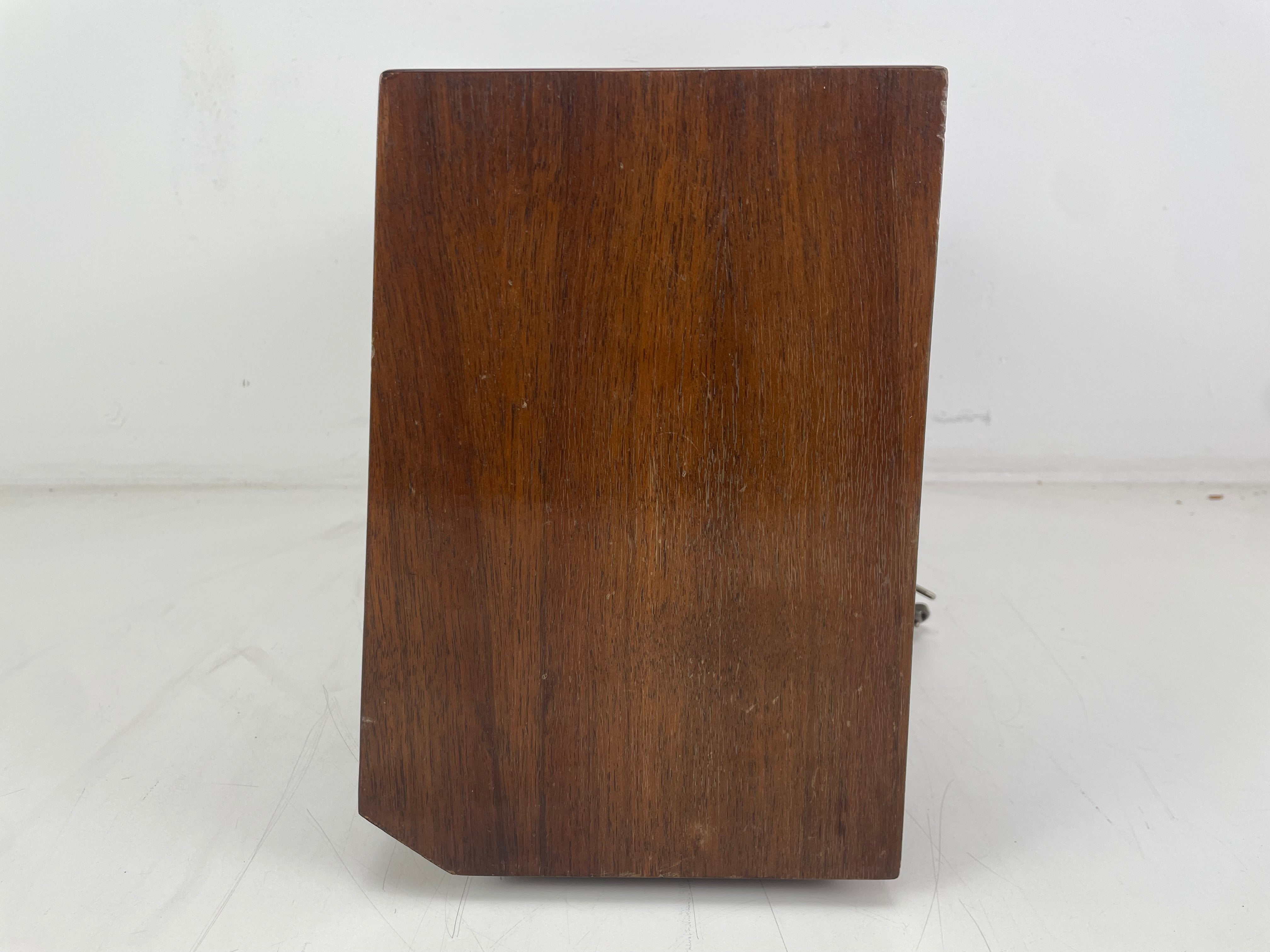

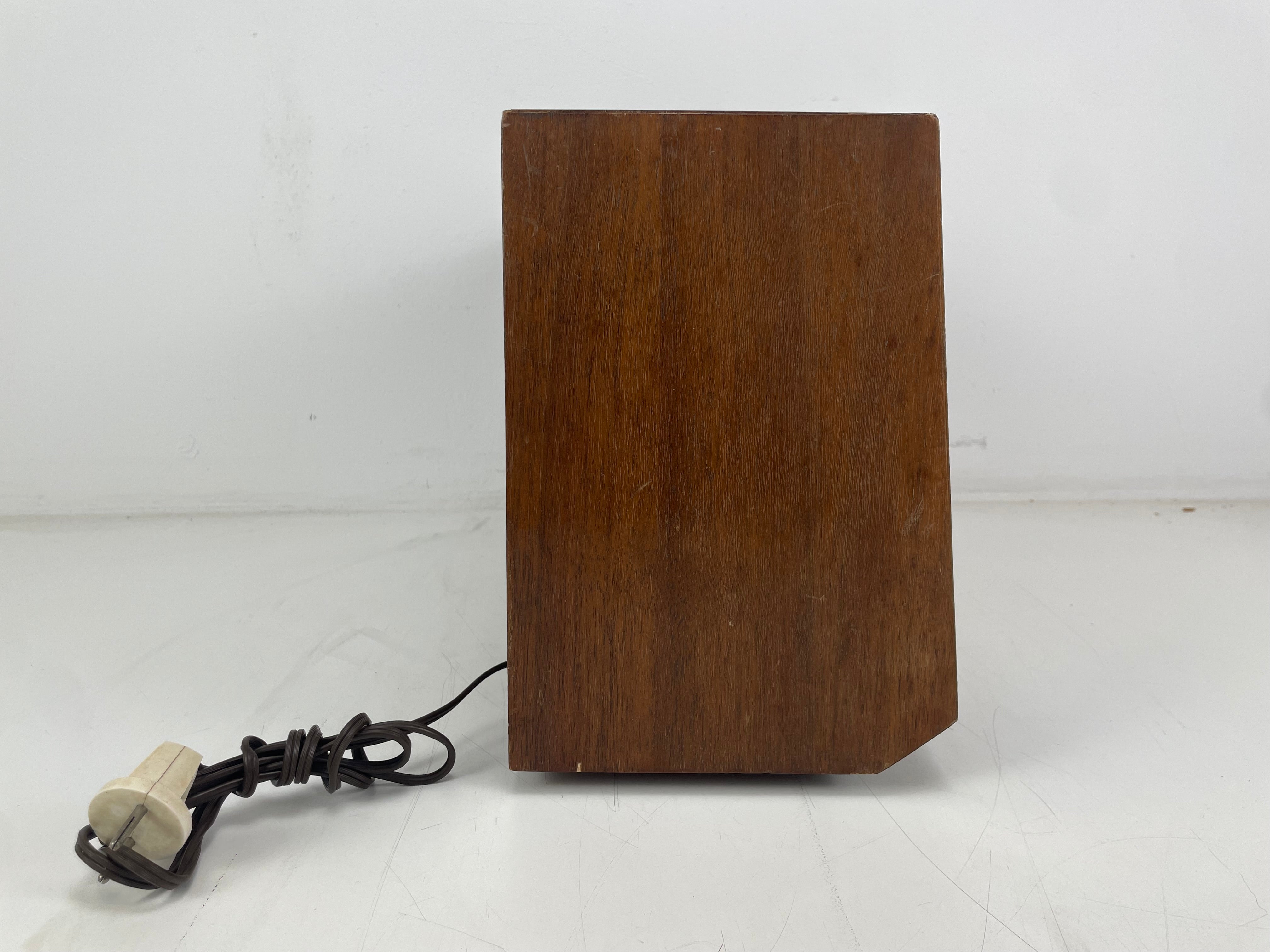

Cosmetic condition:

The radio is in minor damaged vintage condition.

• Light cosmetic wear consistent with age
• Minor scratches and marks on the cabinet
• General signs of use and storage
• Overall attractive vintage appearance

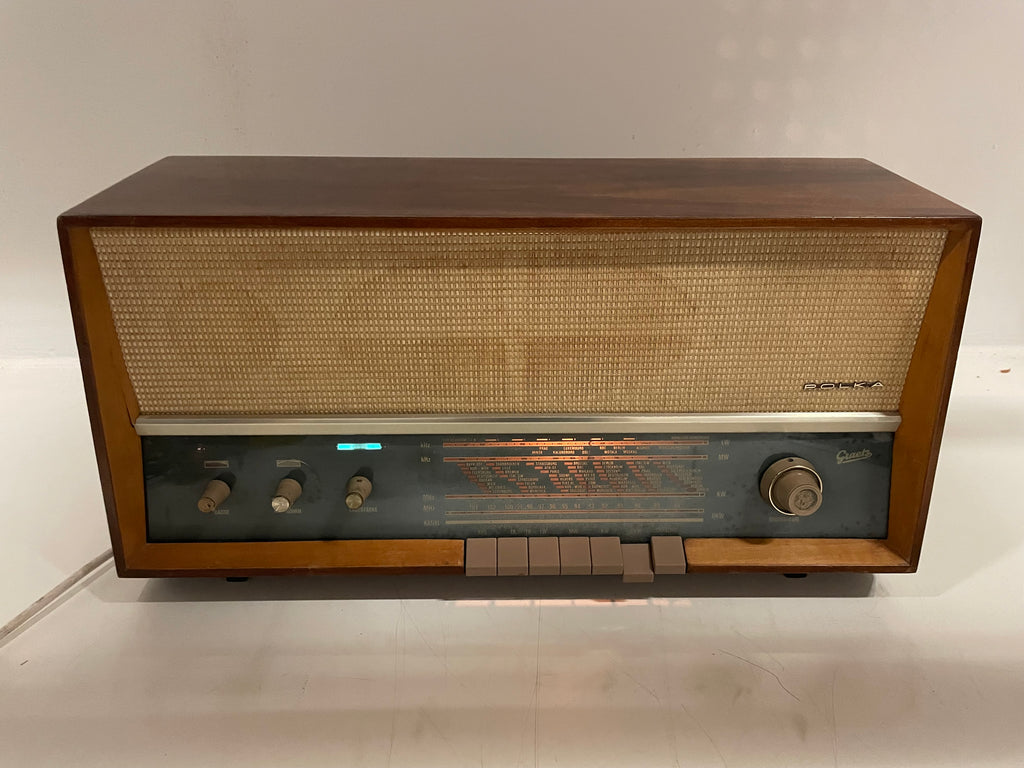

📻 Functional status

✔ Fully working
✔ Radio reception tested
✔ Tube circuitry operational
✔ Ready for use or display

Specs:

• Wavebands: FM (UKW), Shortwave (SW/KW), Medium Wave (MW), Long Wave (LW)

• Receiver Principle: Superheterodyne

• Intermediate Frequencies:

  • AM: 460 kHz

  • FM: 10.7 MHz

• Tuned Circuits:

  • 6 AM circuits

  • 10 FM circuits

Tube Complement

• ECC85 – FM tuner

• ECH81 – Frequency changer

• EBF89 – IF amplifier/detector

• ECL86 – Audio output amplifier

• EM84 – Magic Eye tuning indicator

Semiconductors

• 2 × AA113 Germanium Diodes

• B250C100 Rectifier

Audio Section

• Output Power: 4 Watts

• Loudspeakers:

  • 1 × 26 × 13 cm permanent-dynamic speaker

  • 1 × 75 mm electrostatic tweeter

• Separate Bass and Treble Controls

• Speech / Music Tone Switch

• Loudness Compensation Circuit

Features

• Magic Eye tuning indicator (EM84)

• Separate AM and FM tuning systems

• Illuminated FM scale

• Ferrite antenna for MW/LW reception

• Built-in FM dipole antenna

• External connections for:

  • Record player (PU/TA)

  • Tape recorder (TB)

  • External speaker

Dimensions (LxWxH): 570 x 290 x 195 mm
Weight: 10 Kg
Volts: 110-240v (If it’s 200V or higher, you’ll need an adapter in the USA)

We ship worldwide.
For international shipping, import fee's apply. These vary per countrie, and are for the buyer to pay.
-Shipping in the EU up to 30 KG (max)
-Shipping outside of the EU up to 20 KG (max) Shown costs might vary. Please ask us for a shipping quote for the best rates!
-We kindly ask you to reach out for the best shiping rates. As rates vary per shipper, we can ask custom shipping quotes.

Please note: ‘’Whenever an item exceeds the weight noted above. Please ask for a shipping quote before making a purchase. The shipping costs are estimated in our shop because we do not know the shipping address.

Picking up the item is also possible. It can be picked up in Alkmaar

Delivery by us is also possible in some cases. Please reach out to us for more information about deliveries

State of listing: If a listing is listed ''for parts or not working'' returns are not accepted.

When we offer our products with the notice ''Serviced'' or ''Fully serviced'' that means the device is either ''serviced'' with a new belt, and cleaned the pots, Or ''Fully serviced'' recapped, Quiescent current adjusted etc as expected from a full service
