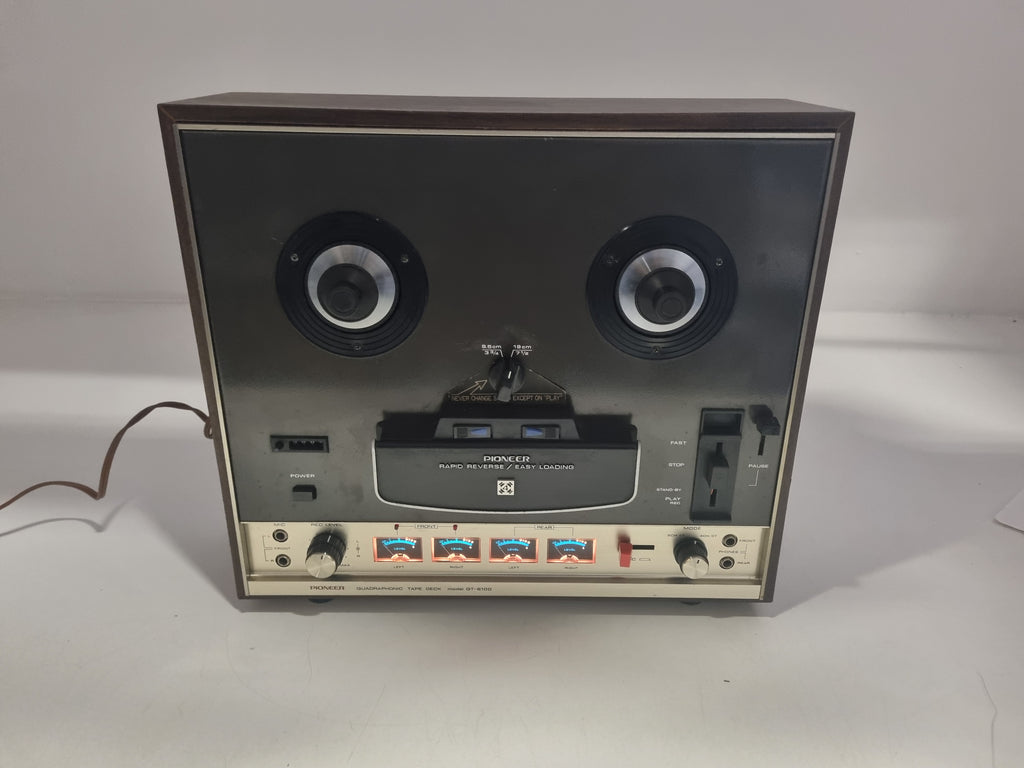

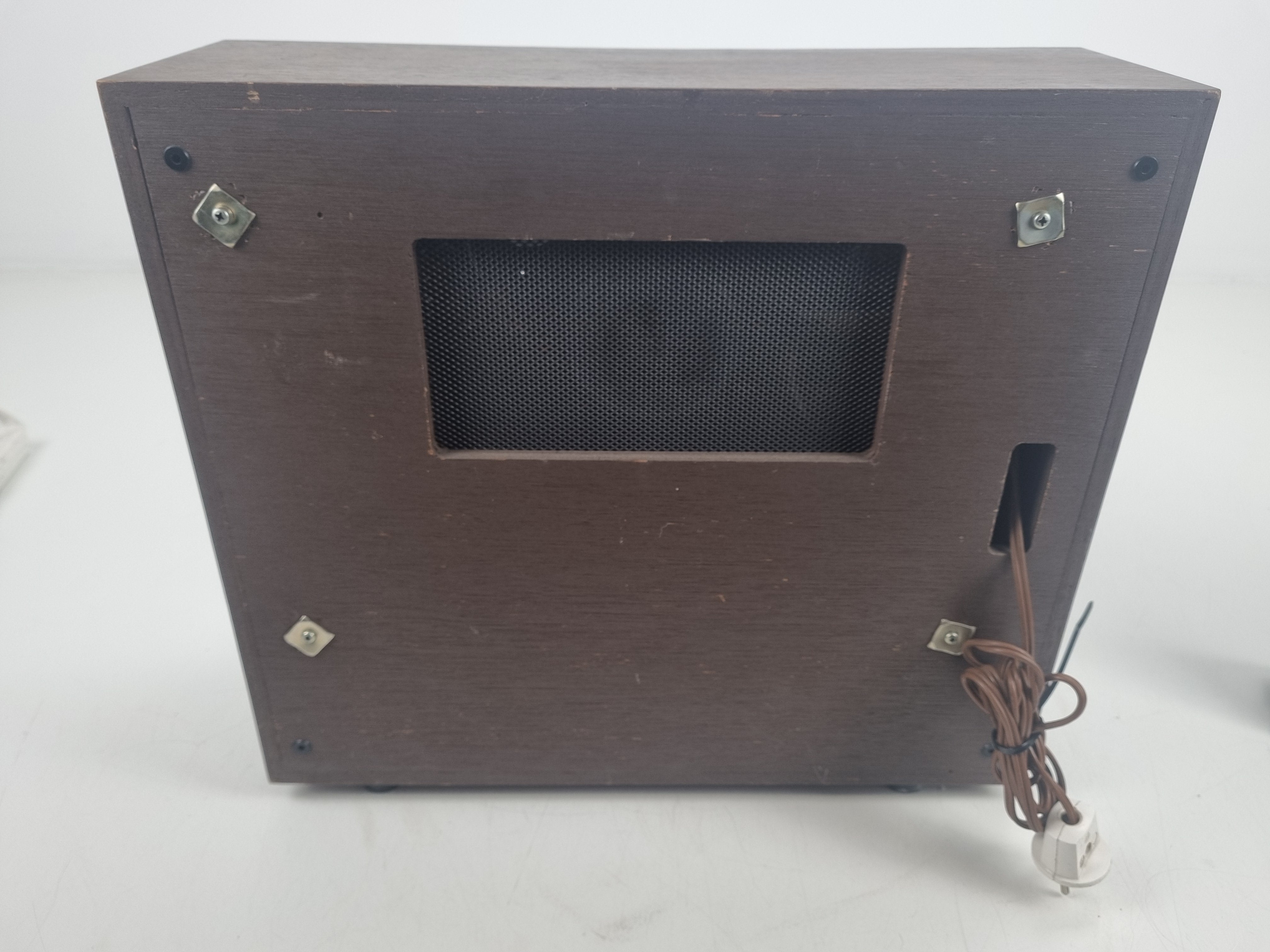

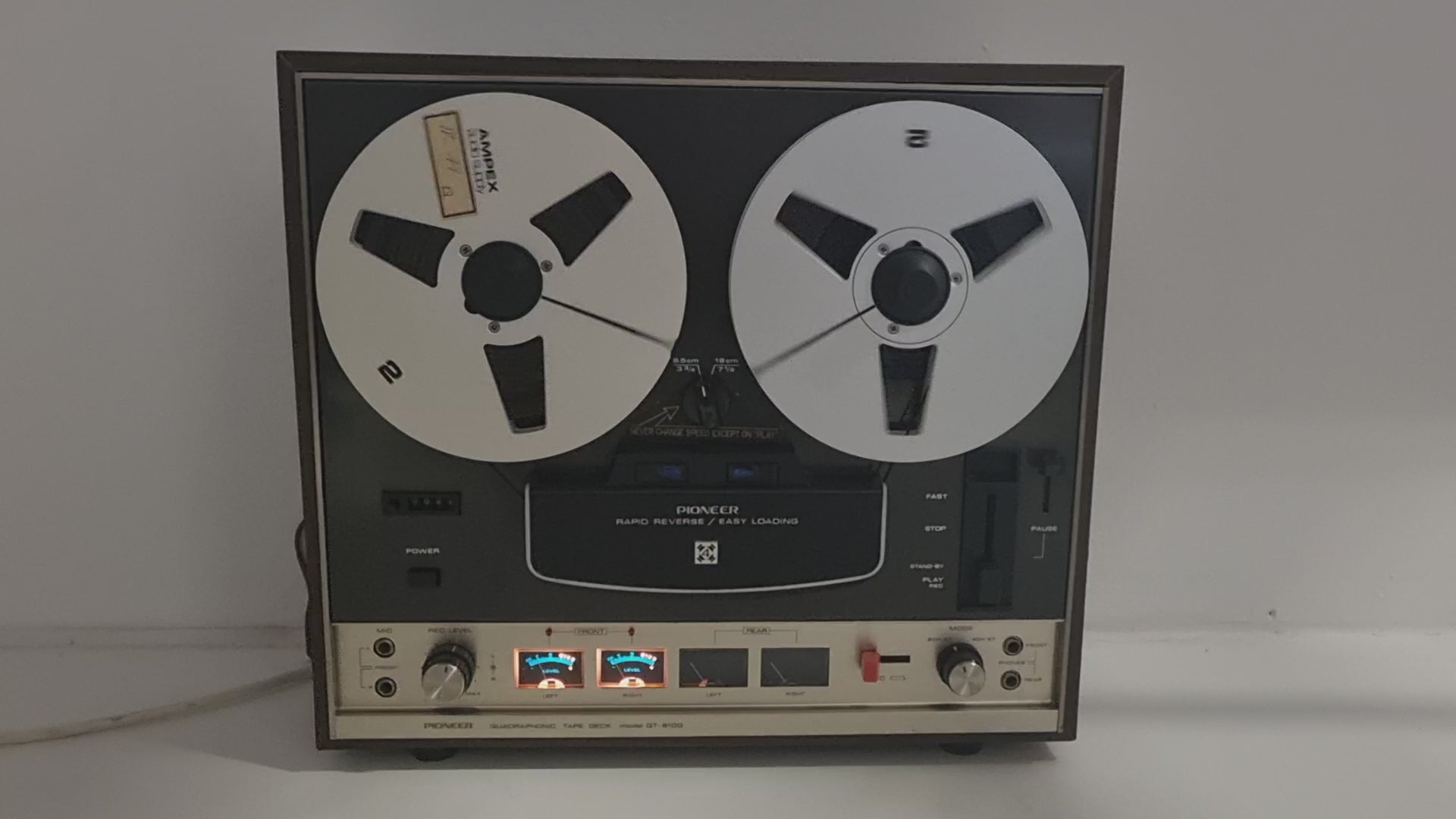

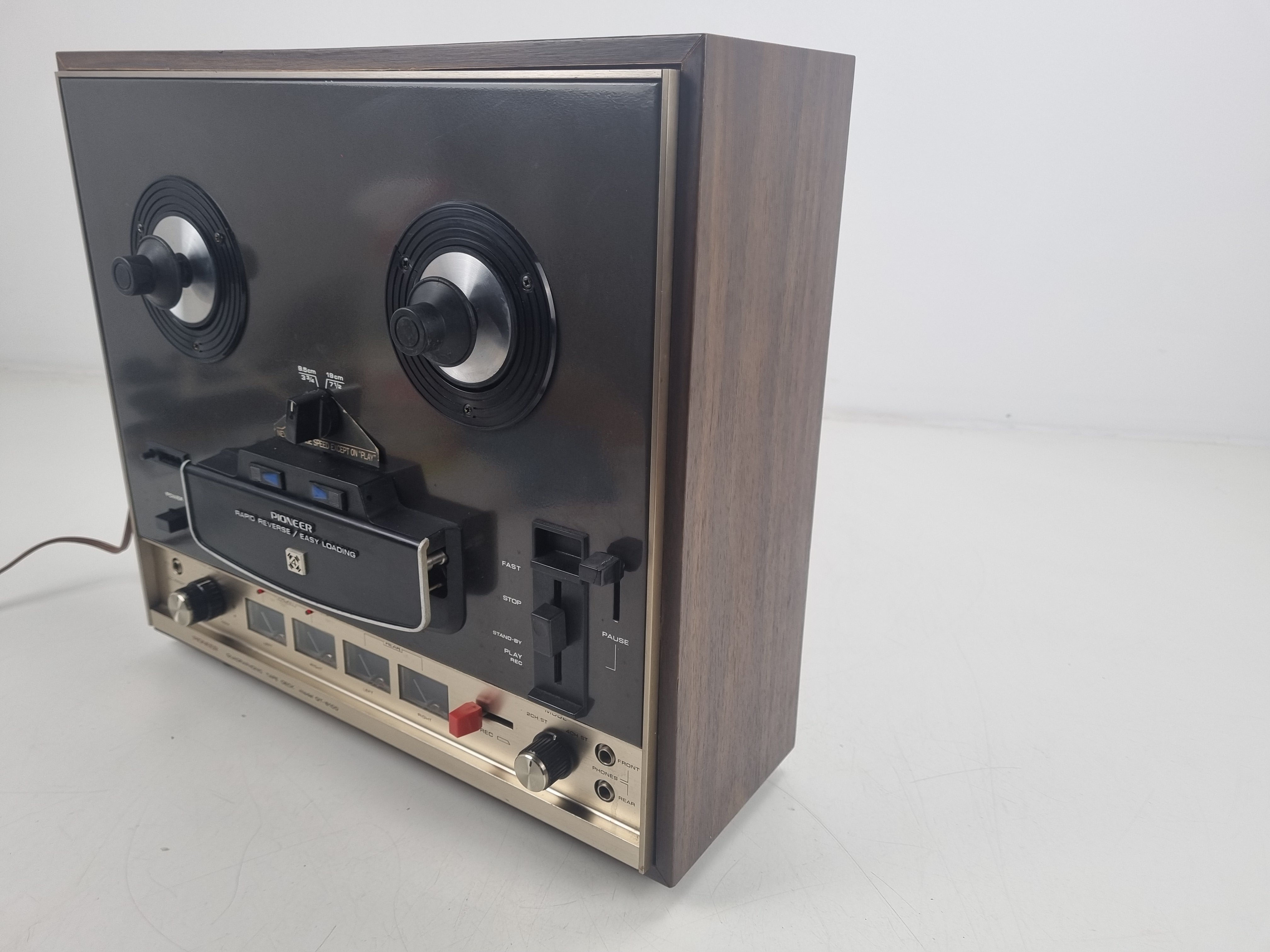

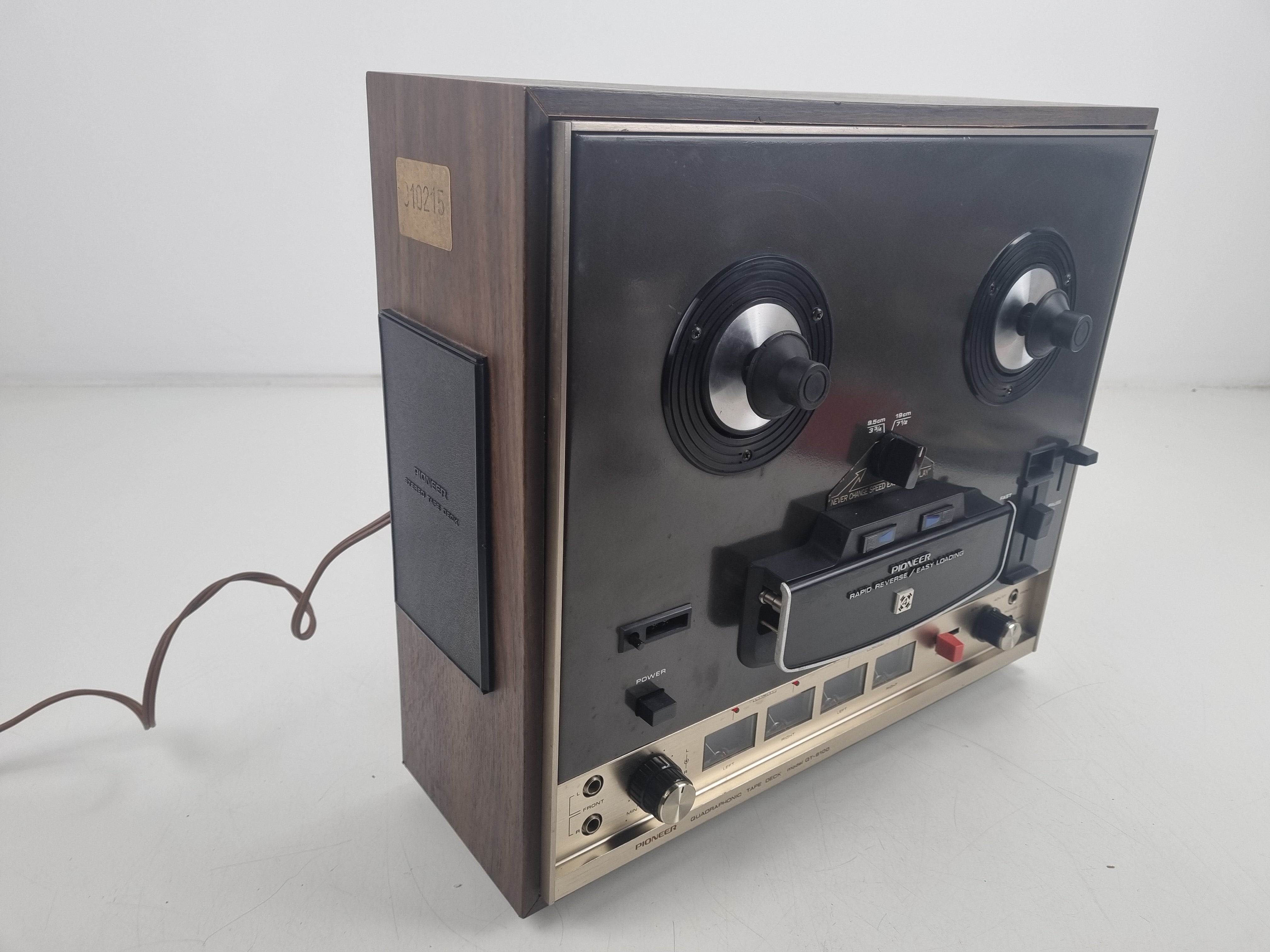

For sale: Pioneer - QT-6100 - Quadraphonic Tape Deck

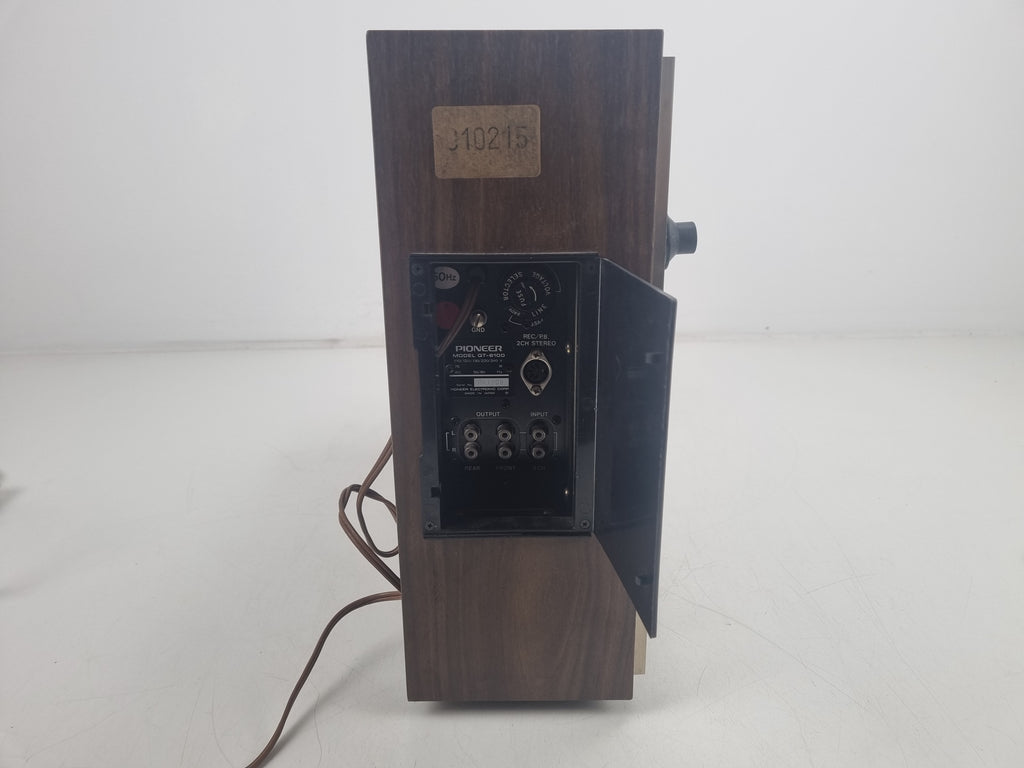

Cosmetic condition:
- The recorder is in minor damaged condition.

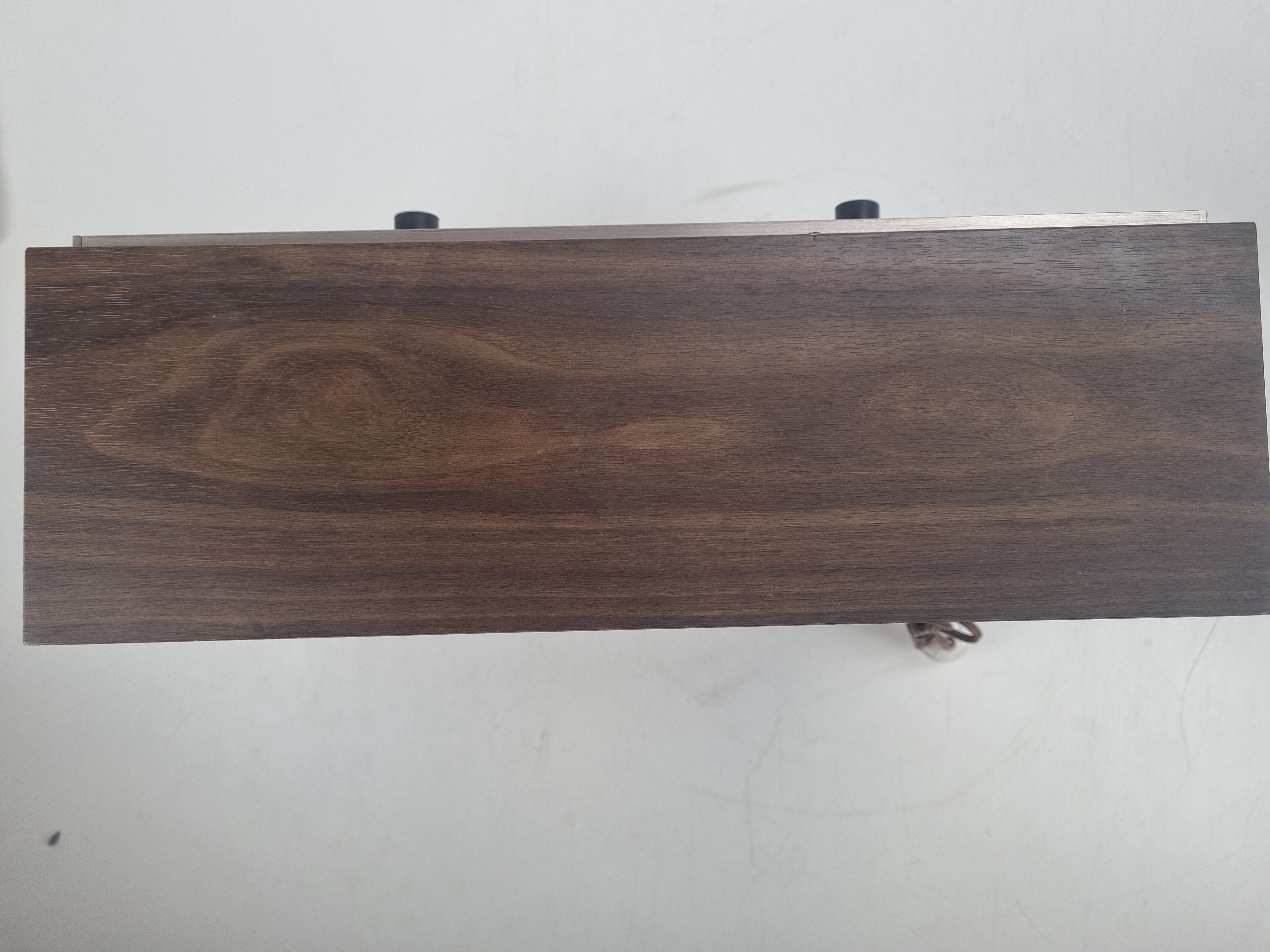

- Some chips in the wooden frame
- Cosmetic wear consistent with age

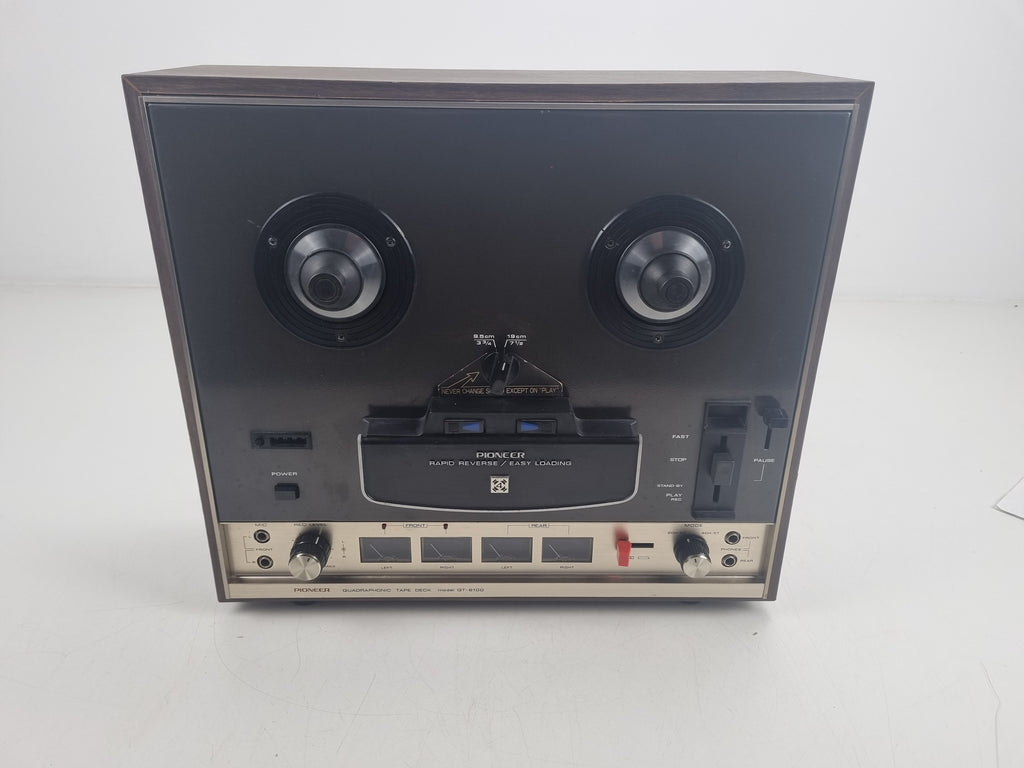

- Front panel remains clean and presentable
Functional status
- Fully working
- All transport functions operate properly
''Important note when tested: When we find there's either a small thing wrong, or not 100% working we offer our listings for parts or repair to avoid unwanted issues after purchase''
Specs:
- Track system: auto reverse, 4-track, 2/4-channel, stereo/monaural/multi channel system
- Heads: 2 x record/playback, 1 x erase
- Motor: 1 x hysteresis syncronous
- Reel size: up to 7 inch reel
- Equalization: NAB
- Tape speeds: 3 3⁄4 7 1⁄2 ips
- Wow and flutter: 0.12% (7 1⁄2 ips)
- Frequency response: 30Hz to 20kHz (7 1⁄2 ips)
- Signal to Noise Ratio: 55dB
- Input: 30mV (DIN), 0.3mV (mic)
- Output: 0.775V (line)
- Semiconductors: 26 x transistors, 7 x diodes
- Year: 1972
Dimensions: 421 x 174 x 378mm
Weight: Kg 17
Volts: 240v (If it’s 200V or higher, you’ll need an adapter in the USA)
