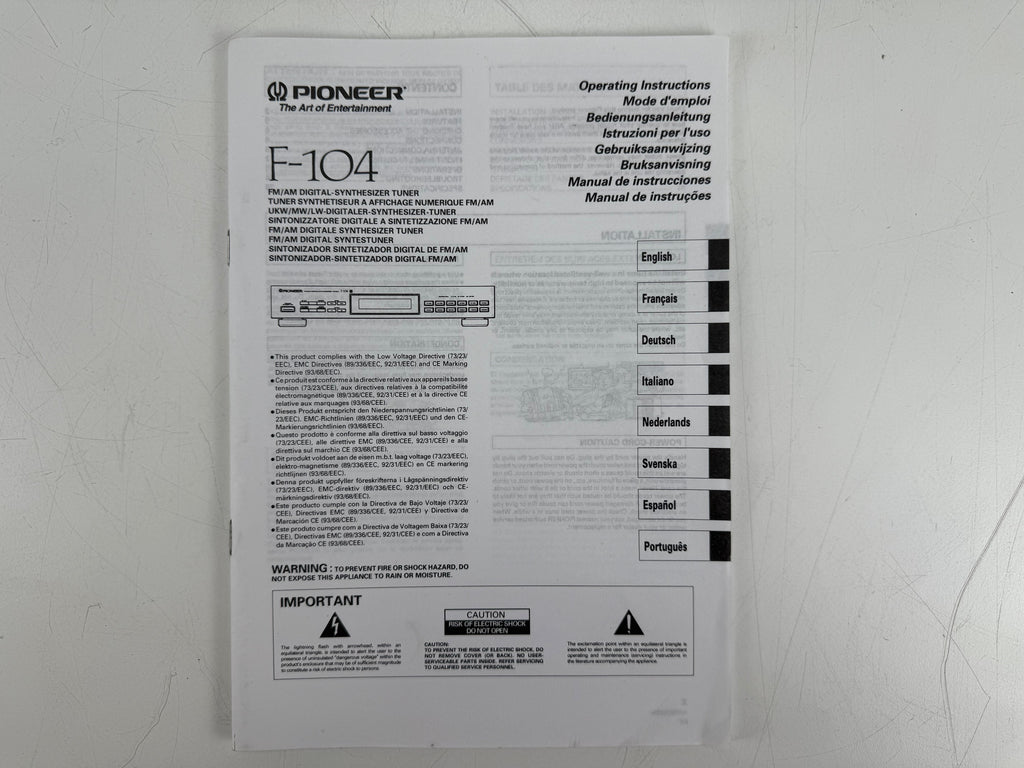

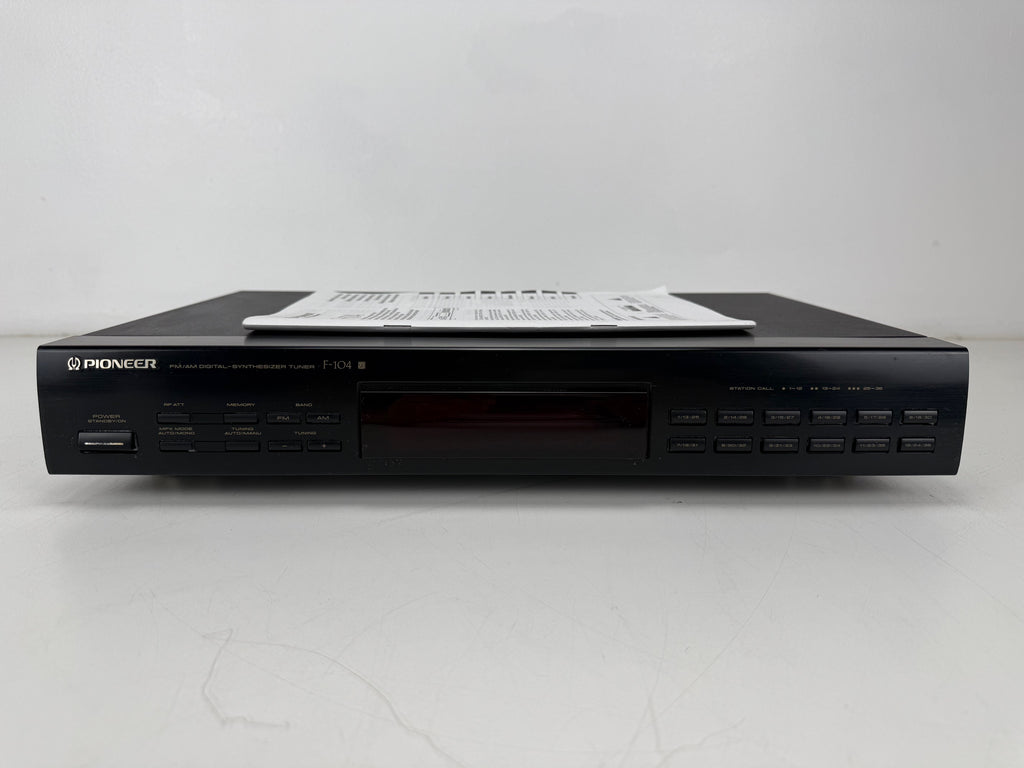

For sale: F-104 FM/AM Digital Synthesizer Tuner With Manual
Condition: Very nice tuner from Pioneer. It works great has been tested and cleaned. This lot comes with manual. Cosmetics are also nice it has minor usage marks.
''Important note when tested: When we find there's either a small thing wrong, or not 100% working we offer our listings for parts or repair to avoid unwanted issues after purchase''
Specs:
General
-
Manufacturer:
-
Model: F-104
-
Type: Tuner
-
Years of manufacture: 1995 - 1998
-
Made in: Japan
-
Color: Black
-
Remote control:
-
Power consumption: 10 W
-
Dimensions (WxHxD): 420 x 75.5 x 284 mm
-
Weight: 2.6 kg
-
Original price approx.: 248 DM, 1996
Technical data
FM tuner Frequency range: 87.5 to 108 MHz Useful sensitivity Normal Mono: 12.7dBf
-
-
50dB sensitivity threshold
-
Mono: 18.0dBf, IHF (2.2uV/75Ohm)
-
Stereo: 38.0dBf, IHF (22.6uV/75Ohm)
Sensitivity (DIN)
-
-
-
Mono: 1.0uV/75Ohm)
-
Stereo: 35uV/75Ohm)
Signal to Noise Ratio
-
-
-
Mono: 80dB(at 80dBf)
-
Stereo: 75dB(at 80dBf)
Signal to Noise Ratio (DIN)
Stereo: 56dB Distortion (at 80dBf)
-
-
-
Mono: 0.06%(at 1KHz)
-
Stereo: 0.15% (at 1KHz)
NARROW Mono: 0.15%(at 1KHz)
-
-
NARROW Stereo: 0.2% (at 1KHz)
-
Alternate Channel Separation Sharpness
-
Stereo channel separation 40dB (at 1KHz)
-
Frequency response +-1dB 30Hz to 15KHz
-
Mirror selection 80dB
-
IF suppression 90dB
-
AM suppression 60dB
-
Spurious suppression 70dB
-
Subcarrier suppression 55dB
-

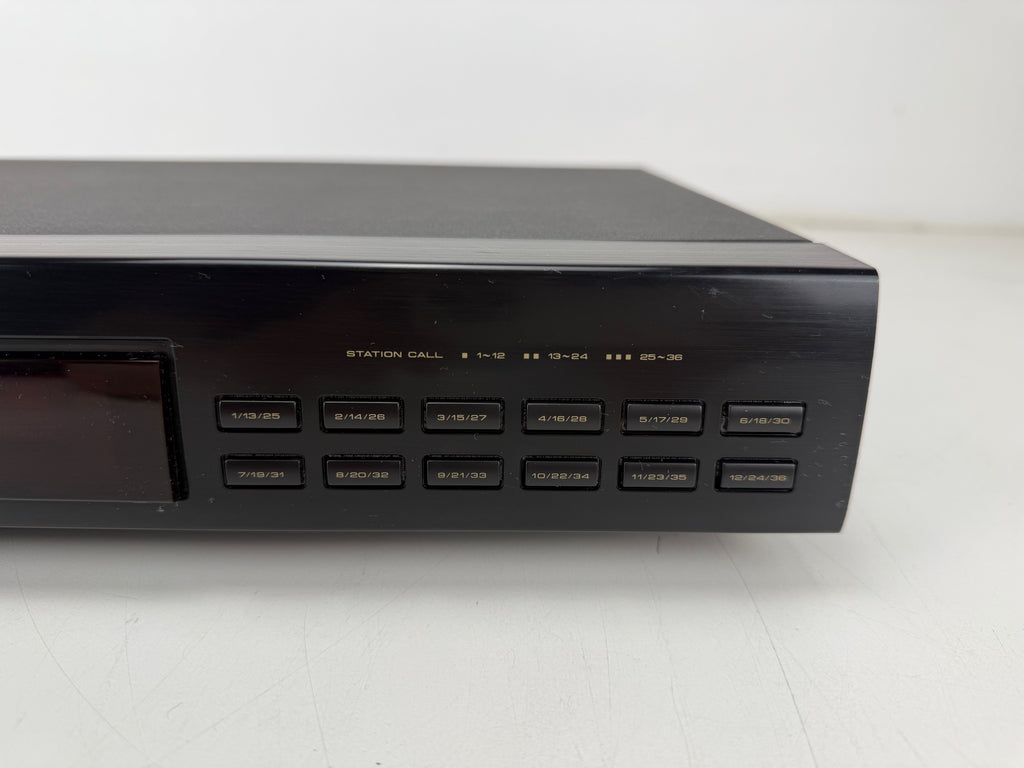

36 program memory locations, divided into 3 groups of 12 memory locations each
Dimensions: 42x28x8cm
Weight: 3Kg
Volts: 220/230v (in case of only 230v. in USA you will need a adapter)

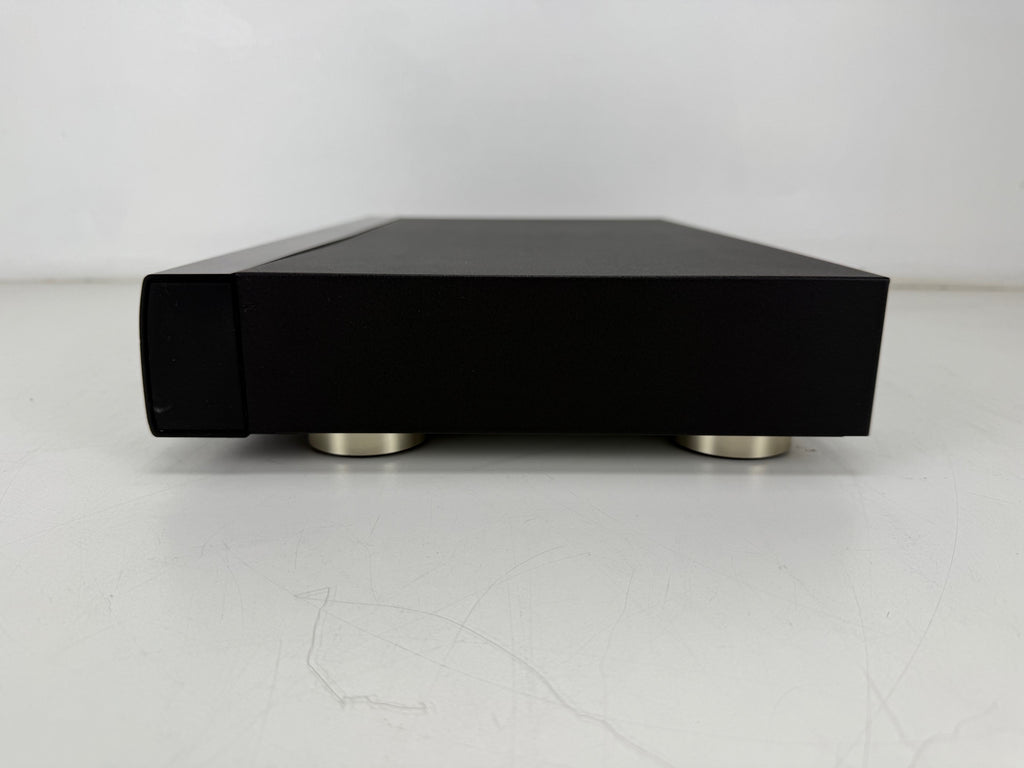

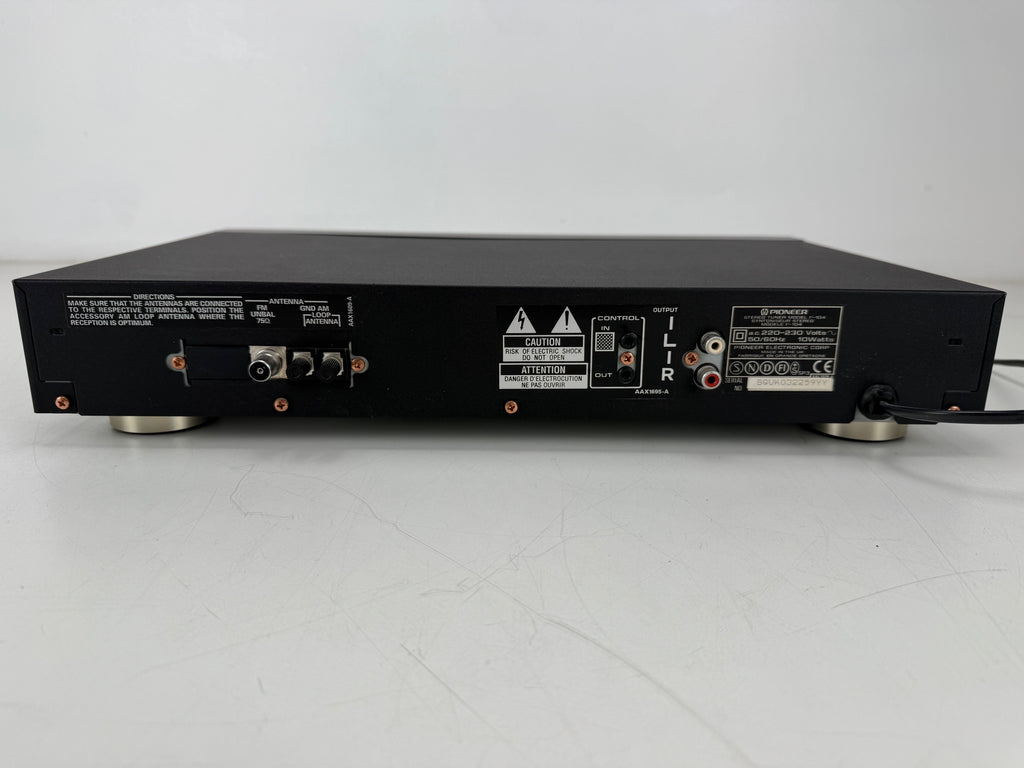

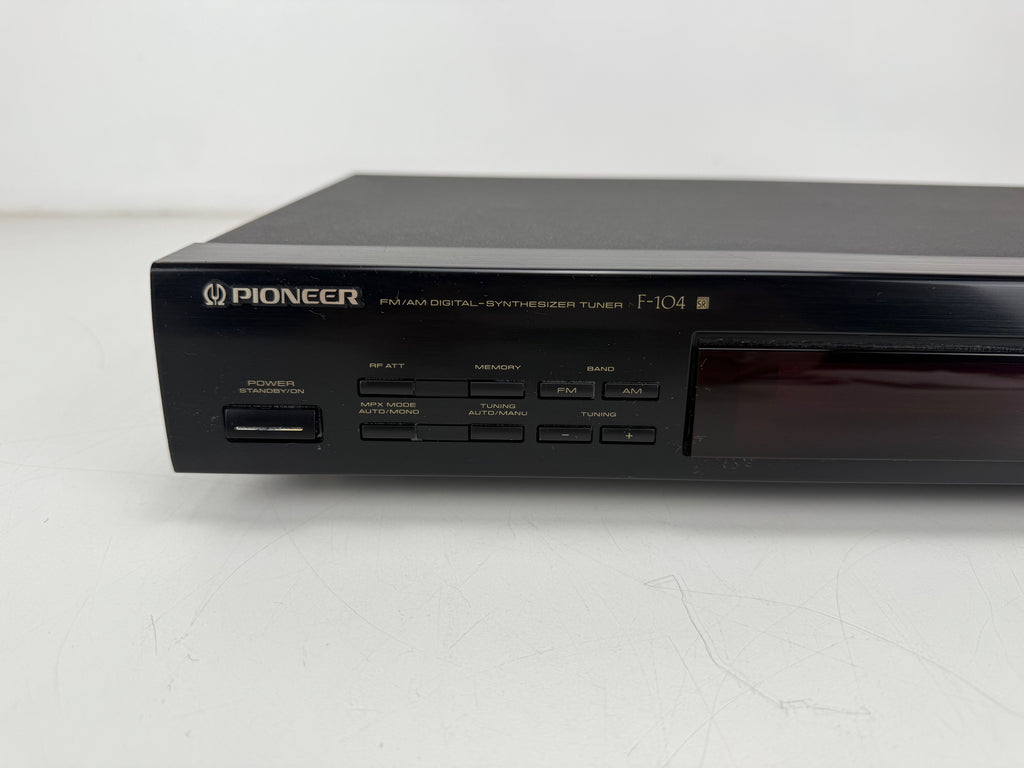

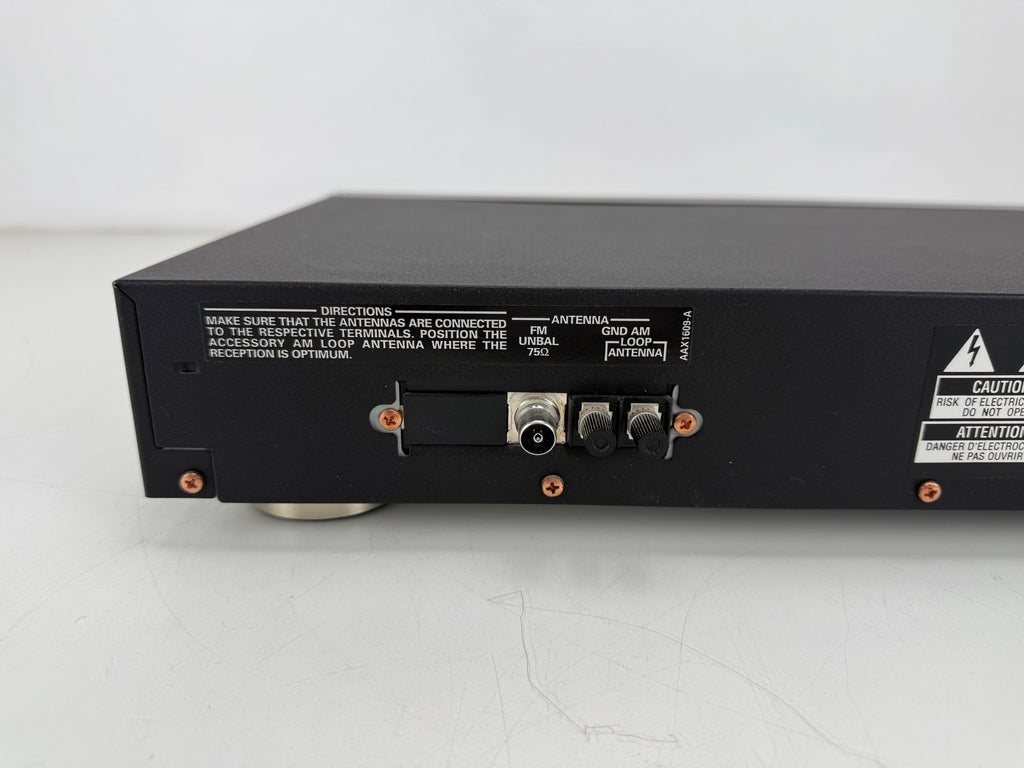

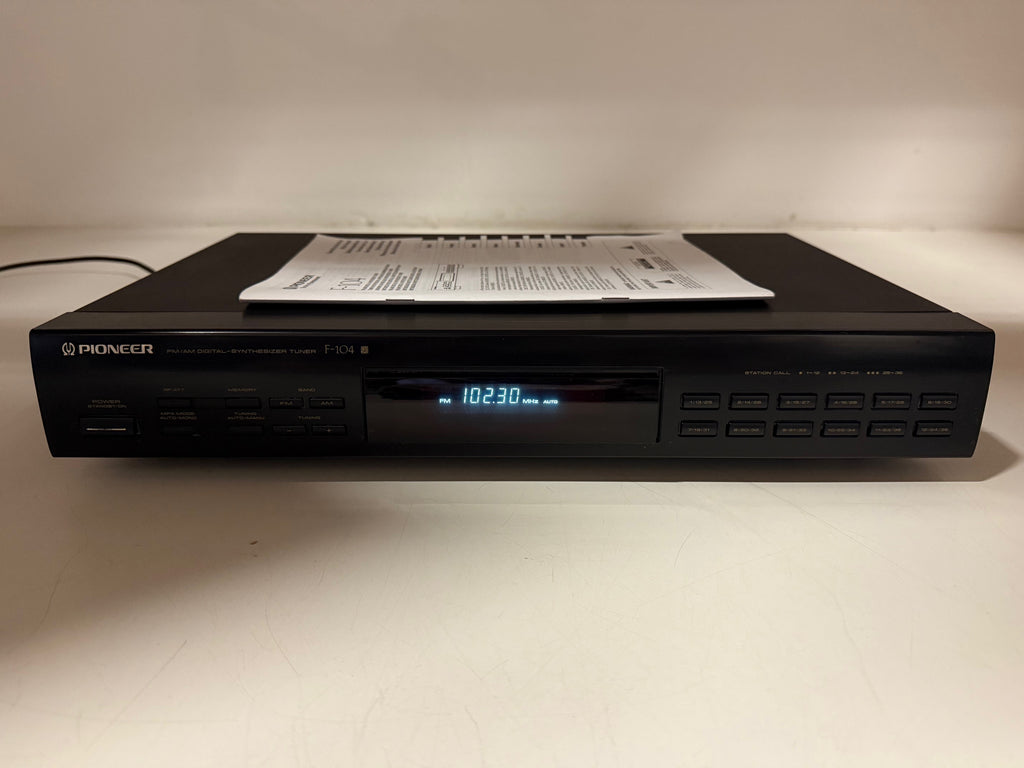

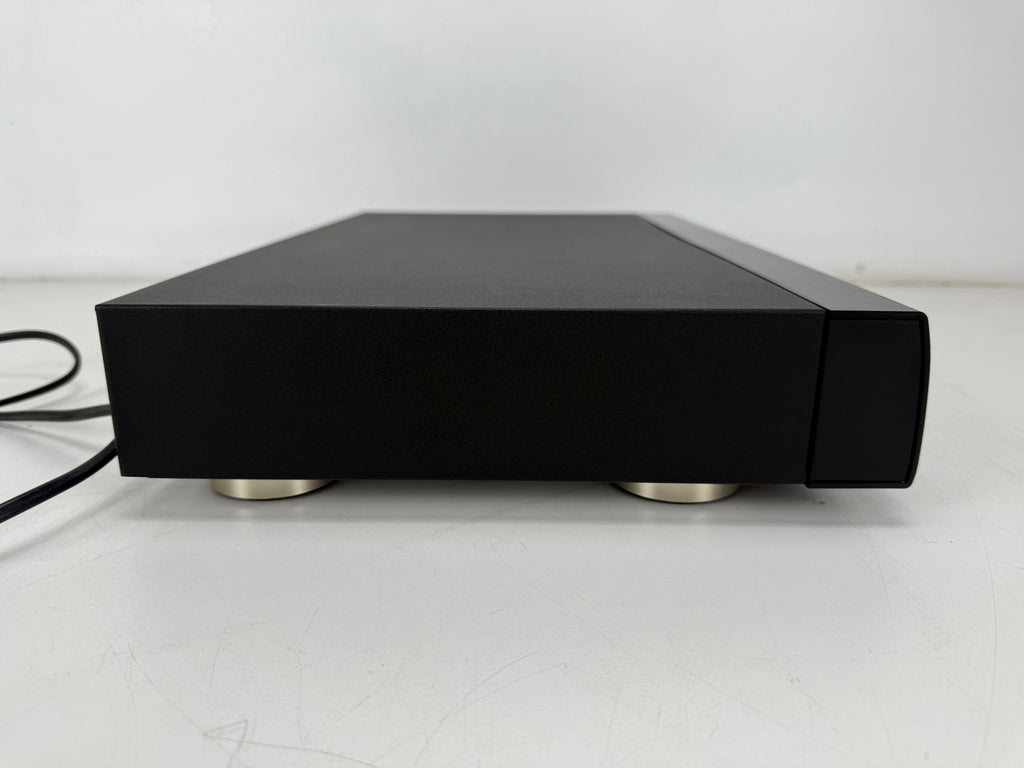

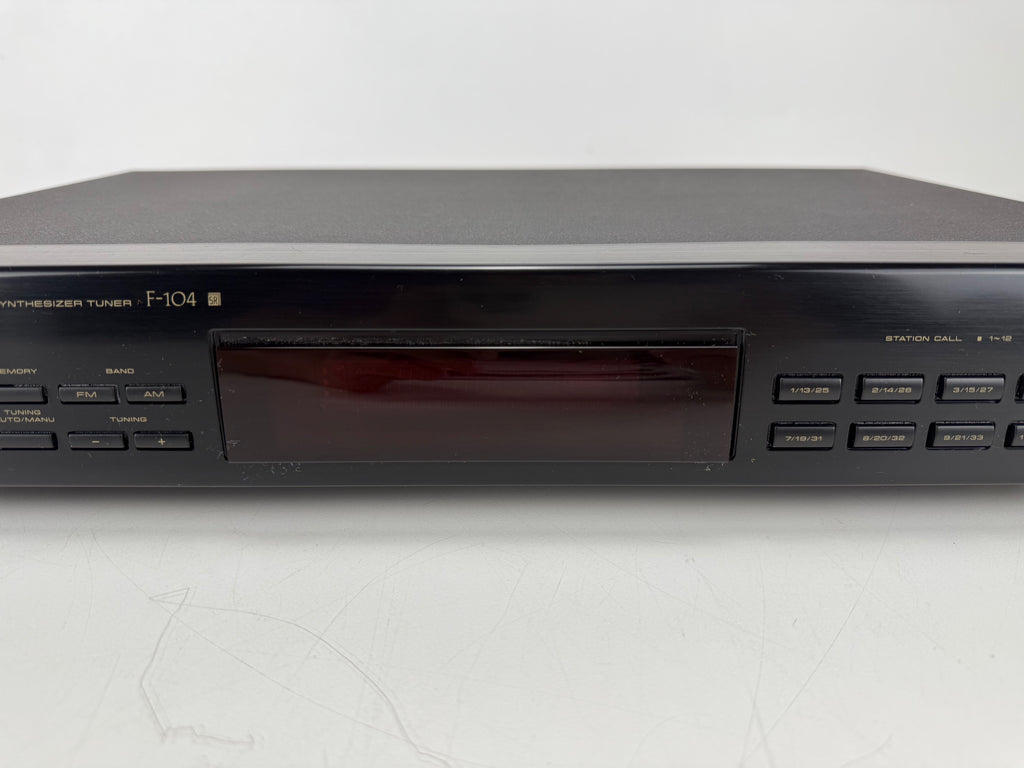

Working condition: Fully working (See pictures for the cosmetic condition of this lot)
Missing or damages: Minor Usage Marks

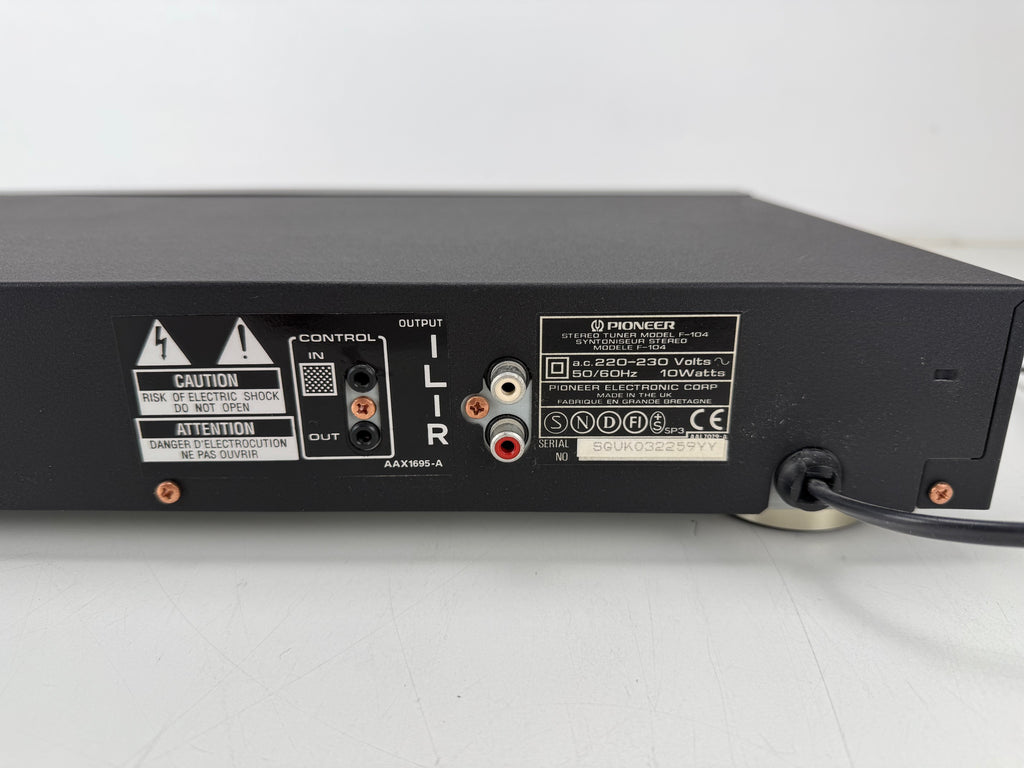

Does come with fixed/factory power cable.
We ship worldwide.
-Shipping in the EU up to 30 KG (max)
-Shipping outside of the EU up to 20 KG (max)
''We offer combine shipping (EU 30KG max, NON EU 20KG max) for all our listings, ask us for details''
Please note: ‘'Whenever an item exceeds the weight noted above. Please ask for a shipping quote before making a purchase. The shipping costs are estimated in our shop because we do not know the shipping address.
Picking up the item is also possible. It can be picked up in Alkmaar
Delivery by us is also possible in some cases. Please reach out to us for more information about deliveries
State of listing: If a listing is listed ''for parts or not working'' returns are not accepted.
