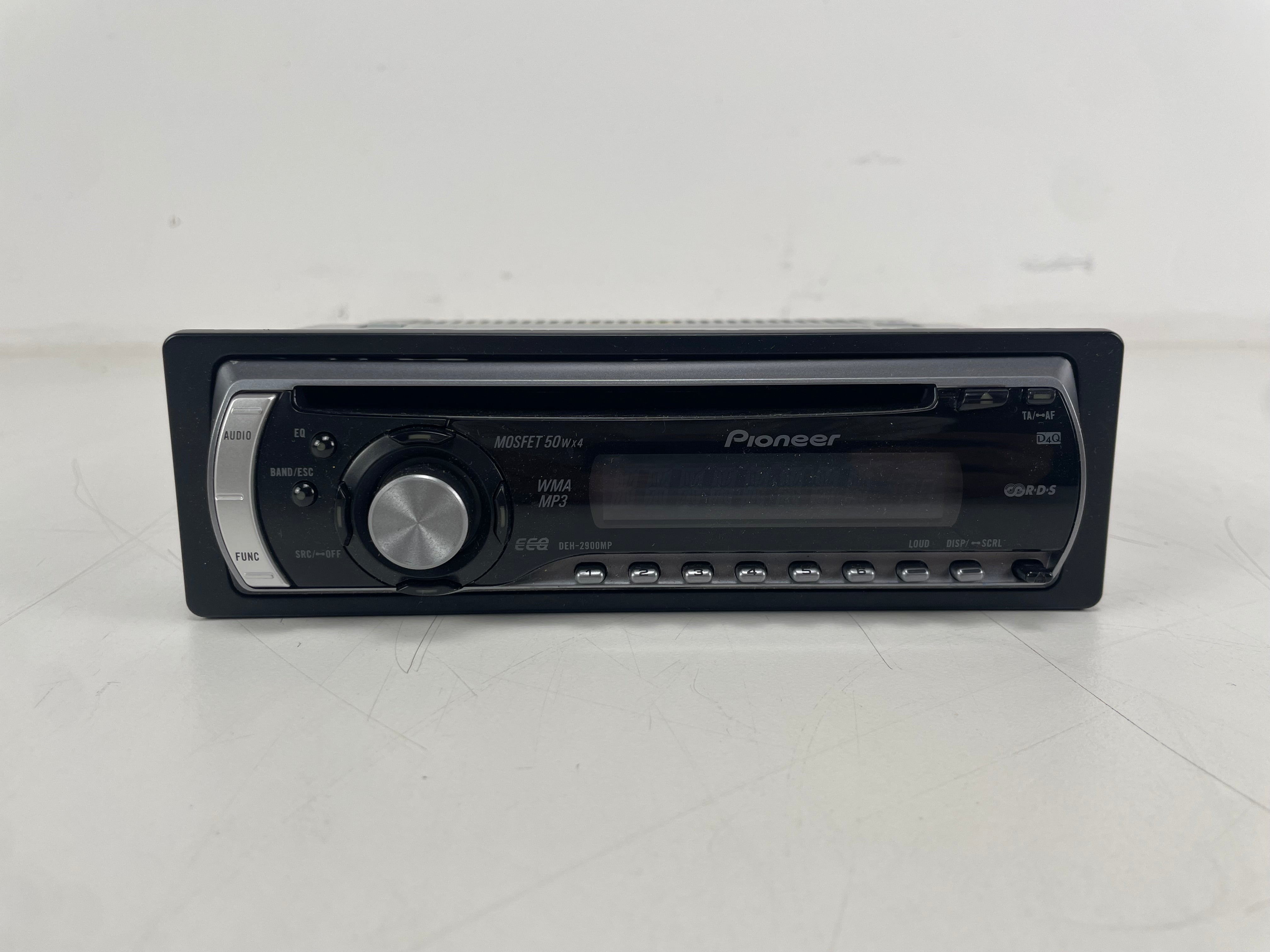

For sale: a Pioneer DEH-2900MP car media player and radio, designed as a single-DIN in-car audio head unit.
This unit is exceptionally well preserved cosmetically. It has not been installed or connected to a suitable test setup by us, so its full functionality remains unknown and it is offered as untested.
''Please ask us for a shipping quote for the best shipping rates. Shown costs might be incorrect, or we can offer better services''
Cosmetic condition:
The unit is in mint cosmetic condition.
- Exceptionally clean overall
- Little to no visible cosmetic wear

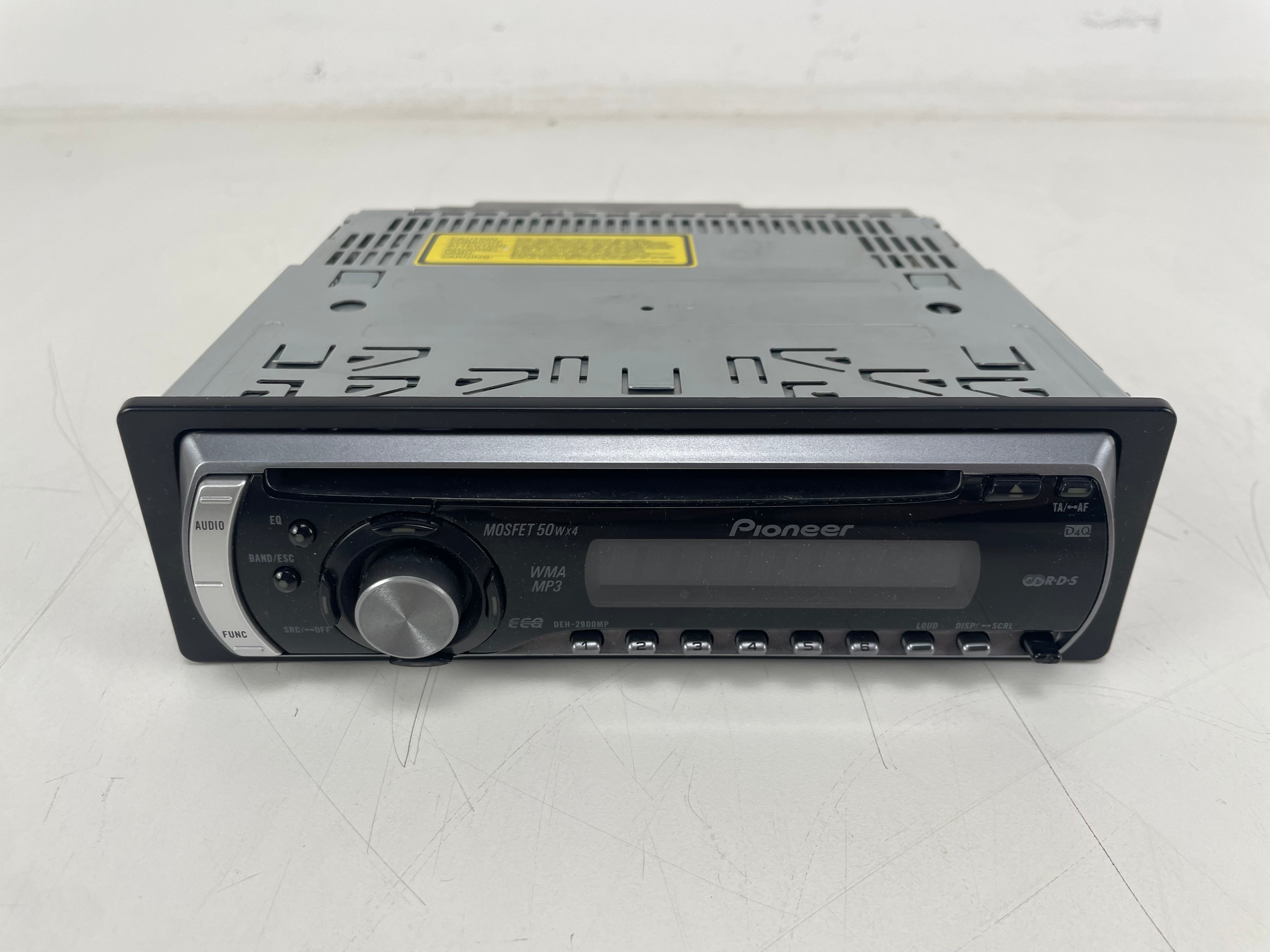

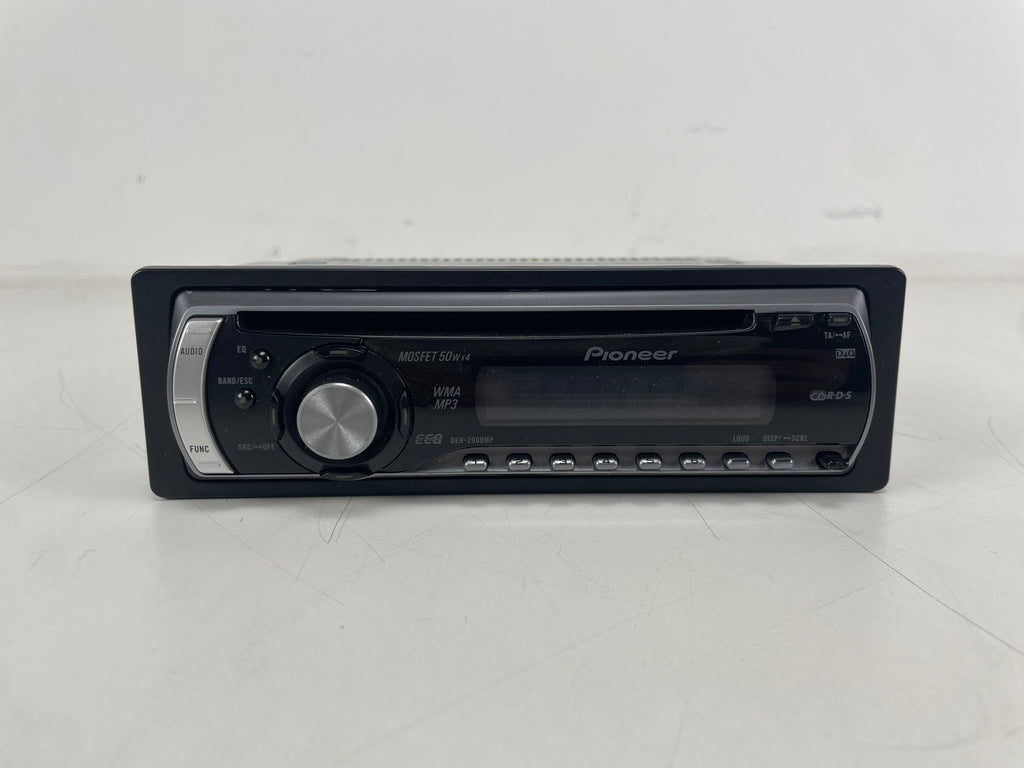

- Faceplate and controls are very well preserved
- No notable scratches, cracks, or dents

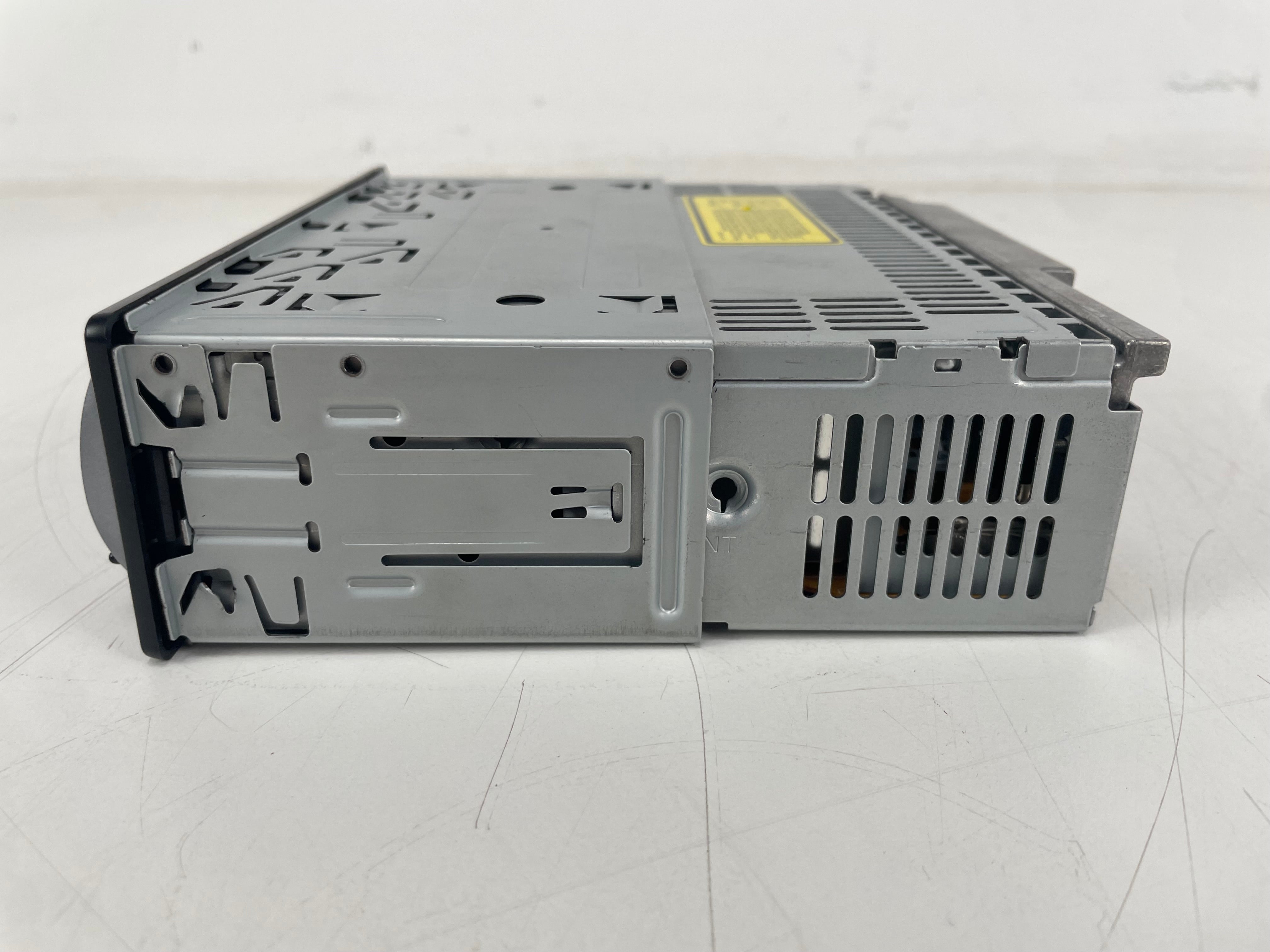

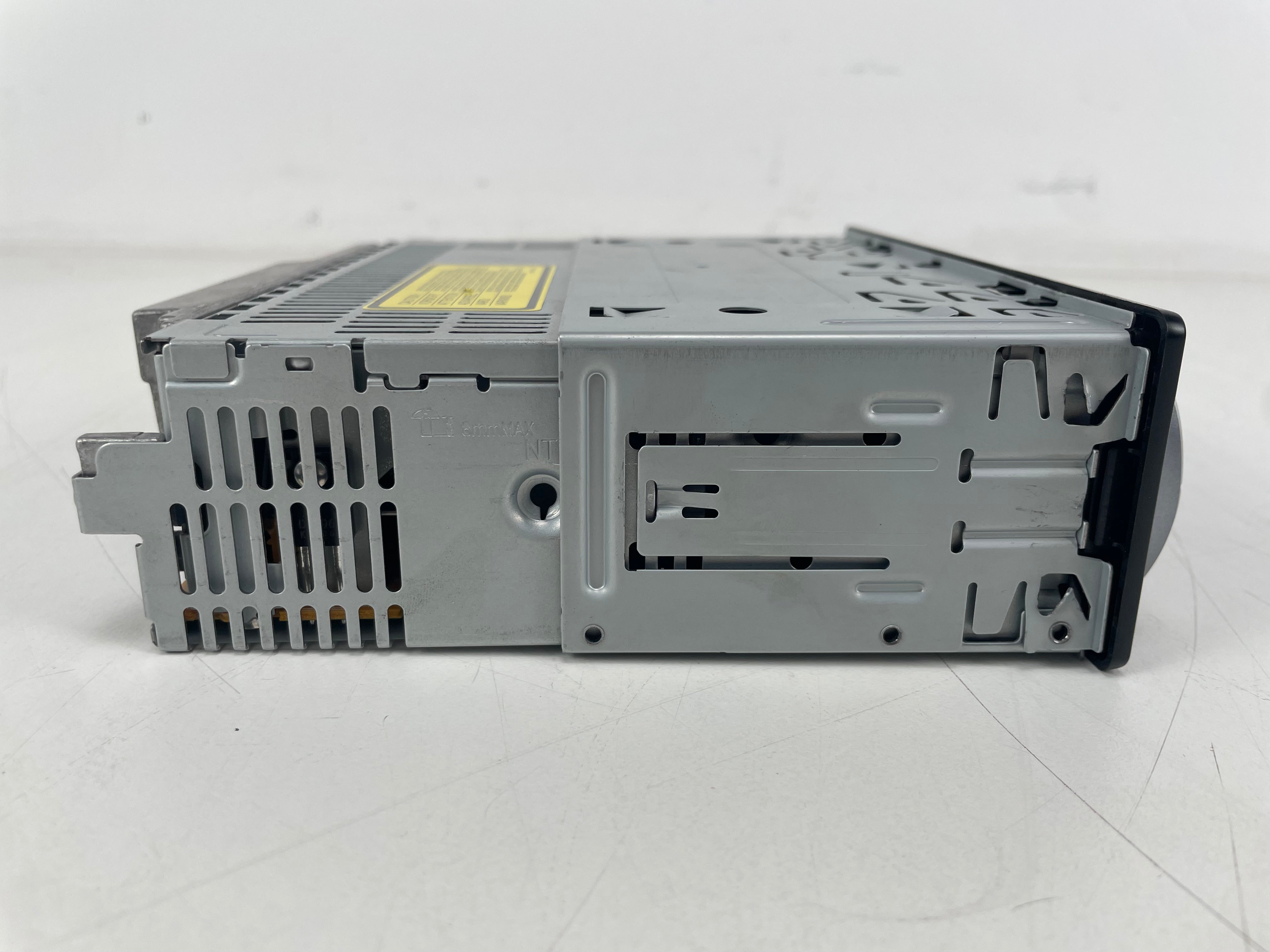

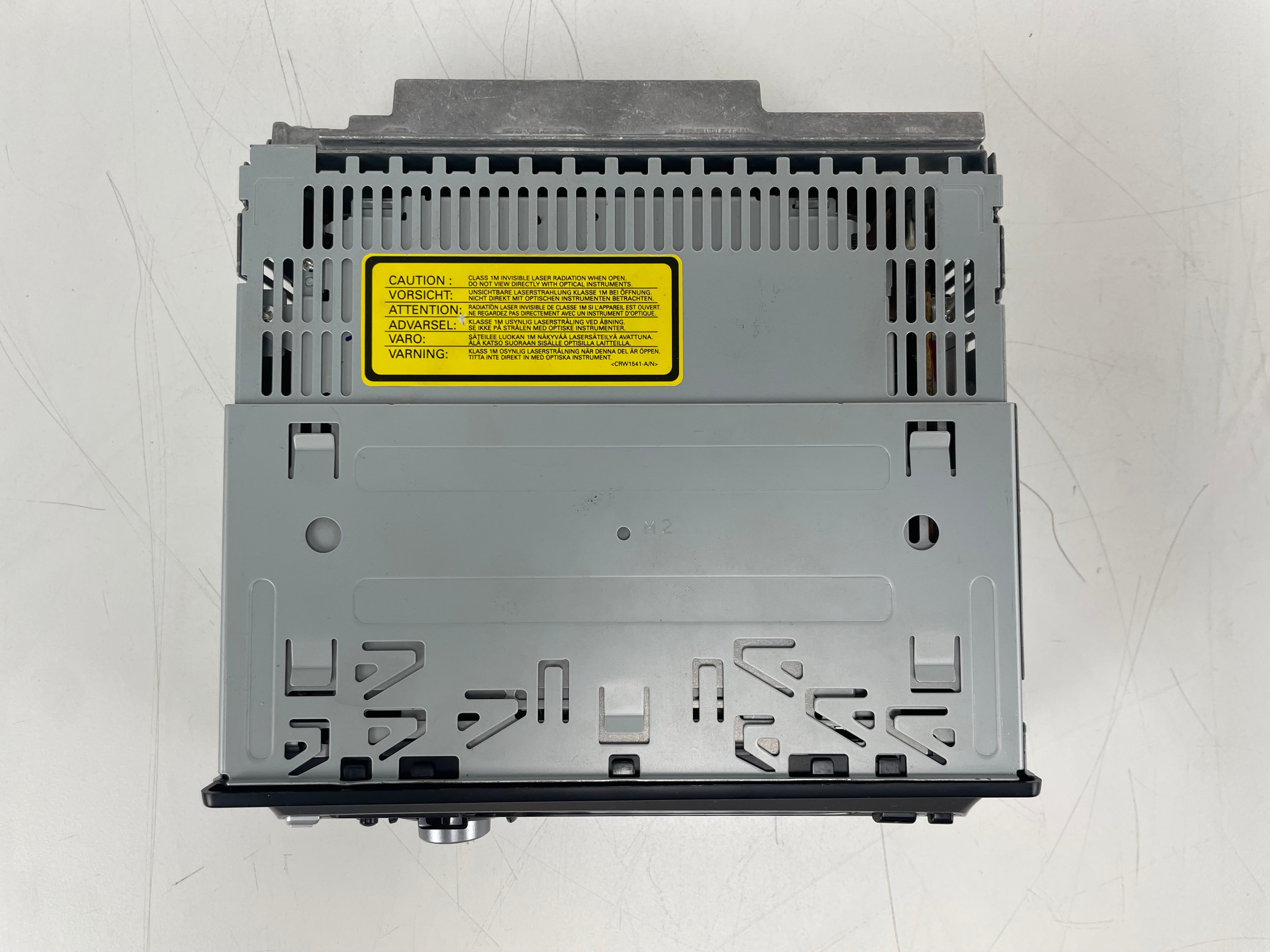

- Please check the photos for the exact condition
🚗 Functional status
✘ Untested
✘ Radio, audio output, and media playback have not been verified
⚠ Functionality cannot be guaranteed
Specs:
General
- Type: Single-DIN CD/RDS car receiver
- Power supply: 14.4 V DC
- Permitted voltage range: 10.8–15.1 V DC
- Grounding system: Negative ground
- Maximum current consumption: 10 A

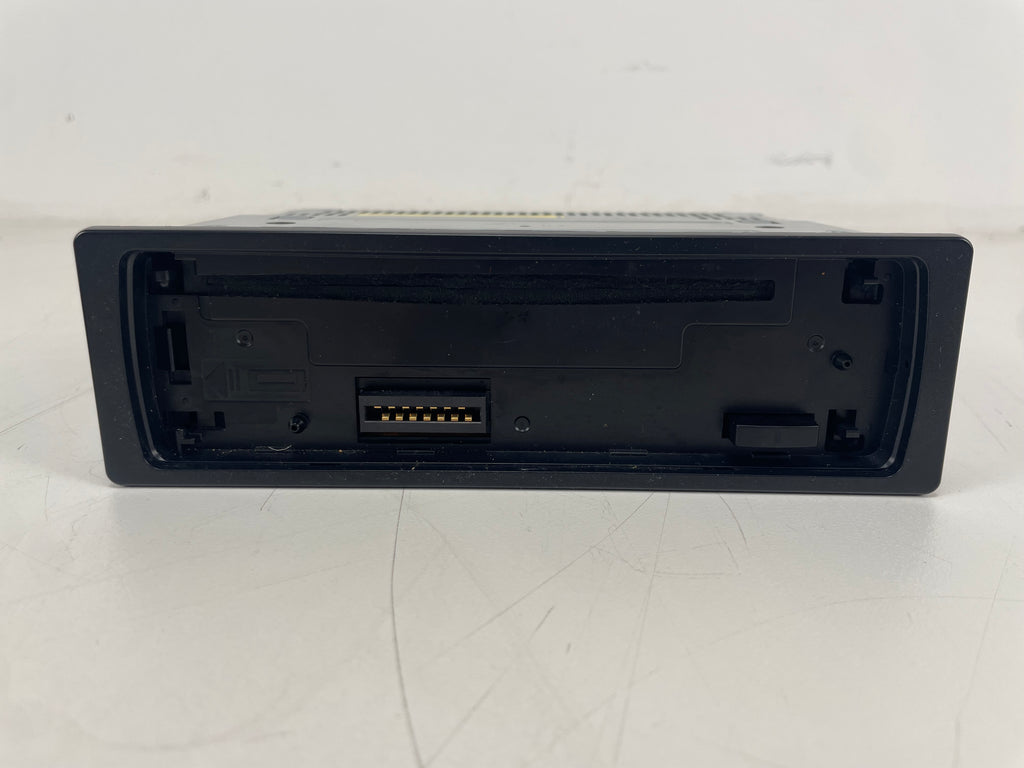

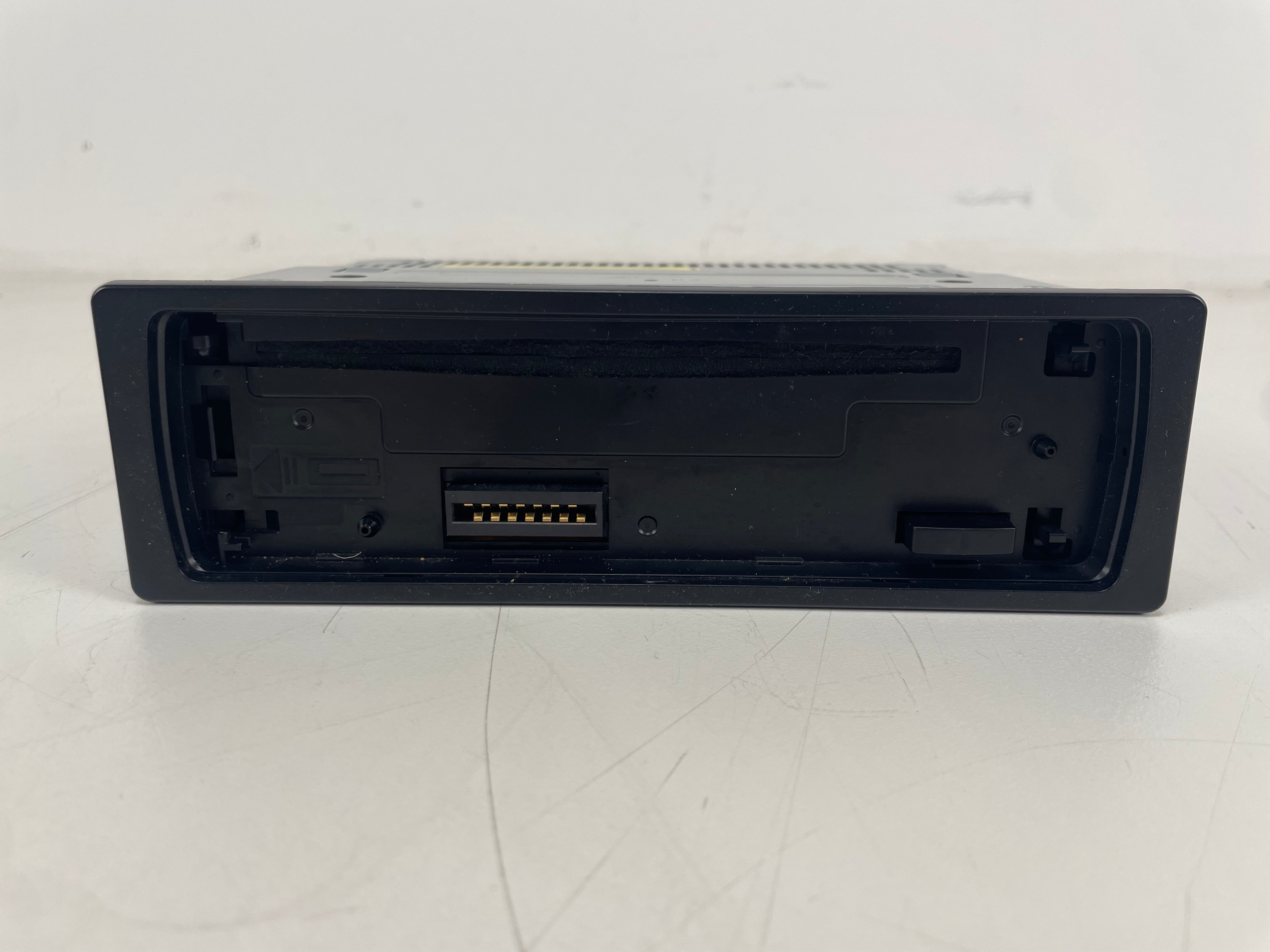

- Detachable front panel: Yes
- Display: Single-line LCD
- Button illumination: Red
- Fuse rating: 10 A
- Weight: 1.3 kg
Amplifier
- Maximum output power: 4 × 50 W
- Continuous output power: 4 × 22 W
50 Hz–15 kHz, 5% THD, 4 Ω
- Speaker impedance: 4 Ω
- Permitted impedance range: 4–8 Ω
- Pre-output level: 2.2 V / 1 kΩ

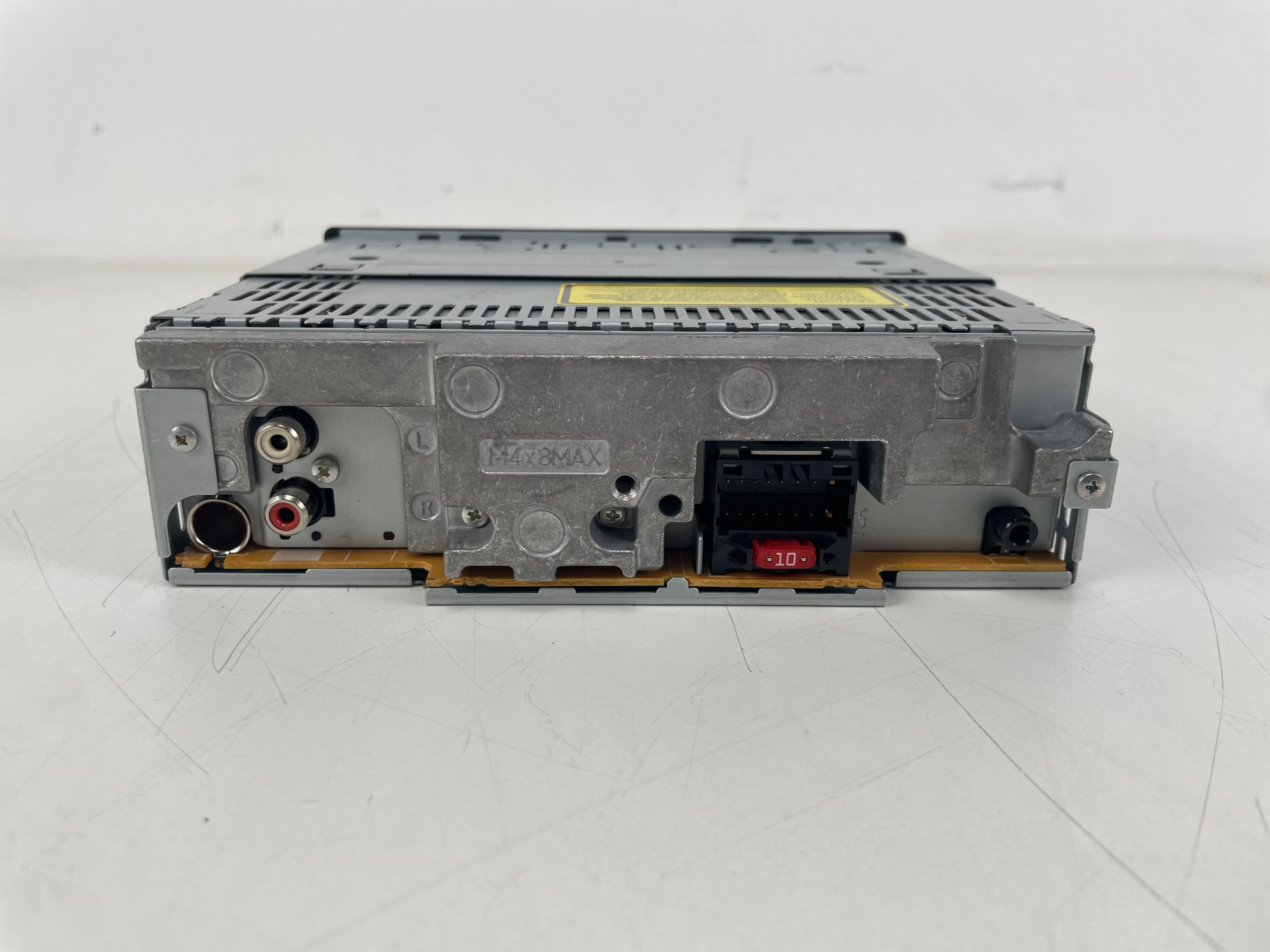

- Rear pre-output: Switchable rear-channel/subwoofer output
Tone Controls
- Bass: 100 Hz, ±13 dB
- Midrange: 1 kHz, ±12 dB
- Treble: 10 kHz, ±12 dB
- Equalizer: Preset and adjustable EQ curves
- Loudness: Two selectable levels
- Additional audio functions: Balance, fader and source-level adjustment
CD Player
- Disc system: Compact Disc Digital Audio
- Compatible discs: CD, CD-R and CD-RW
- Supported audio formats: CD-DA, MP3, WMA and WAV
- Sampling frequency: 44.1 kHz
- Quantization: 16-bit linear
- Frequency response: 5 Hz–20 kHz, ±1 dB
- Signal-to-noise ratio: 94 dB at 1 kHz
- Dynamic range: 92 dB at 1 kHz
- Channels: 2-channel stereo
- MP3 decoding: MPEG-1 and MPEG-2 Audio Layer III
- WMA decoding: Windows Media Audio versions 7, 7.1, 8, 9 and 10
- WAV decoding: Linear PCM and MS ADPCM
- Maximum folder depth: 8 levels
- Maximum number of folders: 99
- Playback functions: Repeat, random, scan, pause, compression and BMX
Compressed-Audio Compatibility
- MP3 bit rate: 8–320 kbps
- MP3 sampling frequency: 16–48 kHz
- Supported ID3 tags: Versions 1.0, 1.1, 2.2, 2.3 and 2.4
- WMA bit rate: 48–320 kbps CBR / 48–384 kbps VBR
- WMA sampling frequency: 32–48 kHz
- WAV sampling frequency:
- Linear PCM: 16–48 kHz
- MS ADPCM: 22.05–44.1 kHz
FM/RDS Tuner
- Frequency range: 87.5–108 MHz
- Usable sensitivity: 8 dBf / 0.7 µV at 75 Ω
- Signal-to-noise ratio: 75 dB
- Frequency response: 30 Hz–15 kHz, ±3 dB
- Stereo separation: 45 dB at 1 kHz
- Distortion:
- RDS functions: AF, TA, TP, PTY and regional tuning
- Station presets: 6 buttons
- Additional tuner functions: Local seek and Best Stations Memory
AM Tuner
- MW frequency range: 531–1,602 kHz
- MW sensitivity: 18 µV
- MW signal-to-noise ratio: 65 dB
- LW frequency range: 153–281 kHz
- LW sensitivity: 30 µV
- LW signal-to-noise ratio: 65 dB
Dimensions (LxWxH): 178 × 50 × 162 mm
Weight: 3 Kg
Volts: 12v (If it’s 200V or higher, you’ll need an adapter in the USA)
