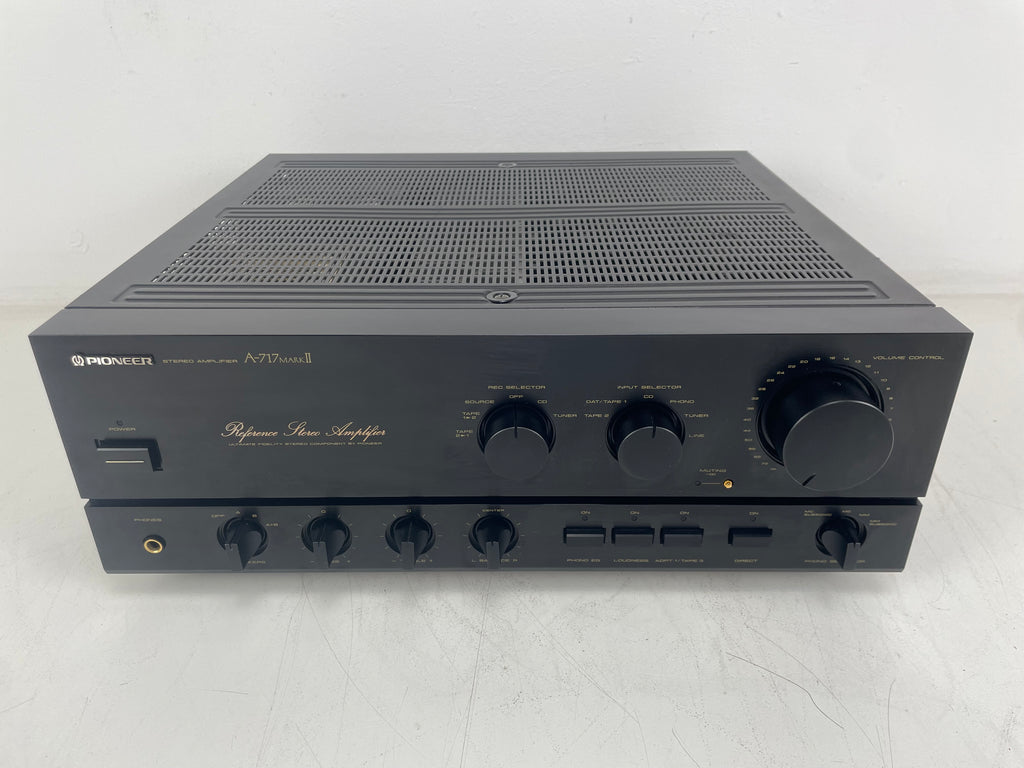

For sale: a Pioneer A-717 MK2 stereo integrated amplifier, a high-quality vintage hi-fi amplifier known for its robust build, powerful output.
This unit has been serviced and repaired, with critical output stage components replaced to restore full performance.
''Due to the weight being 20/30KG or above, please ask us for a shipping quote before buying to get the best rates and options, currently shown shipping is estimated''
Cosmetic condition:
The amplifier is in used vintage condition with normal signs of age.
- Overall clean presentation
- Light cosmetic wear consistent with age
- Fully intact front panel and controls
?? Functional status
? Fully working
? Output stage (eindtrap) components replaced
? Stable operation on both channels
Specs:
- Continuous power (both channels)
- 8 Ohm: 2x 95 W (20 Hz - 20 kHz, 0.003% distortion)
- 4 Ohm: 2x 140 W (20 Hz - 20 kHz, 0.005% distortion)
- Continuous power (DIN, 1 kHz, 1%)
4 Ohm: 2x 150 W
- Dynamic power
- 8 Ohm: 2x 120 W
- 4 Ohm: 2x 180 W
- 2 Ohm: 2x 250 W
- Total harmonic distortion: 0.003% (20-20,000 Hz, 95 W, 8 Ohm)
- Attenuation factor: 200 / 70 (8 Ohm, 1 kHz / 20-20,000 Hz)
- Frequency response:
- Phono MM: 20 - 20,000 Hz (±0.2 dB).
Phono MC: 20 - 20,000 Hz (±0.3 dB)
-
- High level: 1 - 150,000 Hz (+0/-3 dB)
- Signal-to-noise ratio:
- IHF (short-circuited, A-weighted).
- Phono MM/MC: 95 dB / 77 dB
- High level: 108 dB
- DIN (continuous power/50 mW)
- Phono MM: 74 dB / 65 dB
- High level: 92 dB / 66 dB
- Stereo channel separation:
- Tone control:
- Bass: yes, ±8 dB (100 Hz)
Treble: yes, ±8 dB (10 kHz)
- Loudness: yes, +5 dB (100 Hz), +3 dB (10 kHz) (at -40 dB volume)
- High Filter: no
- Low Filter (Subsonic): yes, 7 Hz (-12 dB/oct)
- Mute: yes
- Direct/Line-Straight: yes
Dimensions (LxWxH): 420 x 162 x 435 mm
Weight: 22 Kg
Volts: 220v (If it’s 200V or higher, you’ll need an adapter in the USA)
We ship worldwide.
For international shipping, import fee's apply. These vary per countrie, and are for the buyer to pay.
-Shipping in the EU up to 30 KG (max)
-Shipping outside of the EU up to 20 KG (max) Shown costs might vary. Please ask us for a shipping quote for the best rates!
Please note: ‘’Whenever an item exceeds the weight noted above. Please ask for a shipping quote before making a purchase. The shipping costs are estimated in our shop because we do not know the shipping address.
Picking up the item is also possible. It can be picked up in Alkmaar
Delivery by us is also possible in some cases. Please reach out to us for more information about deliveries
State of listing: If a listing is listed ''for parts or not working'' returns are not accepted.
When we offer our products with the notice ''Serviced'' or ''Fully serviced'' that means the device is either ''serviced'' with a new belt, and cleaned the pots, Or ''Fully serviced'' recapped, Quiescent current adjusted etc as expected from a full service
