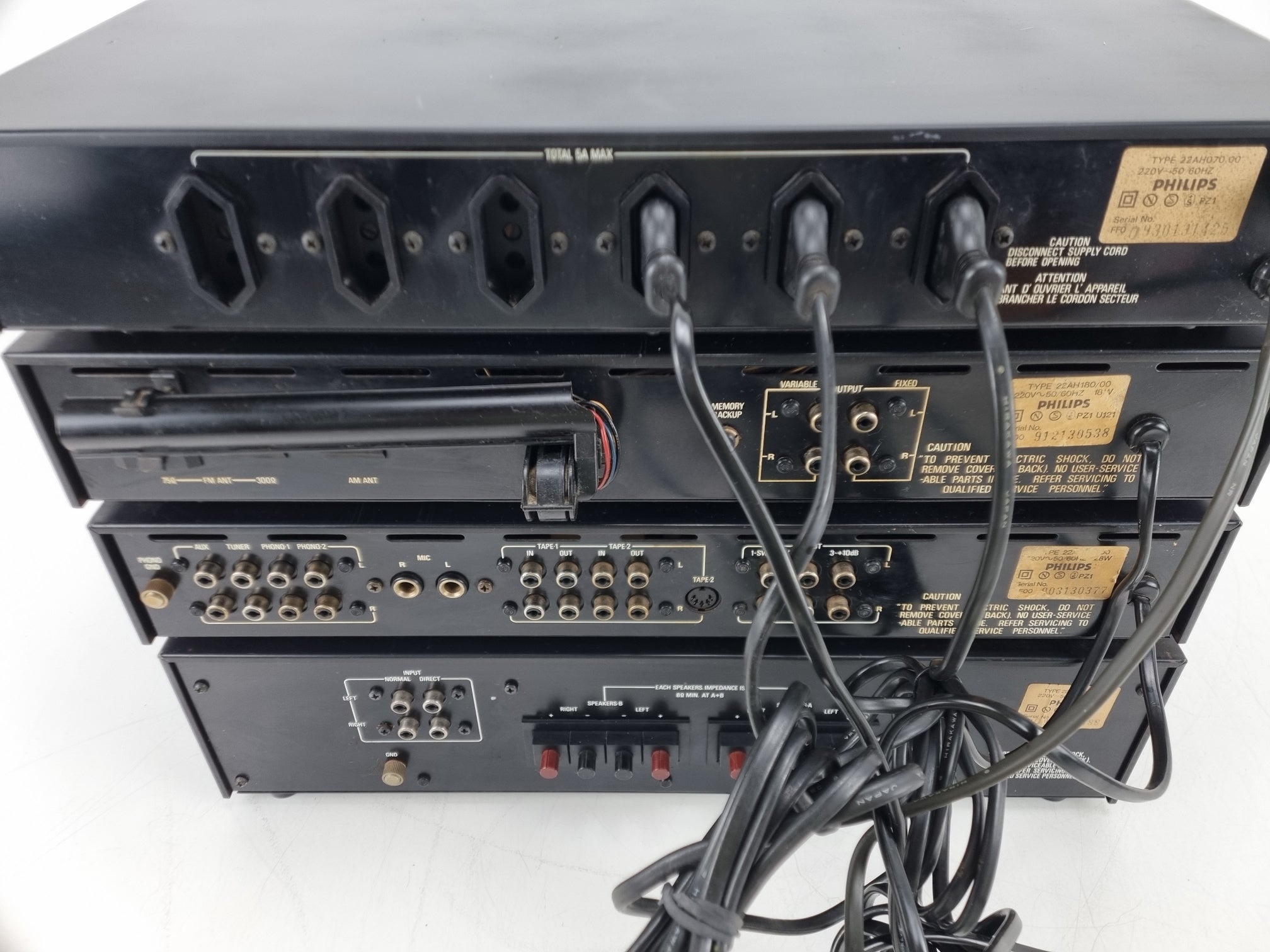

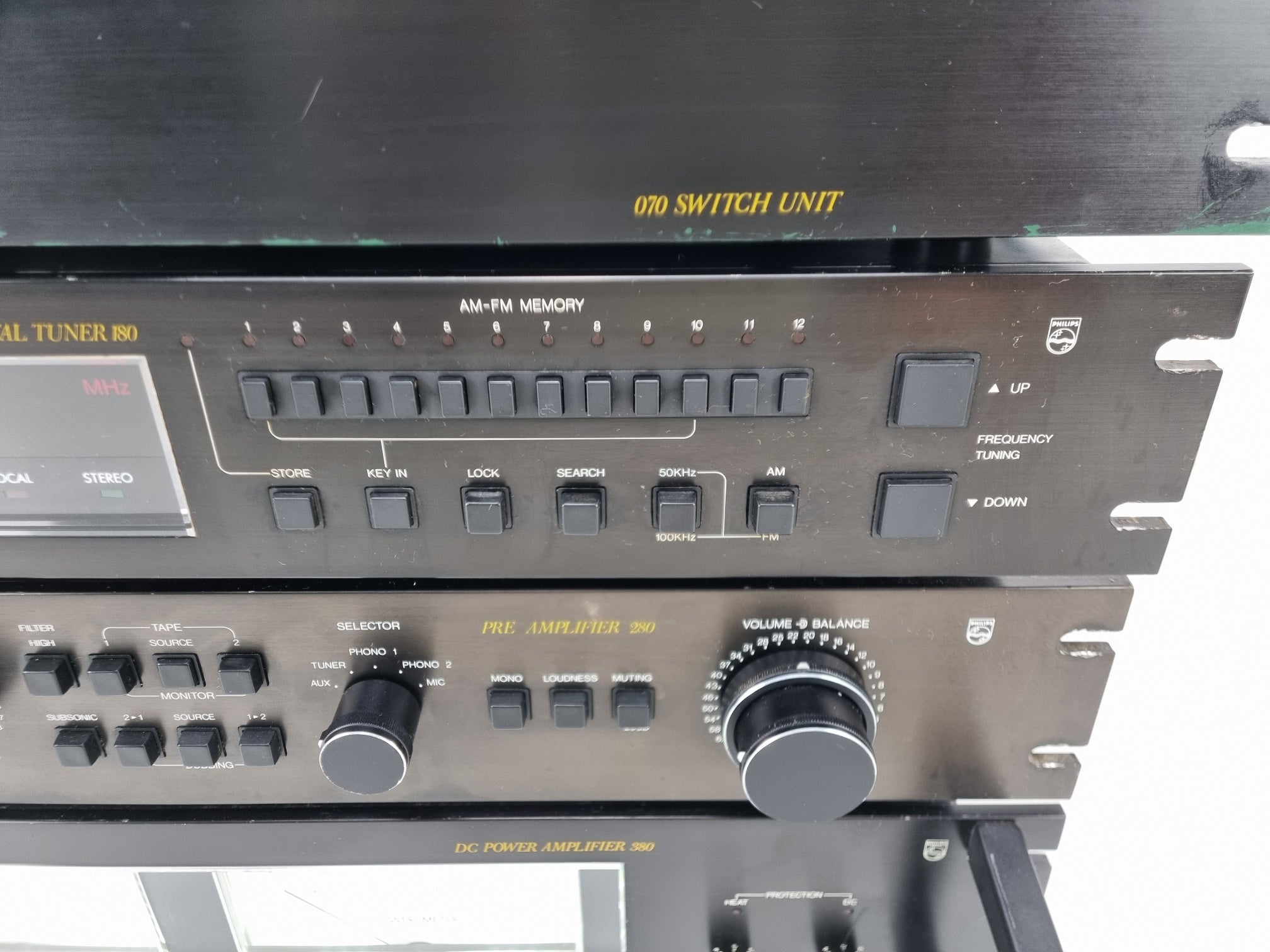

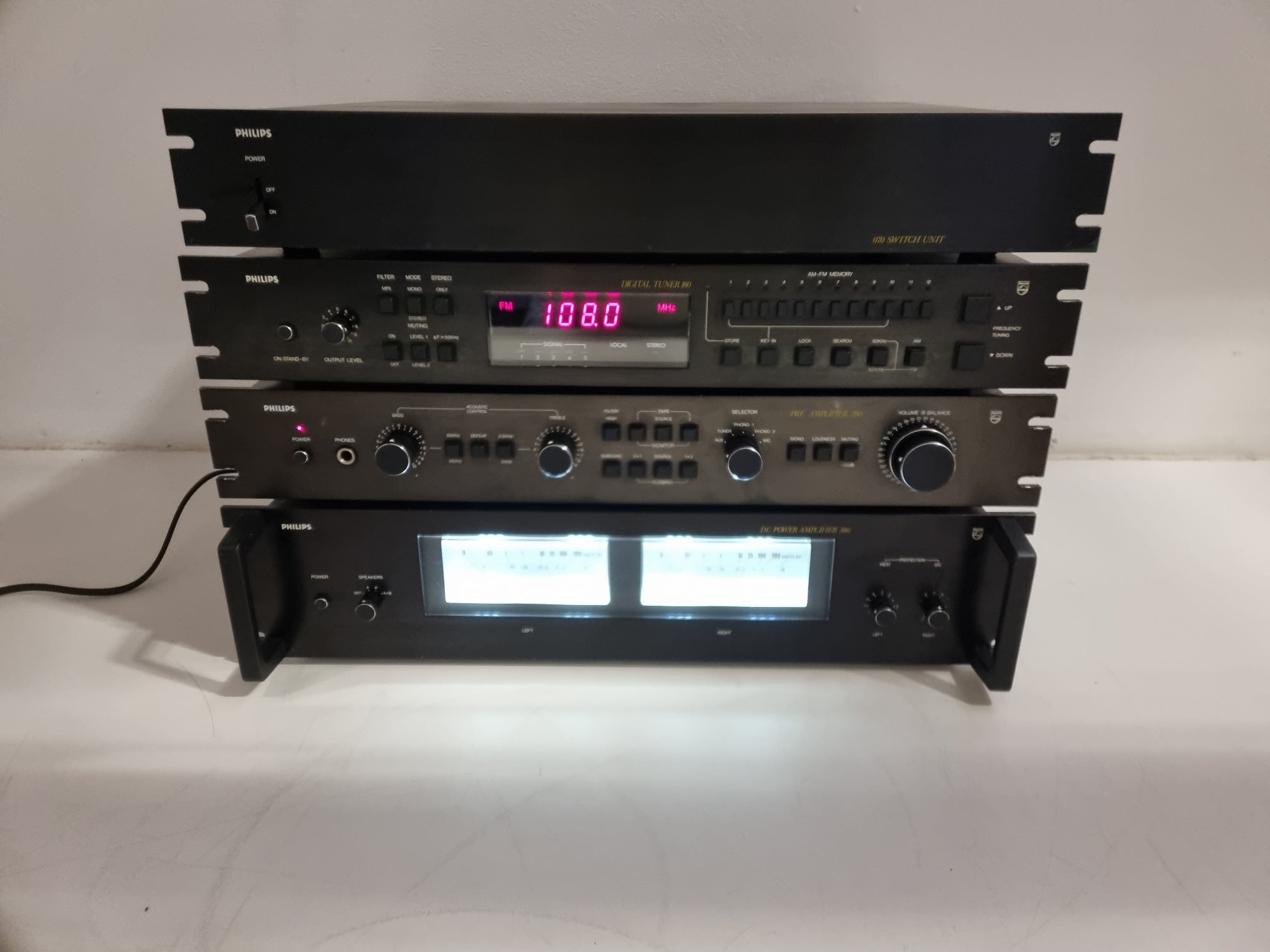

For sale: PHILIPS 070 Switch Unit - 180 TUNER - 280 Pre amp - 380 DC Power Amp - Set Fully Serviced (Black Tulip)
''Due to the size and weight of the set. We wil (prefer) shipping either in two boxes, or we ask for a shipping quote for the best shipping options. Please reach out for more details. Current shown costs are not correct!''
Condition: Fully serviced and recapped. 070 SWITCH UNIT 2 capacitors replaced, internals cleaned and cabinet sanded, primed and sprayed.180 TUNER PCBs resoldered and cleaned.
All capacitors replaced and switches cleaned. PRE AMPLIFIER 280 Print cleaned and completely soldered, all capacitors replaced, bad components replaced, switches and potentiometers cleaned where possible. 380DC POWER AMPLIFIER . Cleaned the PCB and fully soldered the power meters with LEDs.
Replaced the capacitors and two quiescent current potentiometers.
Replaced and connected the capacitors and power transformer to 240V.
Two new low-voltage relays.
Two new potentiometers.
''Important note when tested: When we find there's either a small thing wrong, or not 100% working we offer our listings for parts or repair to avoid unwanted issues after purchase''
Specs:

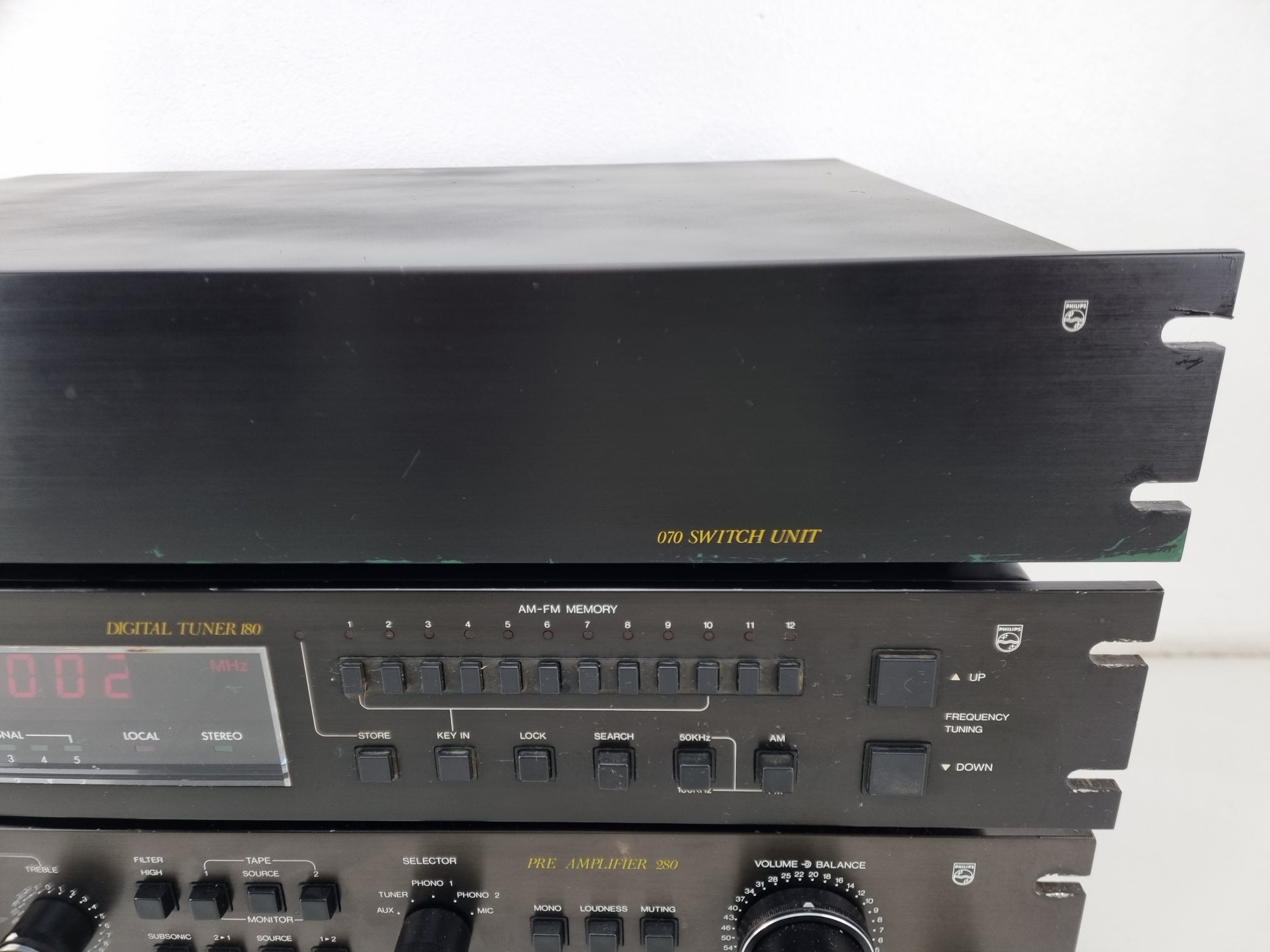

070 Switch Unit no specs found.

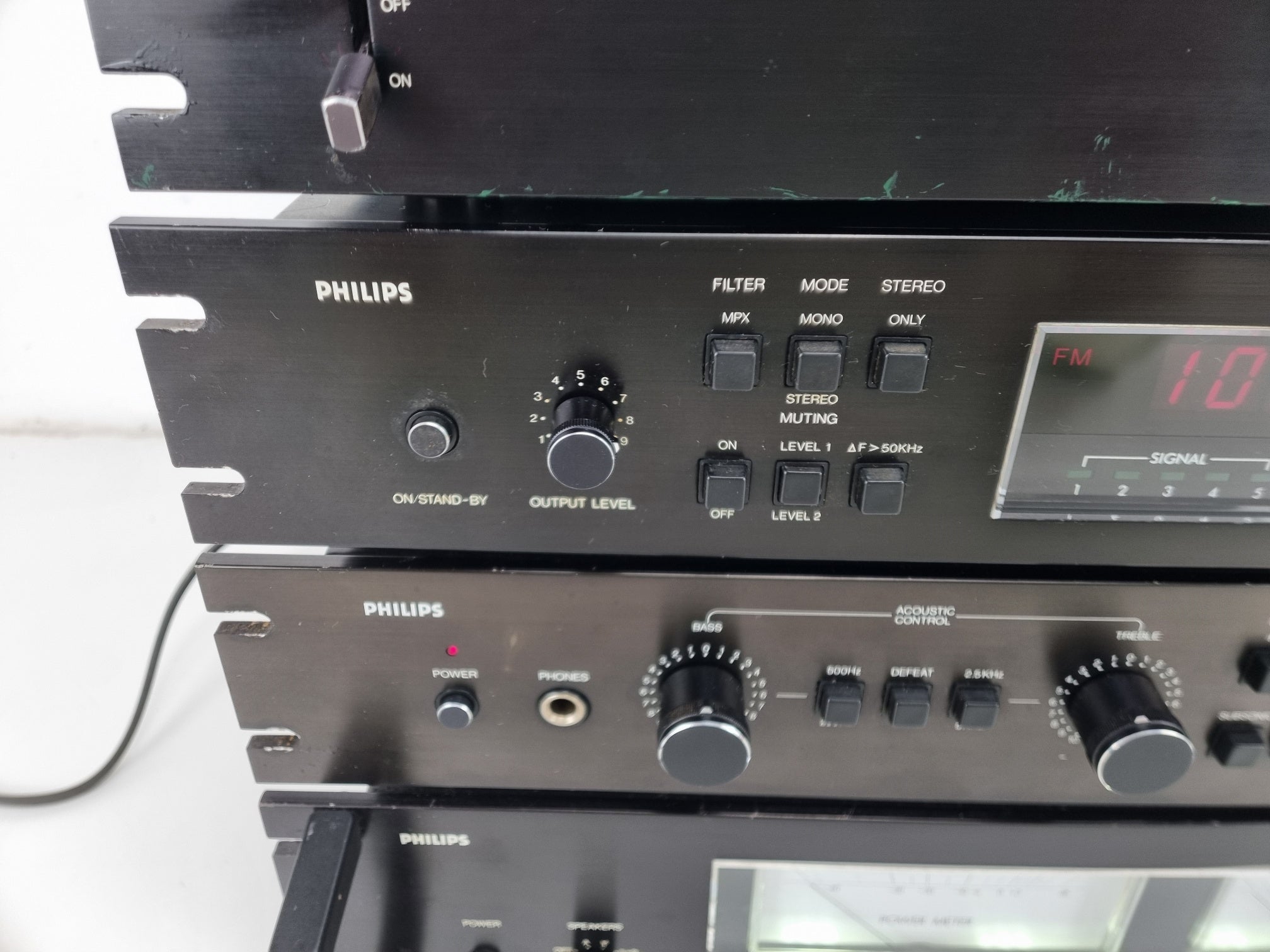

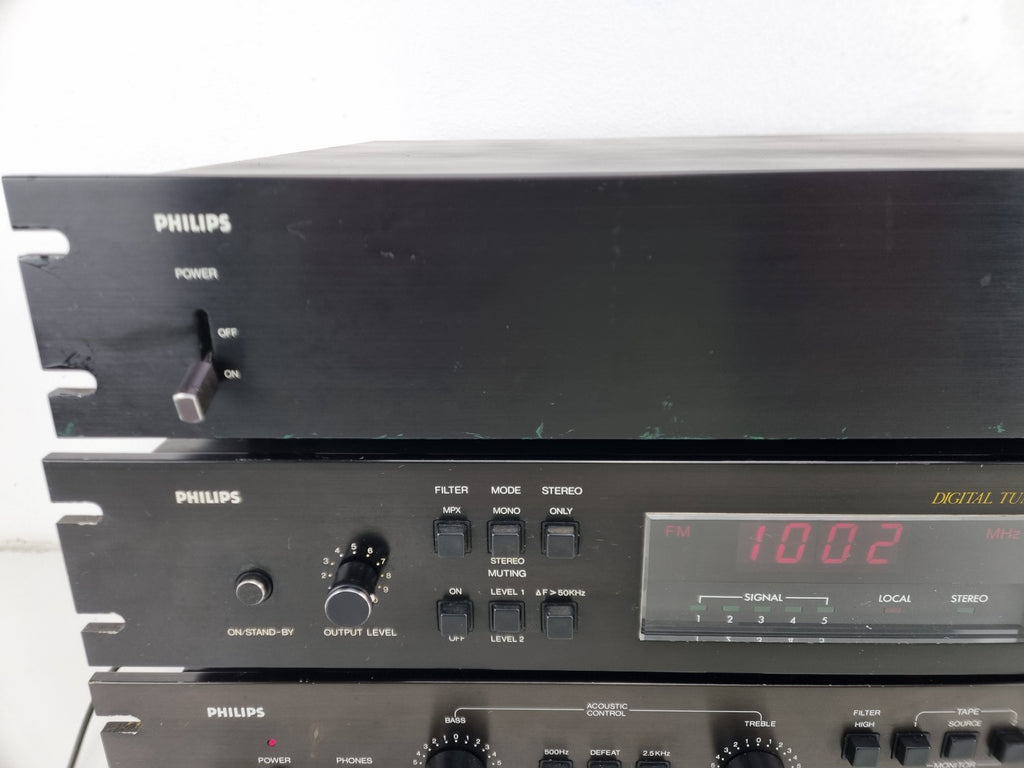

180 Digital Tuner:
Type: Mono/Stereo Tuner
Tuning Bands: FM, MW
Tuning Scale: Digital
FM Tuning Range: 87.5 to 108 MHz
MW Tuning Range: 520 to 1605 kHz
Sensitivity: 0.9uV (FM)
Output: 1000mV (FM), 200mV (MW)
Dimensions: 482 x 70 x 340mm

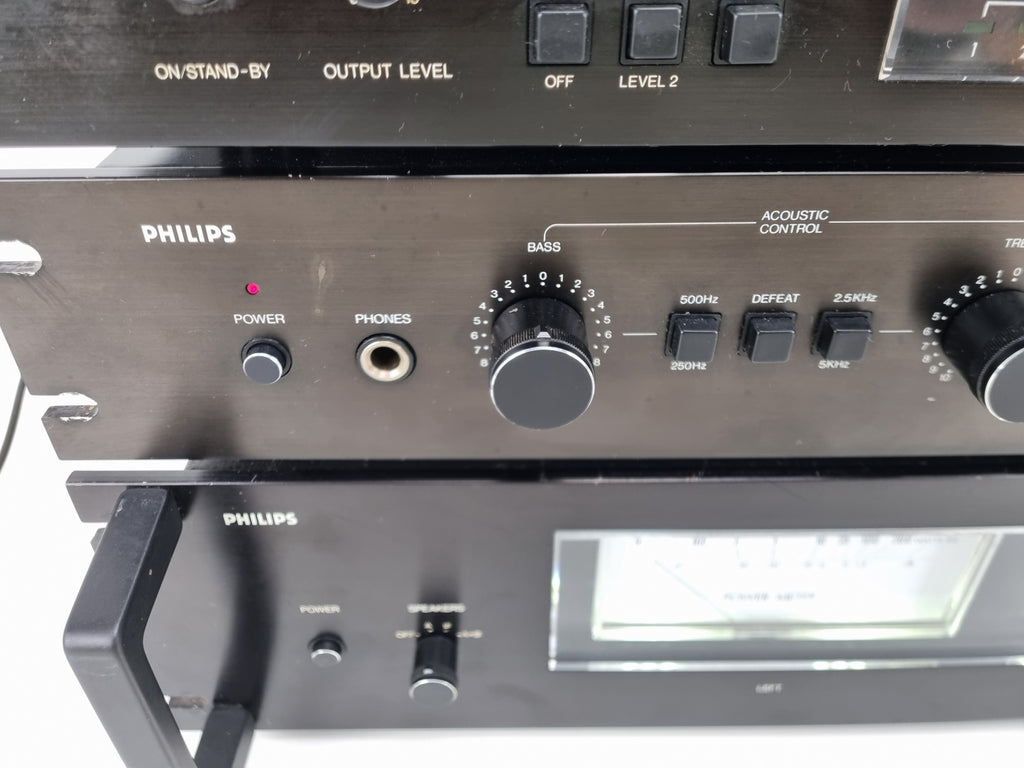

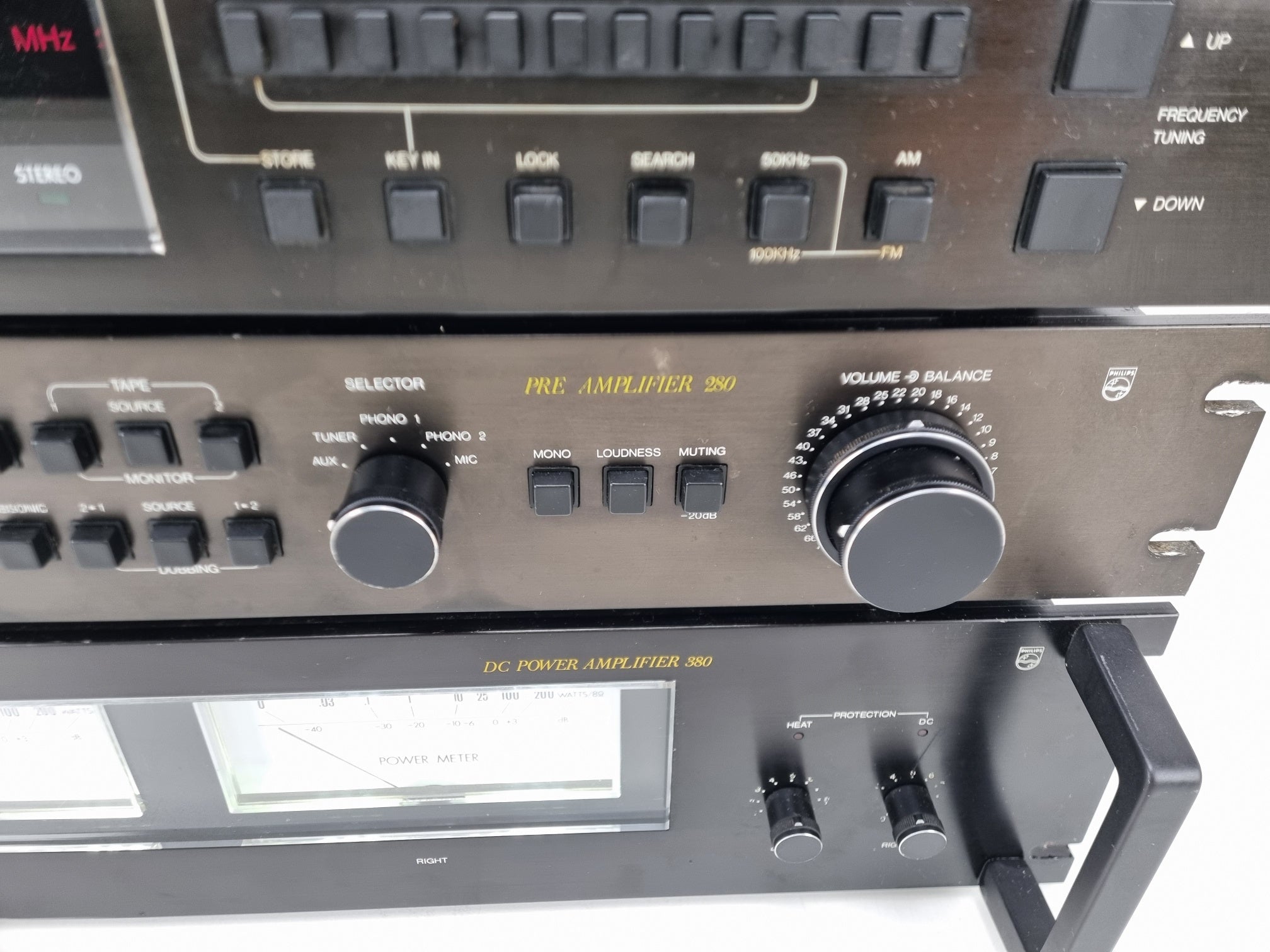

280 Pre Amplifier:
Frequency response: 10Hz to 200kHz
Total harmonic distortion: 0.004%
Input sensitivity: 1.7mV (mic), 2.2mV (MM), 210mV (DIN), 245mV (line)
Signal to noise ratio: 78dB (mic), 85dB (MM), 104dB (line)
Channel separation: 60dB (MM), 80dB (line)
Output: 210mV (line), 67mV (DIN), 2.8V (Pre out)
Dimensions: 482 x 75 x 360mm
Weight: 6kg
Year: 1980

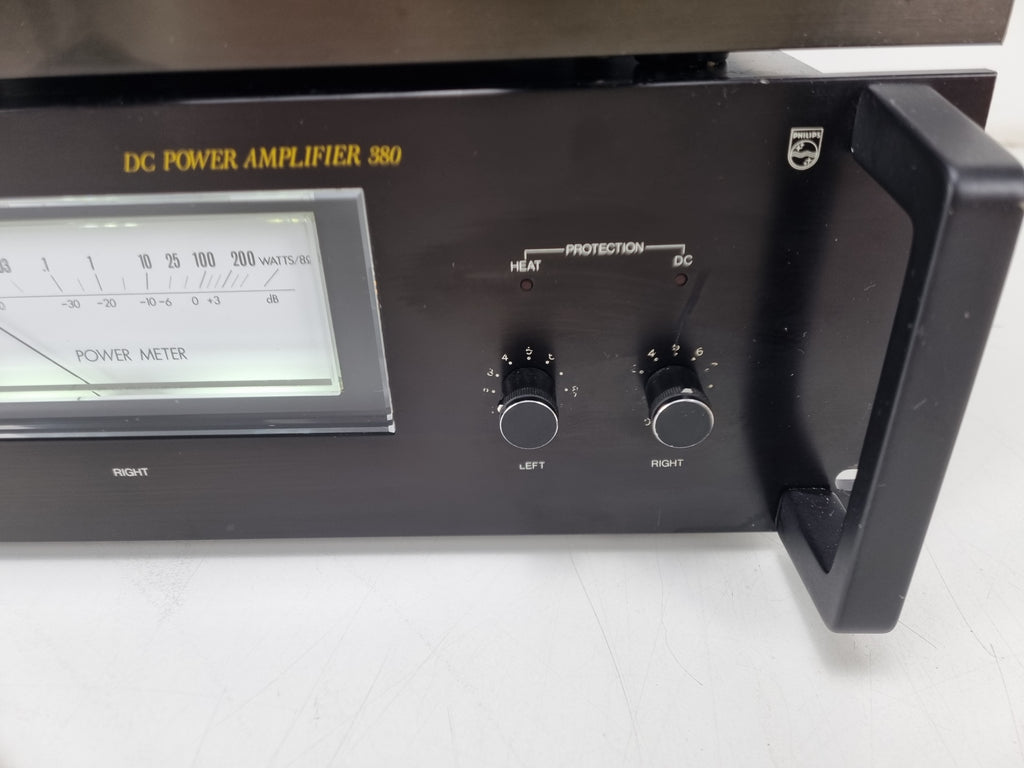

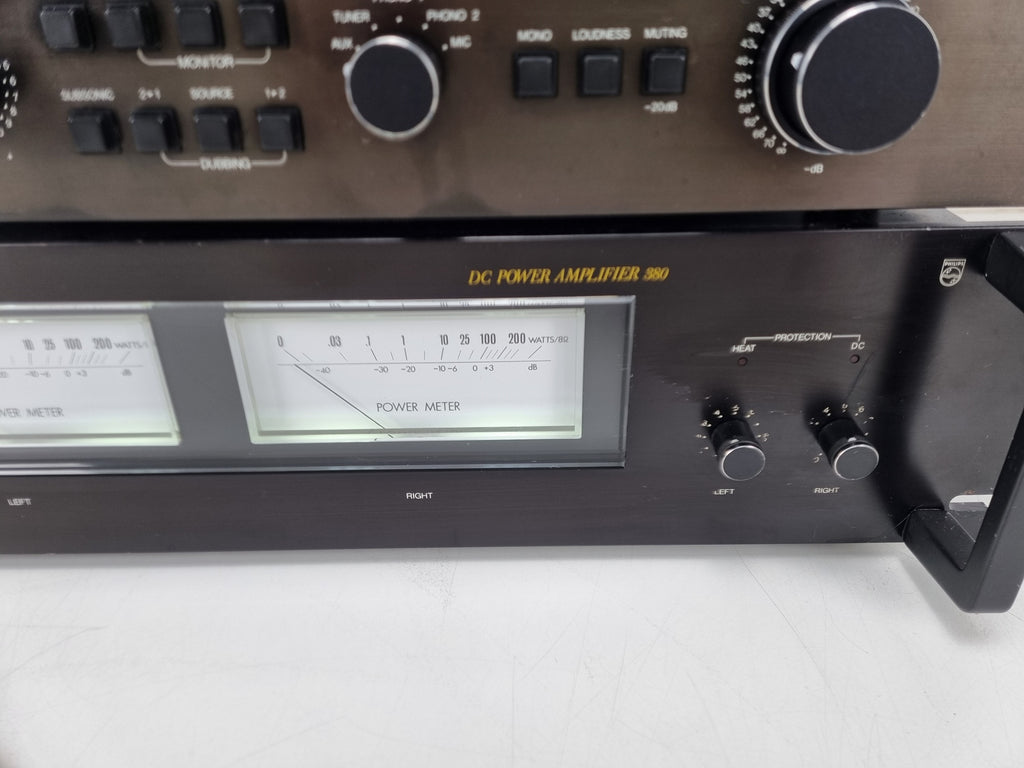

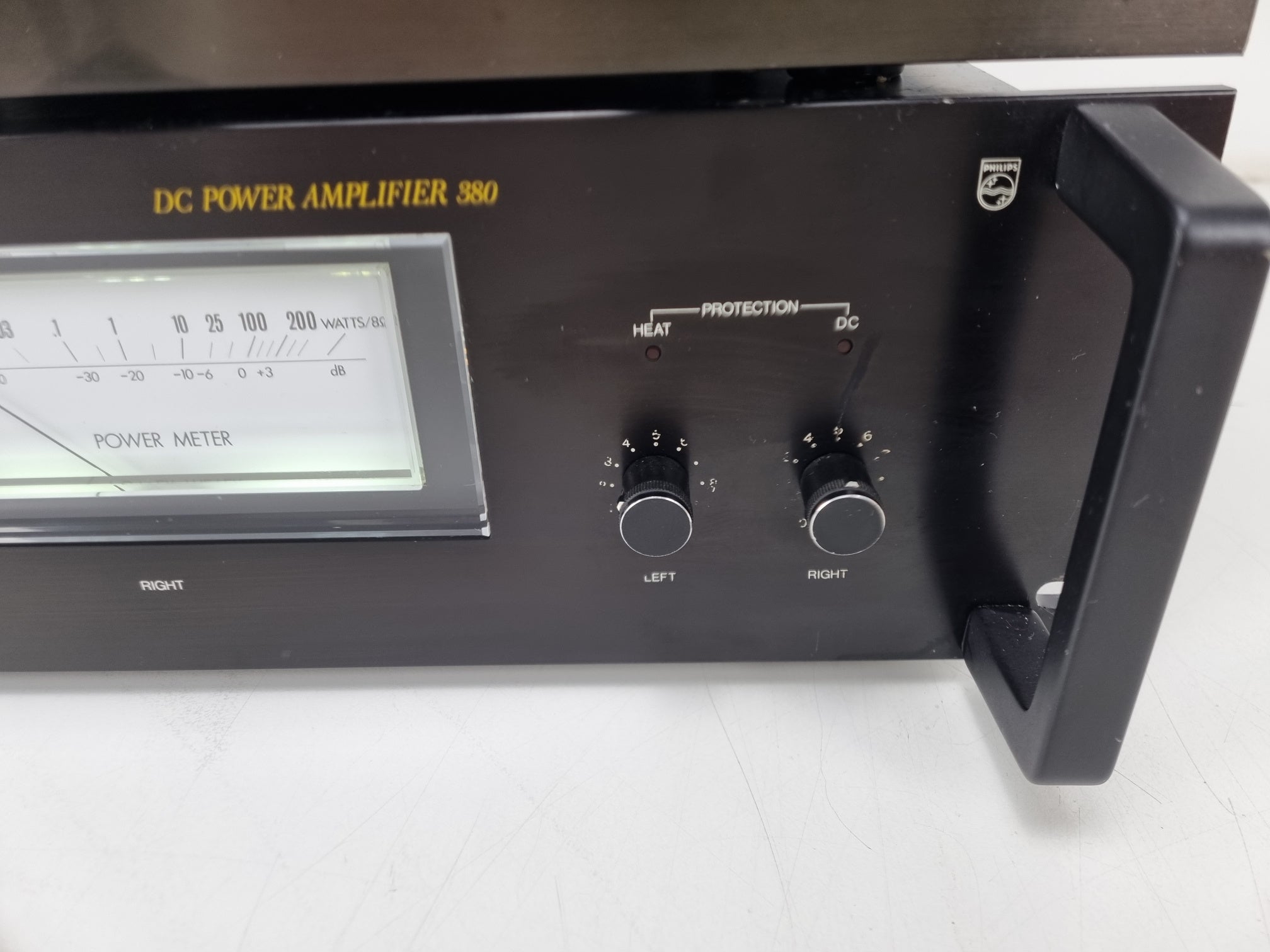

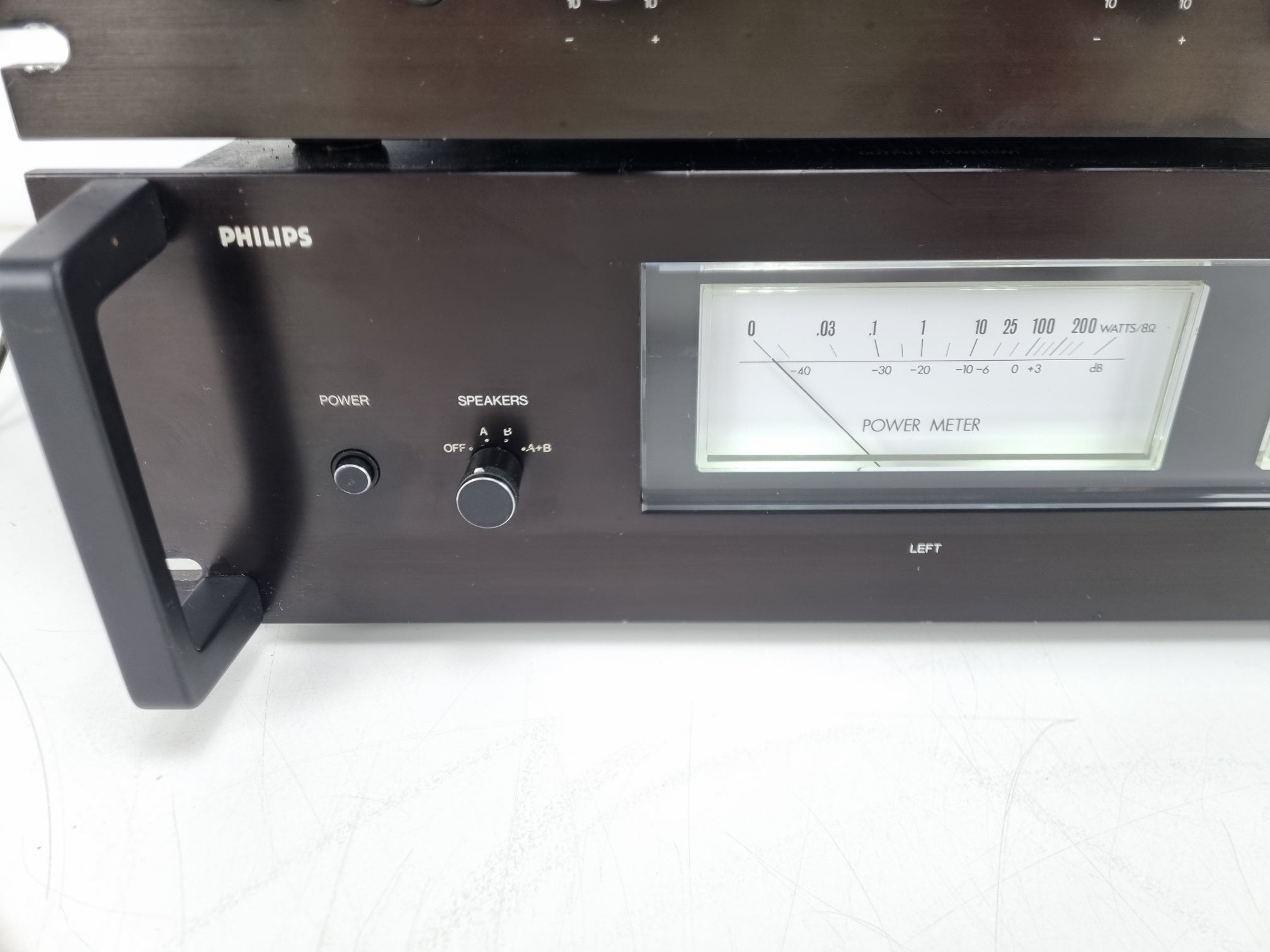

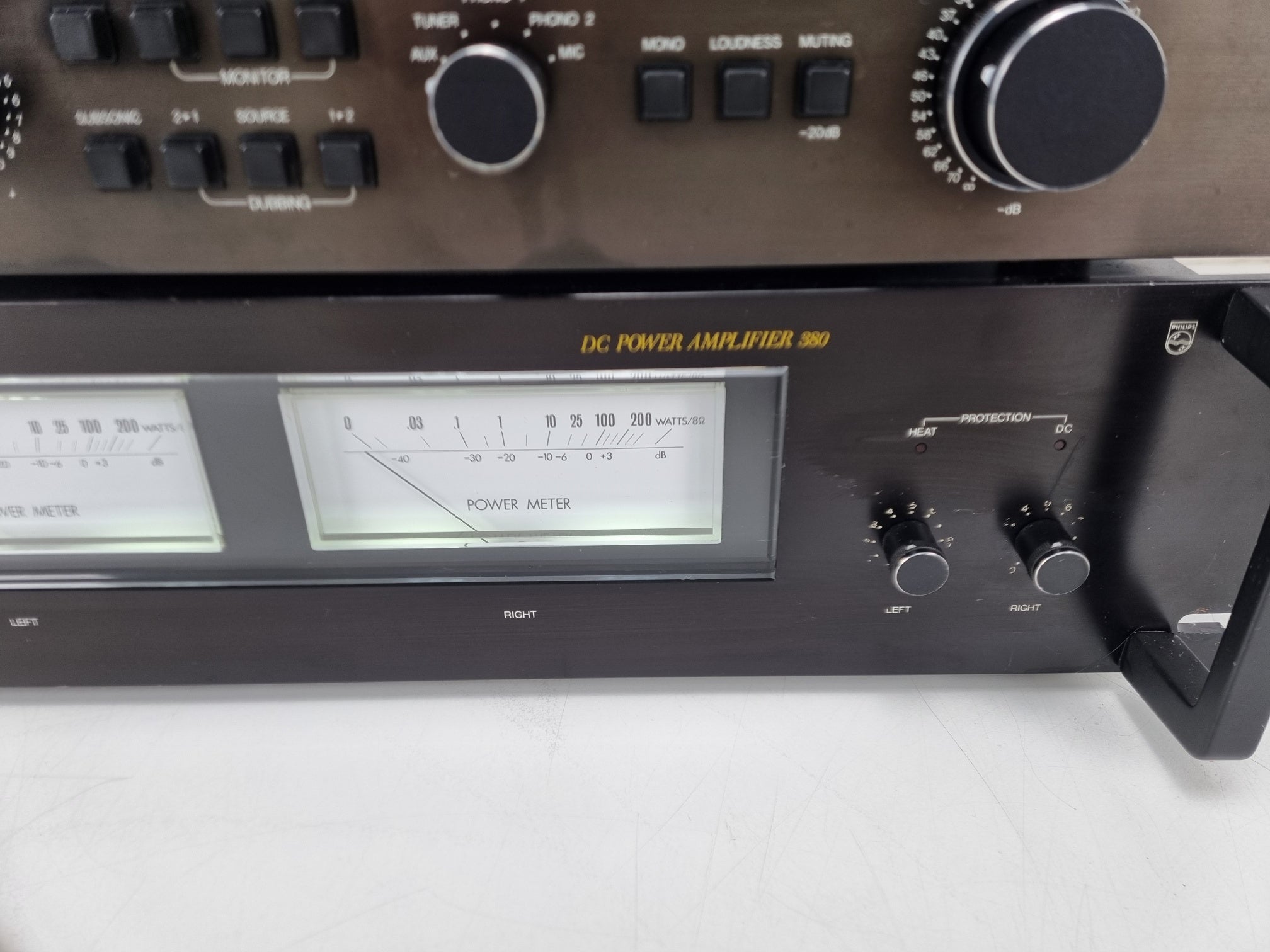

380 DC Power Amplifier:
Power output: 100 watts per channel into 8Ω (stereo)
Frequency response: 5Hz to 200kHz
Total harmonic distortion: 0.05%
Input sensitivity: 1V
Signal to noise ratio: 100dB
Speaker load impedance: 4Ω to 16Ω
Dimensions: 19 x 4 x 13.37 inches
Weight: Kg 30 total FOr the whole set

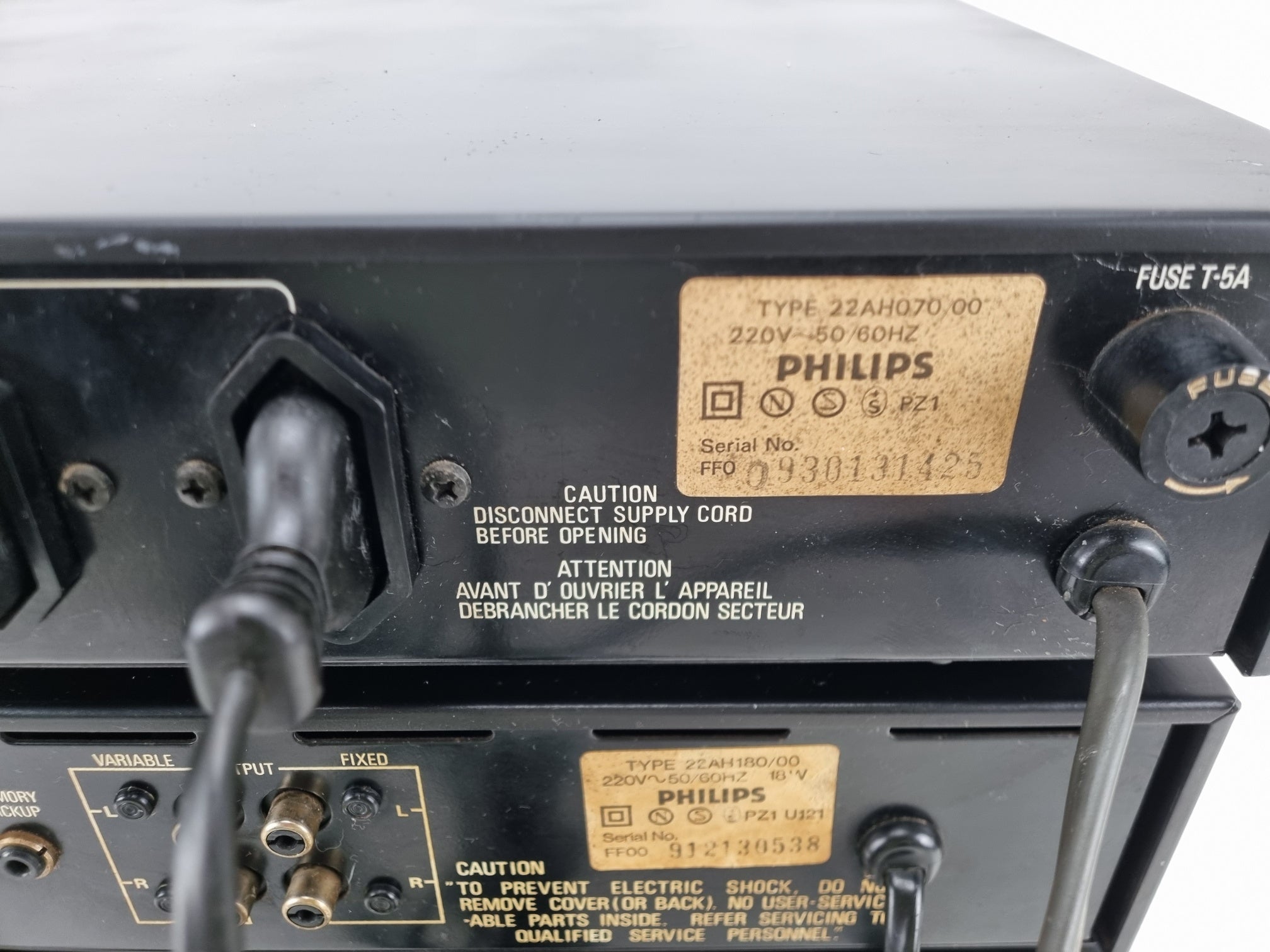

Volts: 240v (in case of only 230v. in USA you will need a adapter)

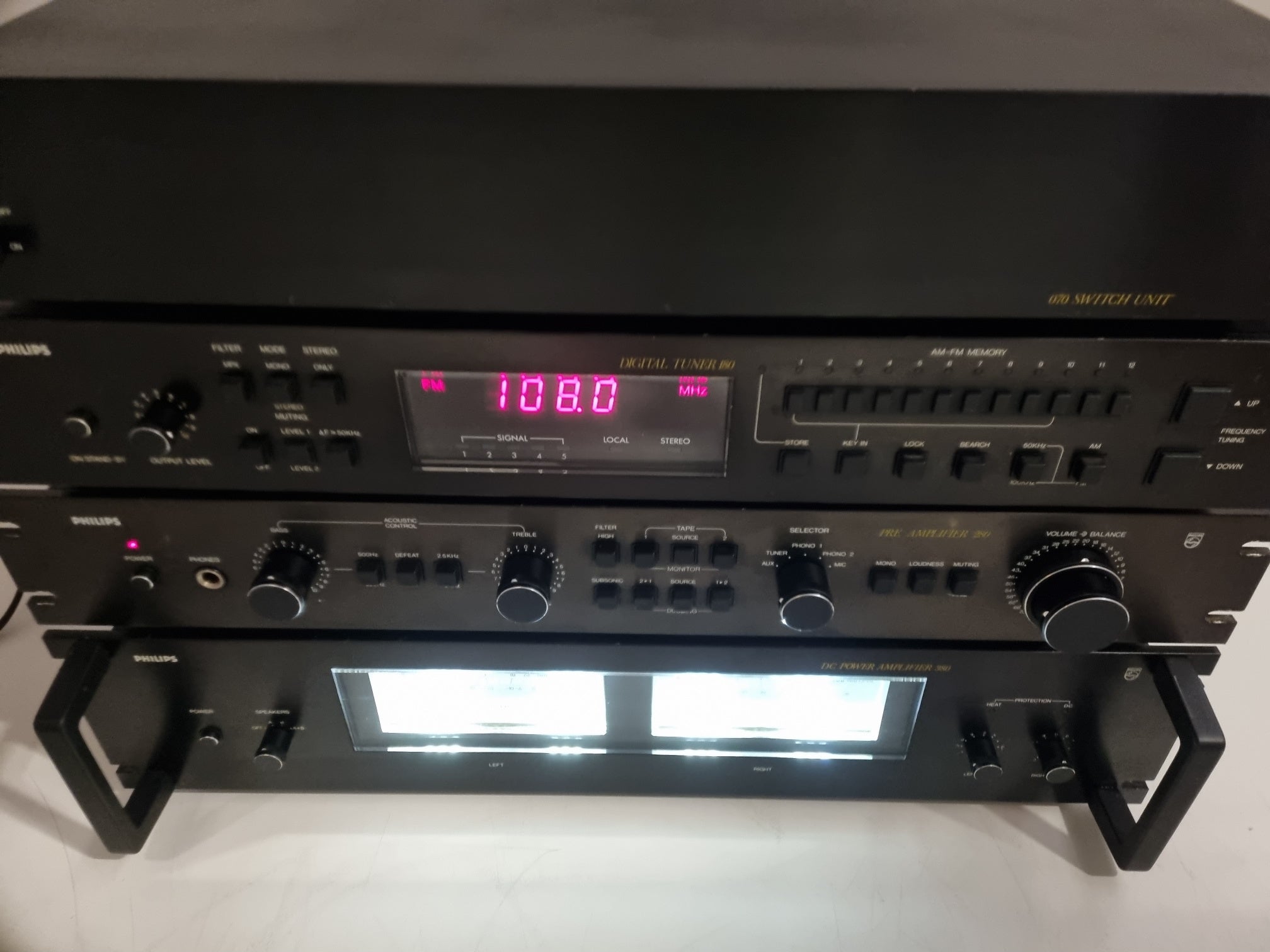

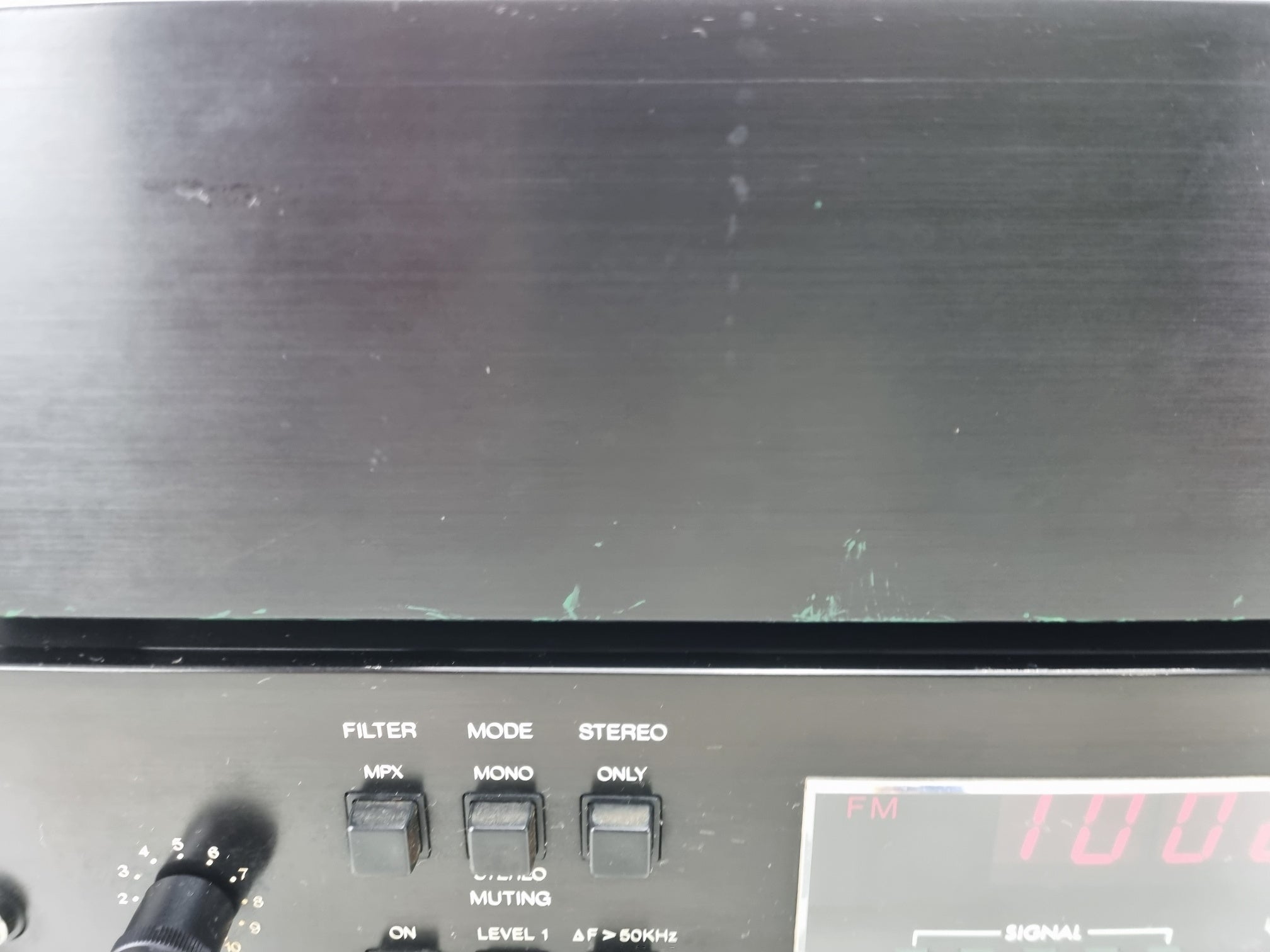

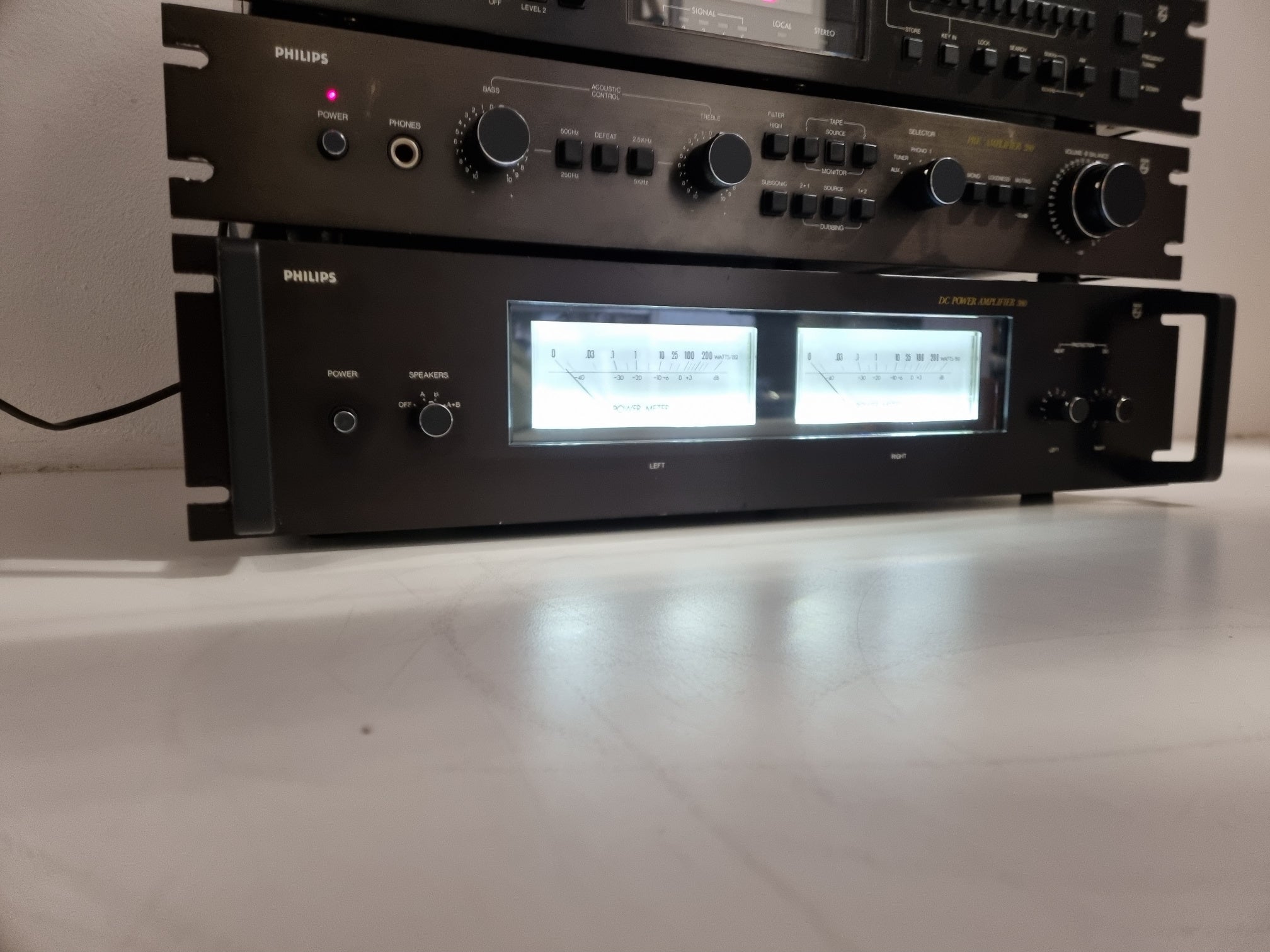

Working condition: Fully working (See pictures for the cosmetic condition of this lot)

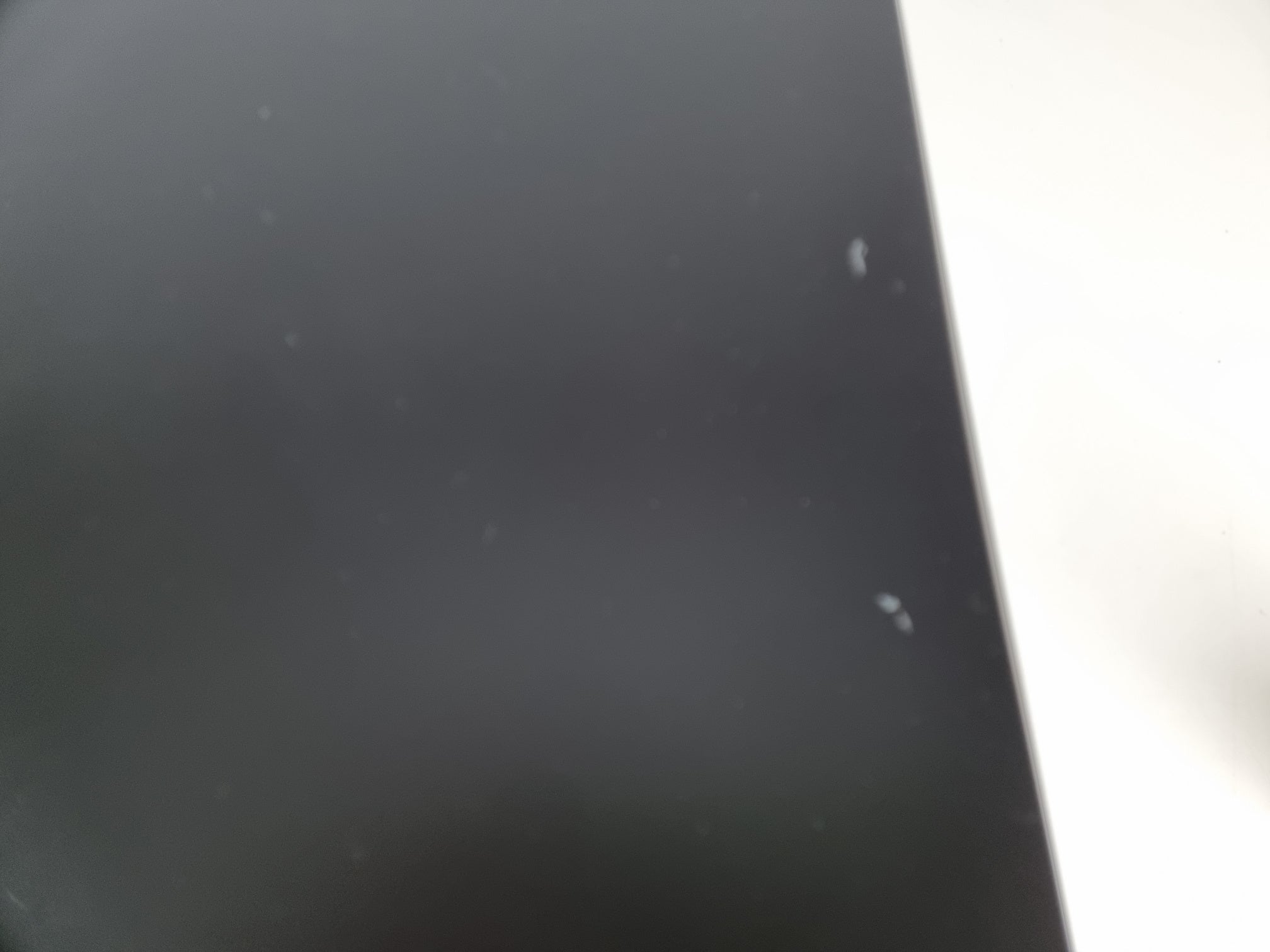

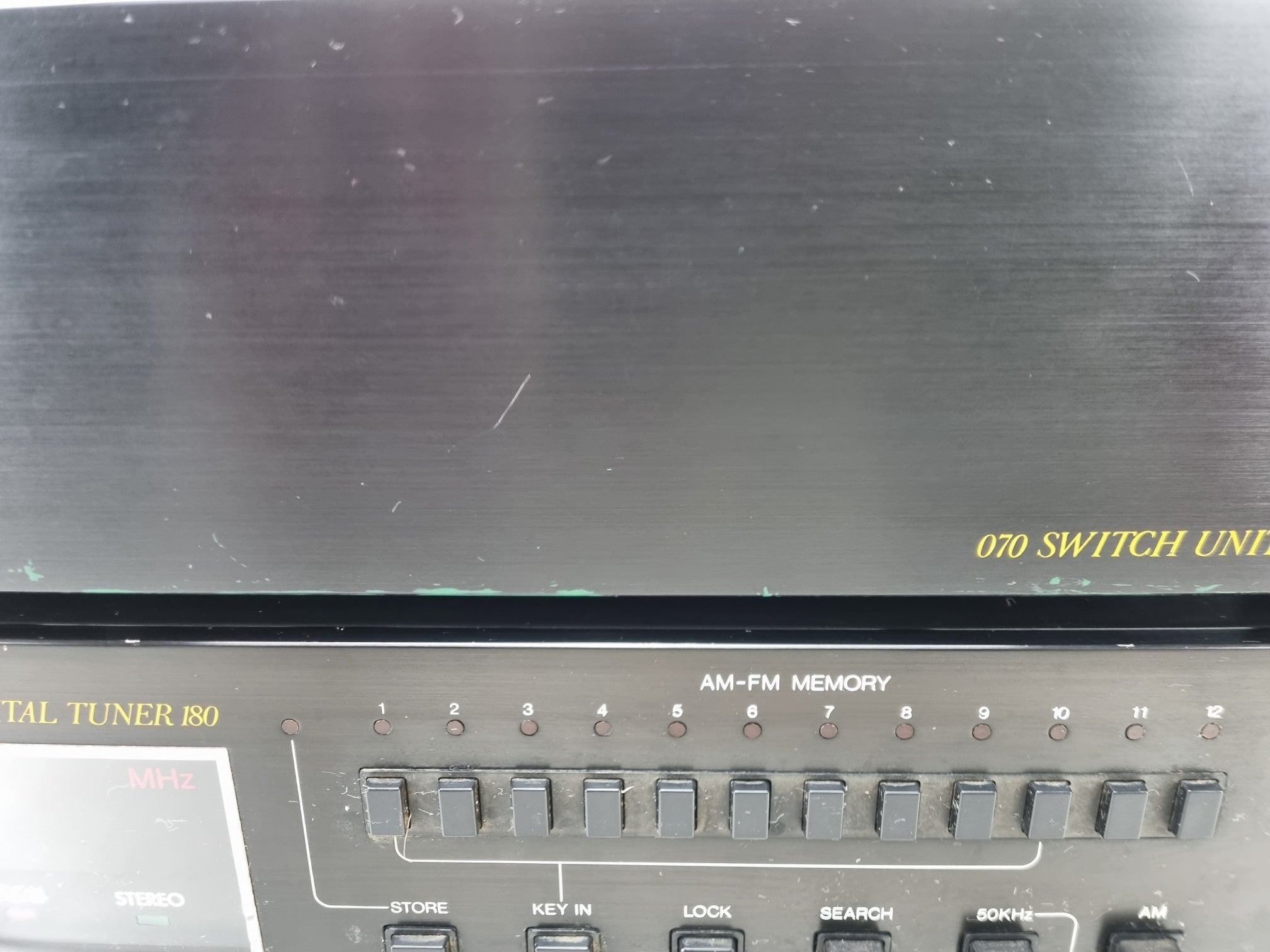

Missing or damages: Minor Usage Marks
Does come with fixed/factory power cable.
We ship worldwide.
-Shipping in the EU up to 30 KG (max)
-Shipping outside of the EU up to 20 KG (max)
''We offer combine shipping (EU 30KG max, NON EU 20KG max) for all our listings, ask us for details''
Please note: ‘'Whenever an item exceeds the weight noted above. Please ask for a shipping quote before making a purchase. The shipping costs are estimated in our shop because we do not know the shipping address.
Picking up the item is also possible. It can be picked up in Alkmaar
Delivery by us is also possible in some cases. Please reach out to us for more information about deliveries
State of listing: If a listing is listed ''for parts or not working'' returns are not accepted.
When we offer our products with the notice ''Serviced'' or ''Fully serviced'' that means the device is either lightly ''serviced'' with a new belt, and cleaned the pots, Or ''Fully serviced'' recapped, Quiescent current adjusted etc as expected from a full service
