For sale: a Panasonic NV-FS200 HQ S-VHS video cassette recorder, a high-quality vintage VCR designed for both standard VHS and Super VHS playback and recording.
The NV-FS200 is a desirable model for collectors, video enthusiasts, archival use, and retro home-video setups. Its S-VHS capability offers improved picture quality compared with standard VHS when used with compatible tapes and equipment.
Cosmetic condition:

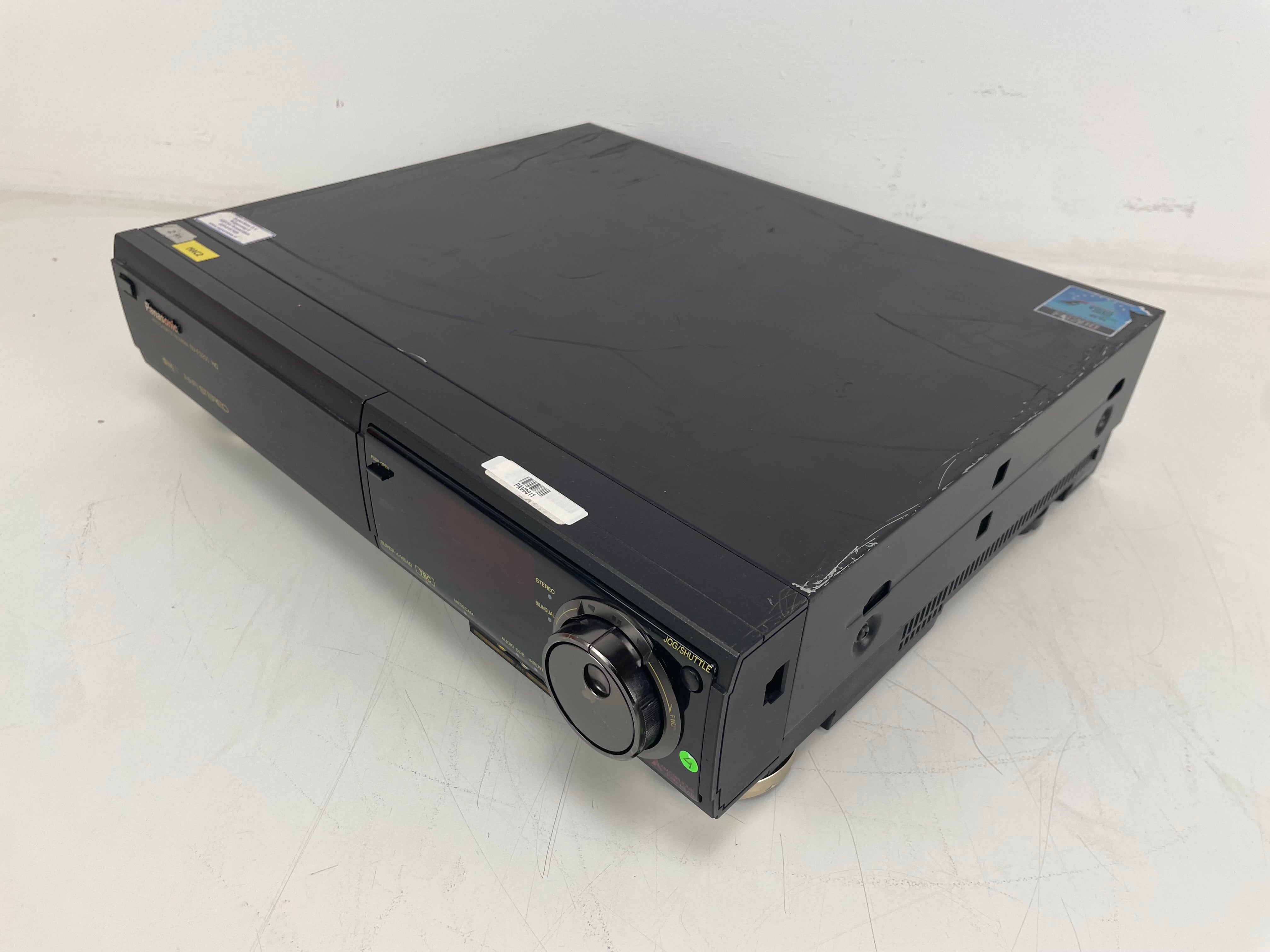

The recorder is in used vintage condition with minor cosmetic damage.

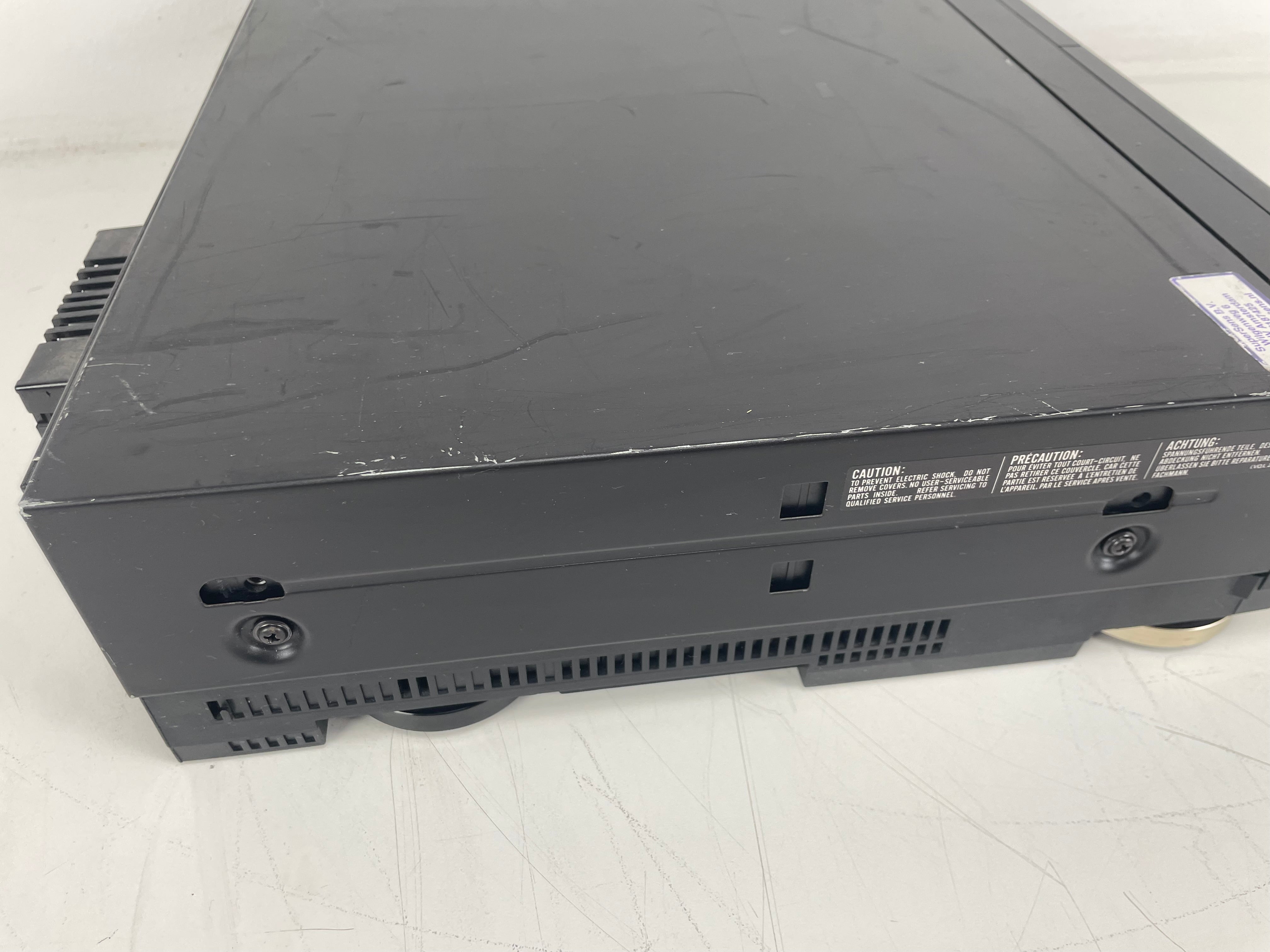

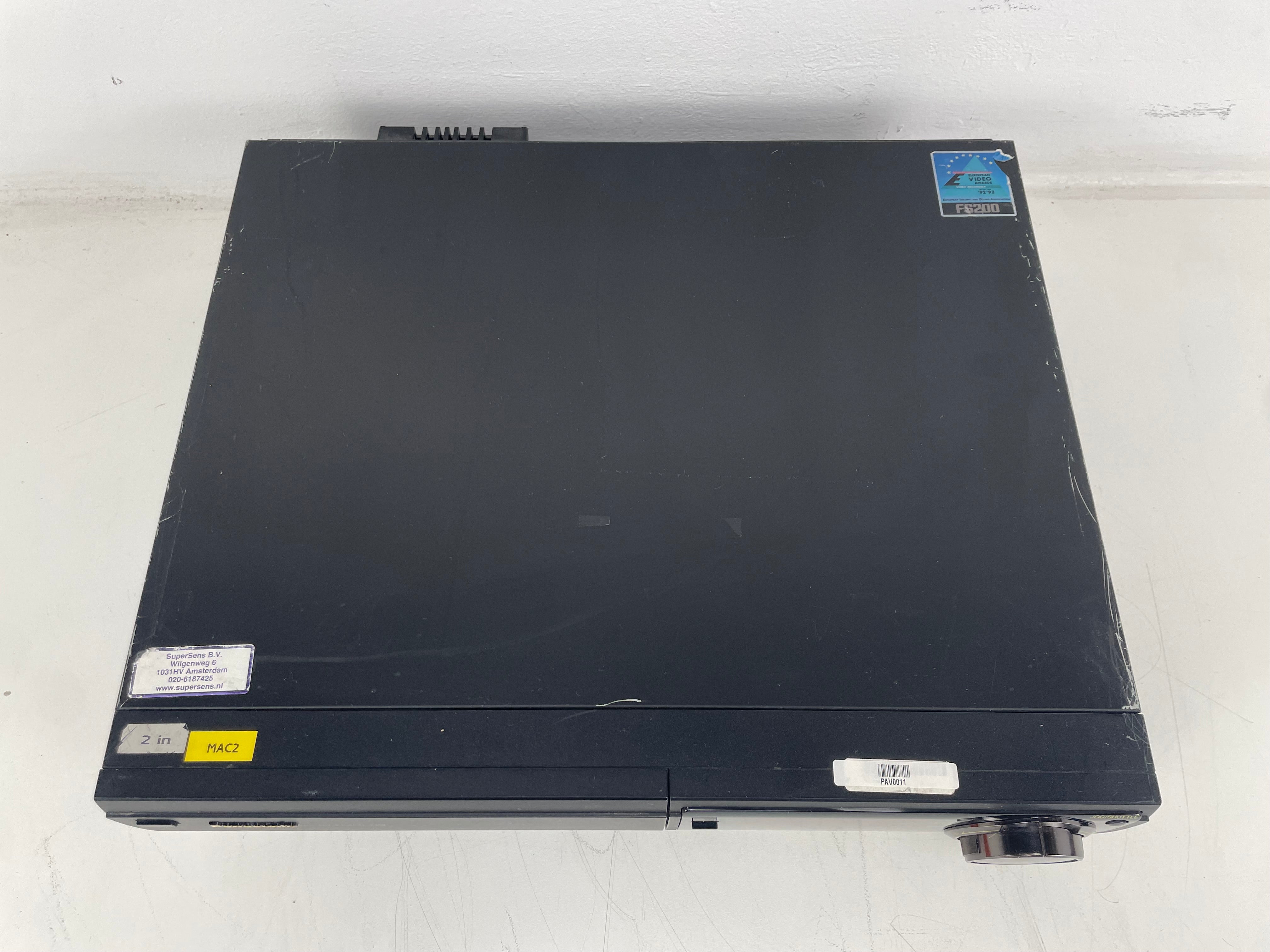

- Numerous scratches and signs of wear on the top cover
- General marks from age and previous use

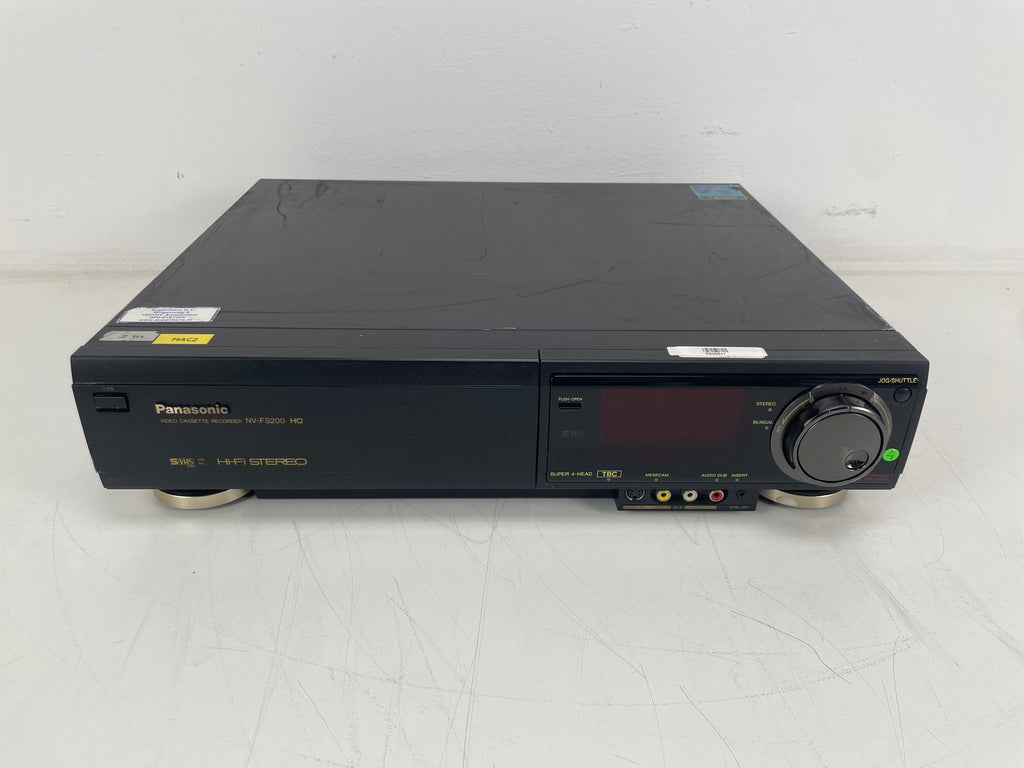

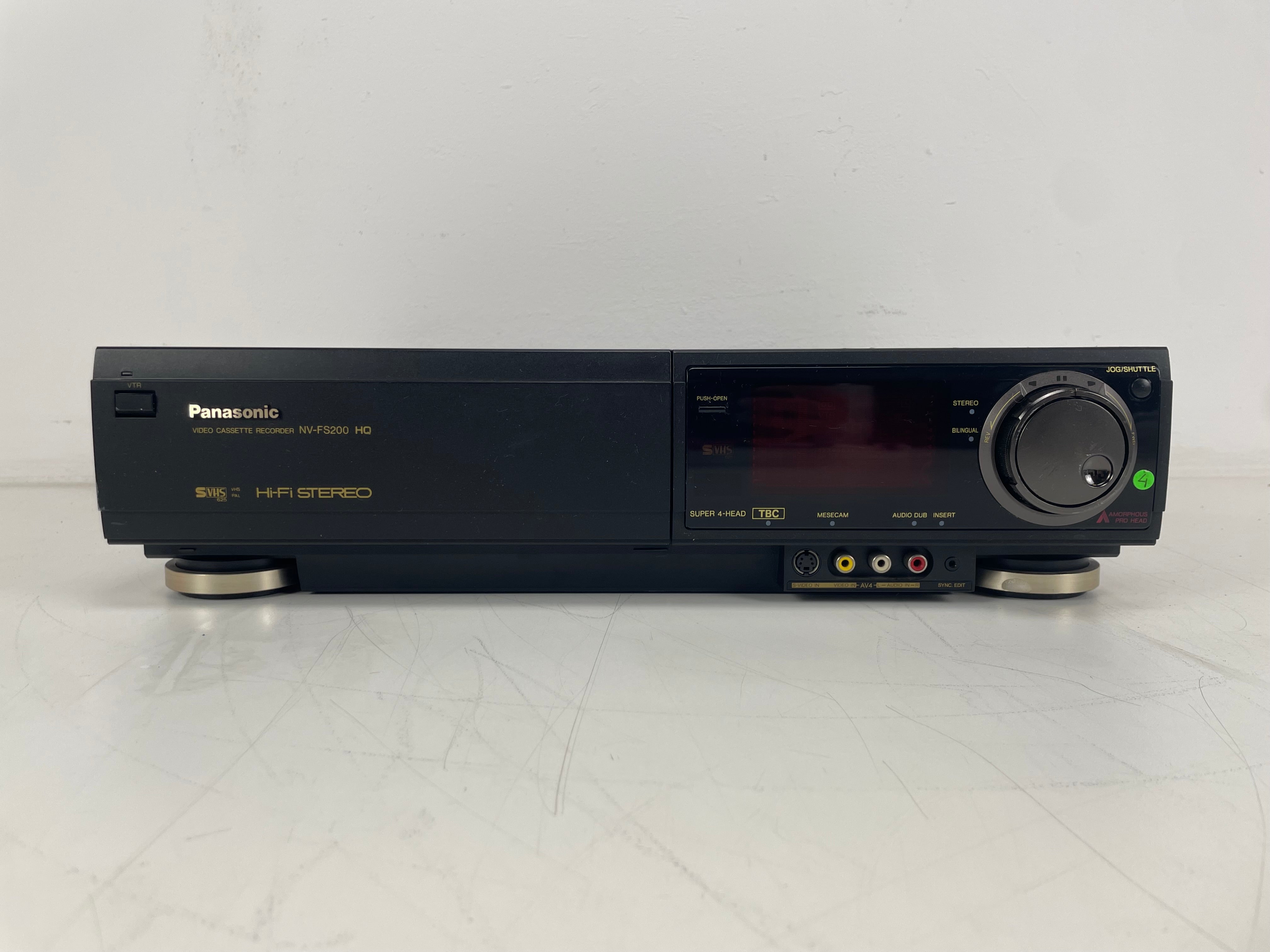

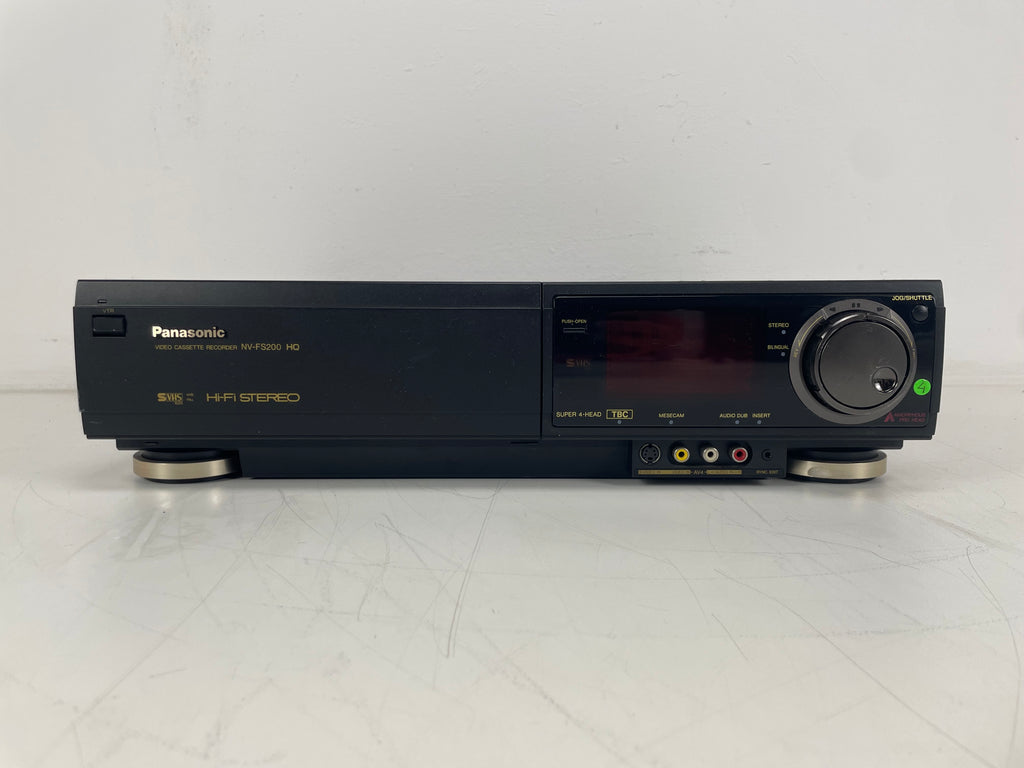

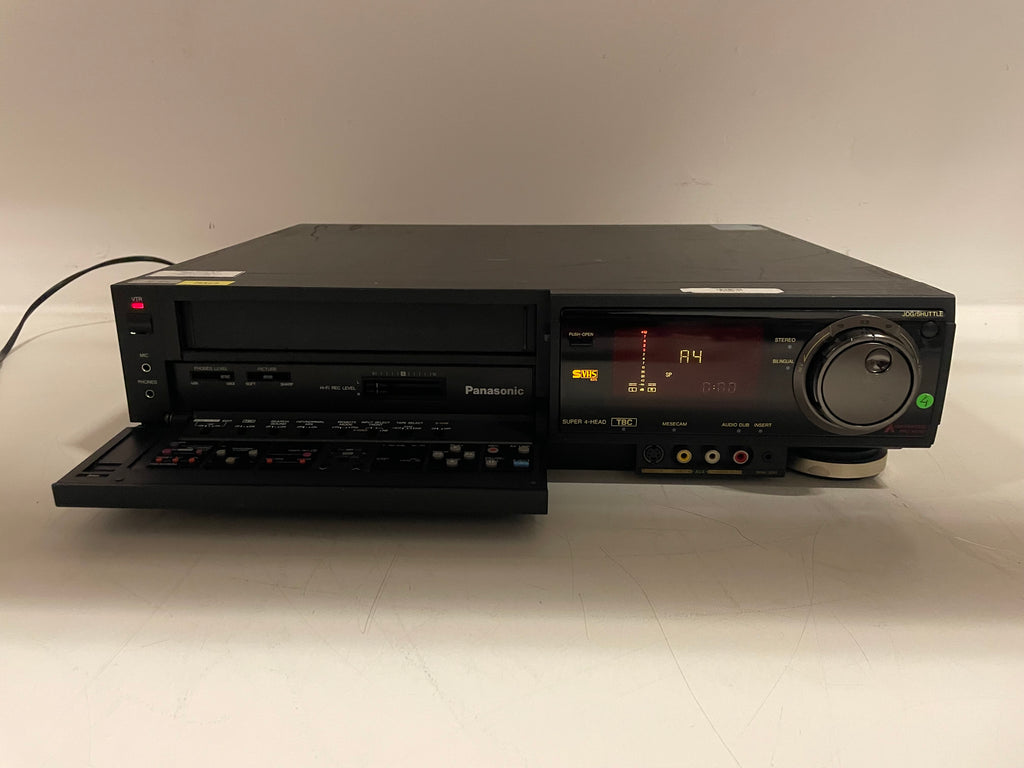

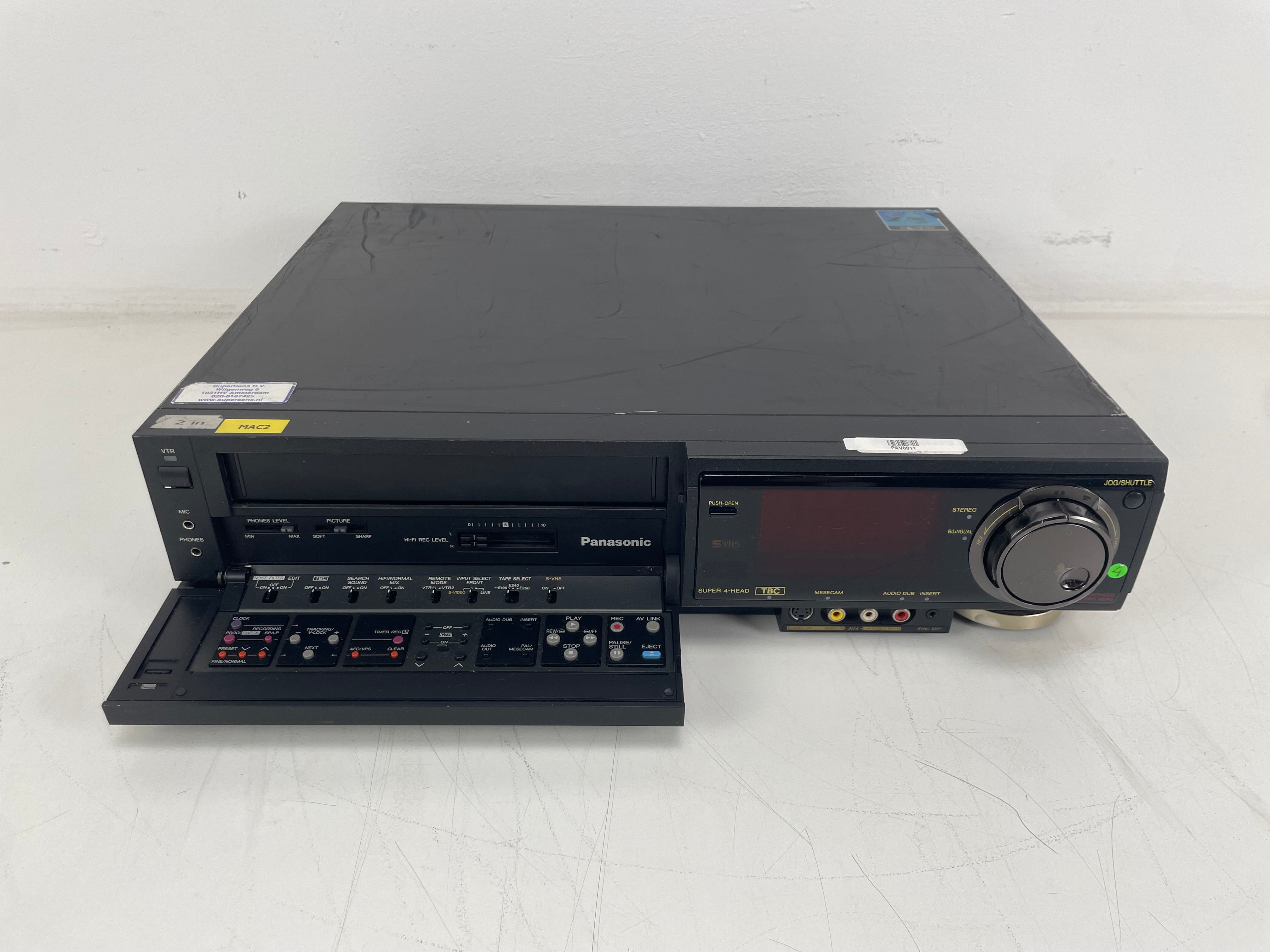

- Front panel and controls remain presentable
- No major structural damage reported

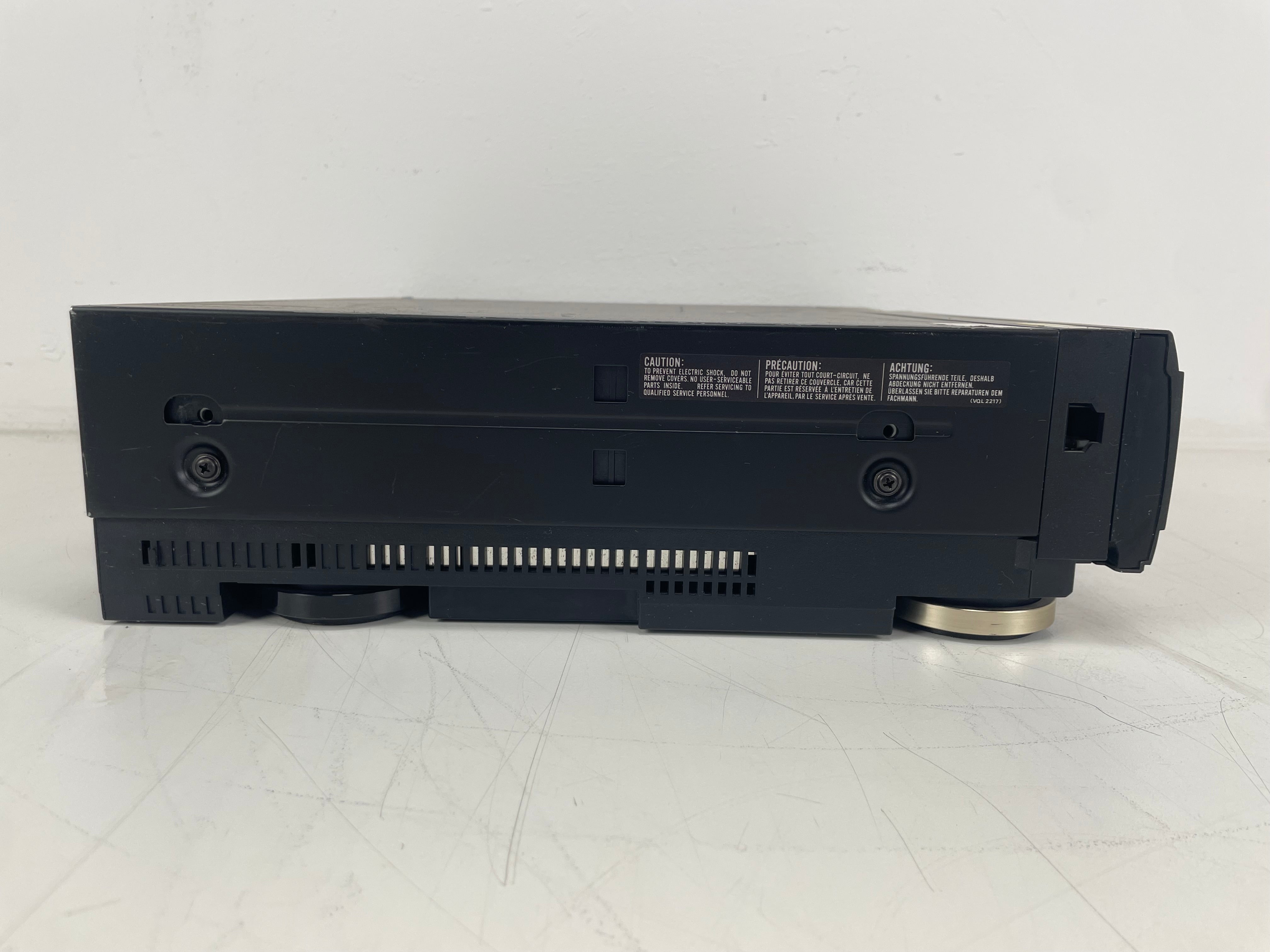

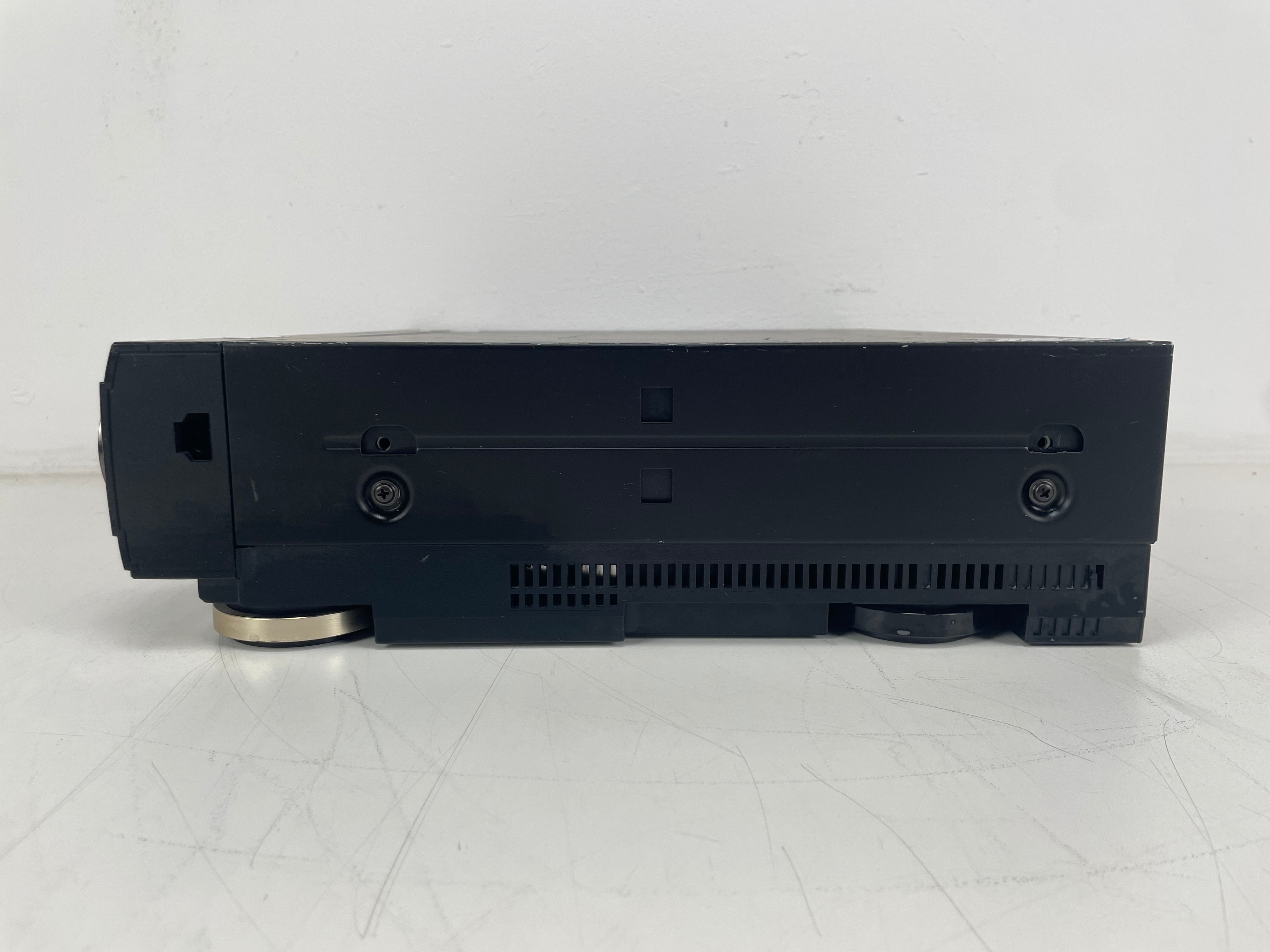

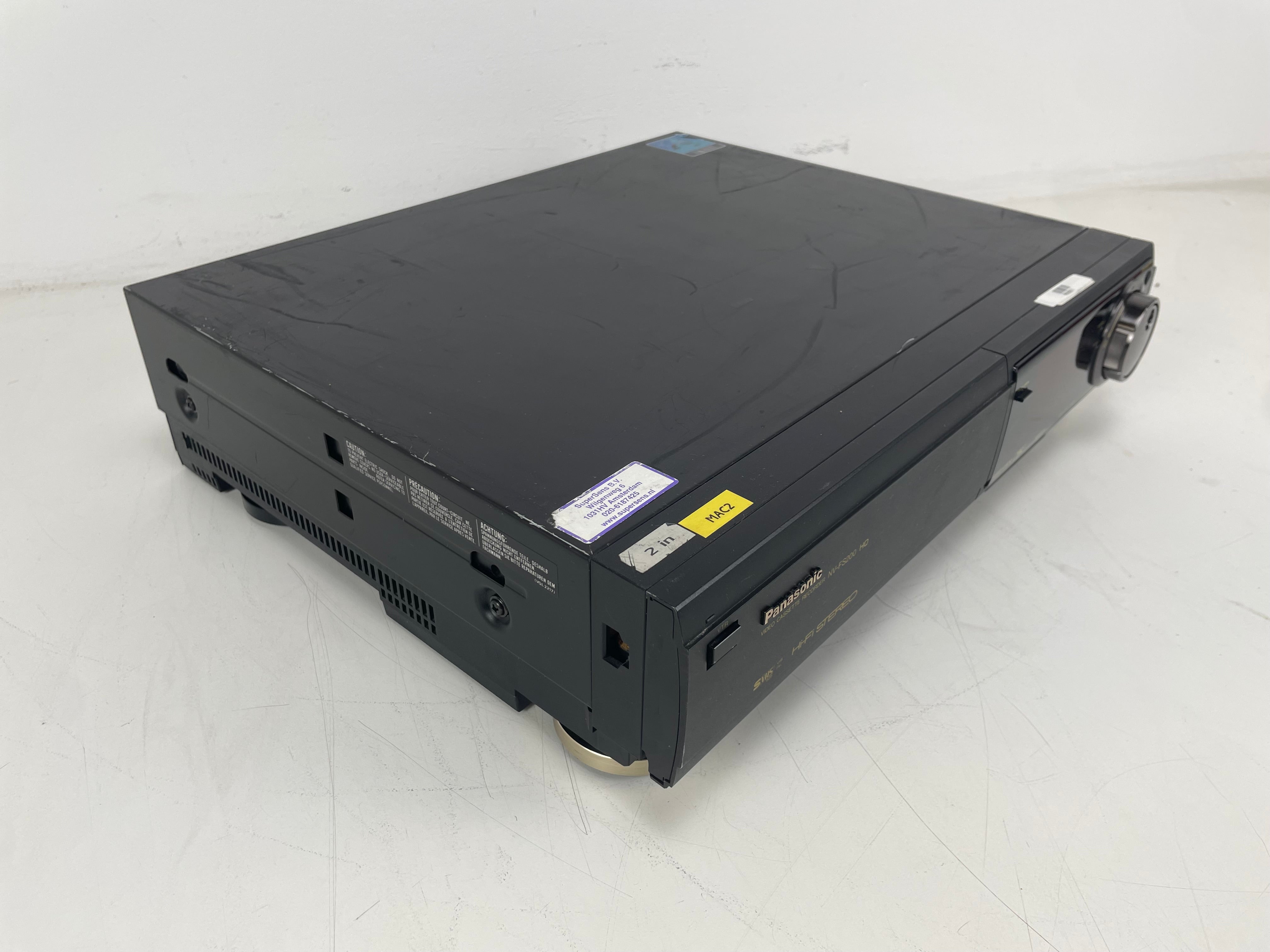

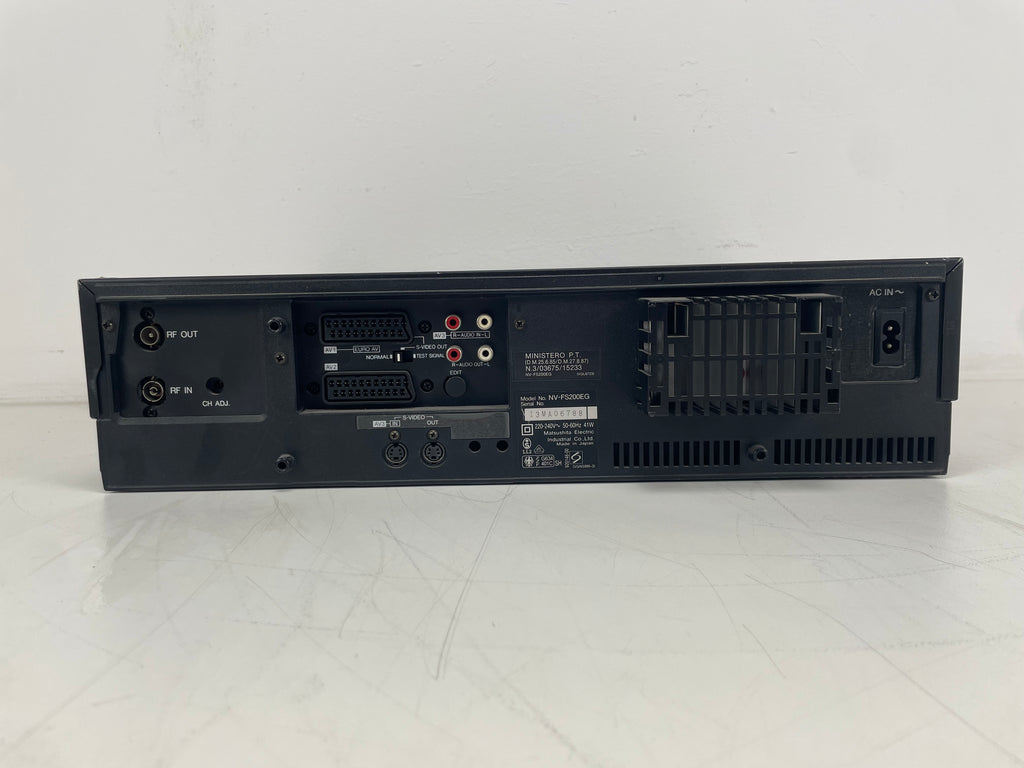

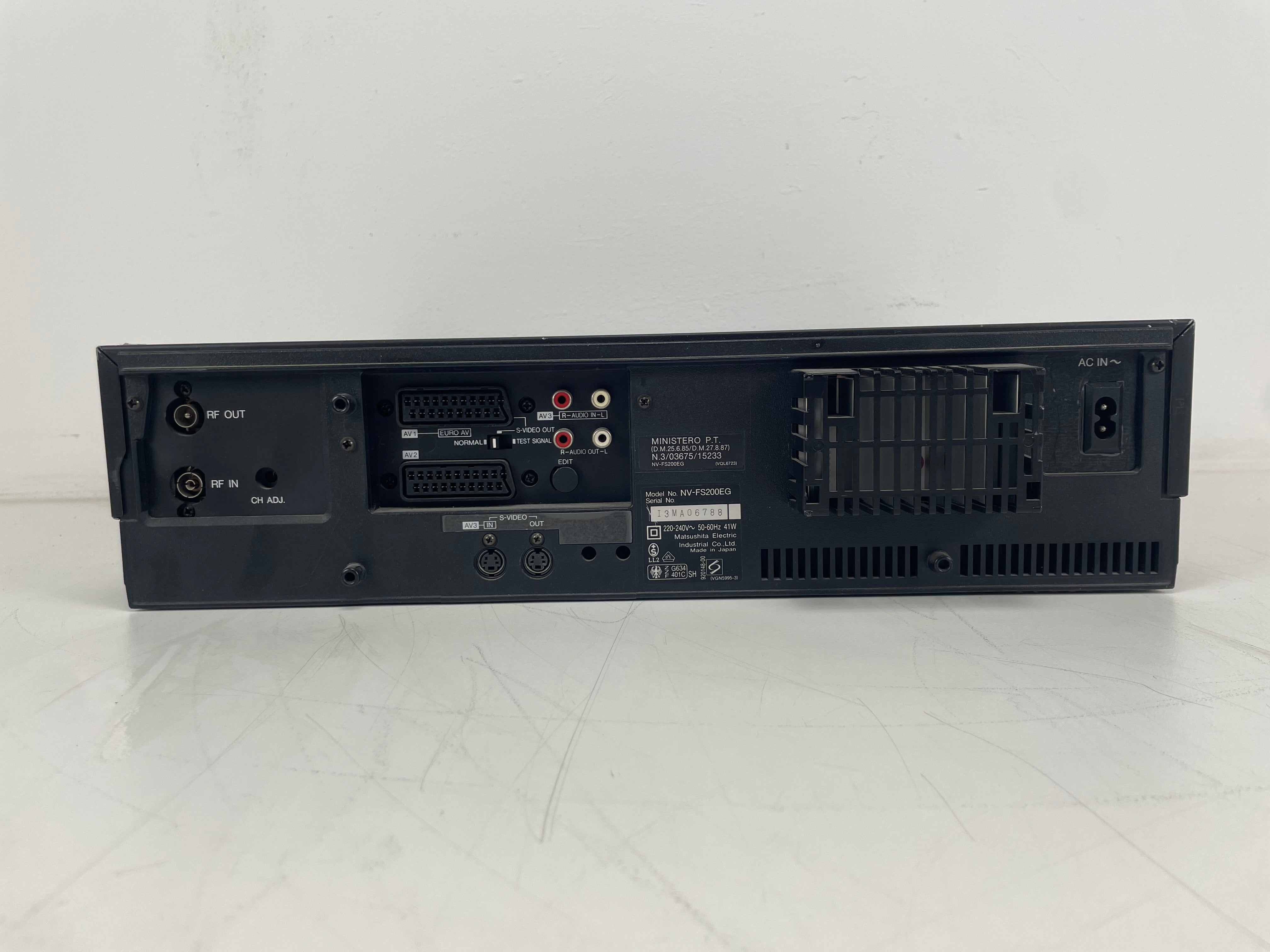

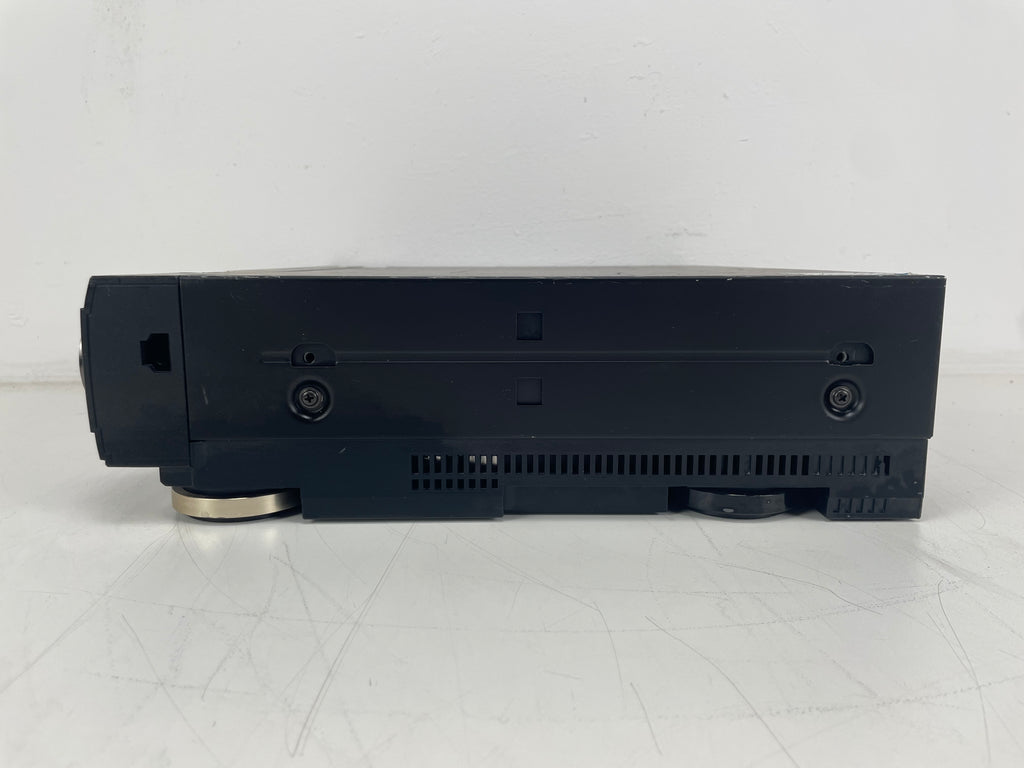

- Please review the photos for the exact cosmetic condition
📼 Functional status
✔ Fully working
✔ VHS and S-VHS playback tested
✔ Recording functions checked
✔ Tape transport operating correctly
✔ Ready for use
Specs:
-
Type: S-VHS/VHS videocassette recorder
-
Television system: CCIR, 625 lines, 50 fields, PAL colour signal
-
Video heads: 4
-
Tape speeds:
- SP: 23.39 mm/s
- LP: 11.7 mm/s
-
Tape formats: S-VHS and VHS
Recording and Playback Times
-
NV-E240: 240 minutes SP / 480 minutes LP
-
NV-SE180: 180 minutes SP / 360 minutes LP
-
Fast forward/rewind time: Approximately 2.5 minutes with an NV-E180 tape
Video
-
Luminance recording: FM azimuth recording
-
Colour recording: Converted subcarrier phase-shift recording
-
Horizontal resolution:
- More than 400 lines via S-Video
- More than 240 lines in SP
-
Video signal-to-noise ratio: More than 43 dB in SP
-
Video inputs:
- AV1/AV2: 1.0 Vp-p, 75 Ω
- S-Video Y: 1.0 Vp-p, 75 Ω
- S-Video C: 0.3 Vp-p, 75 Ω
-
Video outputs:
- AV1: 1.0 Vp-p, 75 Ω
- S-Video Y: 1.0 Vp-p, 75 Ω
- S-Video C: 0.3 Vp-p, 75 Ω
-
RF output: UHF channel 36 (±4), 75 Ω, terminated
Audio
-
Audio tracks:
- 1 normal mono track
- 2-channel Hi-Fi stereo
-
Audio inputs:
- Phono input: More than −10 dB, input impedance above 47 kΩ
- AV1/AV2: More than −6 dB, input impedance above 10 kΩ
- Microphone: −70 dB
-
Audio outputs:
- Phono output: −8 dB, below 1 kΩ
- AV1 output: −6 dB, below 1 kΩ
- Headphones: −30 dB, 8 Ω
-
Dynamic range: More than 90 dB with the Hi-Fi audio track in SP
-
Frequency response: 20 Hz–20 kHz with the Hi-Fi audio track in SP
-
Wow and flutter: 0.005% WRMS with the Hi-Fi audio track in SP
Dimensions (LxWxH): 460 × 109 × 403 mm
Weight: 9 Kg
Volts: 220-240v (If it’s 200V or higher, you’ll need an adapter in the USA)
