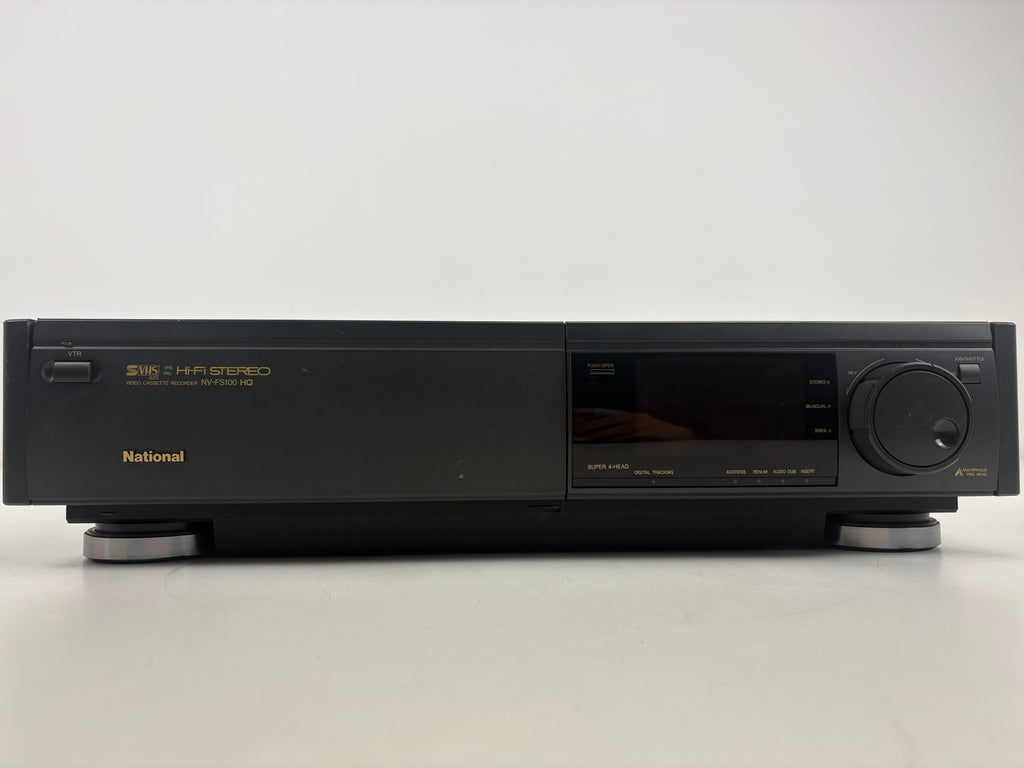

For sale: a Panasonic NV-FS100EV Super VHS video cassette recorder, featuring a 4-head system and compatibility with the S-VHS format.
This unit has undergone extensive electronic and mechanical repair work. The switched-mode power supply was fully recapped, resoldered, and refurbished. The video PCB was recapped, while the tape transport and audio PCB were repaired.
The NV-FS100EV is suitable for vintage video enthusiasts, collectors, analogue video setups, and tape-archiving applications.

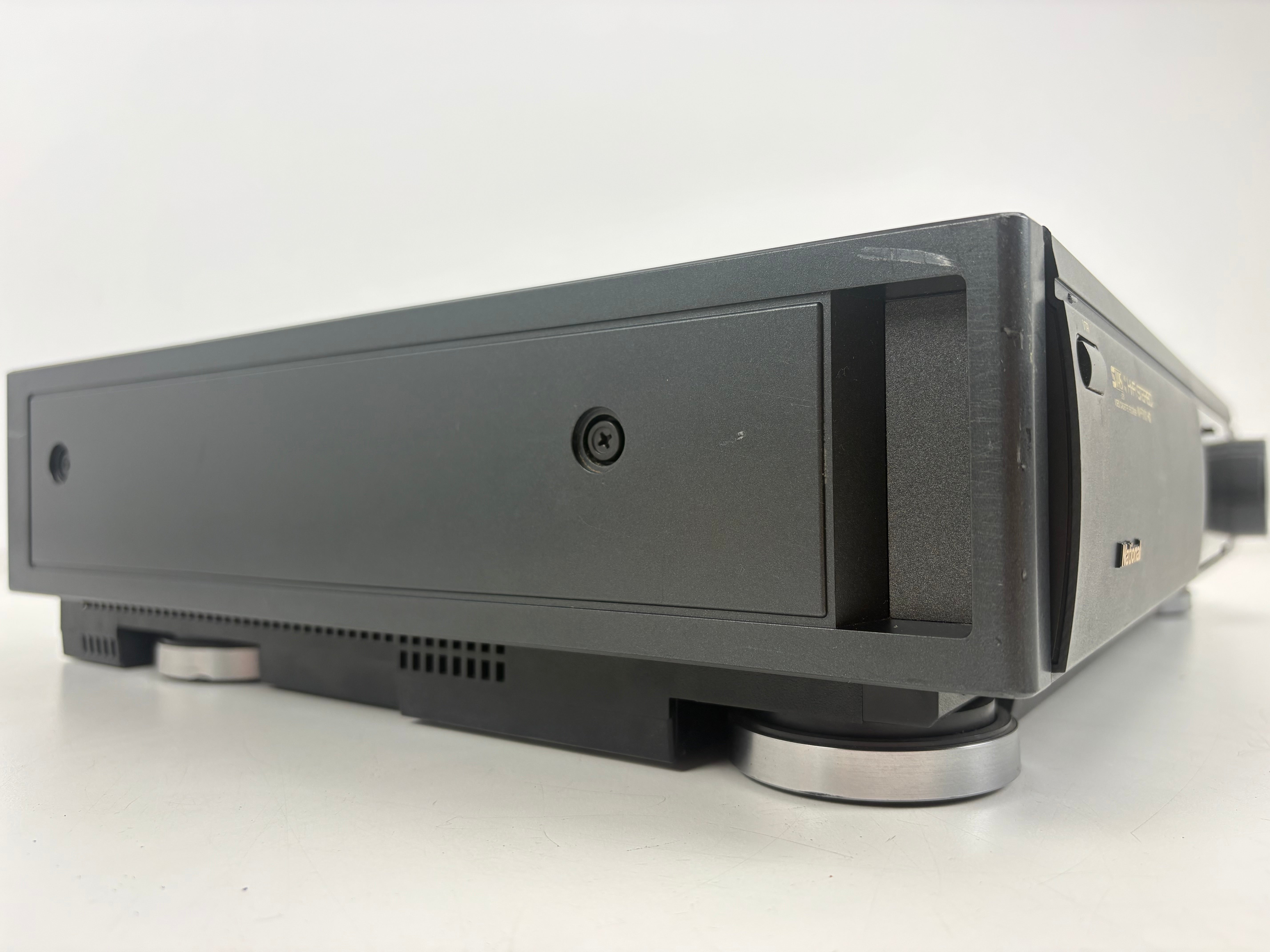

Cosmetic condition:
The recorder is in used vintage condition with minor cosmetic damage.

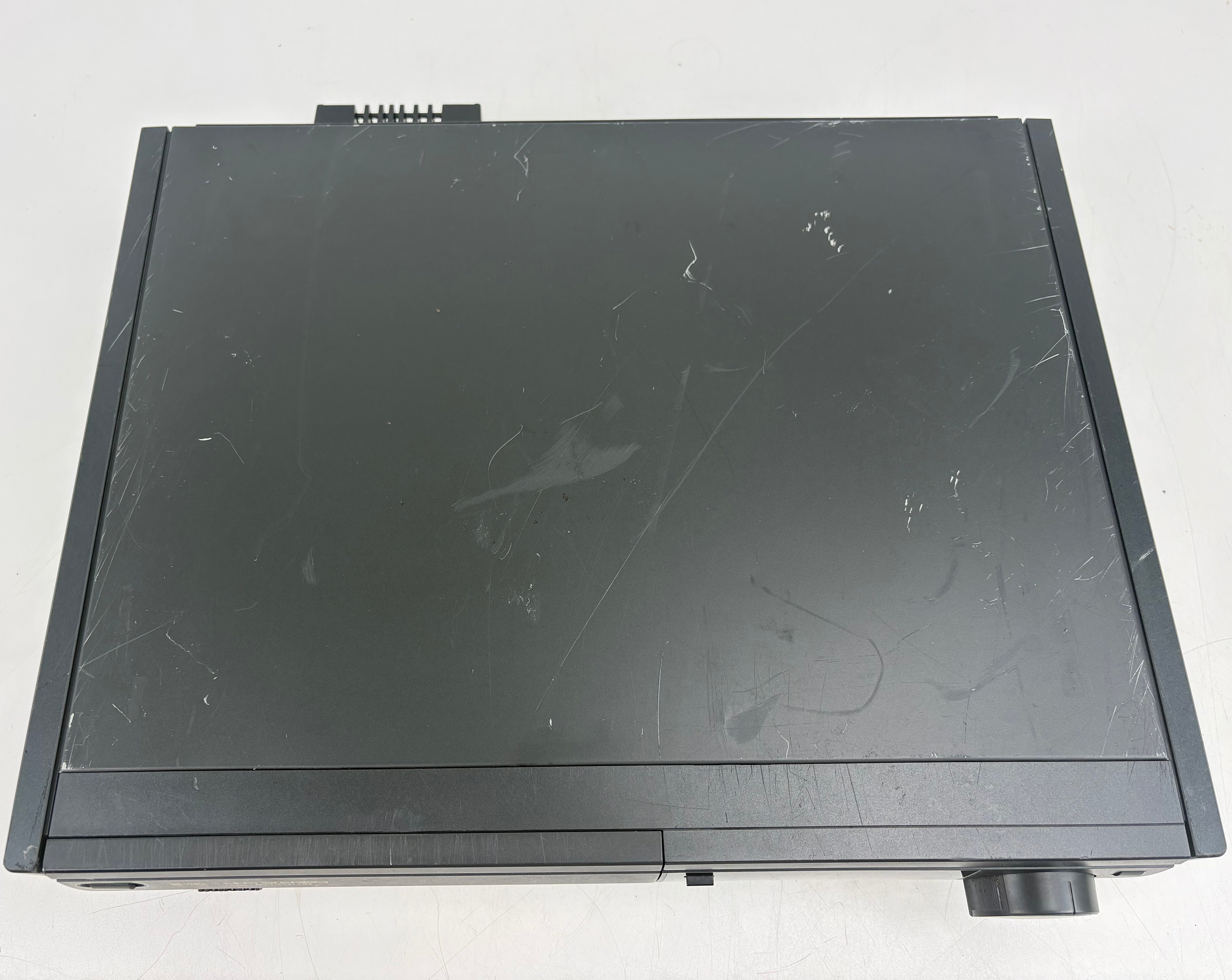

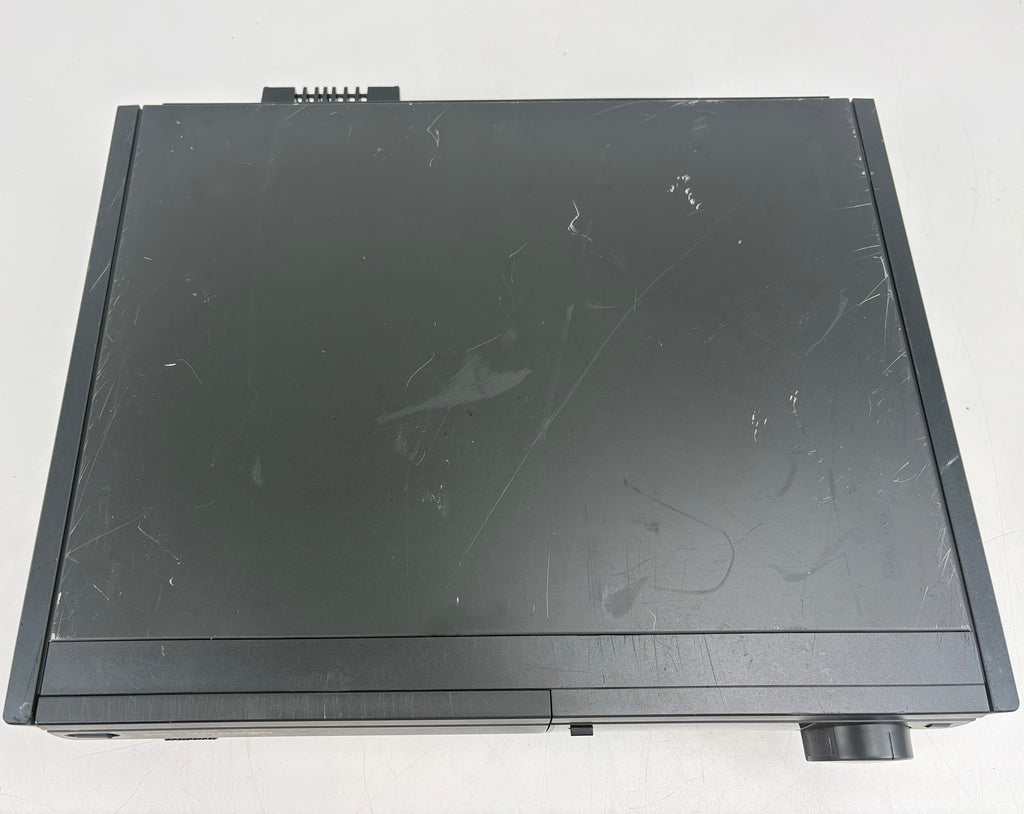

- A few paint chips on the top cover
- Scratches on the top cover
- General light signs of age and previous use

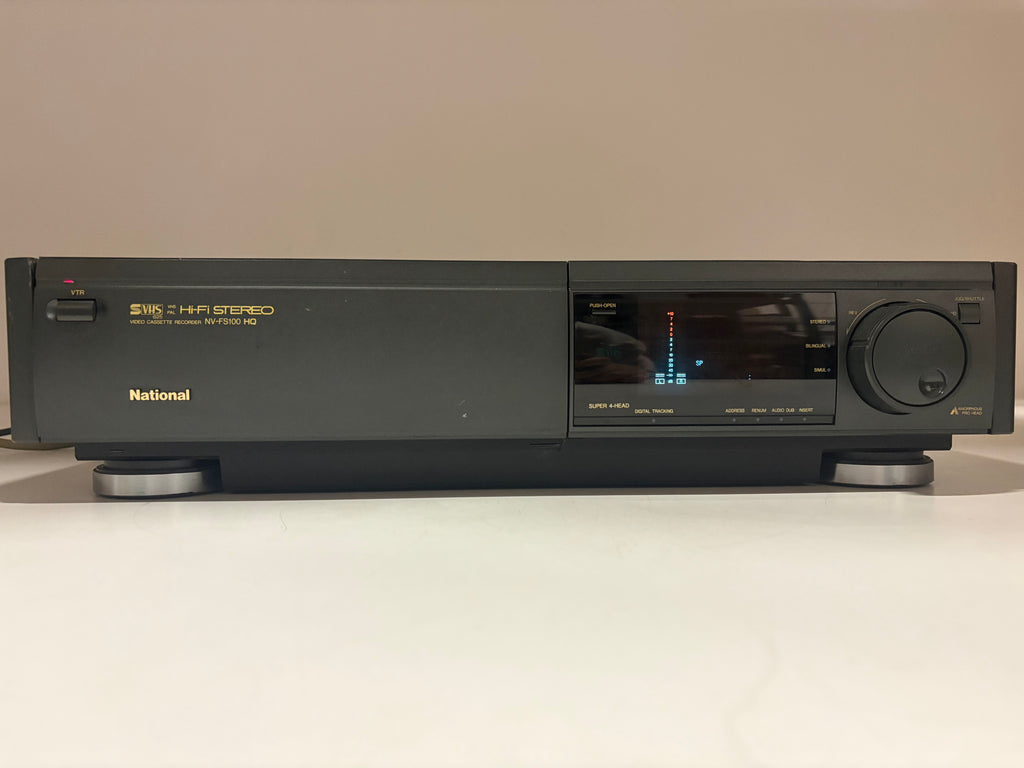

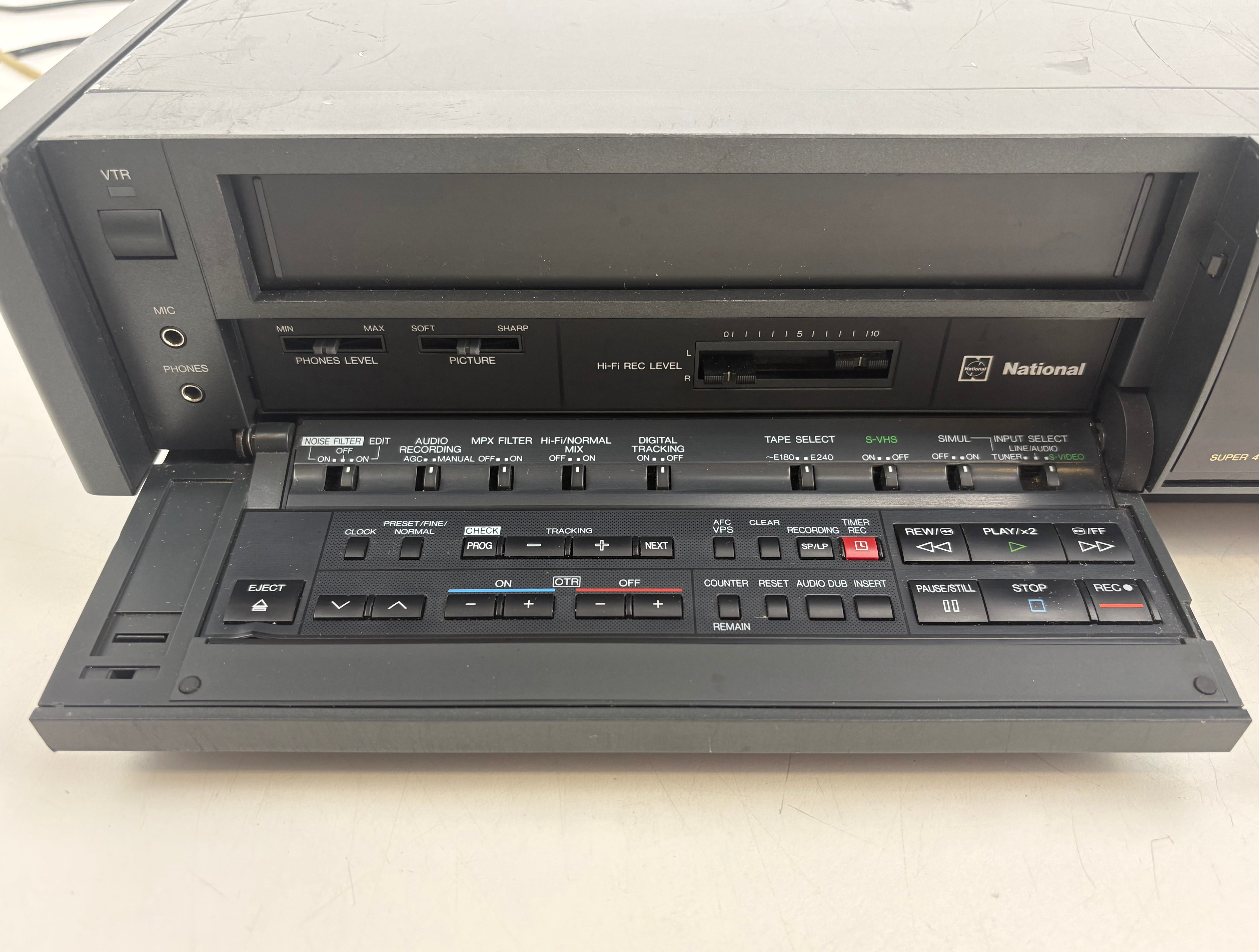

- Front panel and controls remain presentable
- Please see the pictures for the complete cosmetic condition
📼 Functional status
✔ Extensively serviced and repaired
✔ Power supply refurbished
✔ Video PCB recapped
✔ Tape transport repaired
✔ Audio PCB repaired
Specs:
- Type: S-VHS/VHS Hi-Fi video cassette recorder
- Video recording system: 2 rotary heads, helical scanning
- Video heads: 4
- Tape format: S-VHS and VHS
- Television system: CCIR, 625 lines, 50 fields, PAL
- Tape speeds:
- SP: 23.39 mm/s
- LP: 11.7 mm/s
- Maximum recording/playback time:
- VHS: 240 minutes SP / 480 minutes LP with E-240 tape
- S-VHS: 180 minutes SP / 360 minutes LP with SE-180 tape
- Fast-forward/rewind time: Less than 2.5 minutes with E-180 tape
- Horizontal resolution:
- VHS/SP: More than 240 lines
- S-VHS via S-Video: More than 400 lines

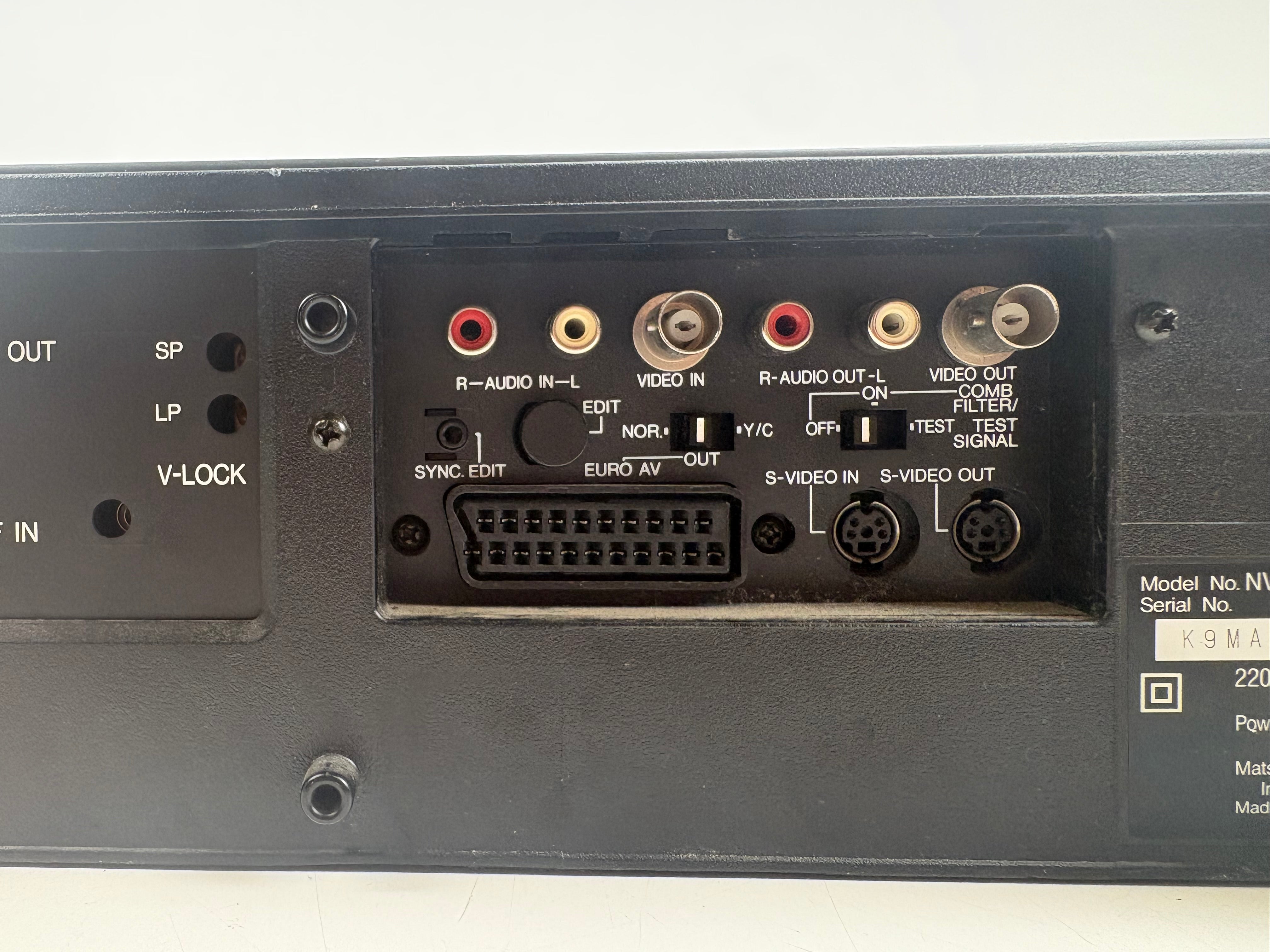

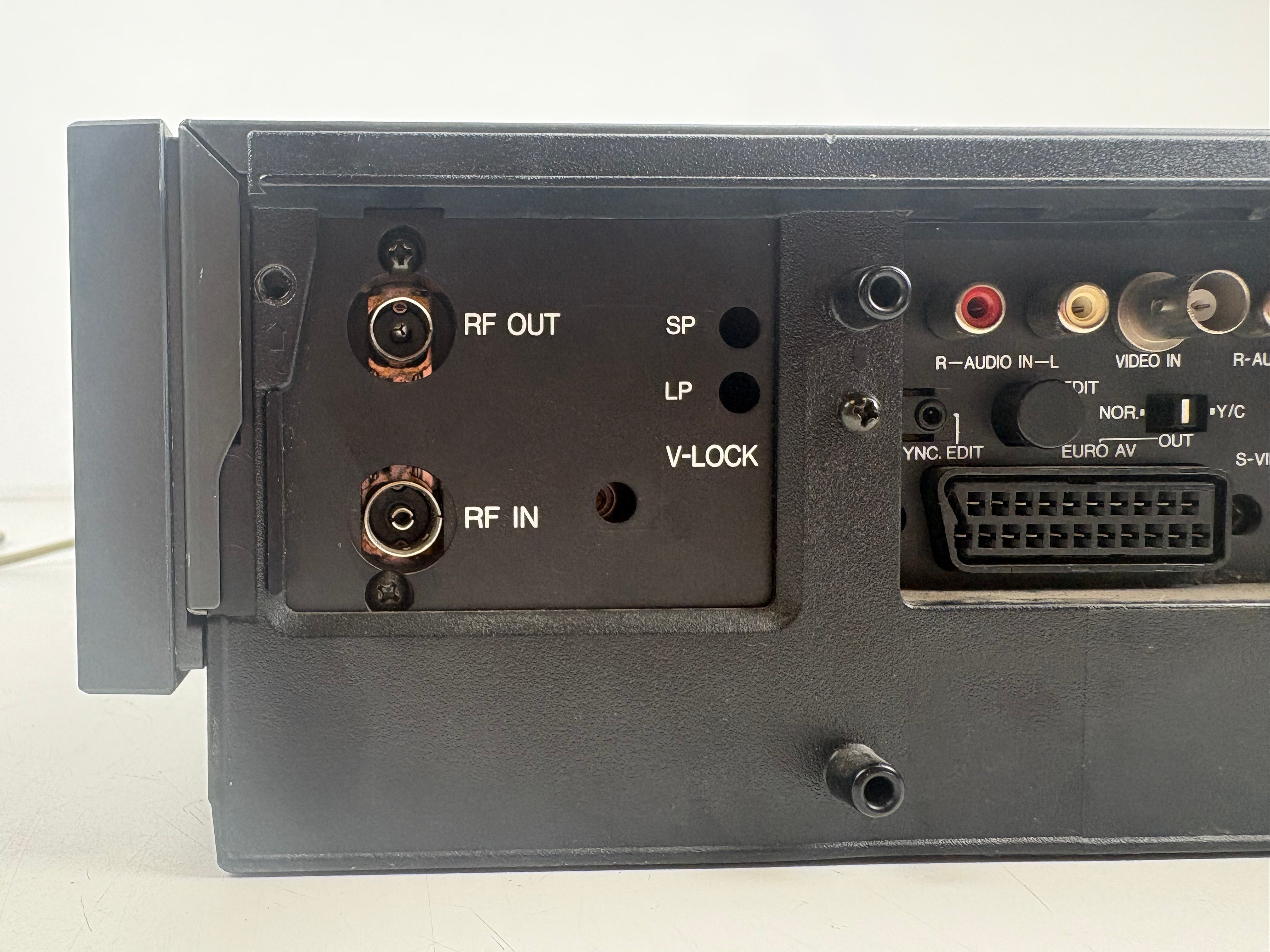

Video Connections
- Composite video input: BNC, 1.0 Vp-p, 75 ohms
- Composite video output: BNC, 1.0 Vp-p, 75 ohms
- S-Video input:
- Y: 1.0 Vp-p, 75 ohms
- C: 0.3 Vp-p, 75 ohms
- S-Video output:
- Y: 1.0 Vp-p, 75 ohms
- C: 0.3 Vp-p, 75 ohms
- RF output: VHF channel 2 or 3, 75 ohms
Audio
- Audio system: Hi-Fi stereo plus normal mono track
- Audio input: RCA/phono, -10 dB, over 50 kohms
- Microphone input: -70 dB
- Audio output: RCA/phono, -8 dB, under 1 kohm
- Headphone output: -30 dB, 8 ohms
- Frequency response: 20 Hz–20 kHz (Hi-Fi track)
- Dynamic range: More than 90 dB (Hi-Fi track)
- Wow and flutter: 0.005% WRMS (Hi-Fi)
Dimensions (LxWxH): 460 x 110 x 405 mm
Weight: 10 Kg
Volts: 220v (If it’s 200V or higher, you’ll need an adapter in the USA)
We ship worldwide.
For international shipping, import fee's apply. These vary per countrie, and are for the buyer to pay.
-Shipping in the EU up to 30 KG (max)
-Shipping outside of the EU up to 20 KG (max) Shown costs might vary. Please ask us for a shipping quote for the best rates!
-We kindly ask you to reach out for the best shiping rates. As rates vary per shipper, we can ask custom shipping quotes.
Please note: ‘’Whenever an item exceeds the weight noted above. Please ask for a shipping quote before making a purchase. The shipping costs are estimated in our shop because we do not know the shipping address.
Picking up the item is also possible. It can be picked up in Alkmaar
Delivery by us is also possible in some cases. Please reach out to us for more information about deliveries
State of listing: If a listing is listed ''for parts or not working'' returns are not accepted.
When we offer our products with the notice ''Serviced'' or ''Fully serviced'' that means the device is either ''serviced'' with a new belt, and cleaned the pots, Or ''Fully serviced'' recapped, Quiescent current adjusted etc as expected from a full service
