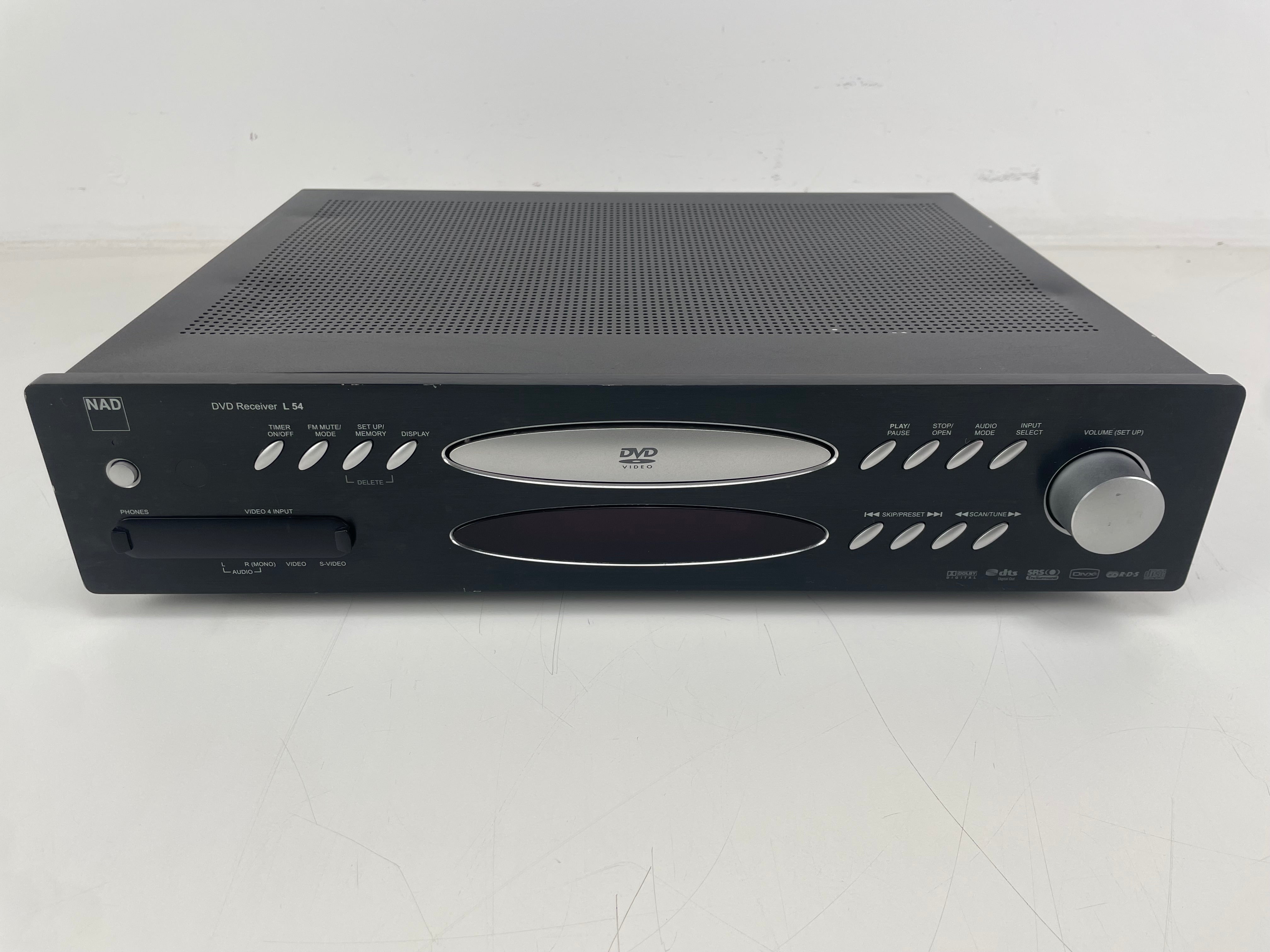

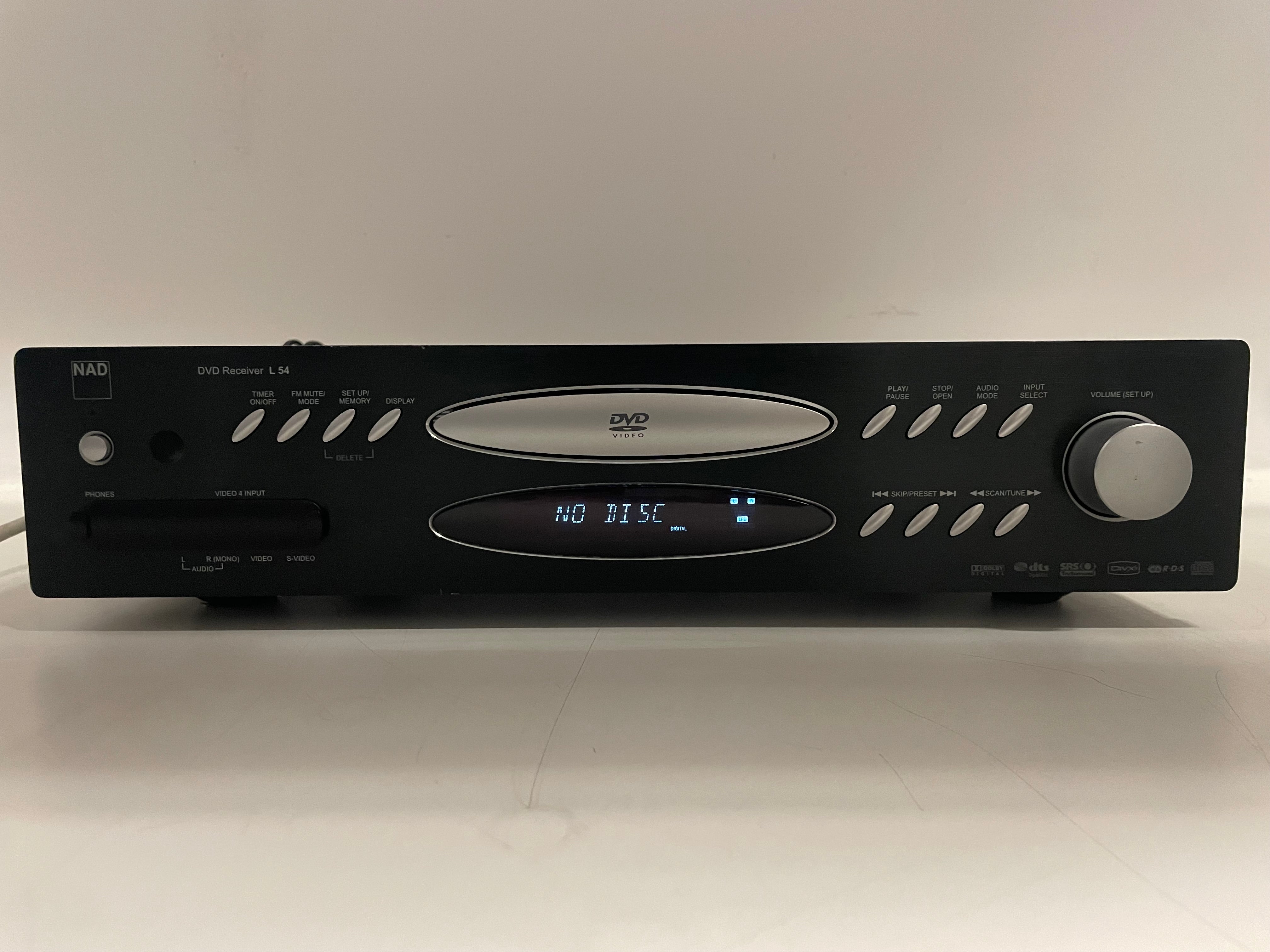

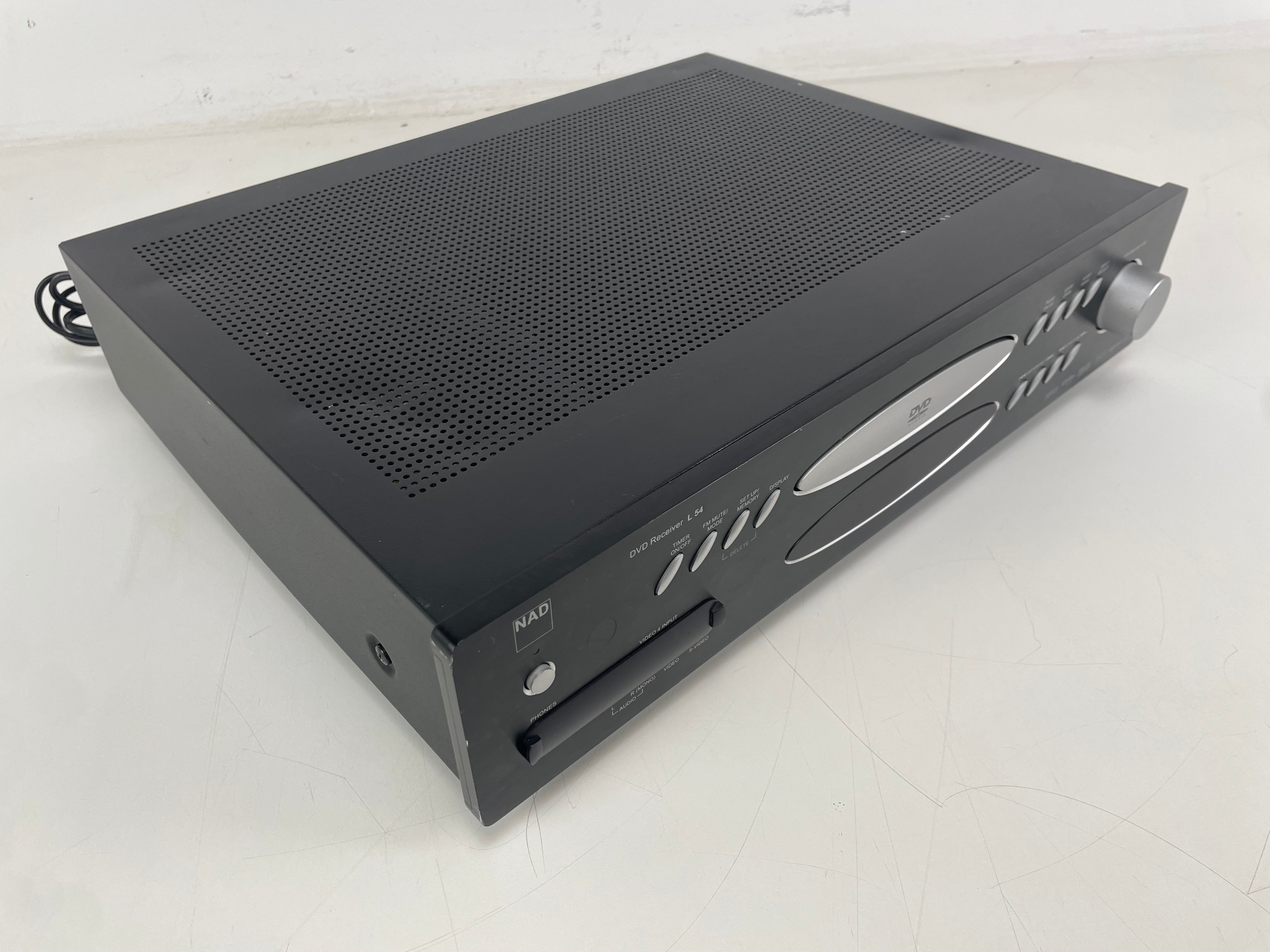

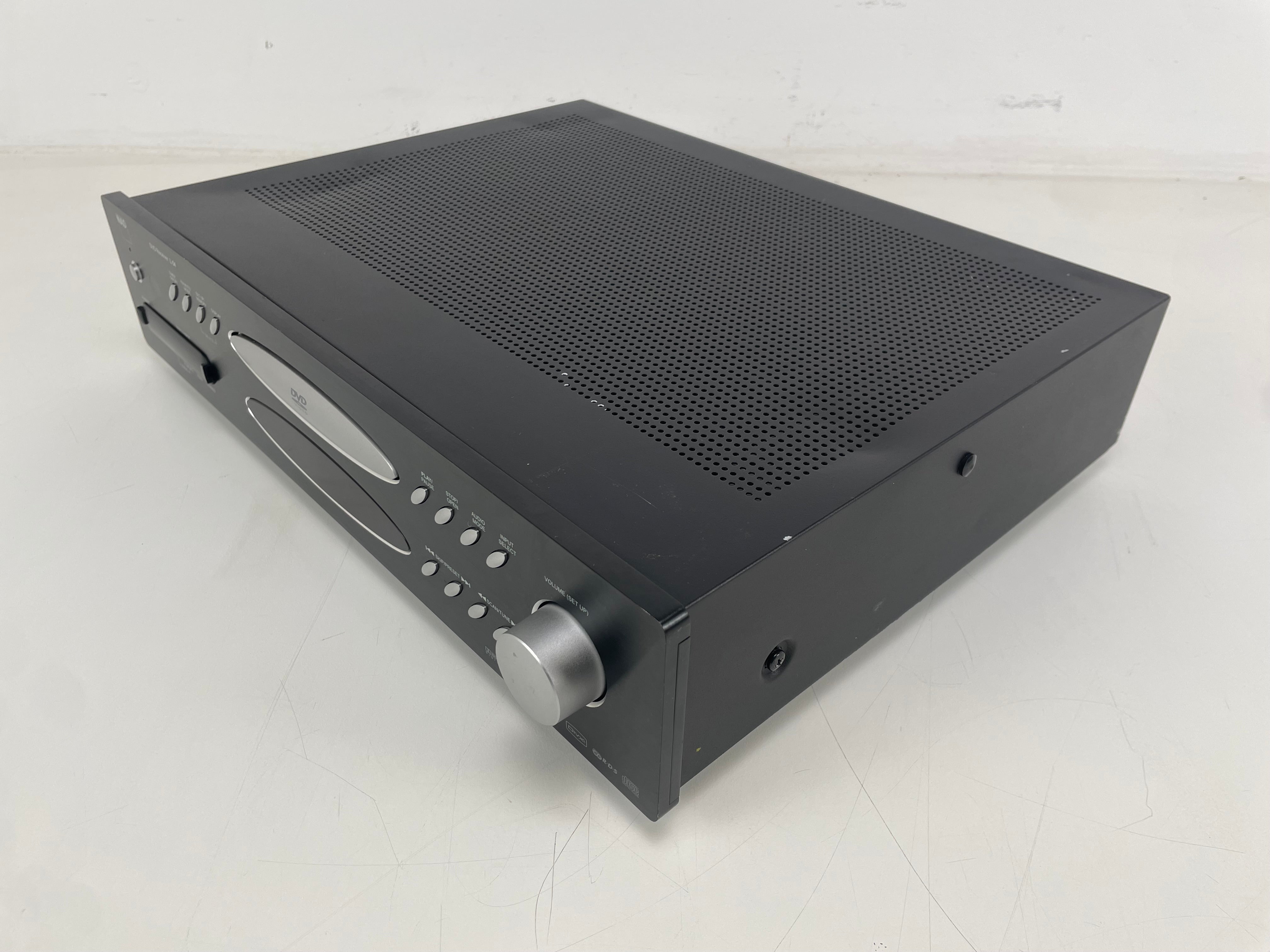

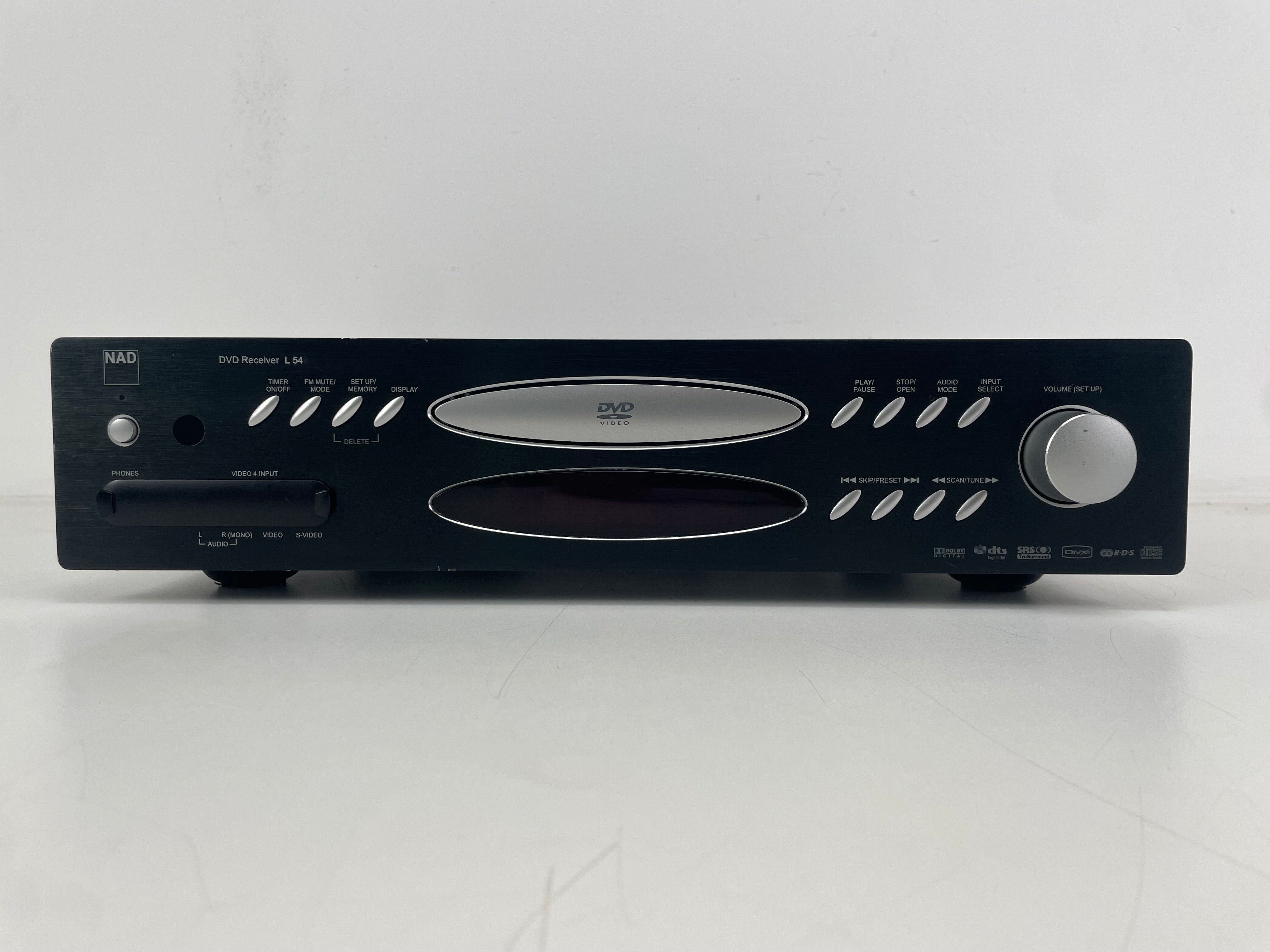

For sale: a NAD L54 DVD Receiver, combining disc playback, stereo amplification, and receiver functions in one compact unit.
This example has received substantial repair work to both the audio amplifier section and CD/DVD transport. The output stage was recapped and refurbished, several transistors were replaced, and the disc transport was repaired.
''Please ask us for a shipping quote for the best shipping rates. Shown costs might be incorrect, or we can offer better services''

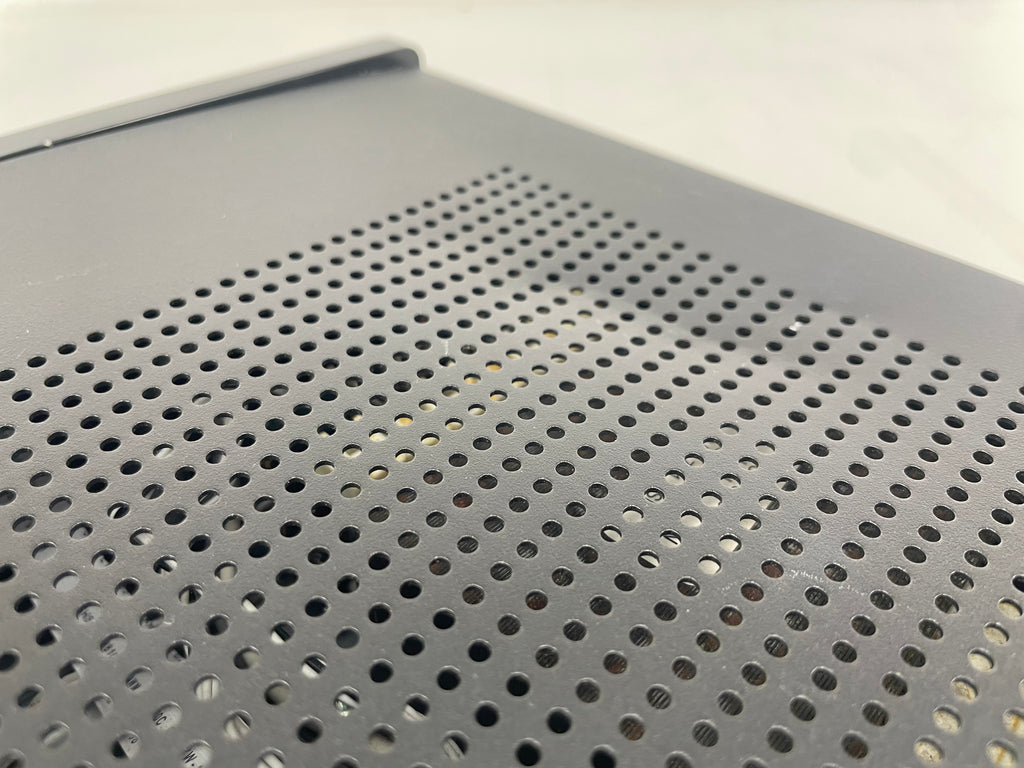

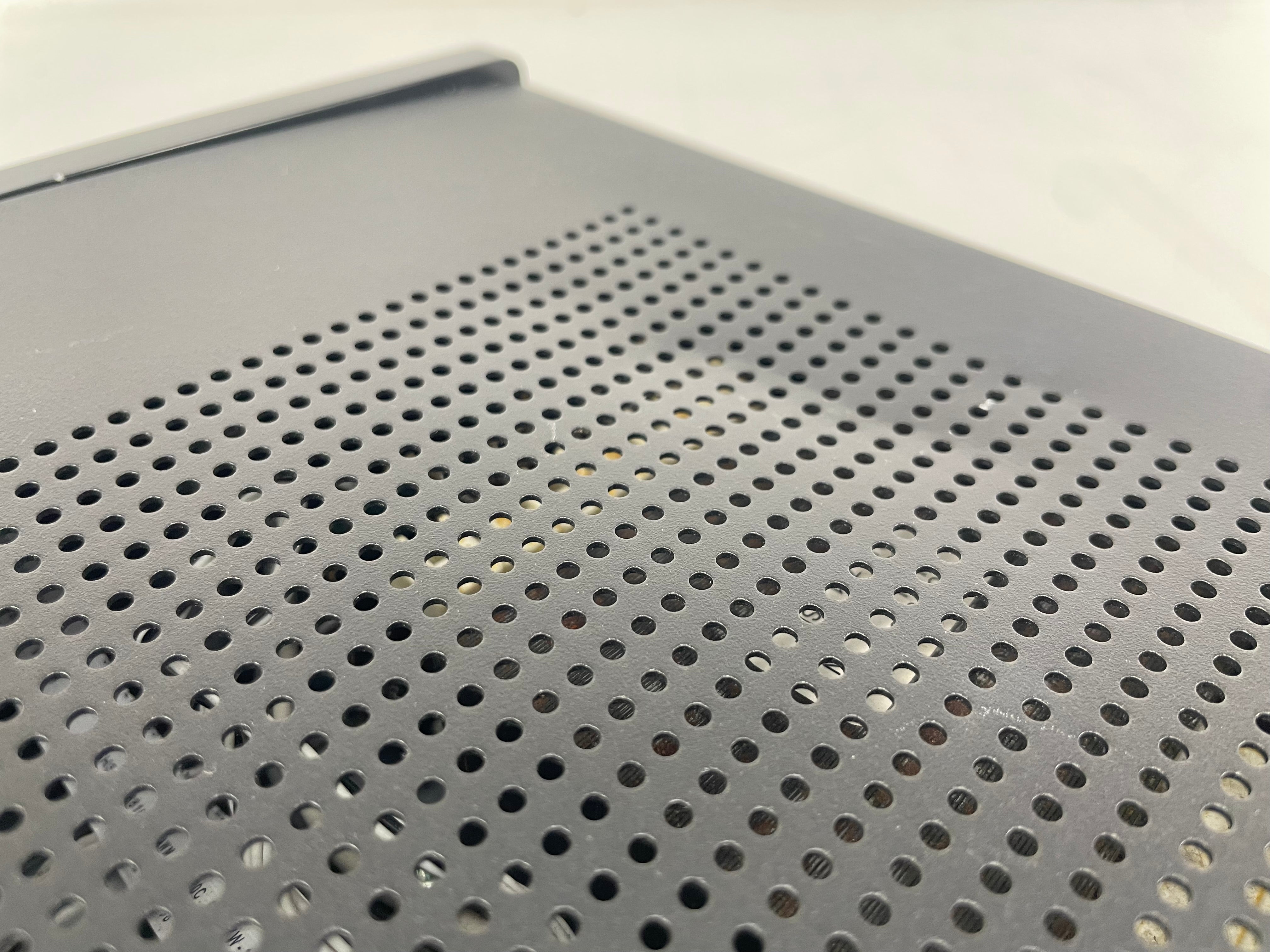

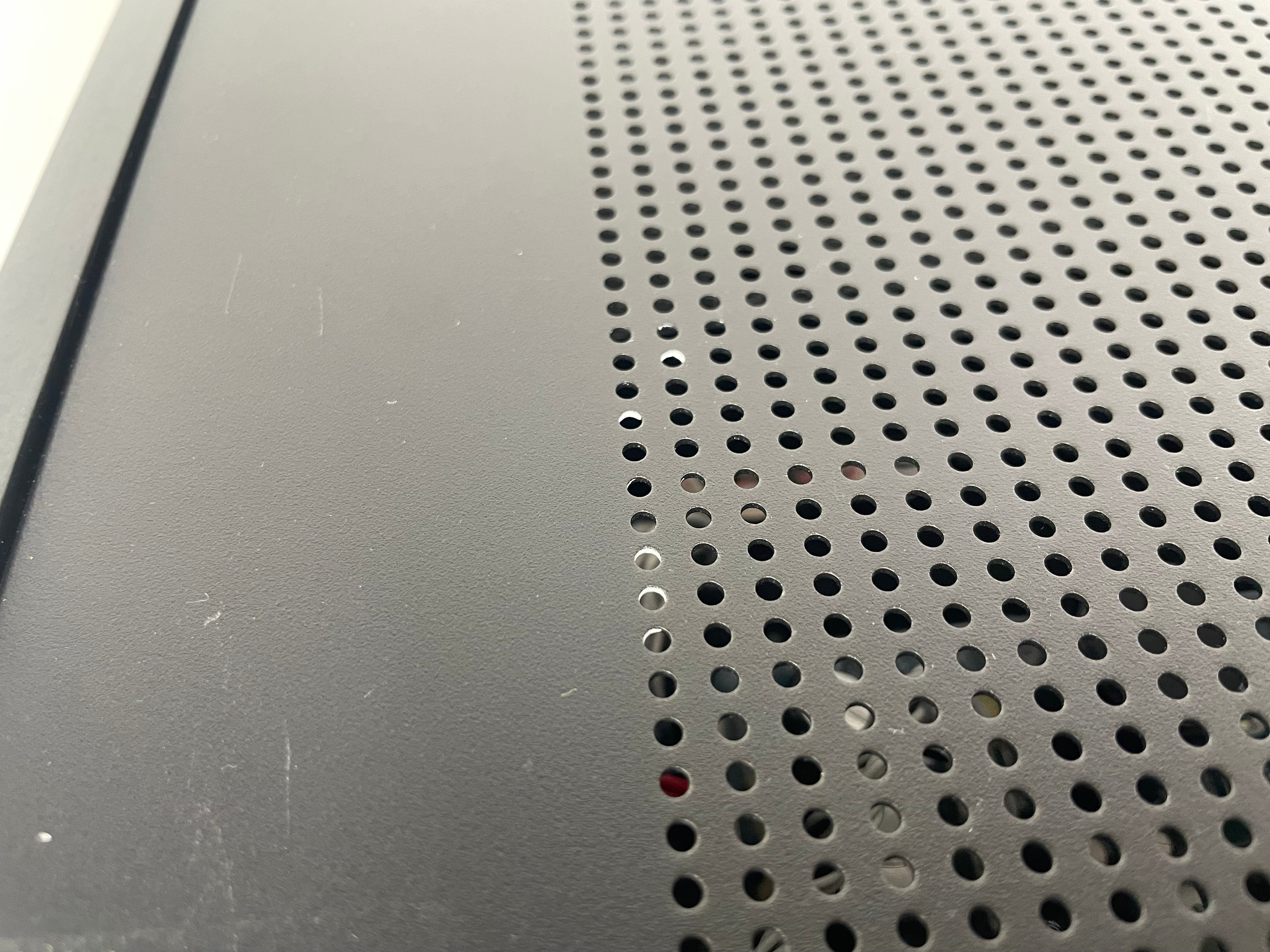

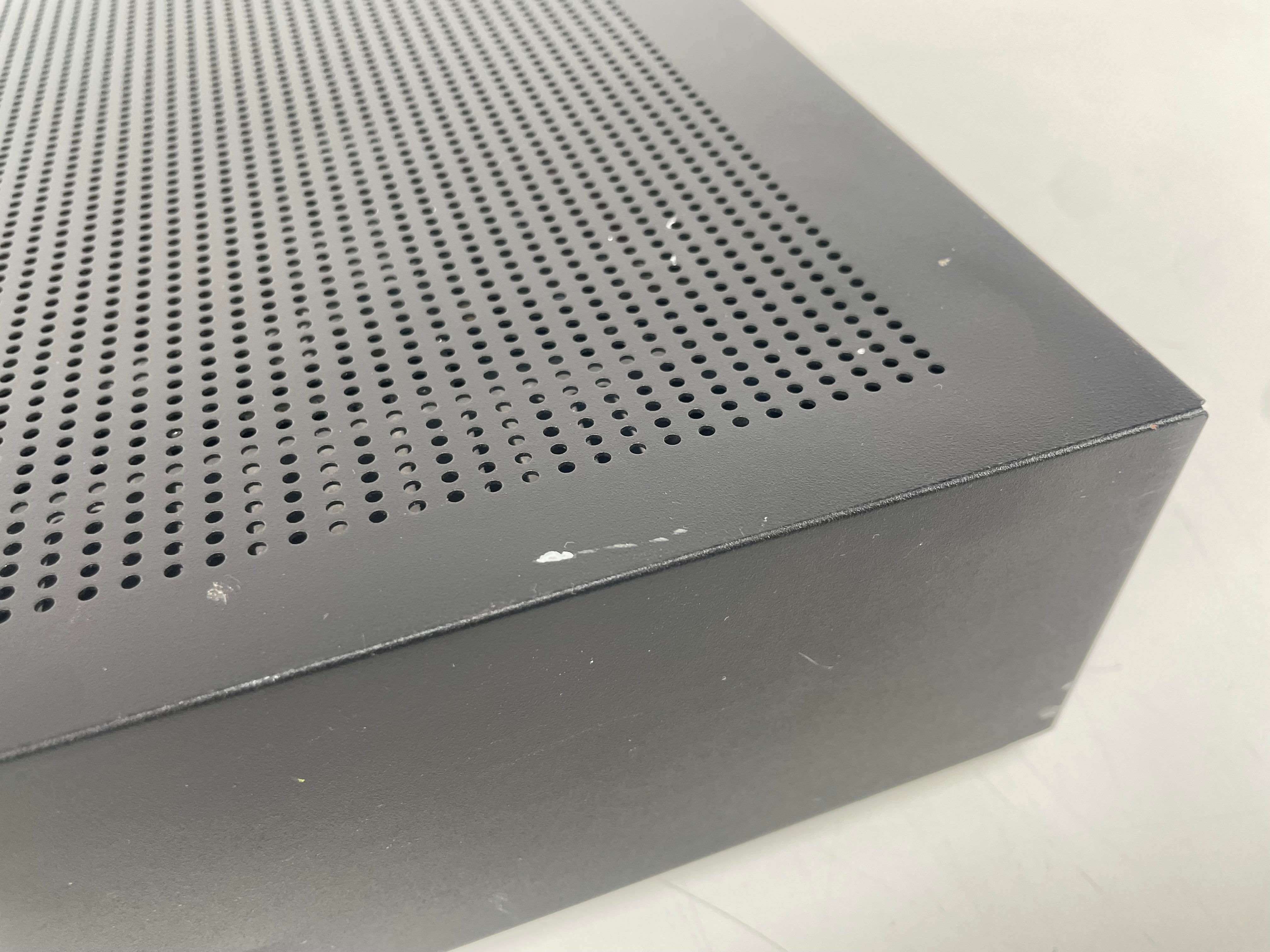

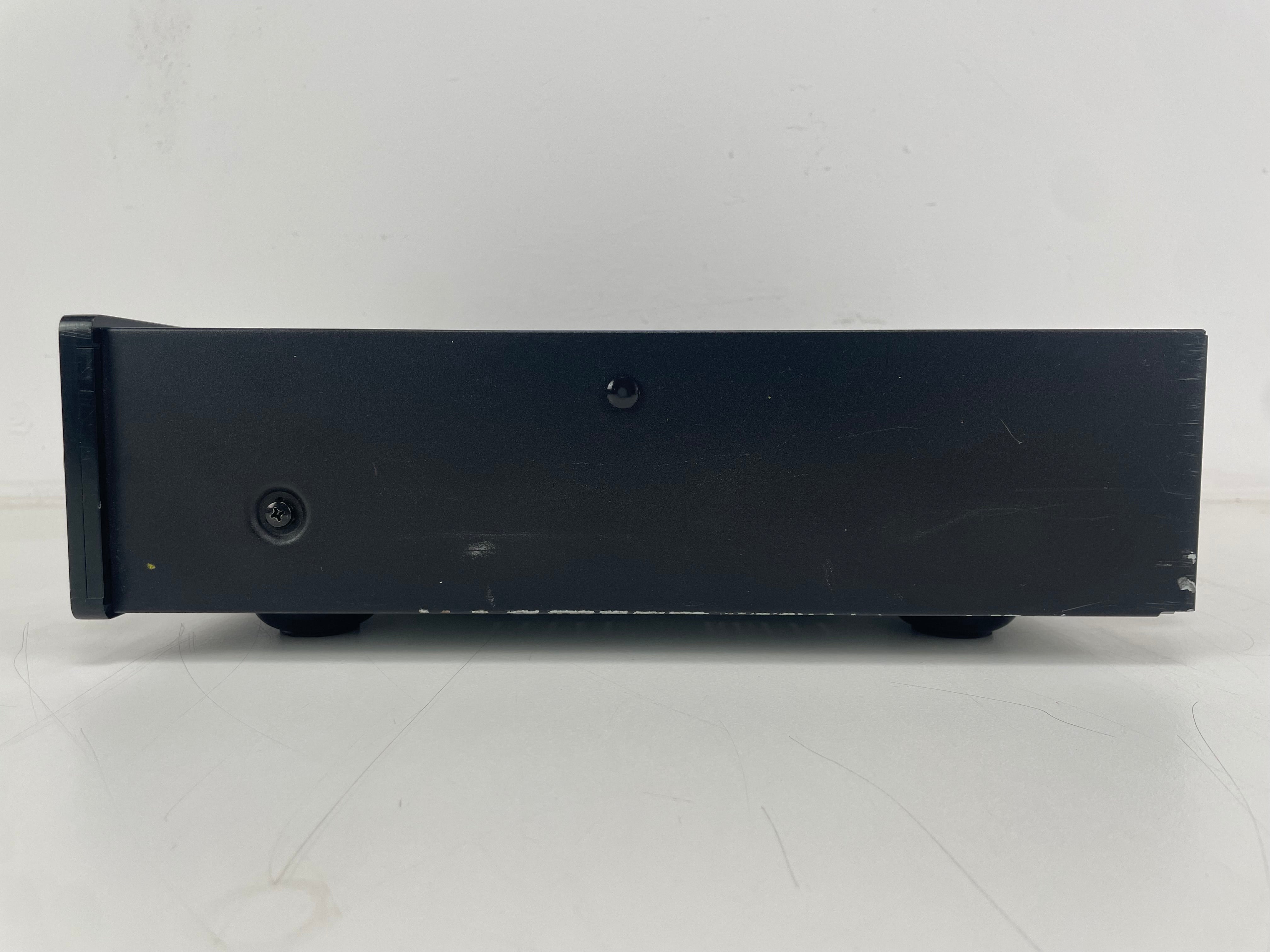

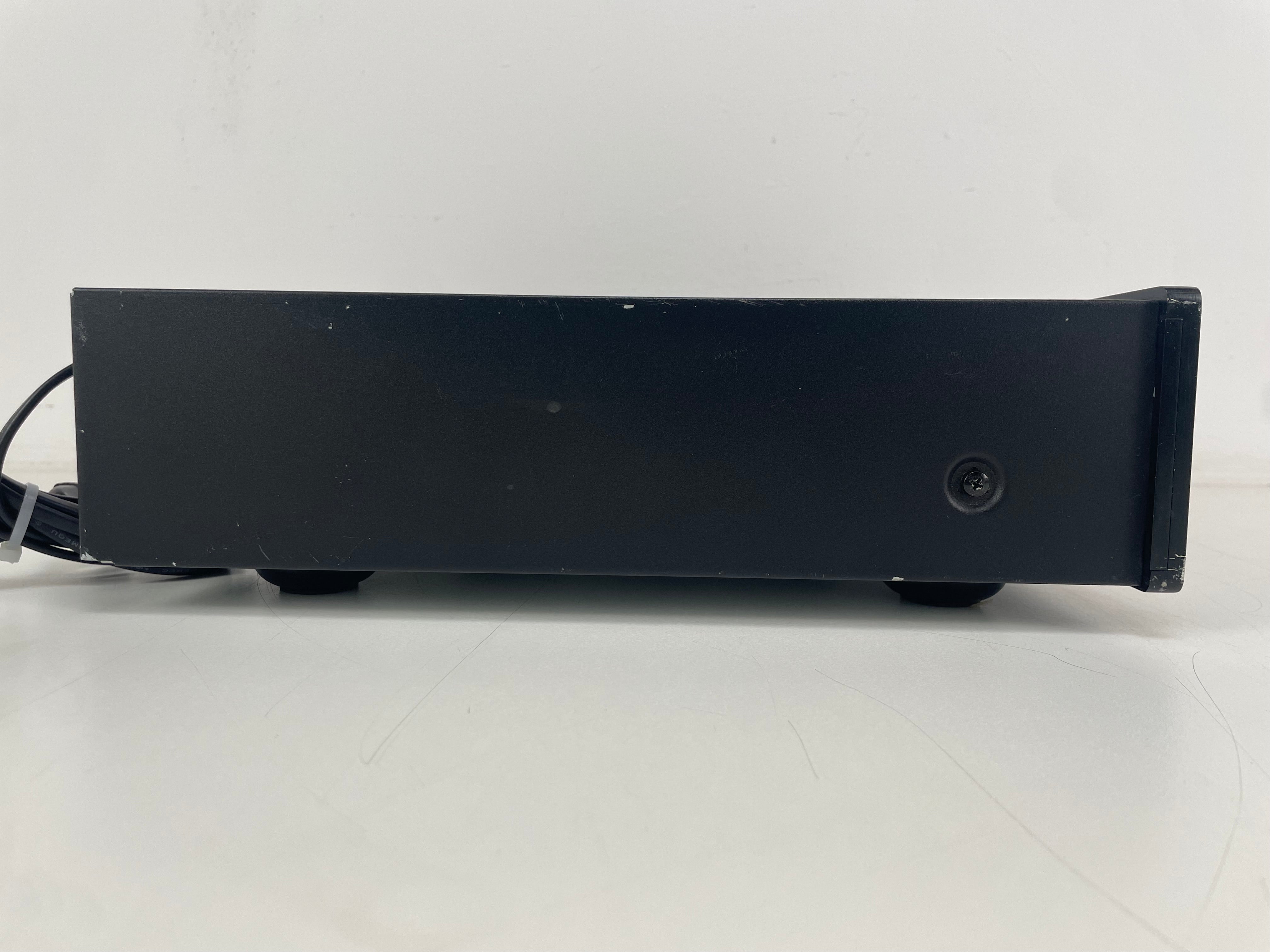

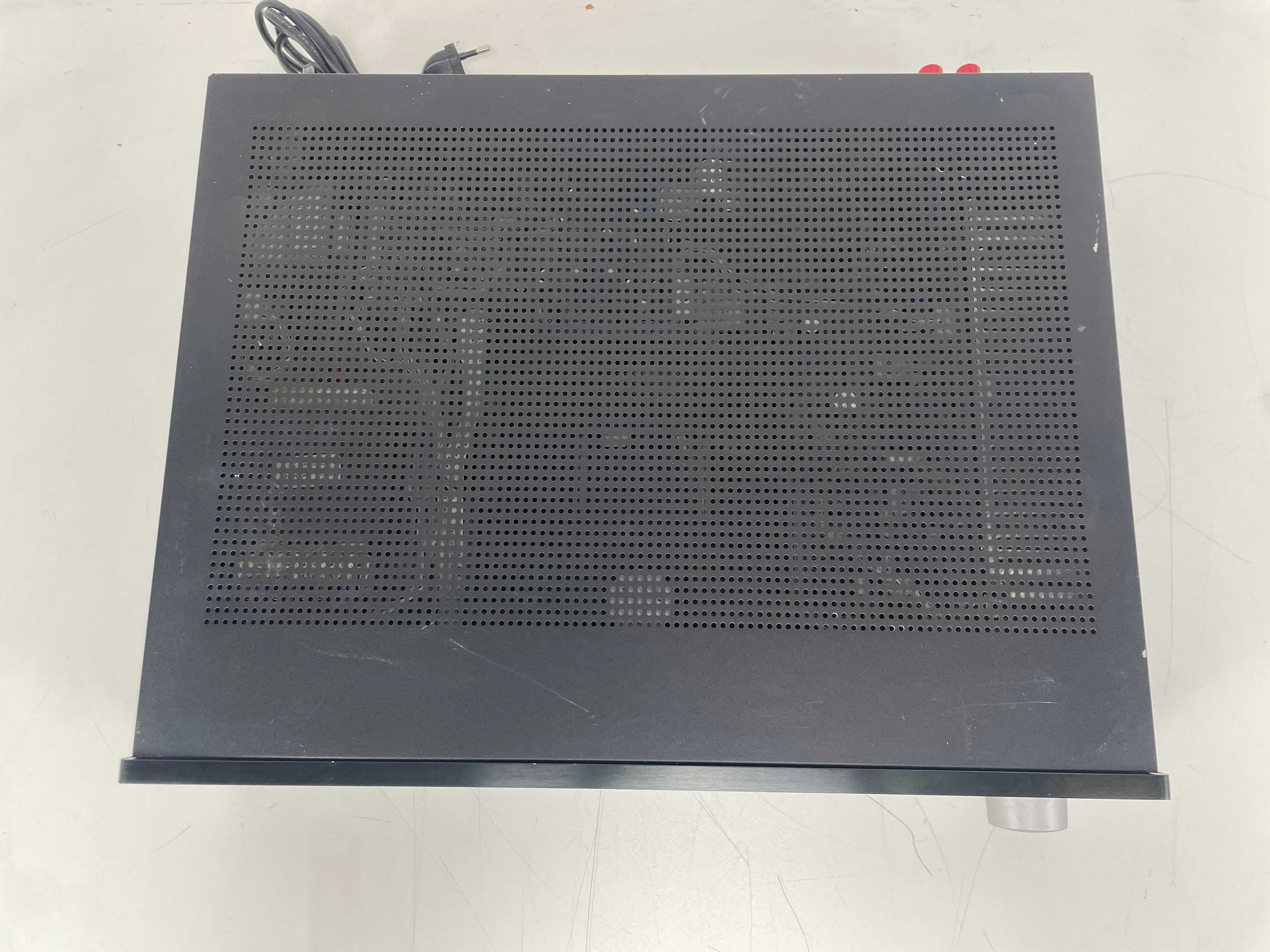

Cosmetic condition:
The unit is in used condition.
- General signs of previous use are present
- Front panel and controls remain presentable
- Please review the photos for the complete cosmetic condition
🔊 Service status
✔ Audio output stage refurbished
✔ Output-stage transistors replaced
✔ Driver transistors replaced
✔ CD transport repaired
✔ Serviced and repaired
Specs:
Amplifier Section
- Power output (stereo): 2 × 50 W into 8 Ω
(20 Hz–20 kHz, both channels driven, <0.08% THD)
- IHF dynamic power at 8 Ω: 2 × 70 W
- Total harmonic distortion: 0.08% at rated power
- Intermodulation distortion: 0.08% at rated power
- Damping factor at 8 Ω: >60
- Input sensitivity/impedance: 320 mV / 47 kΩ
- Frequency response: 20 Hz–20 kHz, ±0.5 dB
- Signal-to-noise ratio at rated power: >100 dB, A-weighted
- Signal-to-noise ratio at 1 W: >80 dB, A-weighted
- Speaker impedance: 8 Ω minimum
Disc Compatibility
- DVD-Video
- Video CD
- Super Video CD
- Audio CD
- CD-R and CD-RW
- MP3
- WMA
- JPEG
- DivX
CD Audio Performance
- Frequency response: 10 Hz–22 kHz
- Signal-to-noise ratio: 95 dB, A-weighted
- THD at 0 dB/1 kHz: 0.02%
- Dynamic range: 90 dB
DVD-Video Section
- Video standards: PAL, NTSC and Auto
- Signal-to-noise ratio: >95 dB, A-weighted
- Progressive scan: Yes
- On-screen display: Dual-standard PAL/NTSC
FM Tuner
- RDS: Yes
- RDS functions: PS and PT
- Station presets: 30
- RDS decoding sensitivity: 0.5%
- Usable mono sensitivity: 11 dBf
- Harmonic distortion, mono: 0.47%
- Harmonic distortion, stereo: 0.5%
- Signal-to-noise ratio, mono: 70 dB
- Signal-to-noise ratio, stereo: 65 dB
- Channel separation at 1 kHz: 40 dB
- Frequency response: 20 Hz–15 kHz, –3 dB
AM Tuner
- Usable sensitivity: 500 µV/m
- Selectivity: 25 dB
- Signal-to-noise ratio: 40 dB
- Harmonic distortion: 1.5%

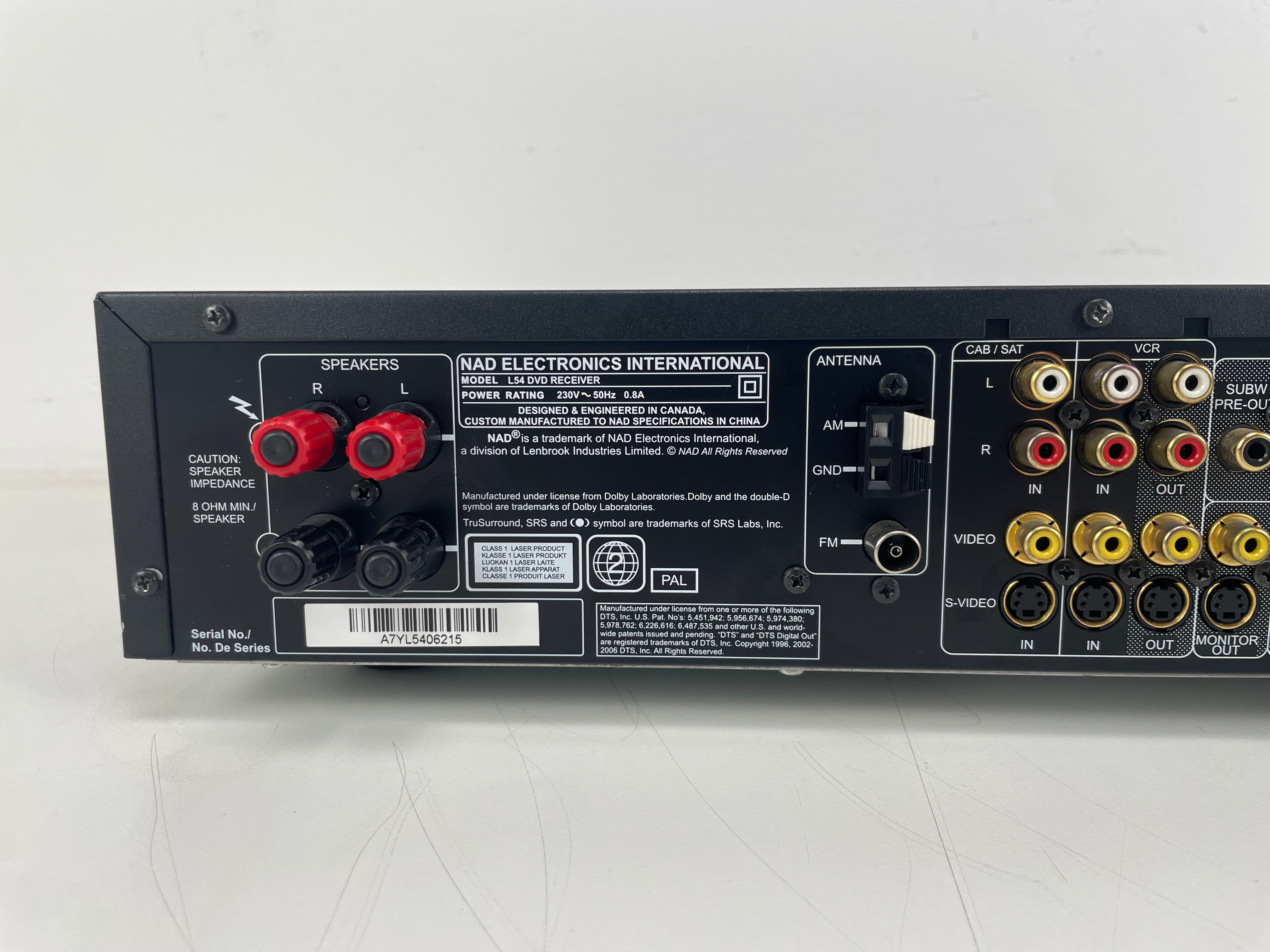

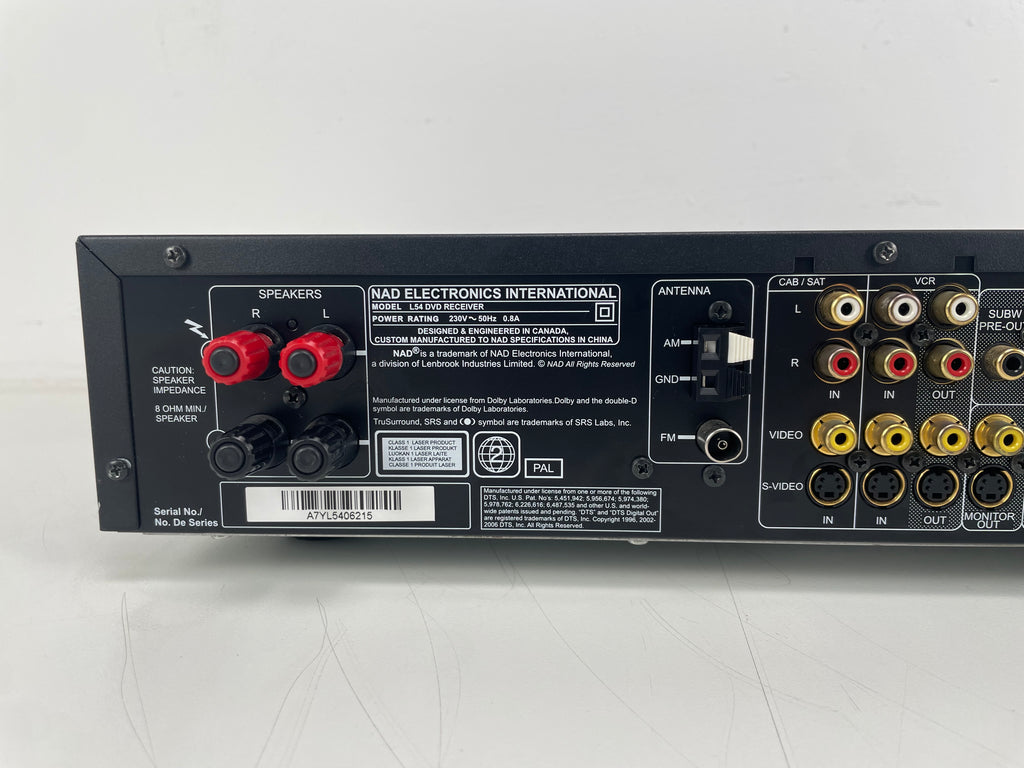

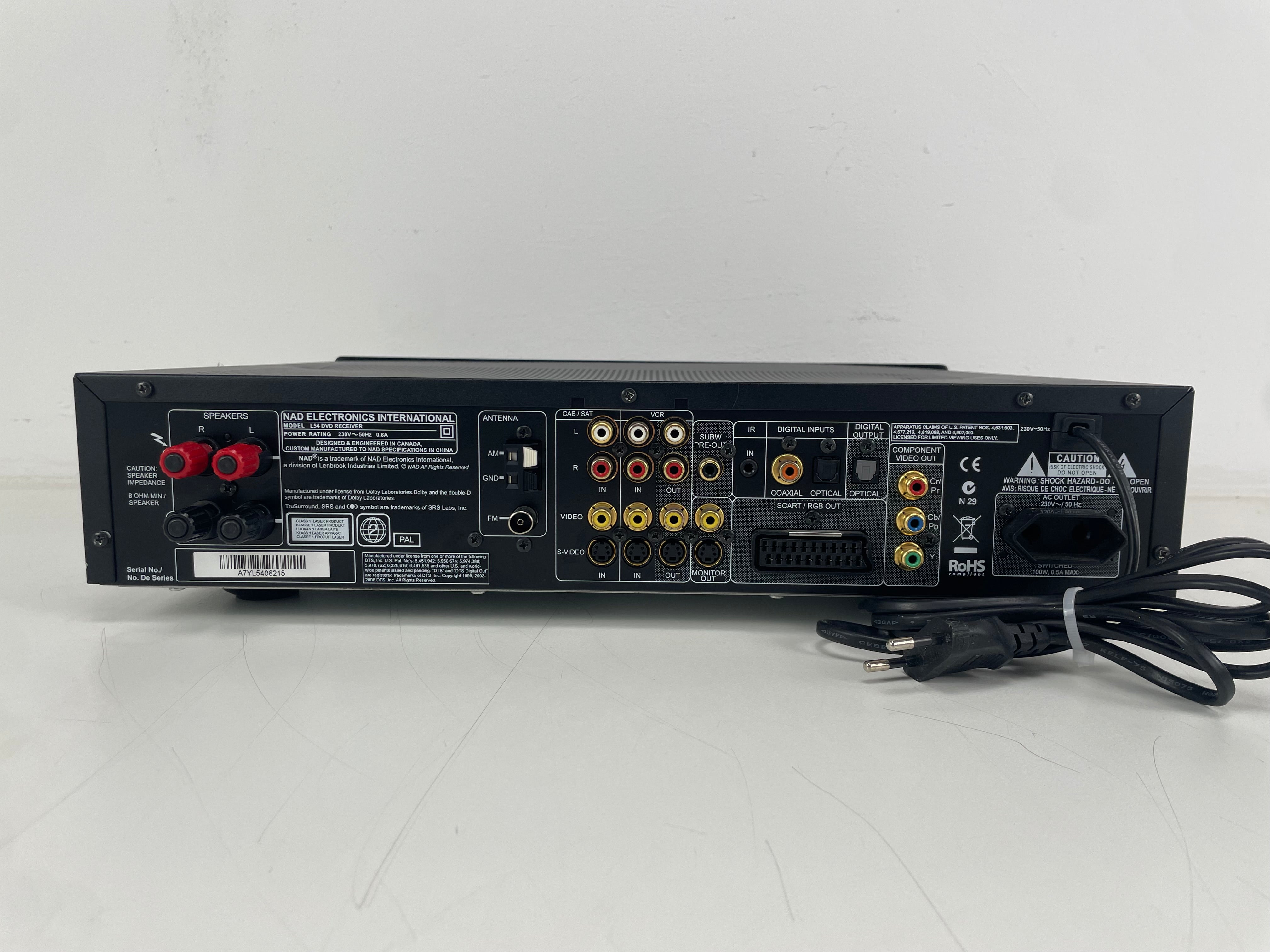

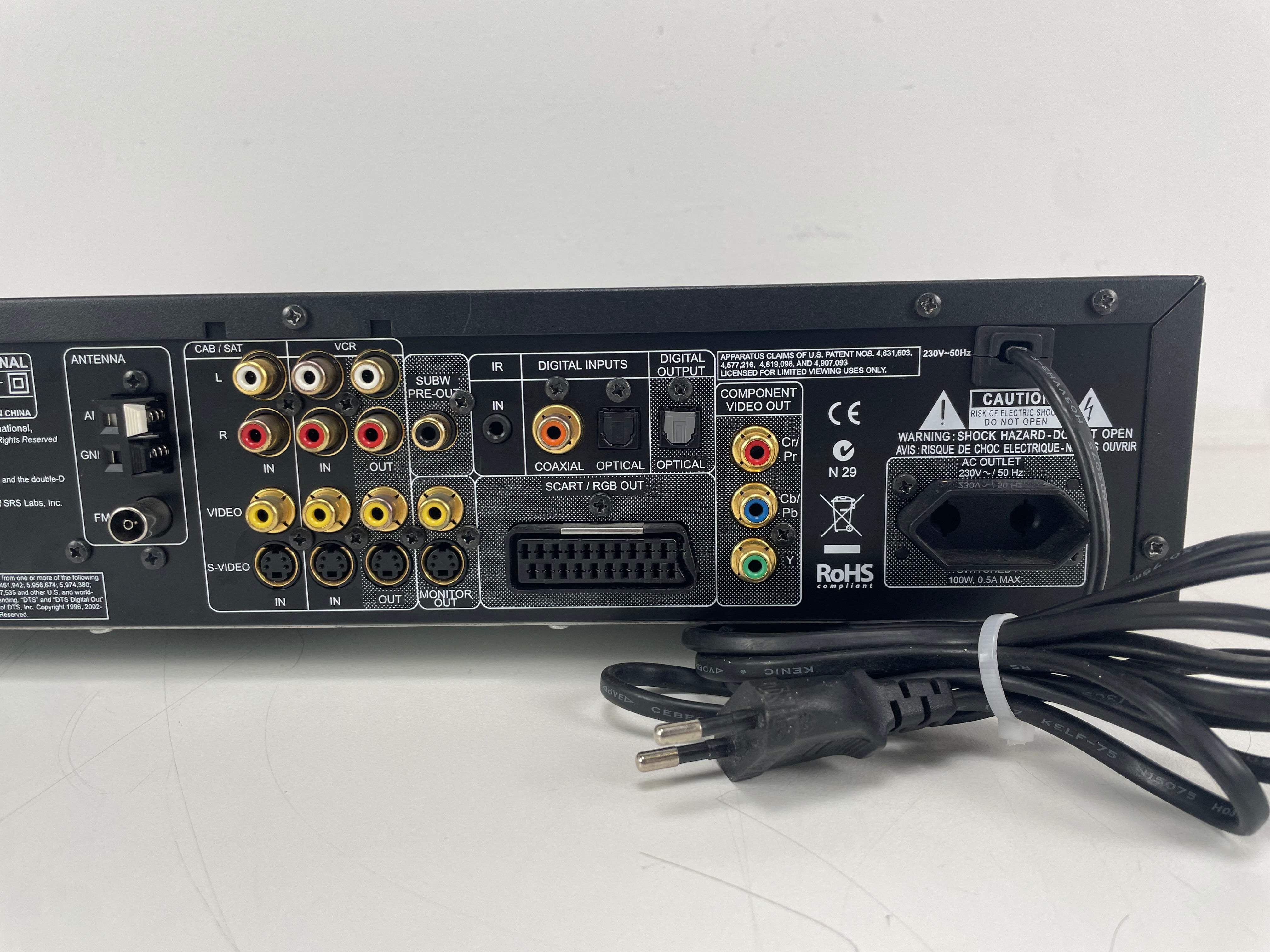

Inputs
- 2 × analogue A/V inputs
- 2 × composite-video inputs
- 2 × S-Video inputs
- 1 × coaxial digital input
- 1 × optical digital input
- IR control input
- FM and AM antenna inputs
Outputs
- Component-video output
- Composite-video monitor output
- S-Video monitor output
- Optical digital output
- Adjustable subwoofer pre-output
- Stereo speaker binding posts
- SCART RGB connection on 230 V versions
- Switched AC outlet, 100 W maximum
Additional Features
- SRS two-speaker surround processing
- Gold-plated connections
- Clock and timer
- Illuminated eight-device learning remote control
- Programmable macro function
- High-current power supply
- Discrete-transistor output stages
Dimensions (LxWxH): 435 × 89 × 320 mm
Weight: 10Kg
Volts: 230v (If it’s 200V or higher, you’ll need an adapter in the USA)
