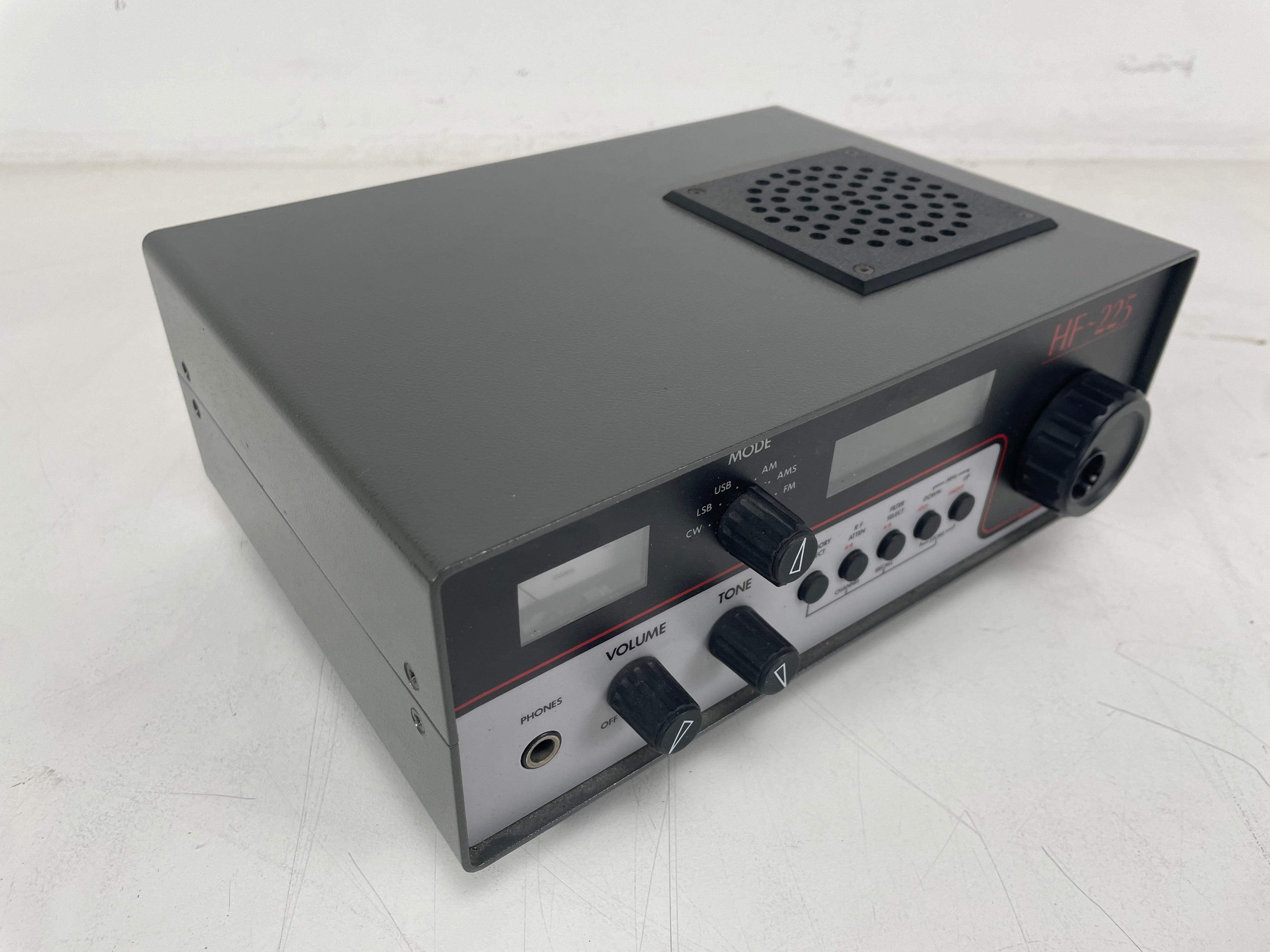

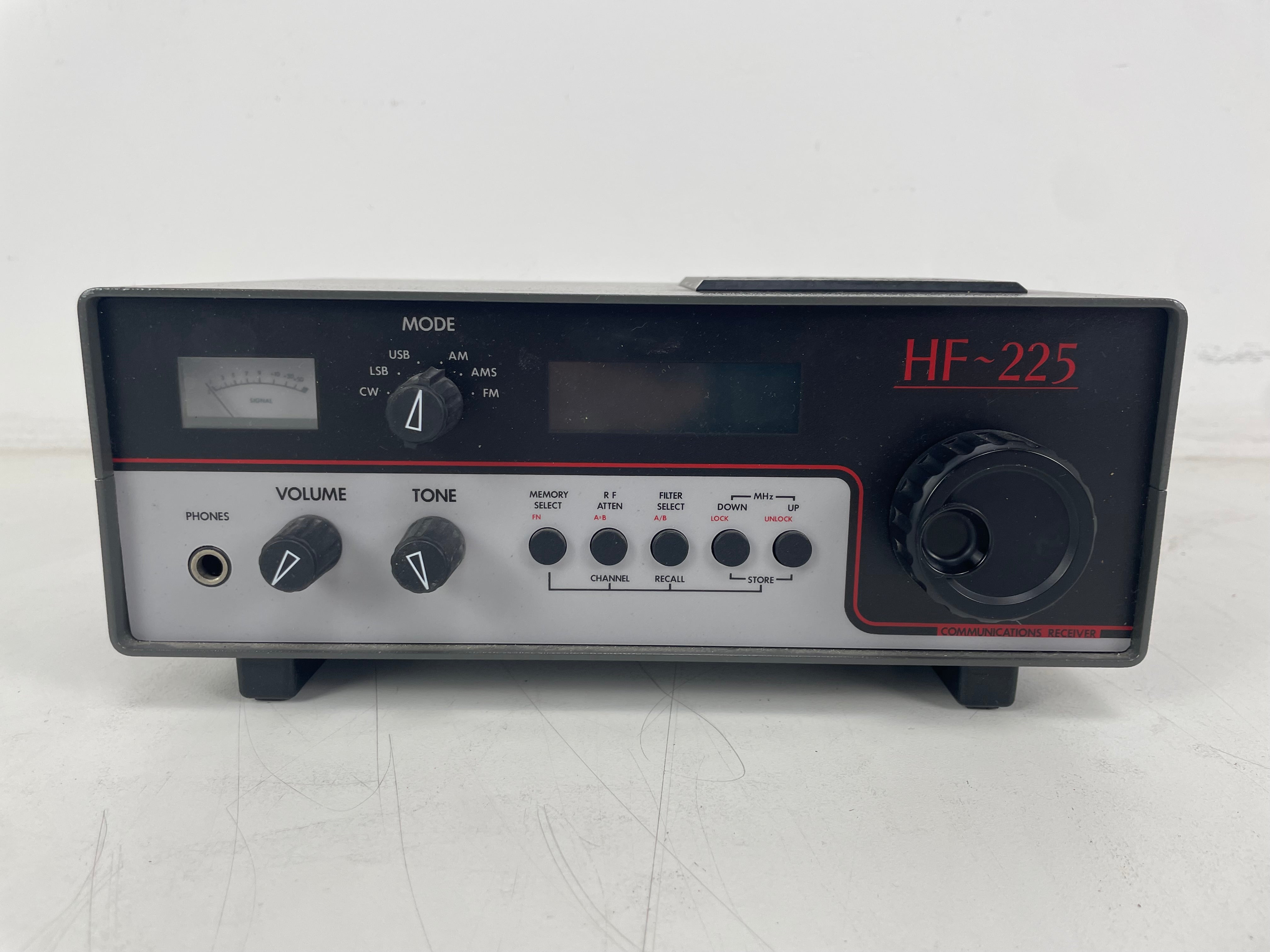

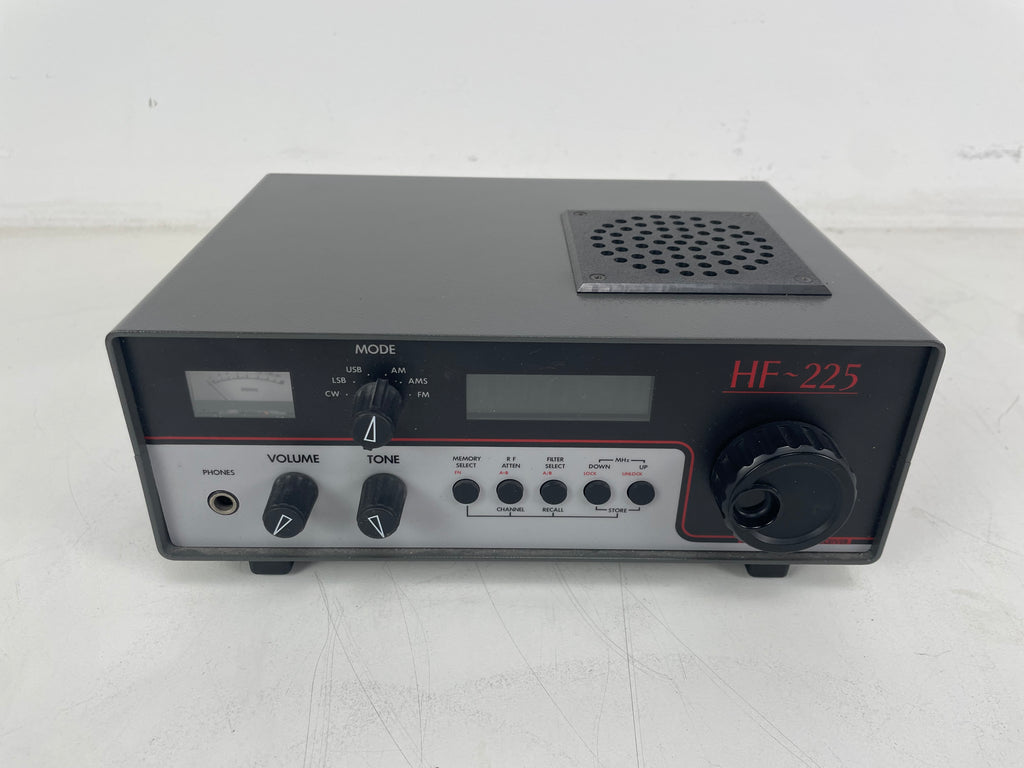

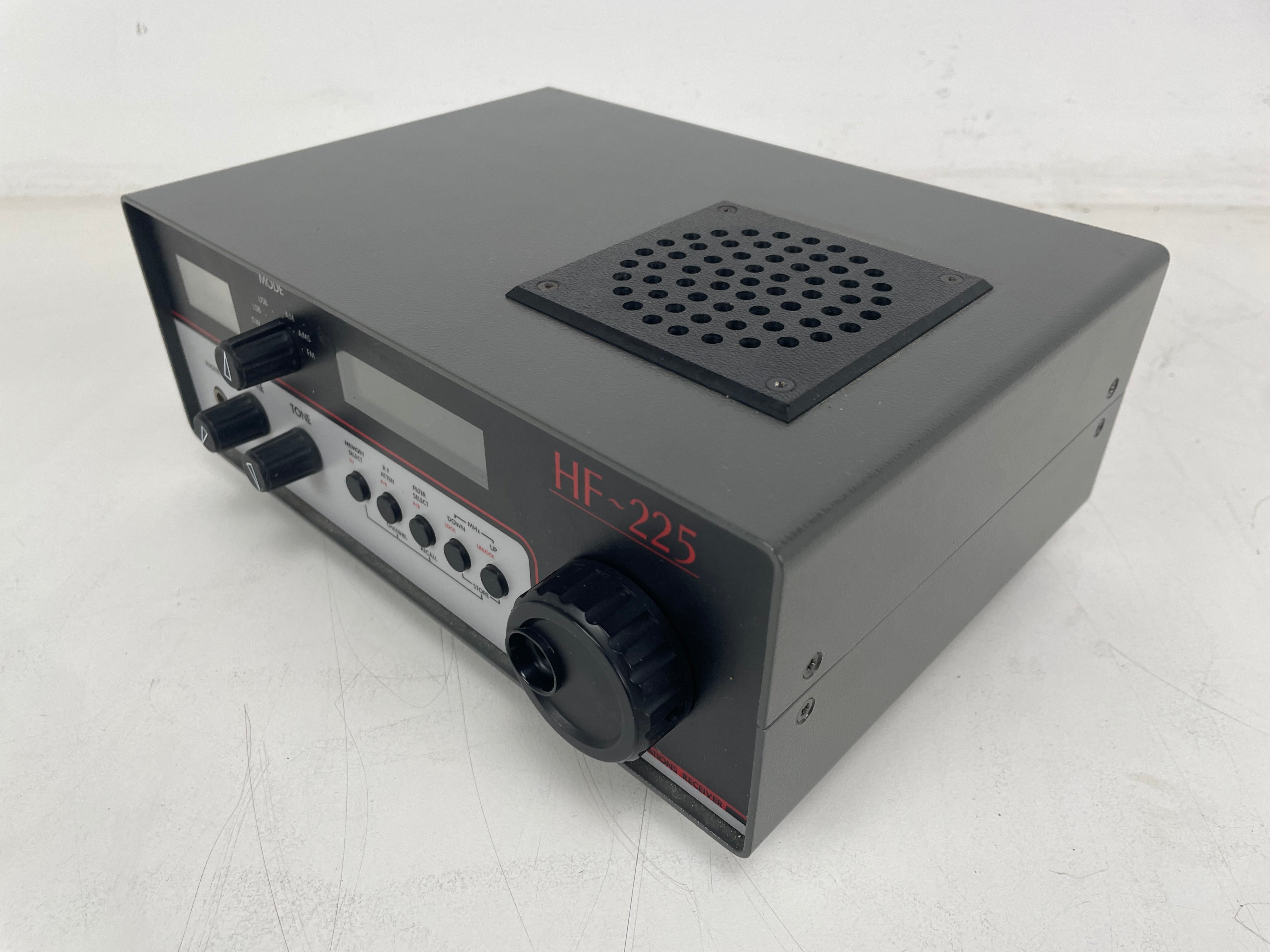

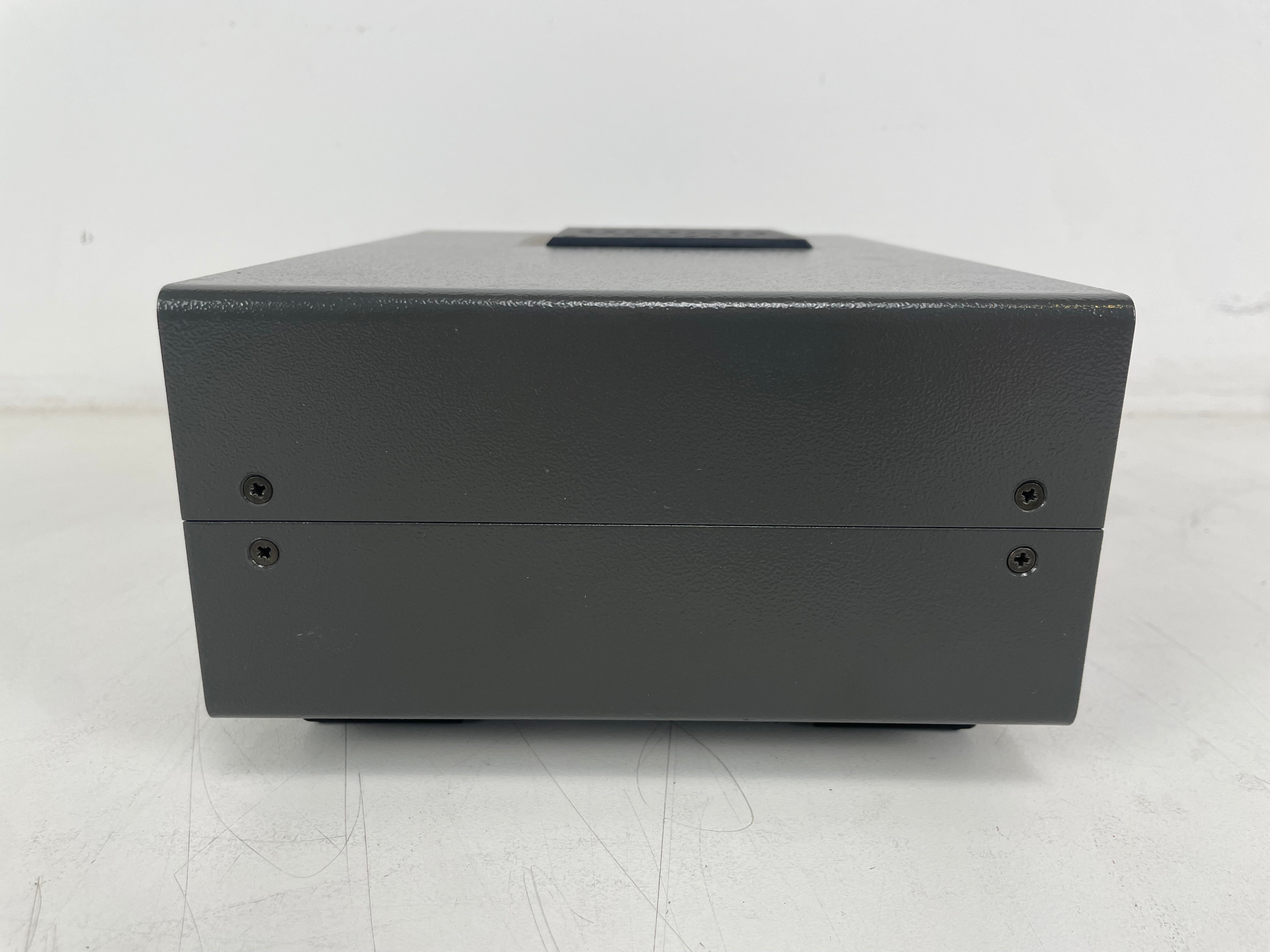

Lowe - HF-225 - HF receiver - 0.03-30 MHz - Inc. Case-bag - As Is

For sale: a Lowe HF-225 high-frequency (HF) receiver, a well-regarded communications receiver designed for shortwave listening and general radio monitoring.

The HF-225 is known for its solid performance, clean receiver design, and excellent usability, making it a popular choice among radio enthusiasts and shortwave listeners.

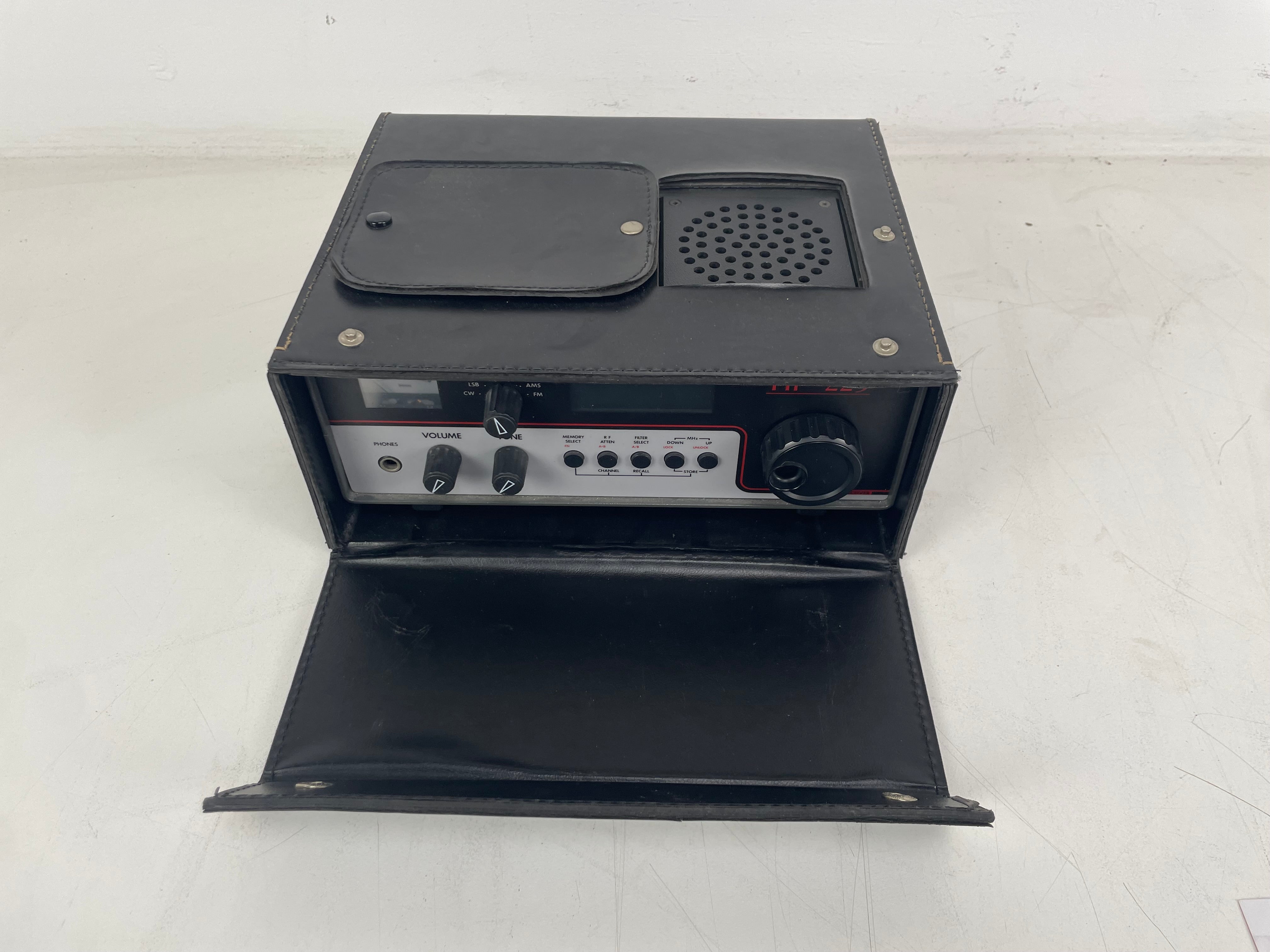

This unit comes complete with its original protective case.

Cosmetic condition:

The receiver is in mint cosmetic condition.

• Extremely clean overall appearance
• Very well preserved
• Includes original case
• Minimal to no visible signs of use

📡 Functional status

❓ Untested / sold as-is
✔ Powers on not confirmed
✔ Suitable for collection, restoration, or testing

Specs:

GENERAL
Type:	HF receiver
Frequency range:	0.03-30 MHz
Tuning steps:	AM:   50 Hz AMS/SSB/CW:   8 Hz FM:   125 Hz
Frequency stability:	±30 Hz per hour @ 20°C (68°F)
Mode:	AM / SSB / CW (FM and AM-synchro (AMS) option)
Channels / memory management:	30 regular RAM storage with lithium battery backup
Power supply:	12 VDC (Internal NiCd battery pack) or 10-15 VDC external (Male barrel jack, center positive)
Current drain / power consumption:	250-300 mA (Typical)

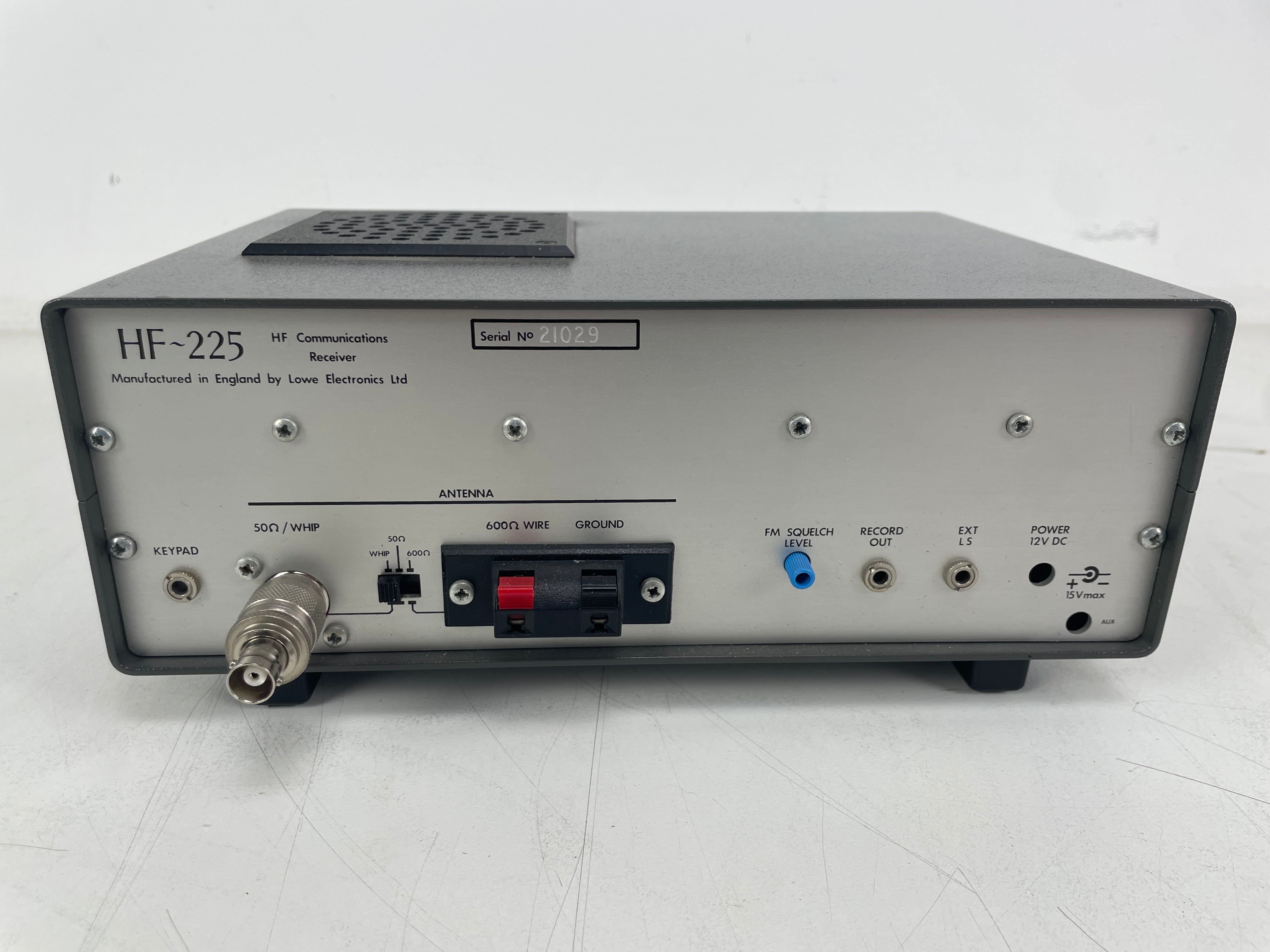

Antenna impedance / connector:	50 ohm / SO-239 600 ohm / Spring terminals
Dimensions (W*H*D):	253*109*204 mm (9.96*4.29*8")
Weight:	1.9 Kg (4.19 lb), without batteries
Other features:	NB. Attenuator (20 dB). 200 Hz CW audio peak filter.
RECEIVER SECTION
Receiver system:	Double conversion superheterodyne 1st IF: 45 MHz 2nd IF: 455 KHz
Sensitivity:	AM (No reference) 0.06-2 MHz: <1.2 uV 2-30 MHz: <0.9 uV FM (No reference) 0.06-2 MHz: <1 uV 2-30 MHz: <0.9 uV SSB (No reference) 0.06-2 MHz: <0.6 uV 2-30 MHz: <0.5 uV
Squelch sensitivity:
Noise figure:
Selectivity:	AM/AMS/SSB (Selectable) 2.3 KHz (-6 dB), 3.4 KHz (-60 dB) 5.9 KHz (-6 dB), 9.8 KHz (-60 dB) 8.8 KHz (-6 dB), 12.9 KHz (-60 dB) 10.6 KHz (-6 dB), 21.5 KHz (-60 dB) FM 12 KHz (No reference) CW 2.3 KHz (-6 dB), 3.4 KHz (-60 dB)
Image rejection:
AF output power / speaker:	1.6 W at 5% distortion / 8 ohm 2 W at 5% distortion / 4 ohm
External speaker connector:	TS "Minijack" (3.5 mm), 4-8 ohm
MISCELLANEOUS
Manufactured:	England, 1989-1998 (Discontinued)
Additional info:	New price 1992 in Sweden: SEK 6450:-
Related documents:	User manual (2.2 MB) Service manual (4.7 MB)

Dimensions (LxWxH): xxcm
Weight: Kg
Volts: v (If it’s 200V or higher, you’ll need an adapter in the USA)
