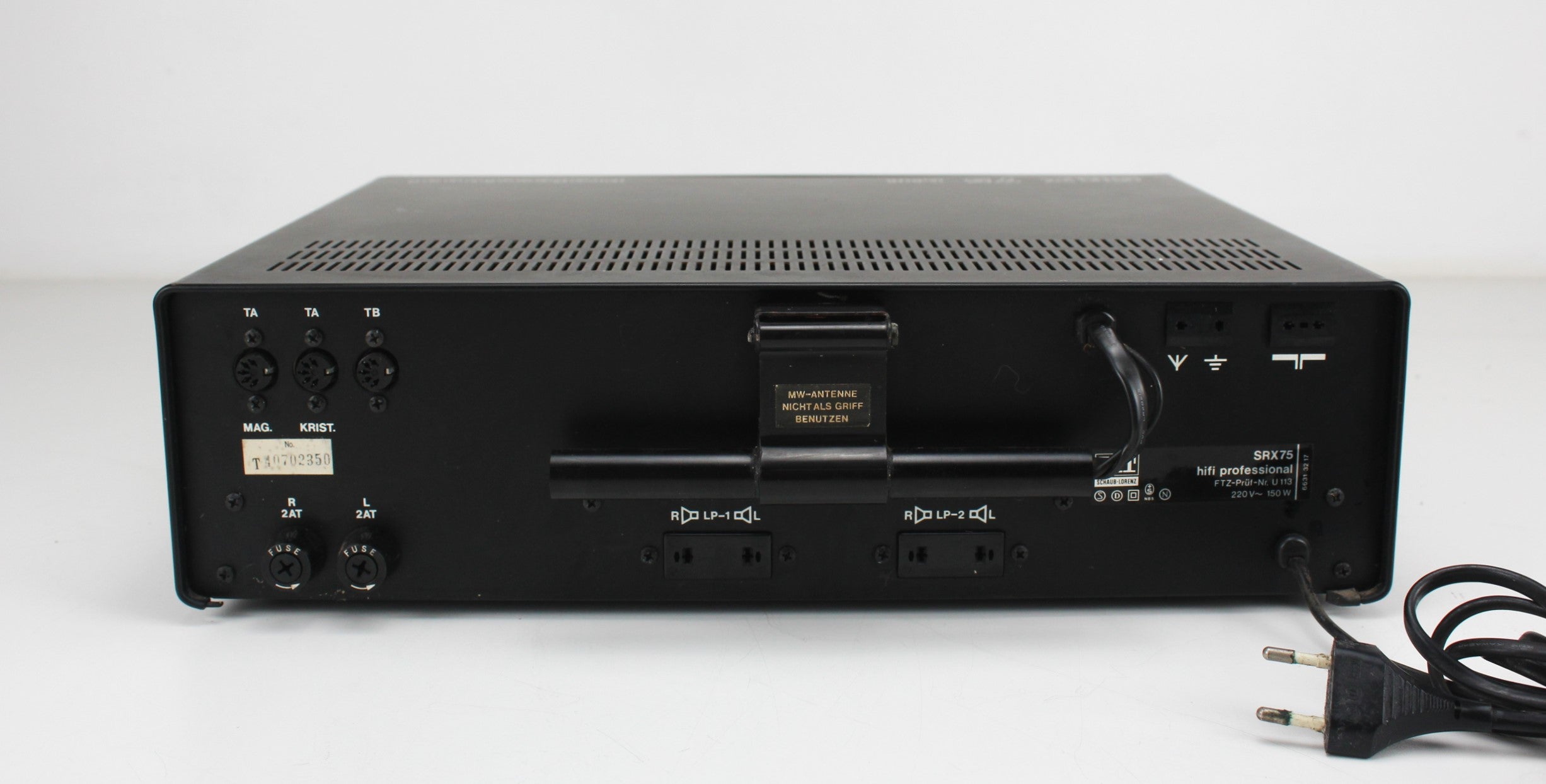

For sale: Vintage ITT Schaub-Lorenz SRX 75 Professional. Specifications for ITT Schaub-Lorenz SRX 75 HiFi Professional (Type 5253 03 51):
Tested: We connected and tested the SRX 75. While it does receive signals, there is no sound output to the speakers. It is being sold as-is for parts.
specs:
Power Supply
Voltage: 220 V, 50/60 Hz
Fuses:
0.63 A slow-blow for 220 V~
2 x 2.5 A slow-blow for power supply
2 x 0.25 A slow-blow for low current power supply
Power Consumption
Minimum: 30 W
Maximum: 200 W
Components
Transistors: 50
Diodes: 28
Rectifiers: 3
Integrated Circuits (IC): 3
Intermediate Frequency (IF)
AM: 455 kHz
FM: 10.7 MHz
Tuning Circuits
AM: 5 circuits
FM: 11 circuits
Outputs
Power Output: 2 x 25 W nominal (sine wave duration) at 4 Ω load
Music Power Output: 2 x 42 W (DIN 45 500)
Distortion: < 1% at 1 kHz for 25 W
Frequency Range
Loudspeakers: 15-40,000 Hz (sine wave duration of 10 W)
Amplifier:
Mono: 20-20,000 Hz
Stereo: 20-20,000 Hz
Wave Bands
Medium Wave (MW): 510-1605 kHz (588-187 m)
FM (UKW): 87.5-108 MHz (3.45-2.88 m)
Dimensions: 41cm (W) x 35 cm (D) x 12 cm (H)
Weight: 9,5 kg

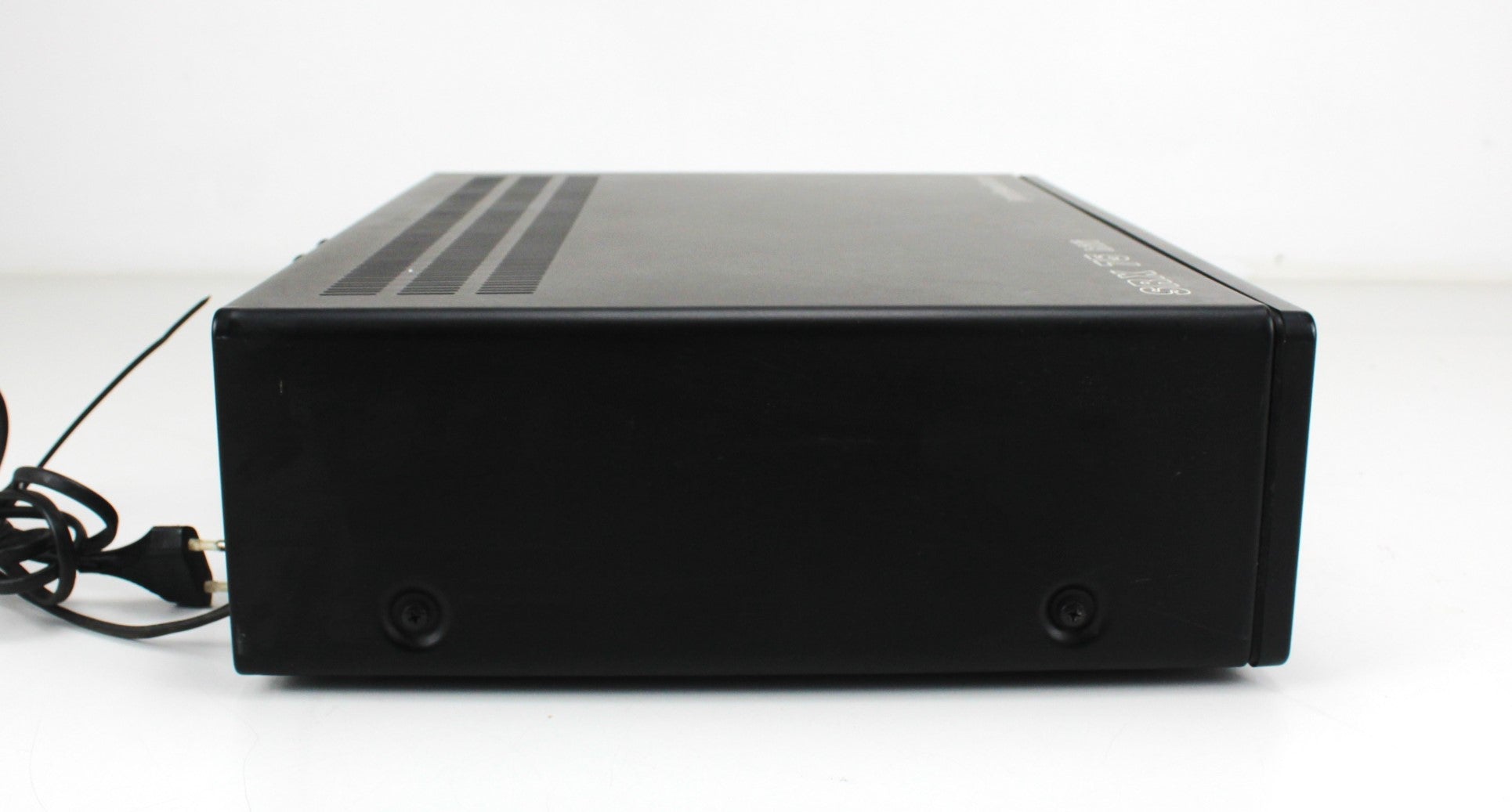

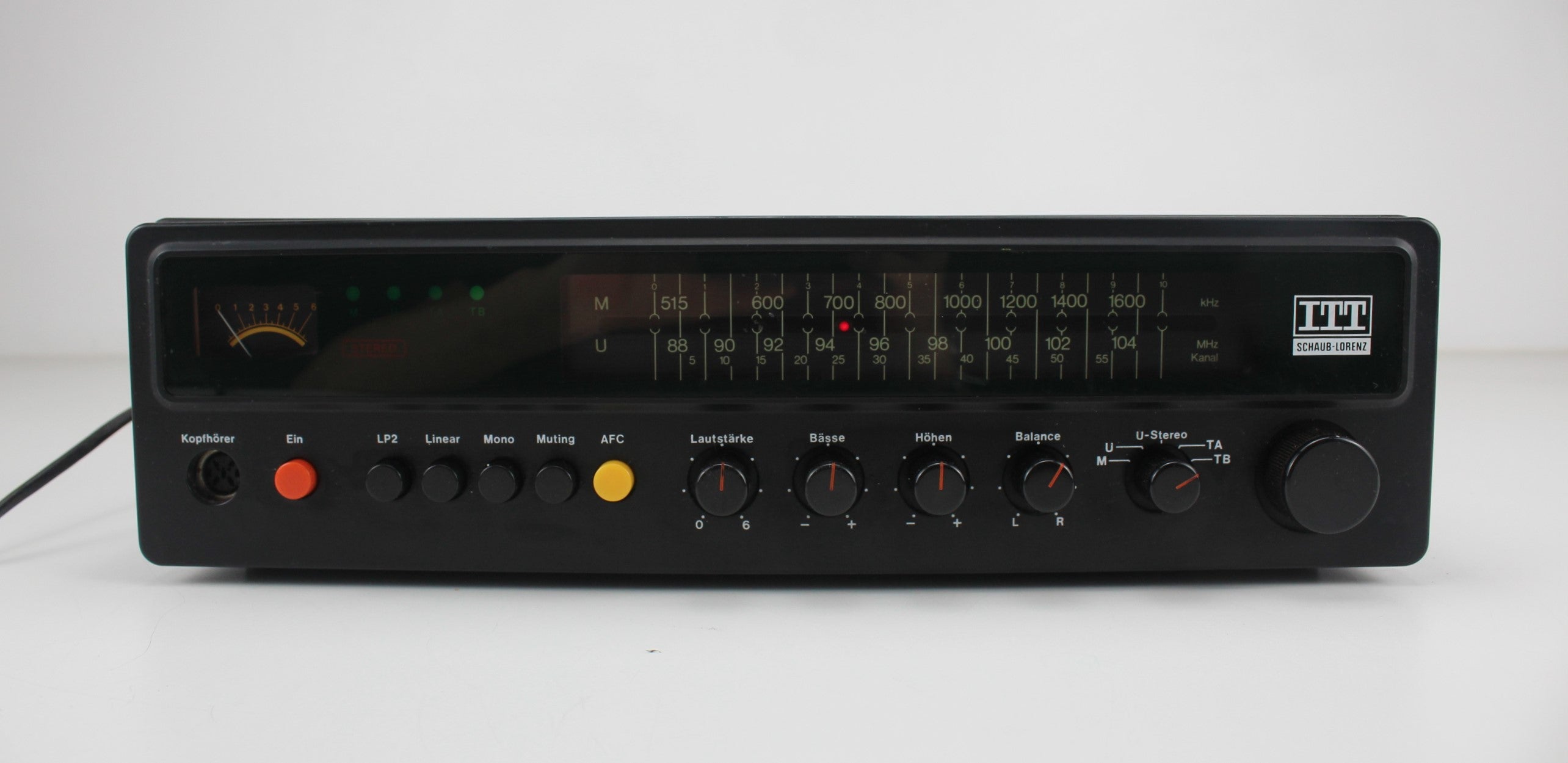

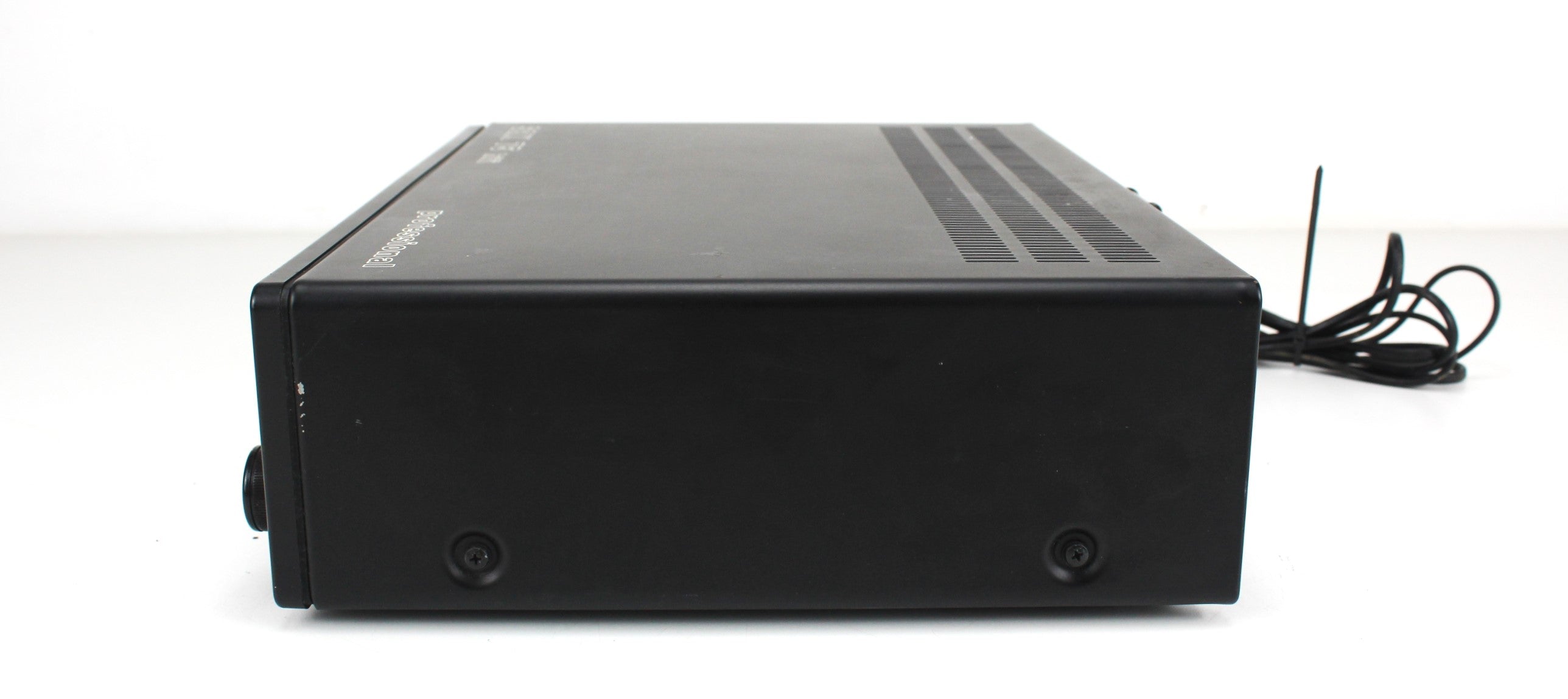

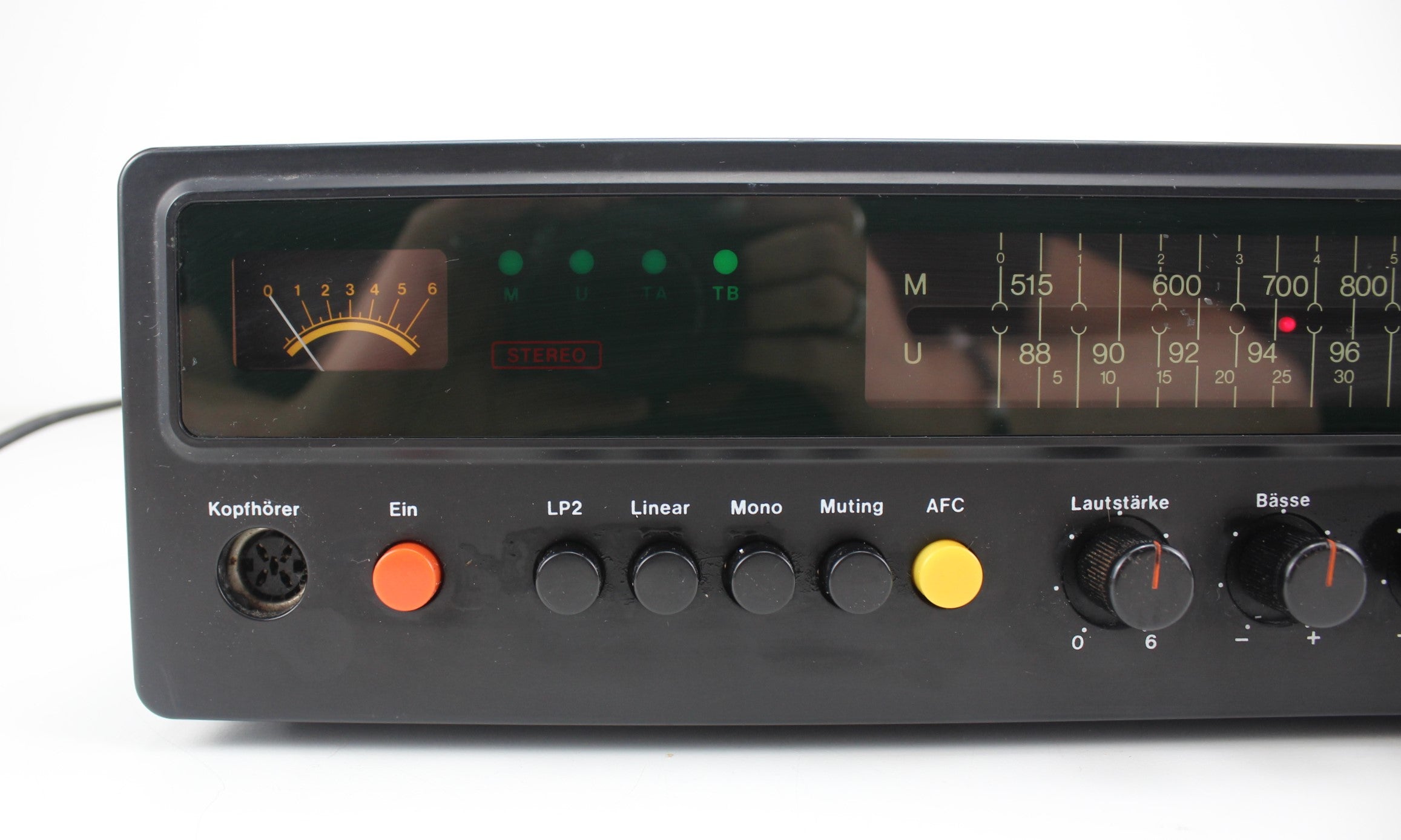

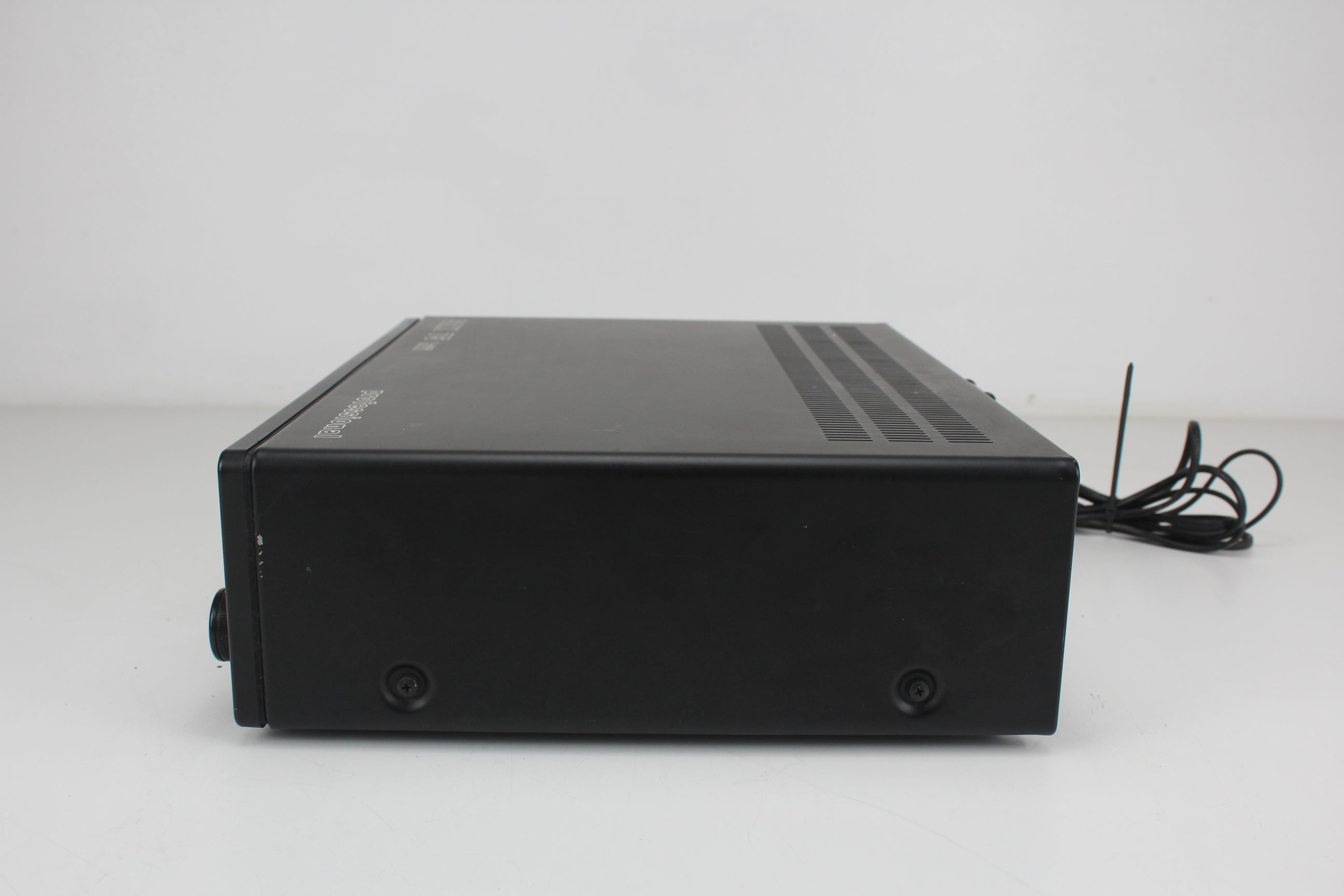

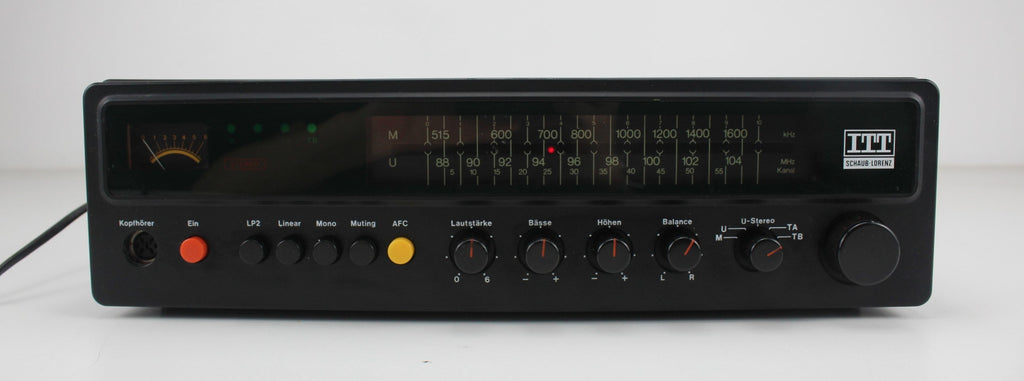

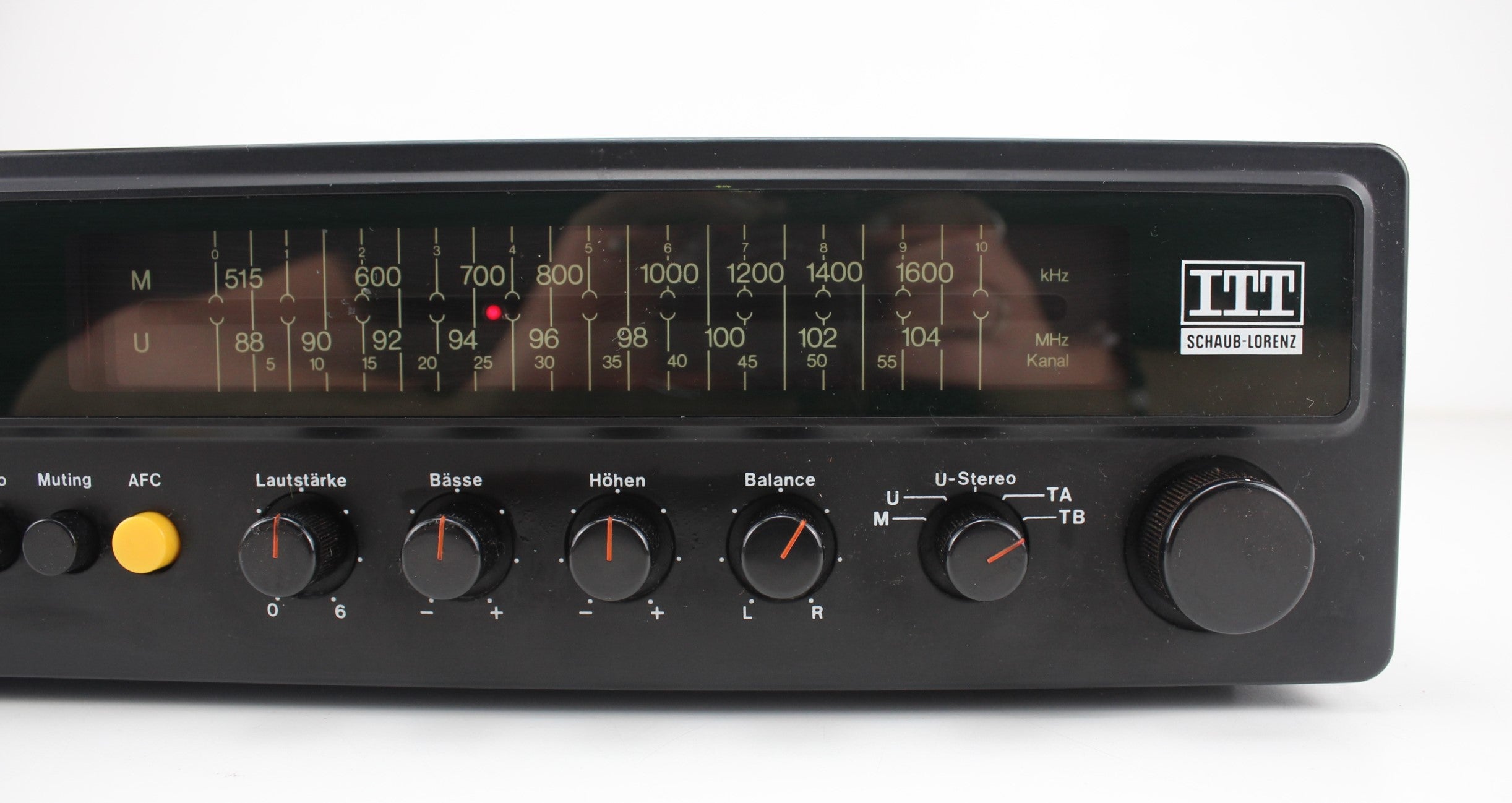

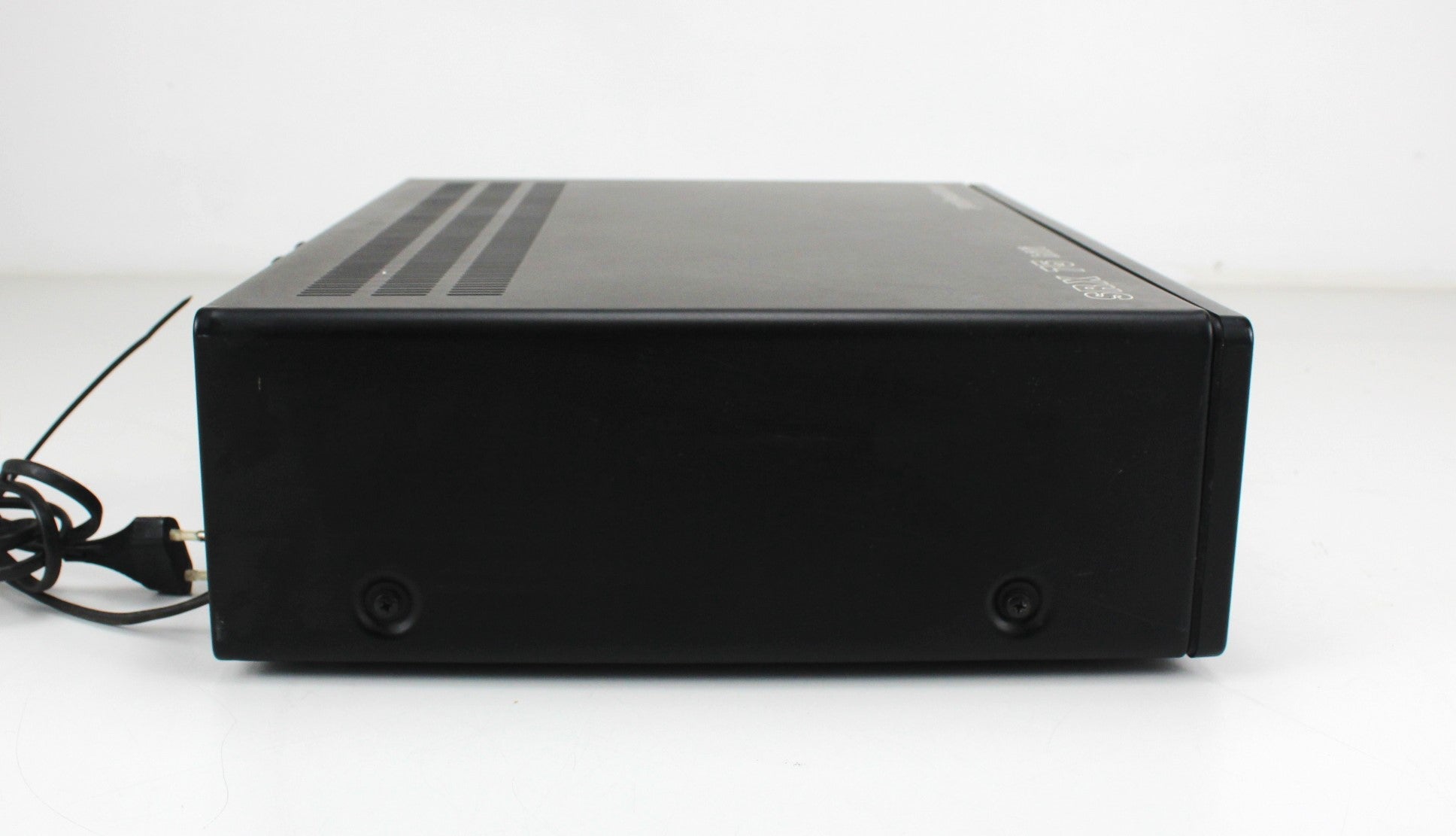

Working condition: Fully working (See pictures for the cosmetic condition of this lot)
Missing or damages: Minor Usage Marks
Does come with power cable.
We ship worldwide.
-Shipping in the EU up to 30 KG (max)
-Shipping outside of the EU up to 20 KG (max)
''We offer combine shipping (EU 30KG max, NON EU 20KG max) for all our listings, ask us for details''
Please note: ‘'Whenever an item exceeds the weight noted above. Please ask for a shipping quote before making a purchase. The shipping costs are estimated in our shop because we do not know the shipping address.
Picking up the item is also possible. It can either be picked up in Alkmaar or Woerden on appointment.
Delivery by us is also possible in some cases. Please reach out to us for more information about deliveries.
State of listing: If a listing is listed ''for parts or not working'' returns are not accepted.
