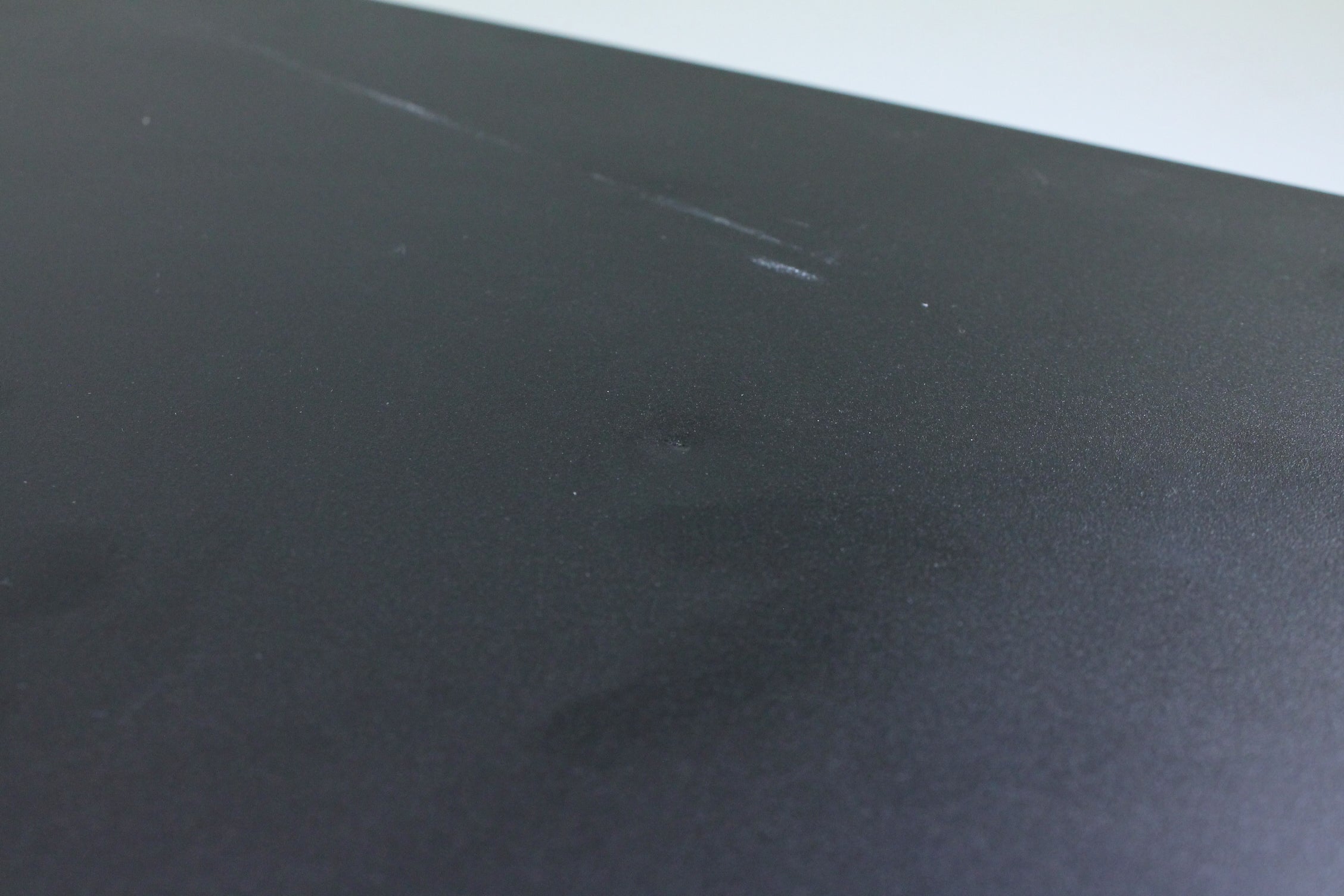

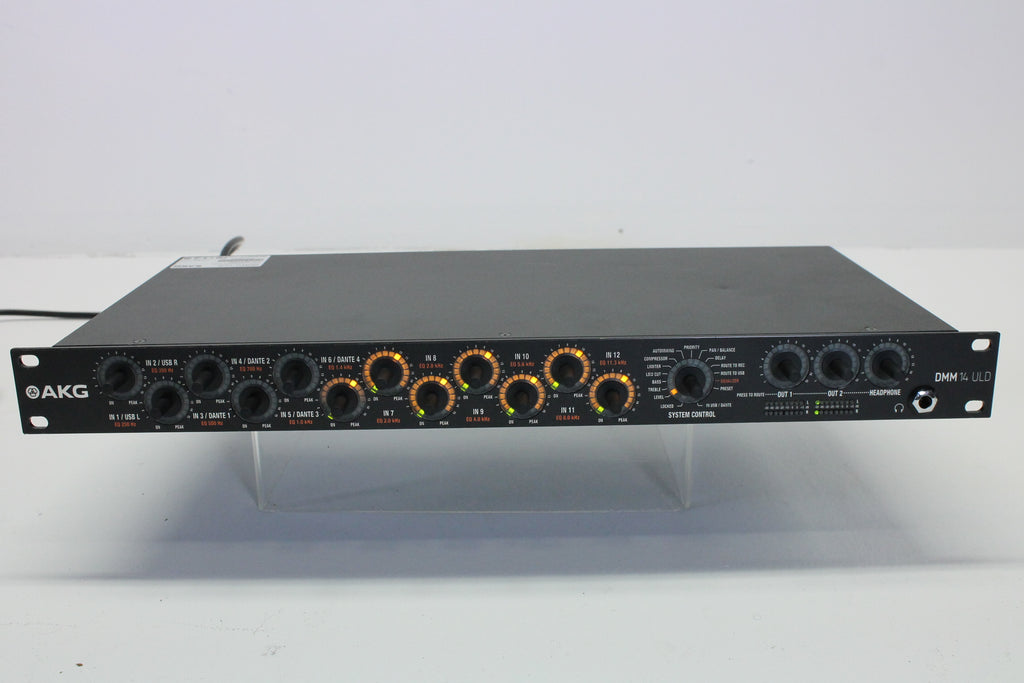

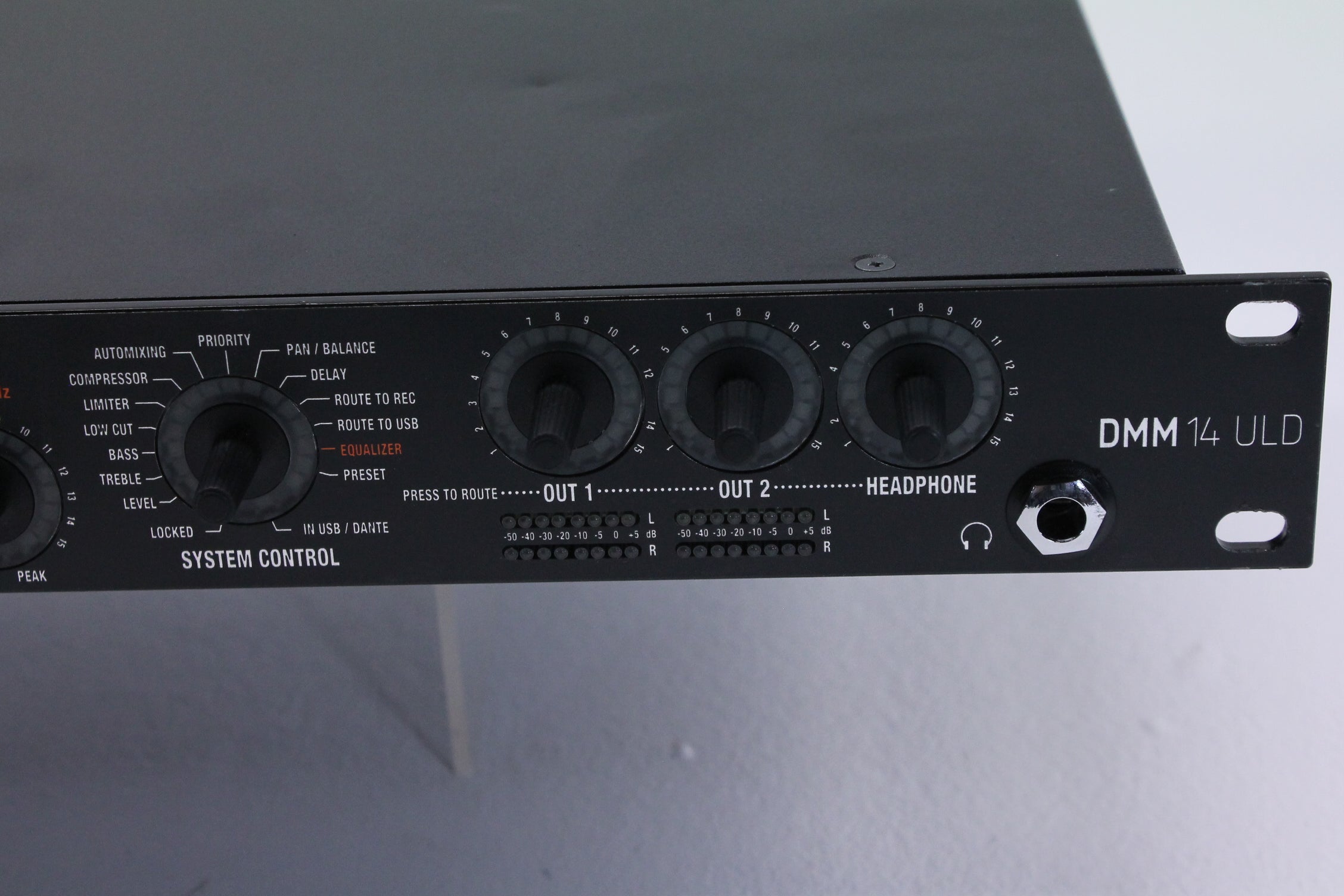

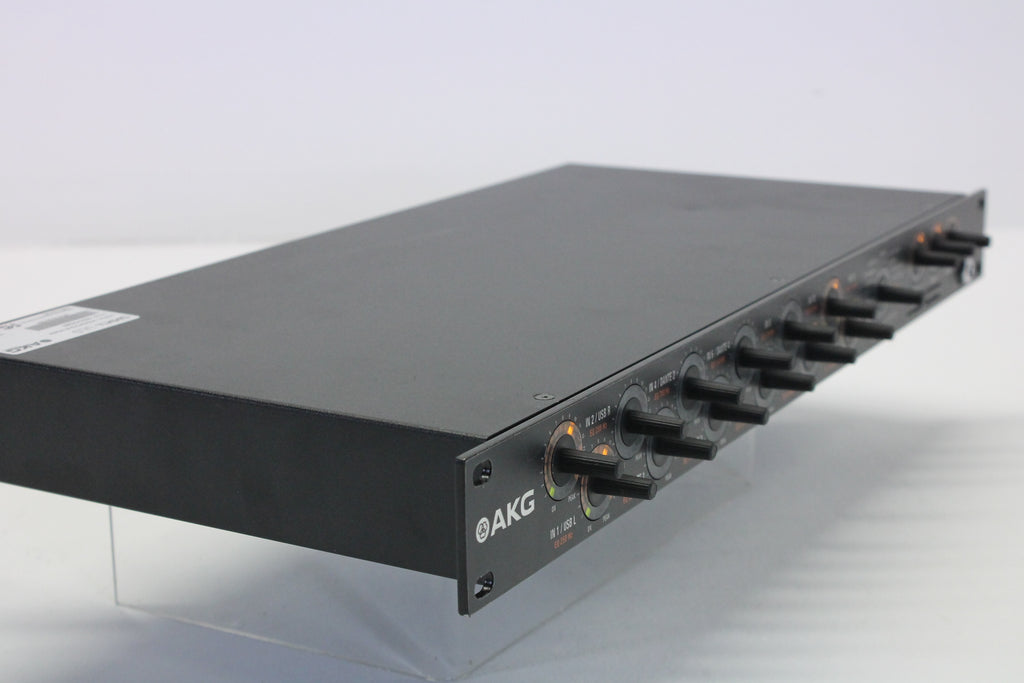

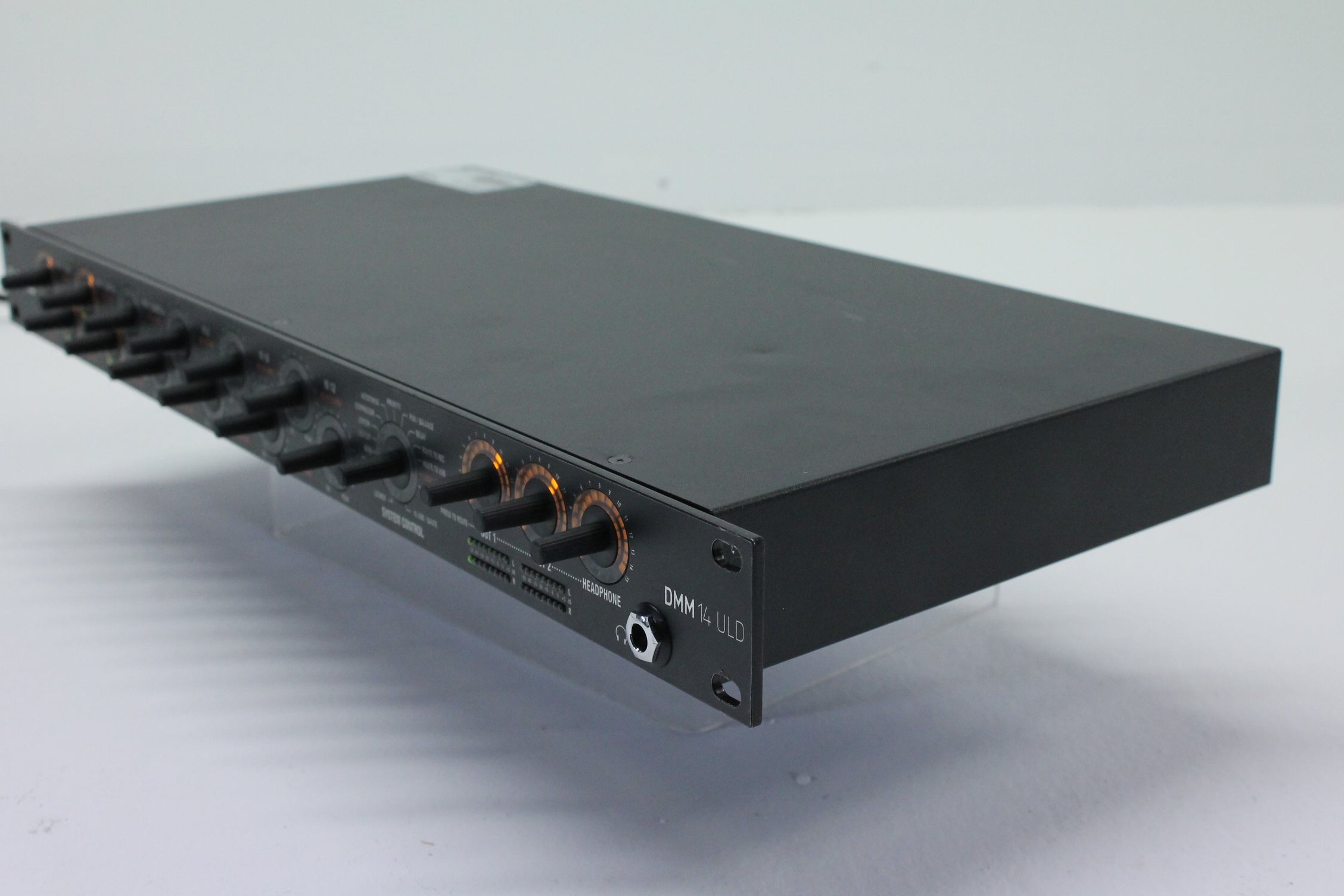

AKG DMM14 ULD is a professional microphone mixer ideal for use in large meetings and conferences. Its DSP function ensures precise mixing of up to 140 channels by cascading up to ten DMM14 ULD mixers. This one has been used as a demo and apart from a scratch and a ding on the top panel, in good shape. Two additional stereo audio outputs and one stereo USB offer additional routing options. Due to high signal-to-noise ratio, the DMM14 ULD also keeps noise from multiple open microphones to a minimum. Numerous DSP functions such as filters, compressor/limiter, ducking, and routing make the DMM14 ULD suitable for a variety of spoken word applications. The DMM14 ULD incorporates a DANTE chip through which all inputs are available both on the DANTE stream and as direct outputs, which is useful for broadcast applications. In total, this ULD model provides 22 free assignable DANTE outputs; four DANTE streams can be used as inputs. The DMM14 ULD also features a LAN interface via Ethernet to enable control over large distances.
12-band graphic EQ on outputs for optimized loudspeaker tuning
Six programmable presets for easy tailoring to different situations
Two channel USB streaming In and Out to interface with IT networks
Up to ten units can be cascaded for simultaneous use of up to 140 channels
Digital signal processing and sophisticated mixing algorithm for wireless multimedia presentations
Audio matrix routing of all inputs to all outputs for creating multiple mixes of multiple output combinations
For use in conferences, large meeting areas, round-table discussions in TV shows, and more
Made in Germany

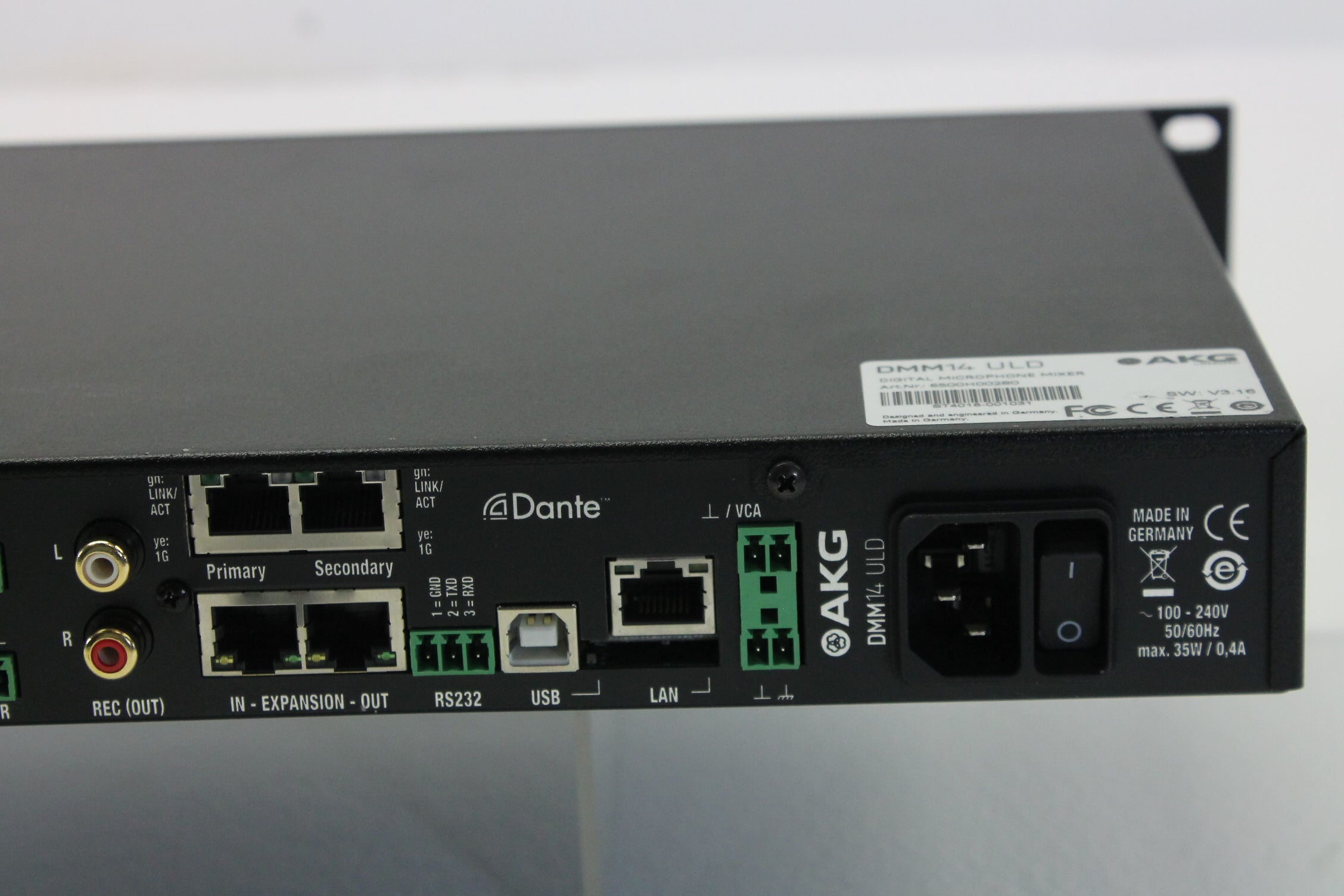

Power: 100 - 240v 50/60Hz Max. 35W / 0,4A EU C14 socket, (PSU not included).
AKG DMM14 ULD Specs Input Channels 4 x DANTE channel Output Channels 22 x DANTE (14 x direct output, 2 x output 1, 2 x output 2, 2 x record, 2 x USB)
1 x USB output to DANTE DSP Functions: Treble, bass, low-cut, limiter, compressor, automix, priority, pan/balance, delay Phantom Power 48 V maximum, 10 mA per input Type Symmetrical Level -60 dBu to 0 dBu Frequency Range +/-3 dB, 20 Hz - 20 kHz THD & Noise < 0.1% Noise Level < -120 dBu (22 Hz - 22 kHz, QPK) Dynamics > 100 dB Distortion 20 dB2 S/N > 90 dB (22 Hz - 22 kHz, RMS, A-Filter)
