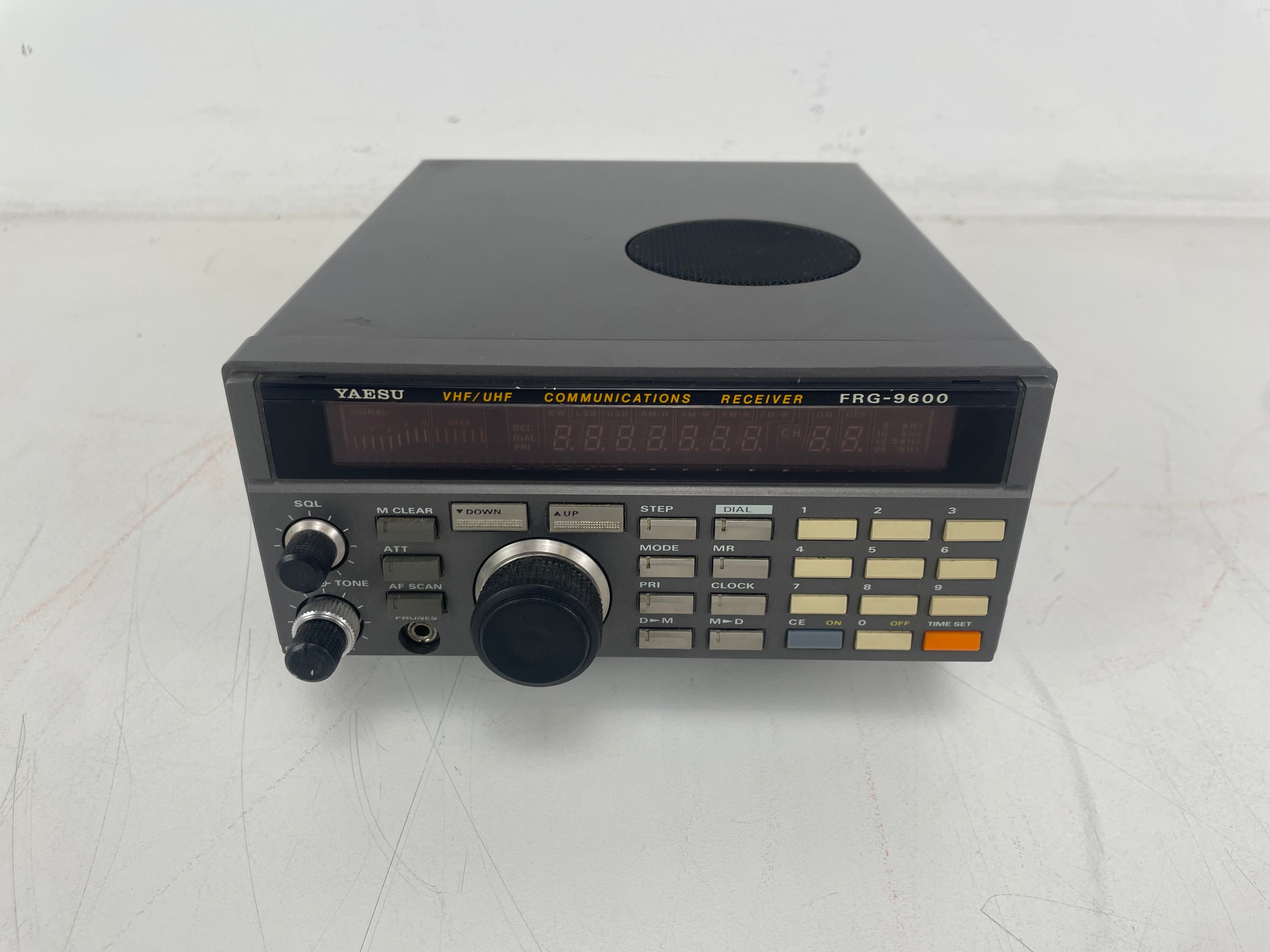

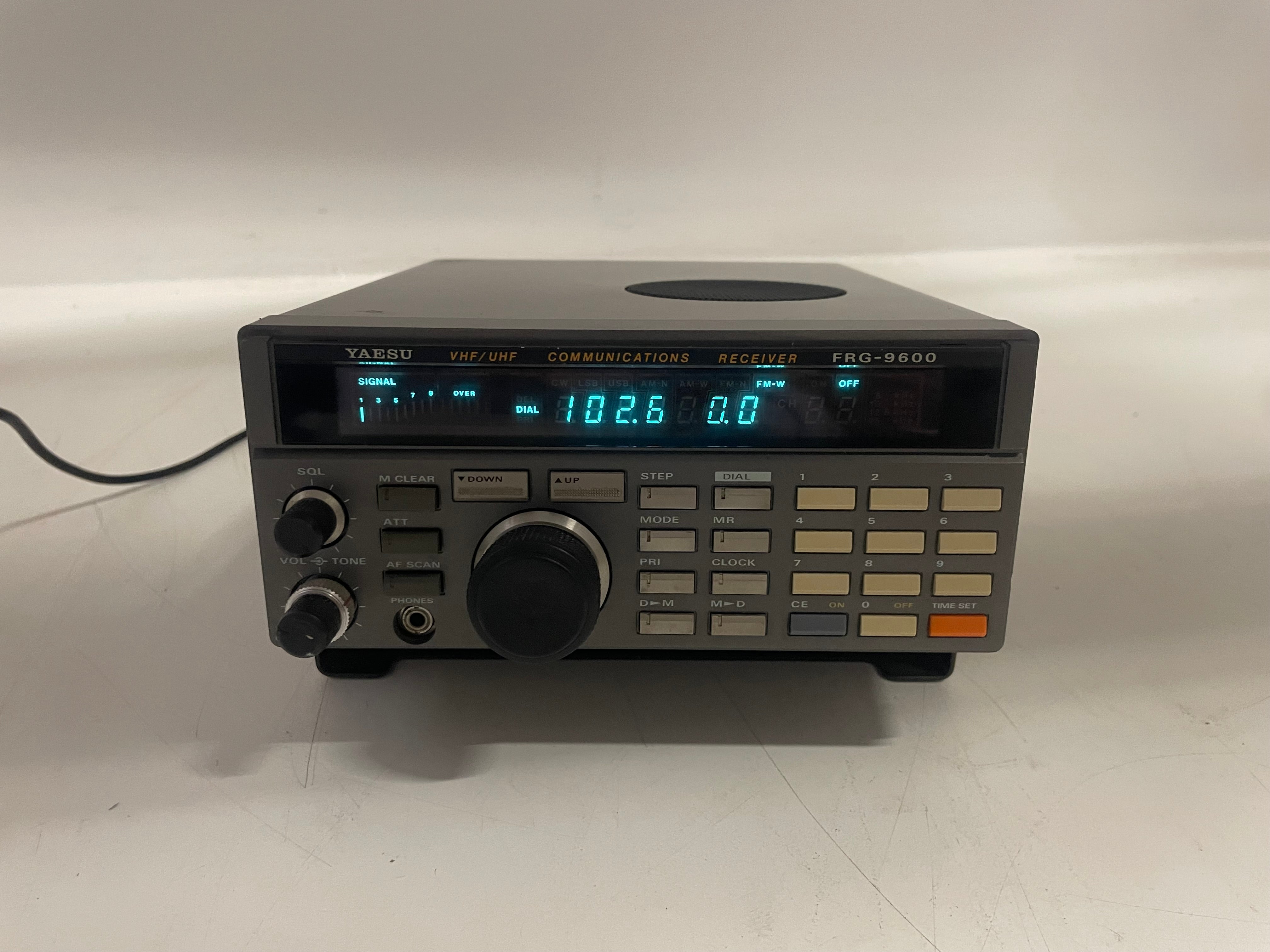

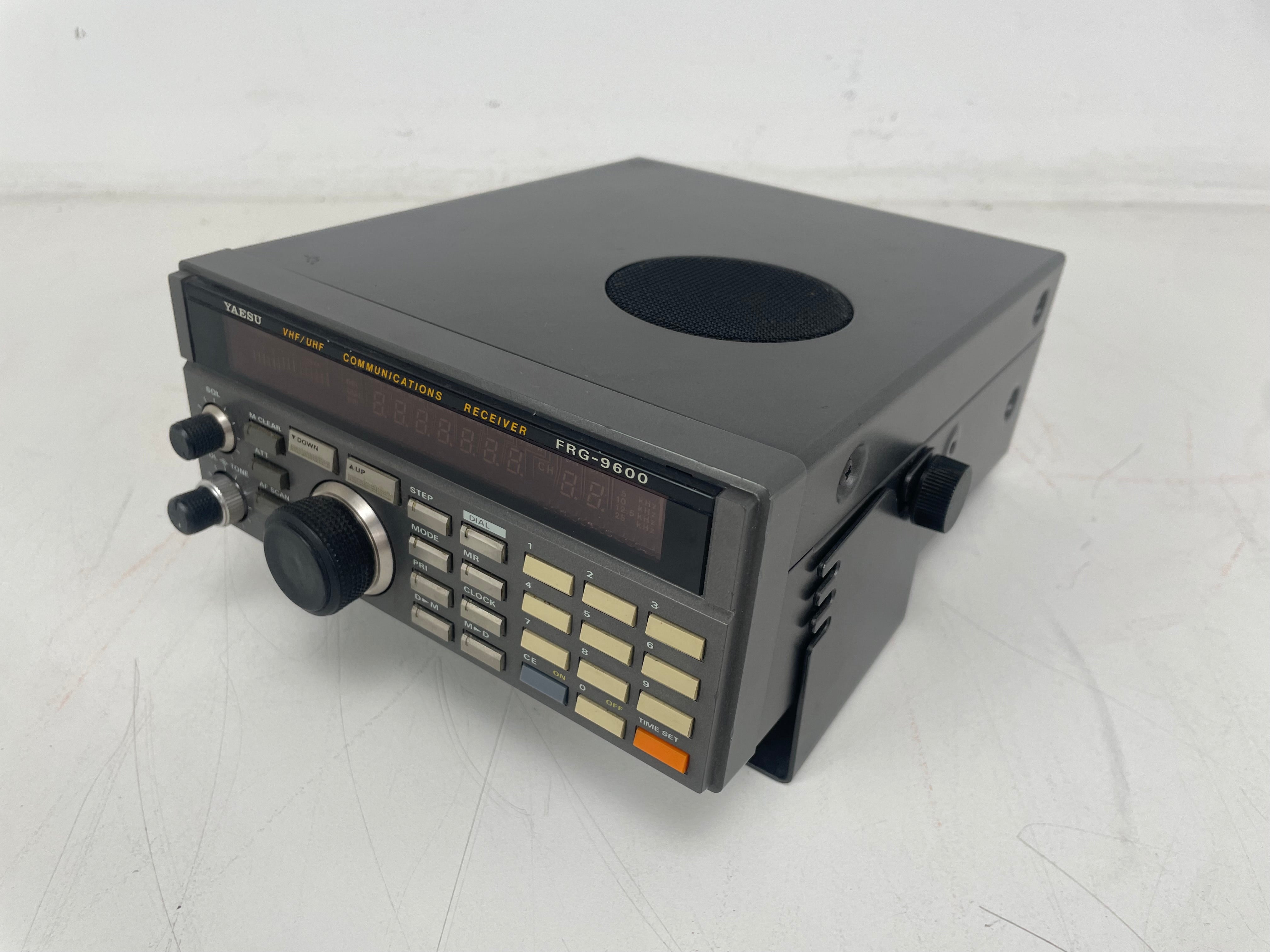

For sale: a Yaesu FRG-9600 VHF/UHF communications receiver, a classic wideband receiver designed for monitoring communications across a broad frequency range.
Cosmetic condition:
The unit is in used vintage condition with normal signs of age.
- General cosmetic wear consistent with use
- Front panel remains clean and readable
- Overall solid vintage appearance
-- Functional status
- Fully working
- Tuning and reception operational
- Controls tested
- Ready for use
Specs:
| Type: |
VHF/UHF receiver/scanner |
| Frequency range: |
60-905 MHz |
| Tuning steps: |
100 Hz, 1 / 5 / 10 / 12.5 / 25 KHz |
| Mode: |
AM-N / AM-W / FM-N / FM-W / SSB (Up to 460 MHz only!) |
| Channels / memory management: |
100 regular |
| Power supply: |
12-15 VDC (Barrel connector, center positive) |
| Current drain / power consumption: |
Max 550 mA |
| Antenna impedance / connector: |
50 ohm / SO-239 |
| Dimensions (W*H*D): |
180*80*220 mm (7.09*3.15*8.66") |
| Weight: |
2.2 Kg (4.85 lb) |
| Other features: |
Attenuator. Tone control. CAT-interface. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne (FM-W)
1st IF: 45.754 MHz
2nd IF: 10.7 MHz
Triple conversion superheterodyne (FM-N/AM/SSB)
1st IF: 45.754 MHz
2nd IF: 10.7 MHz
3rd IF: 455 KHz - Ceramic filter: Murata CFW455E |
| Sensitivity: |
AM-N: 1 uV (10 dB S+N/N)
AM-W: 1.5 uV (10 dB S+N/N)
FM-N: 0.5 uV (12 dB SINAD)
FM-W: 1 uV (12 dB SINAD) |
| Selectivity: |
|
| Image rejection: |
60-460 MHz: -50 dB
460-905 MHz: -40 dB |
| AF output power / speaker: |
1 W at 10% distortion / 8 ohm |
| External speaker connector: |
3.5 mm, 8 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: |
Japan, 1985-19xx (Discontinued) |
| Additional info: |
TV tuner front end (!)
New price 1985 in Sweden: SEK 5450:- |
| Related documents: |
User manual (15.2 MB)
Service manual (7.8 MB)
FM-IF: MC3357P
PLL: MC145158
|
| Modifications and fixes: |
|
| Reviews: |
73 Amateur Radio: November 1989, page 24 |
| Options / Accessories: |
FIF-65A
FIF-80A
FIF-232C
MMB-28
PA-4B
PA-4C
SP-55
VU-9600
|
CAT interface for Apple II
CAT interface for NEC PC8001
CAT interface for RS-232C
Mobile mounting bracket
AC-DC wall adapter. 110-120 VAC
AC-DC wall adapter. 220-240 VAC
External speaker
Plug-in video unit (NTSC, 525 lines) |
|
Dimensions (LxWxH): 180*80*220 mm
Weight: 4 Kg
Volts: 13.8v (If it’s 200V or higher, you’ll need an adapter in the USA)
