The FM Stereo / FM-AM Tuner ST-S100L is equipped with a quartz-locked PLL digital synthesizer system, ensuring precise and stable tuning. With a wide frequency range of 87.5 - 108MHz for FM, it provides versatile tuning options. The tuner exhibits impressive sensitivity, delivering clear signals even in challenging conditions. It features low harmonic and intermodulation distortion, maintaining high audio fidelity. With a signal-to-noise ratio of 74dB (mono) and 69dB (stereo), it ensures a clean and detailed sound output. The layout-free AM antenna and external antenna terminal contribute to its usability, offering reliable performance across MW and LW frequencies. Overall, the ST-S100L excels in providing accurate and interference-free radio reception.

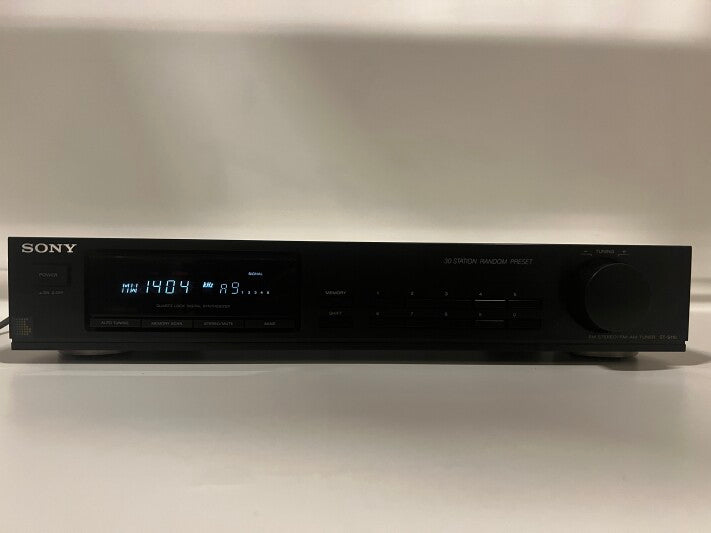

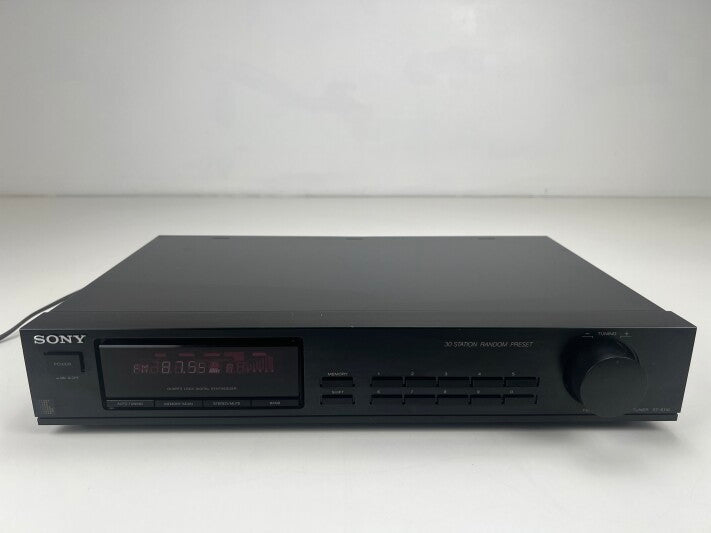

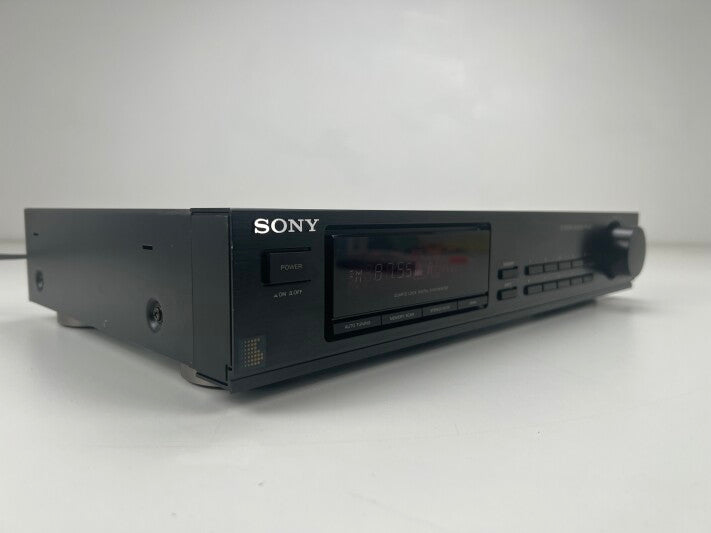

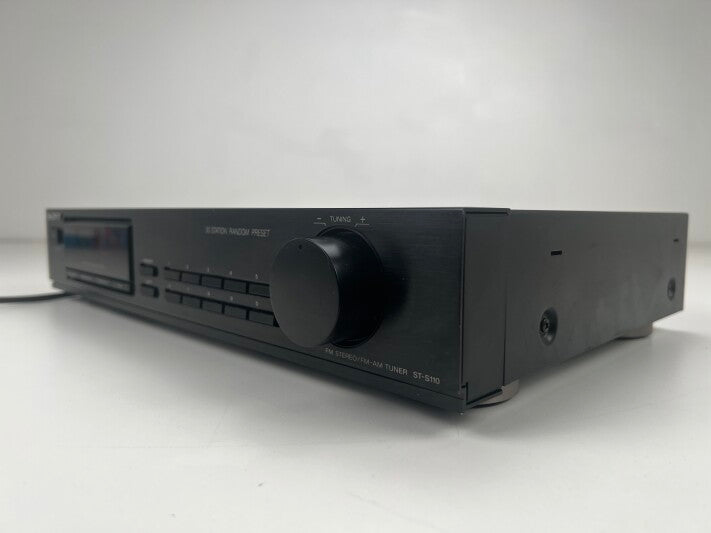

Tuner looks good ans has been tested It is fully functional. On the front it has almost no usage marks and a few on the sides
Specifications:
Quartz-locked PLL digital synthesizer system
FM tuner
Frequency range 87.5 - 108MHz

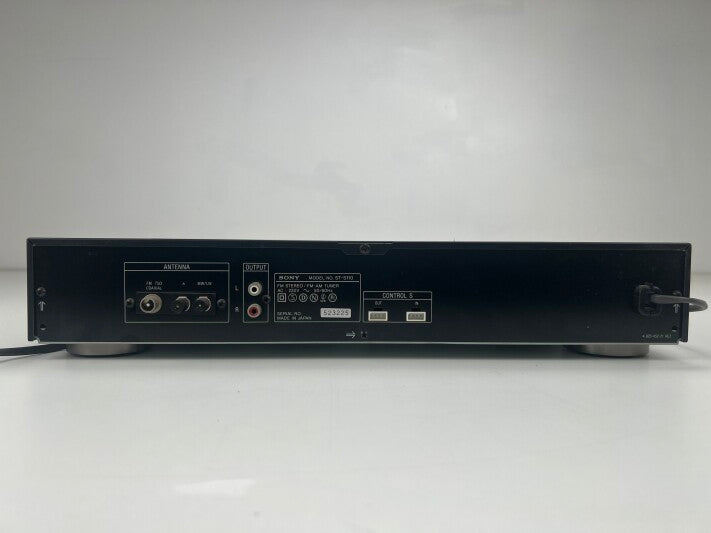

Antenna terminals 300? balanced, 75? unbalanced
(W Germany, Italian model 75? unbalanced only)
Sensitivity (at 46dB quieting)
AEP, UK model
W Germany, Italian model 16.8dBf 3.6µV (mono), 37.9dBf 43µV (stereo)
16.8dBf 1.8µV (mono), 37.9dBf 21.5µV (stereo)
S/N ratio (at 40kHz deviation) 74dB (mono), 69dB (stereo)
Harmonic distortion 0.15% (mono), 0.3% (stereo) at 1kHz
IM distortion 0.15% (mono), 0.3% (stereo)
Separation 50dB (at 1kHz)
Frequency response 40Hz - 12.5kHz ±0.5dB
Selectivity 70dB (at 300kHz)
Capture ratio 1.0dB
AM suppression ratio 65dB
Image response ratio 70dB
IF response ratio 70dB
Spurious response ratio 80dB
Muting threshold 30dBf
Automatic tuning threshold 30dBf
Output 410mV, 4.7k? (at 40kHz deviation)
AM tuner
Frequency range
AEP, W Germany, UK model
Italian model MW: 531 - 1,602kHz, LW: 153 - 281kHz
MW: 522 - 1,611kHz, LW: 144 - 288kHz
Antenna Layout-free AM antenna
External antenna terminal
Usable sensitivity using
layout-free AM antenna 500µV/m (999kHz)
700µV/m (230kHz)
S/N ratio 54dB (50mV/m) (999kHz)
50dB (50mV/m) (230kHz)
Harmonic distorton 0.3% (50mV/m, 400Hz)
Selectivity 32dB
Voltage: 220V
Weight : 2 kg

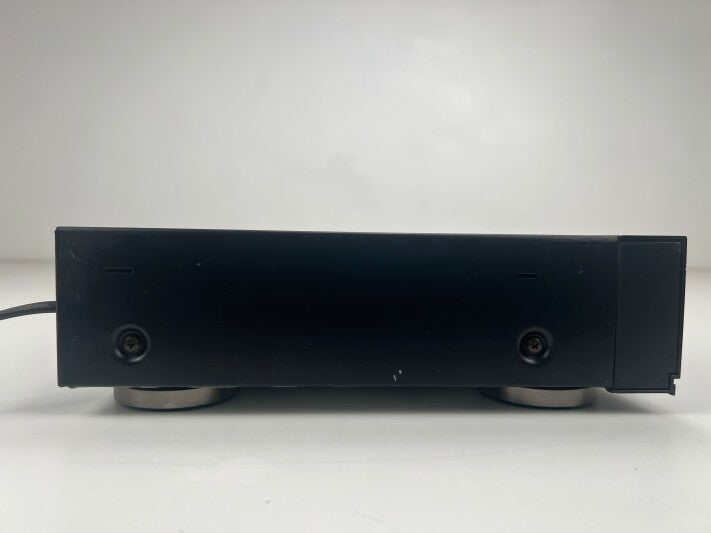

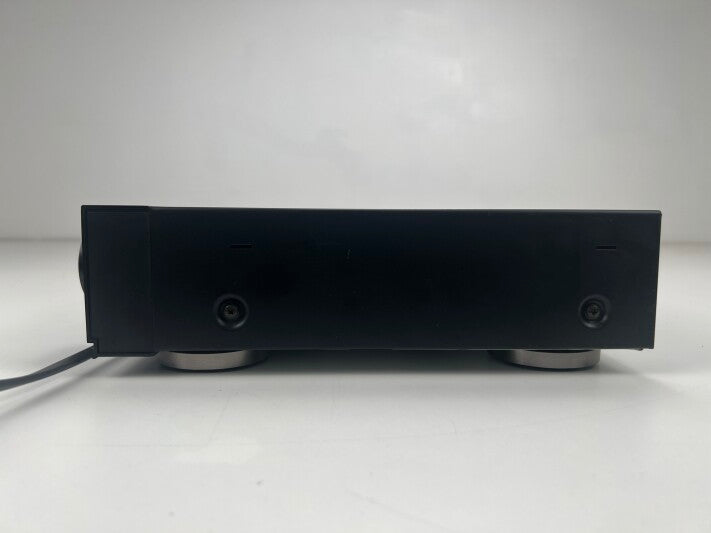

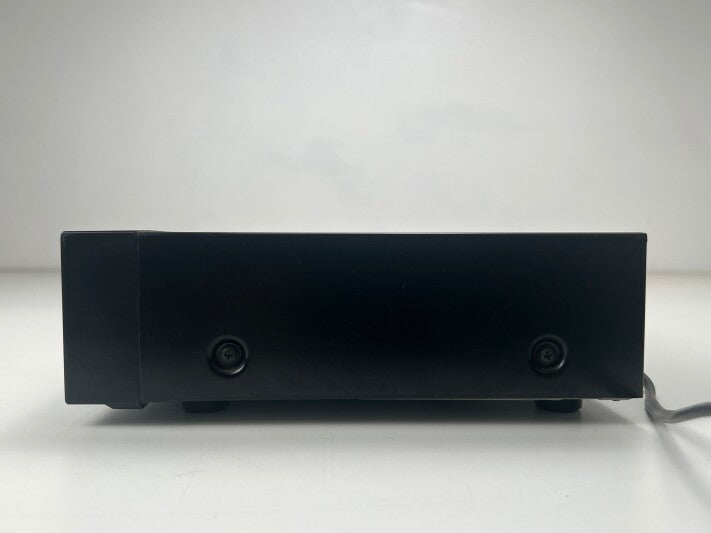

Working condition: Fully Working (See pictures for the cosmetic condition of this lot)
Missing or damages: medium Usage Marks
