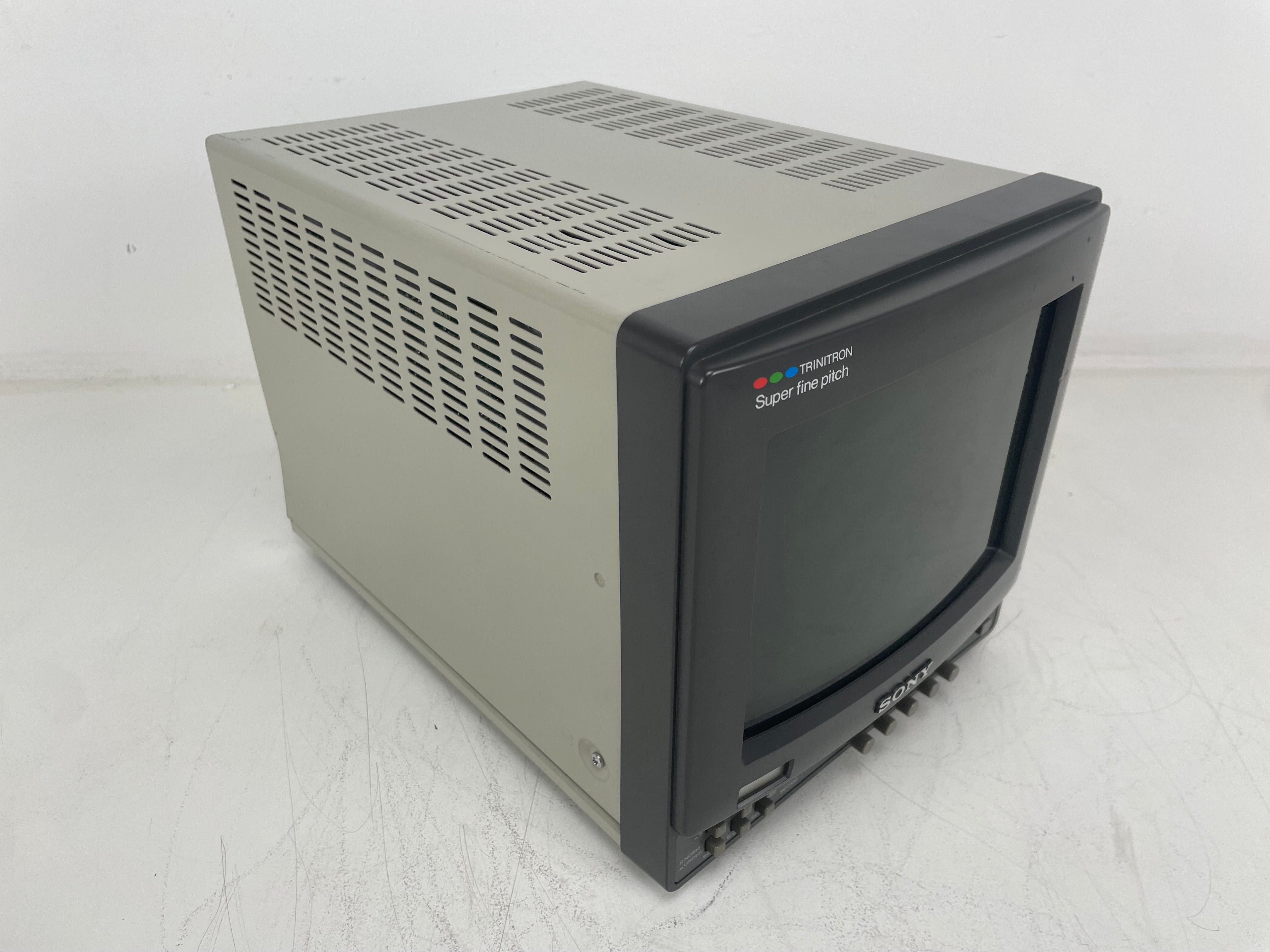

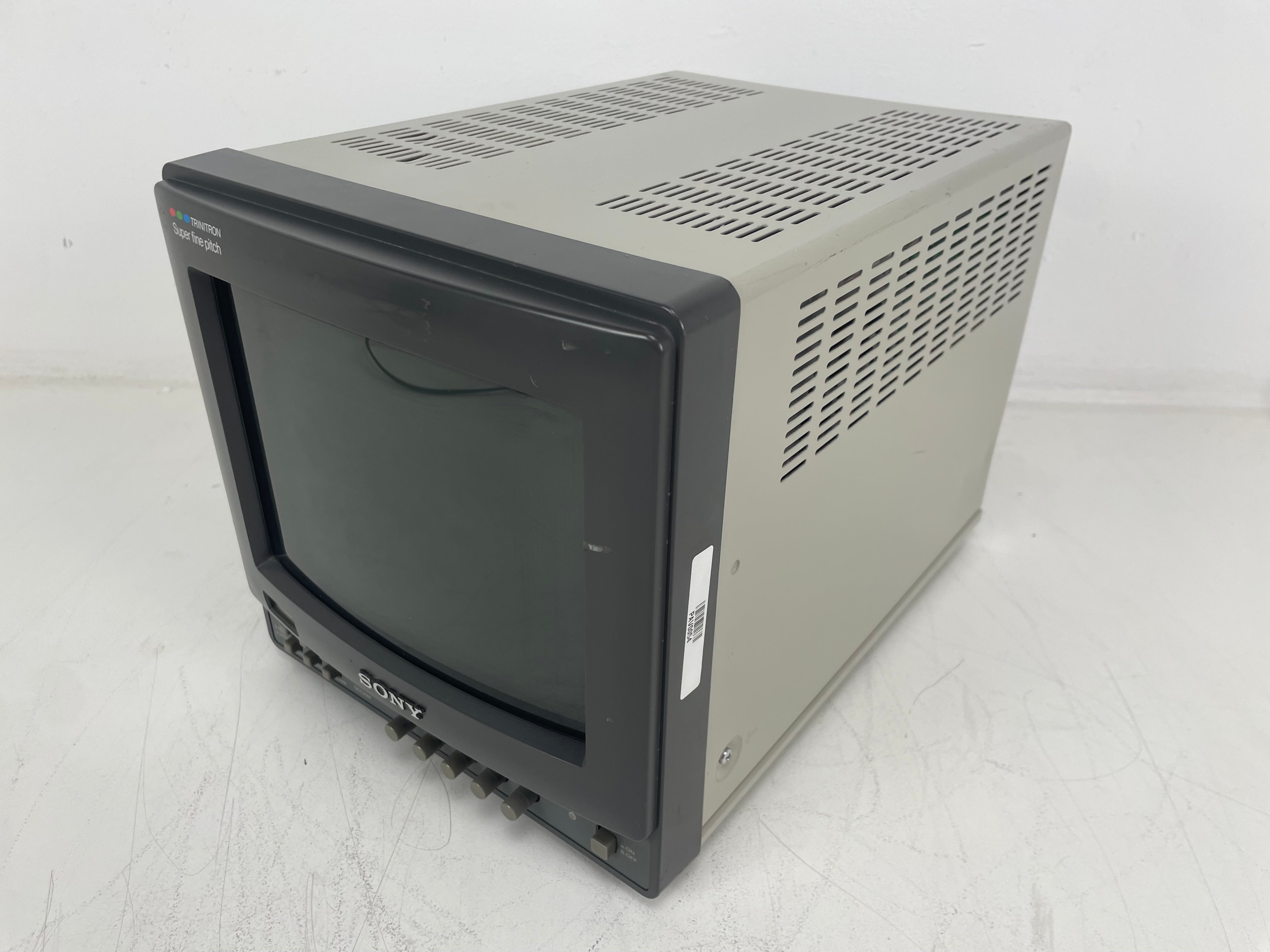

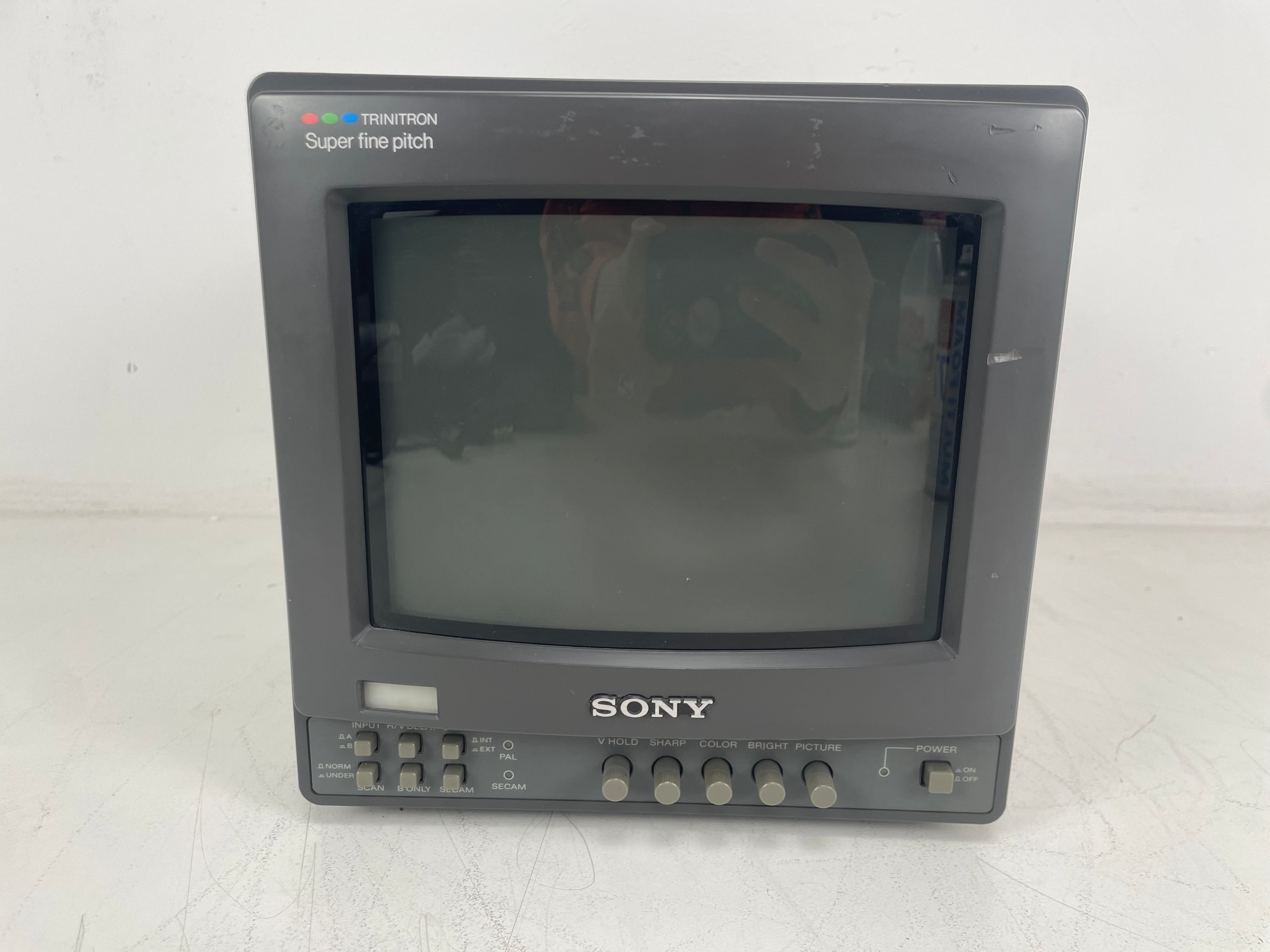

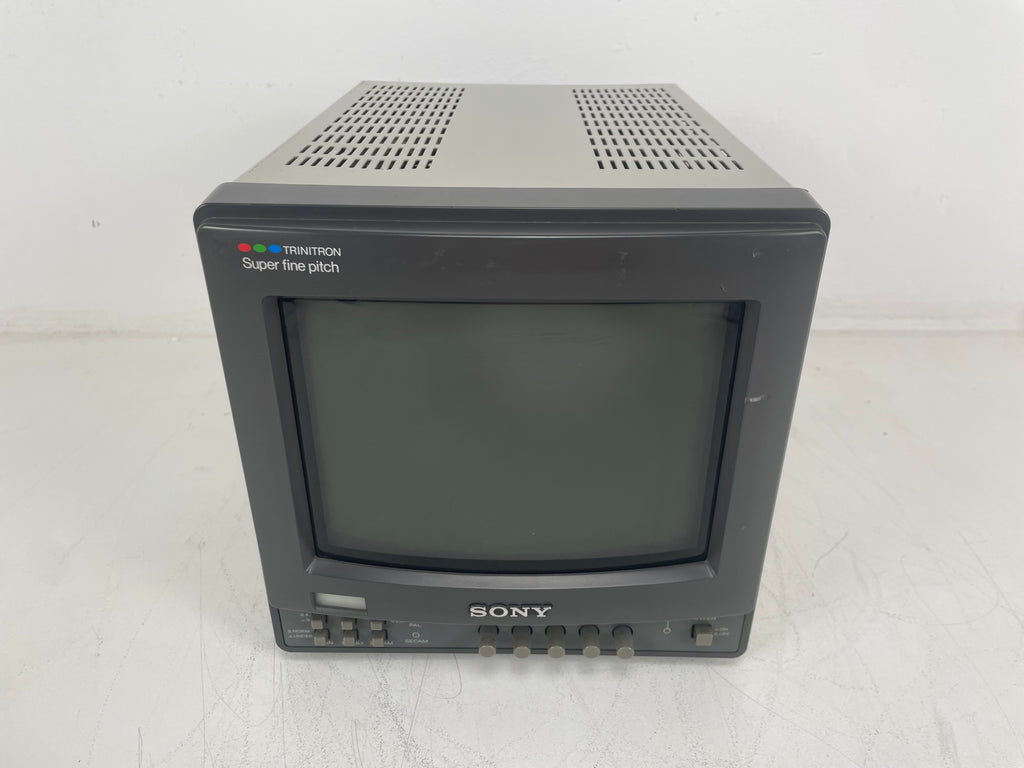

For sale: a Sony PVM-9221ME Trinitron color video monitor, a professional-grade CRT from Sony’s highly regarded PVM (Professional Video Monitor) series.
Known for its excellent color accuracy, sharp image quality, and low latency, this monitor is widely used for retro gaming, video production, and broadcast monitoring. The Trinitron tube technology delivers a crisp and vibrant picture that modern displays often struggle to replicate.
A great choice for collectors or anyone looking for an authentic CRT experience.

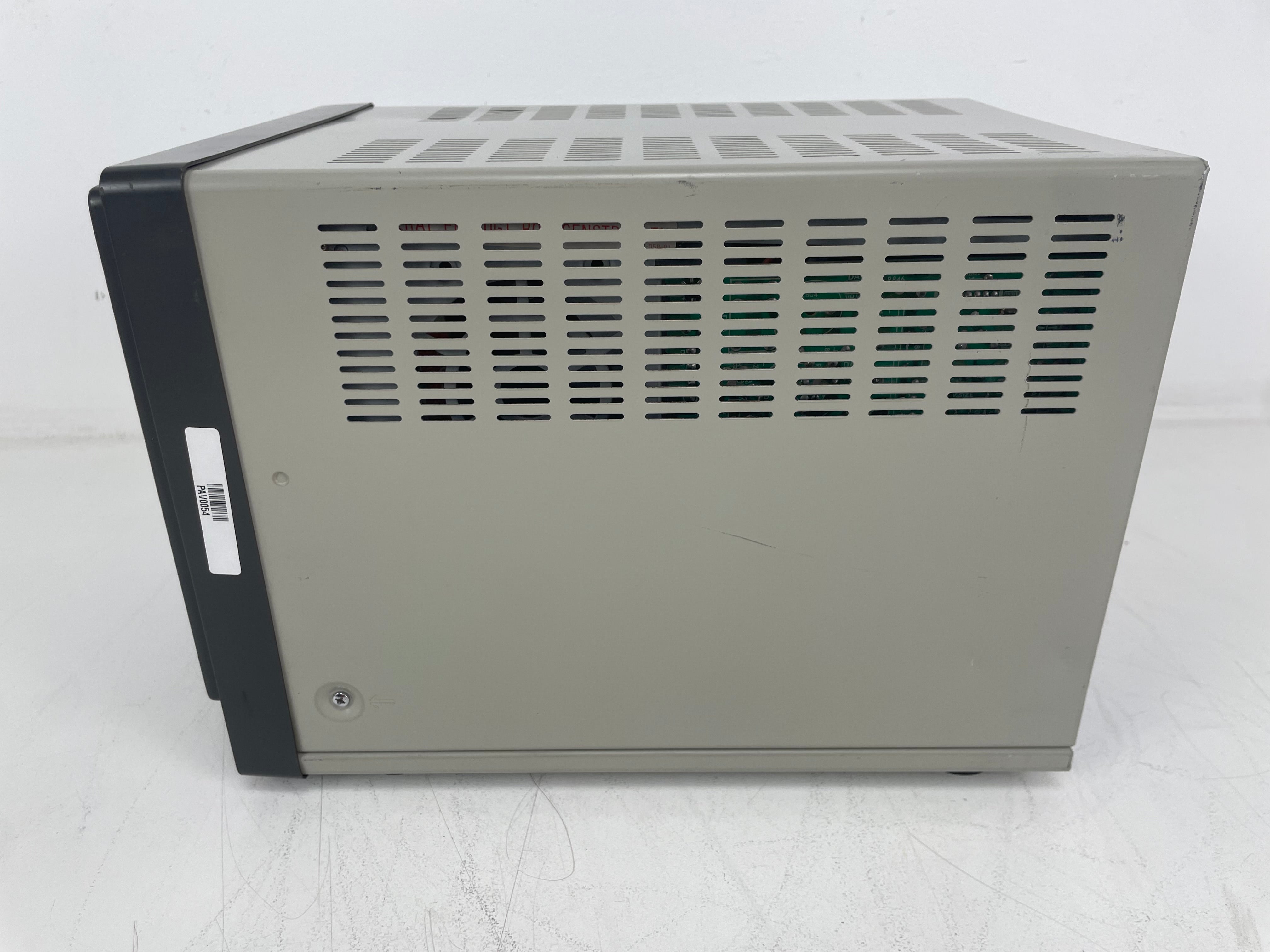

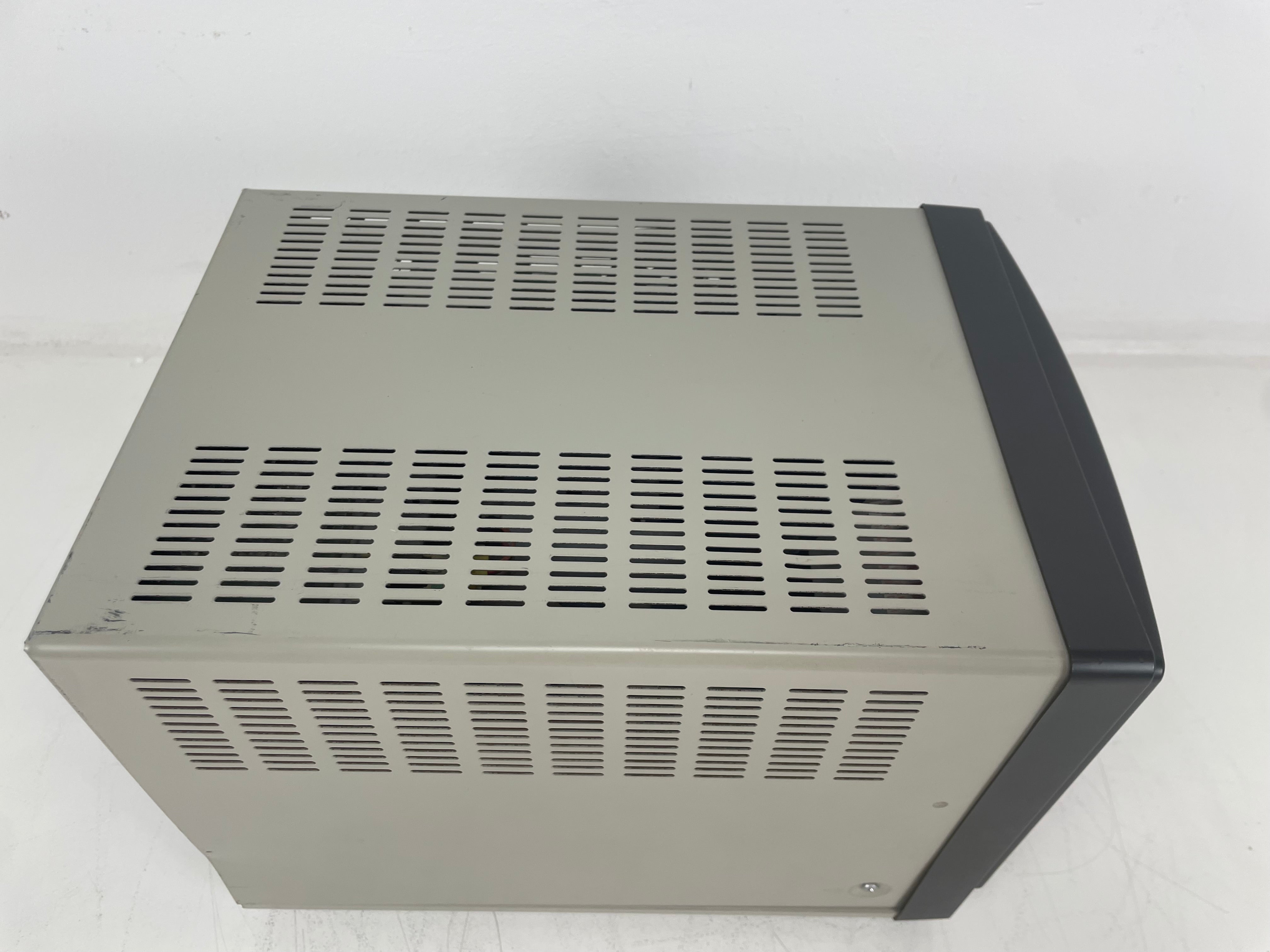

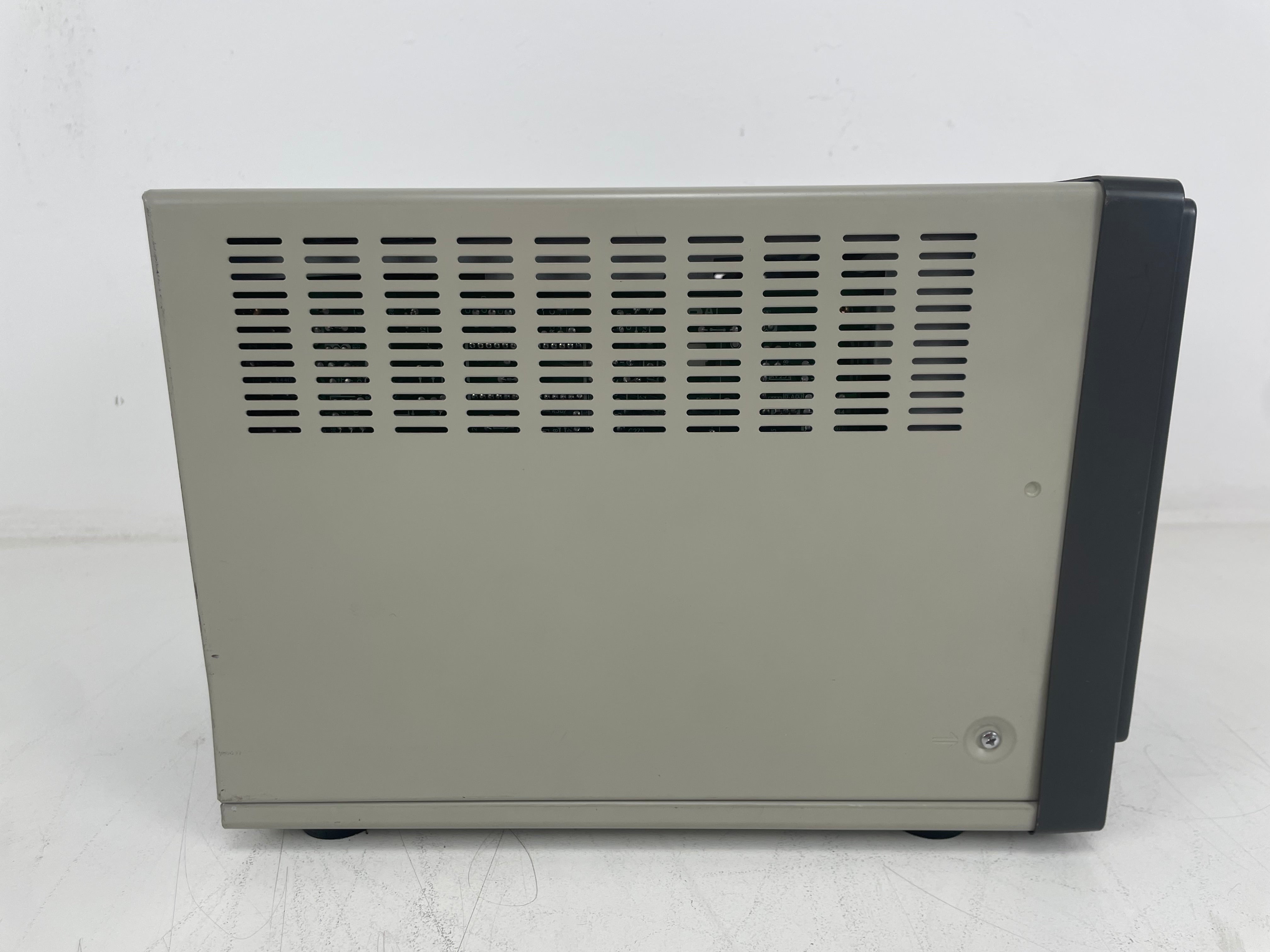

Cosmetic condition:
The unit is in minor damaged condition.
- Dents in the outer cover
- Some deep scuffs on the housing
- Cosmetic wear consistent with use

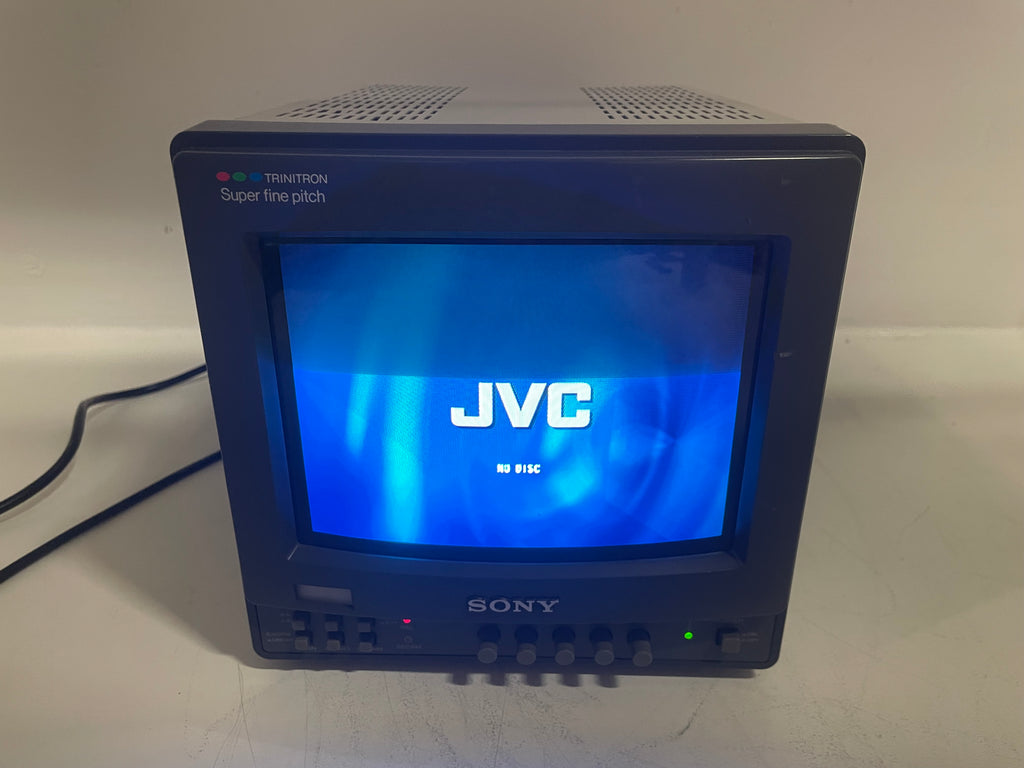

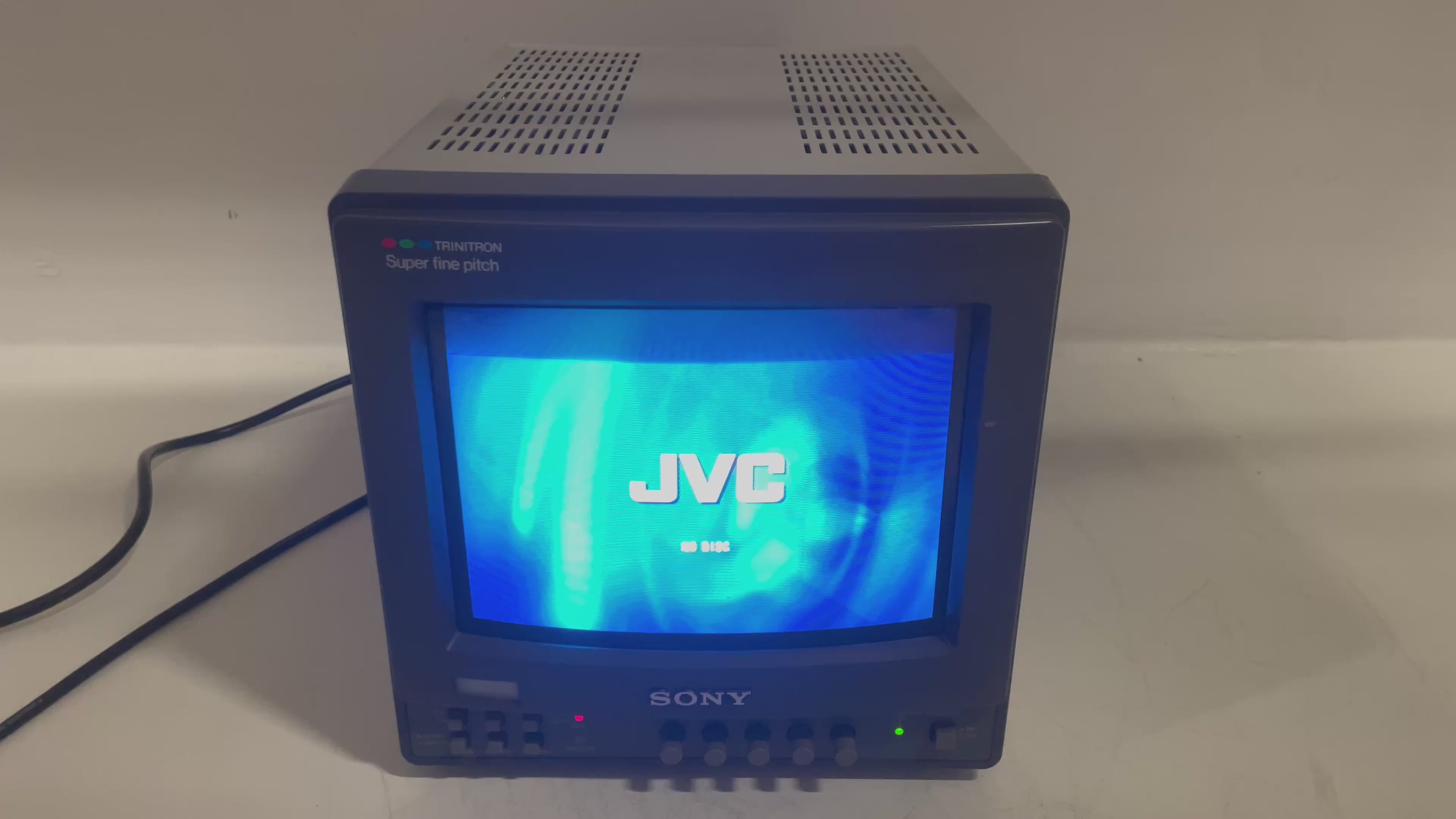

📺 Functional status
✔ Fully working
✔ Sharp and stable image
Specs:
General
- Color system: PAL & SECAM (auto switching)
- Picture tube: Super Fine Pitch Trinitron
- Screen size: Approx. 9 inches (221 mm diagonal)
- Deflection: 70°
Image Quality
- Resolution: 400 TV lines (B/W)
- Color temperature: 6500K
- Frequency response: 5.5 MHz (–3 dB)
- Brightness: More than 30 foot-lamberts
Geometry & Accuracy
- Horizontal linearity: ±8%
- Vertical linearity: ±8%
- Horizontal line pull: ±500 Hz
- Overscan: 6%
- Underscan: 5%
- H/V delay:
- Horizontal: approx. 1/4 line
- Vertical: approx. 1/12 field
- Convergence:
- Center: 0.5 mm
- Edges: 0.7 mm
- Zooming accuracy: within 3%

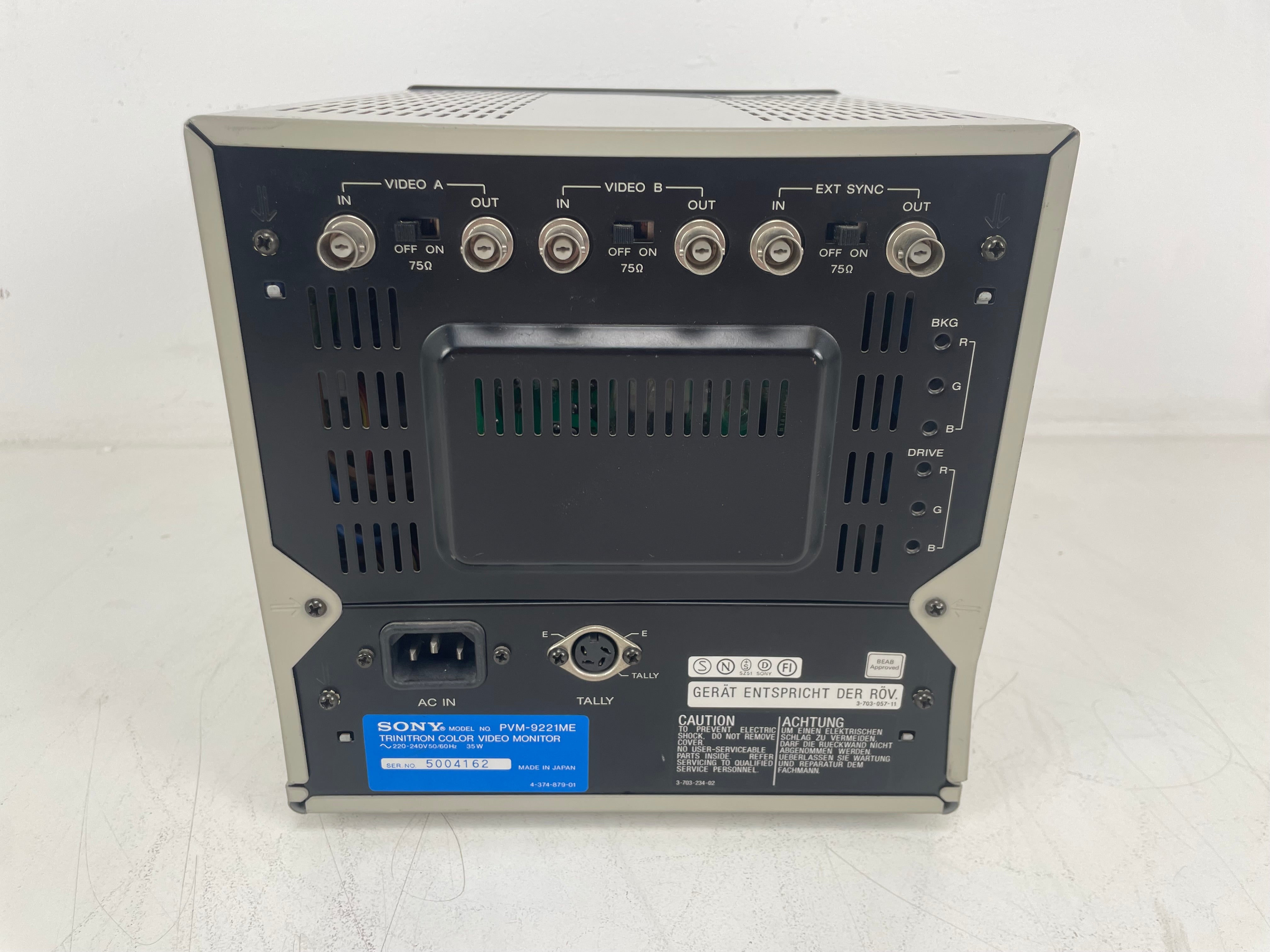

Signal & Connections
- Video input (A/B): BNC
- Composite: 1 Vp-p ±6 dB, 75Ω, sync negative
- Non-composite: 0.7 Vp-p
- External sync input: BNC
- 4 Vp-p ±6 dB, 75Ω / high impedance switchable
Outputs
- Video loop-through (A/B): BNC
- External sync output: BNC
Other Connections
- Tally connector: 4-pin DIN
Power
- Power supply: 220–240V AC, 50/60 Hz
- Power consumption: Max. 35W
Dimensions (LxWxH): 6 x 219 x 319 mm
Weight: 10 Kg
Volts: 230-240v (If it’s 200V or higher, you’ll need an adapter in the USA)
We ship worldwide.
Will ship to the USA as well. We ship DDP bases (Delivery Dutie Paid)
-Shipping in the EU up to 30 KG (max)
-Shipping outside of the EU up to 20 KG (max) Show costs might vary. Please ask us for a shipping quote for the best rates!
Please note: ‘’Whenever an item exceeds the weight noted above. Please ask for a shipping quote before making a purchase. The shipping costs are estimated in our shop because we do not know the shipping address.
Picking up the item is also possible. It can be picked up in Alkmaar
Delivery by us is also possible in some cases. Please reach out to us for more information about deliveries
State of listing: If a listing is listed ''for parts or not working'' returns are not accepted.
When we offer our products with the notice ''Serviced'' or ''Fully serviced'' that means the device is either ''serviced'' with a new belt, and cleaned the pots, Or ''Fully serviced'' recapped, Quiescent current adjusted etc as expected from a full service
