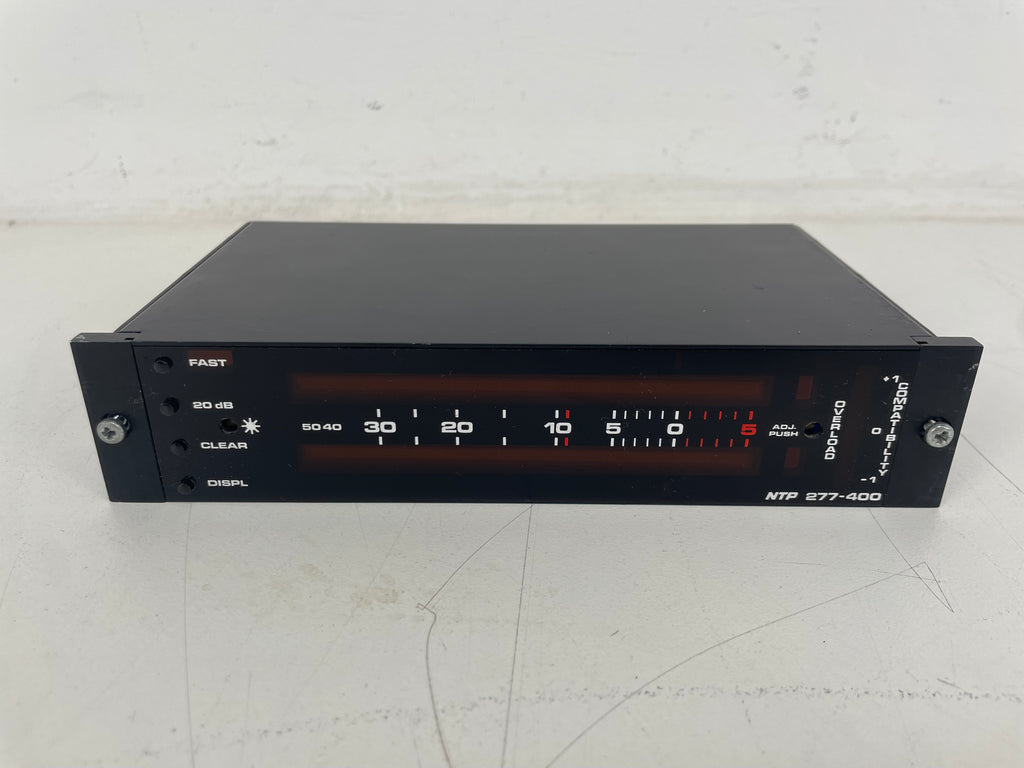

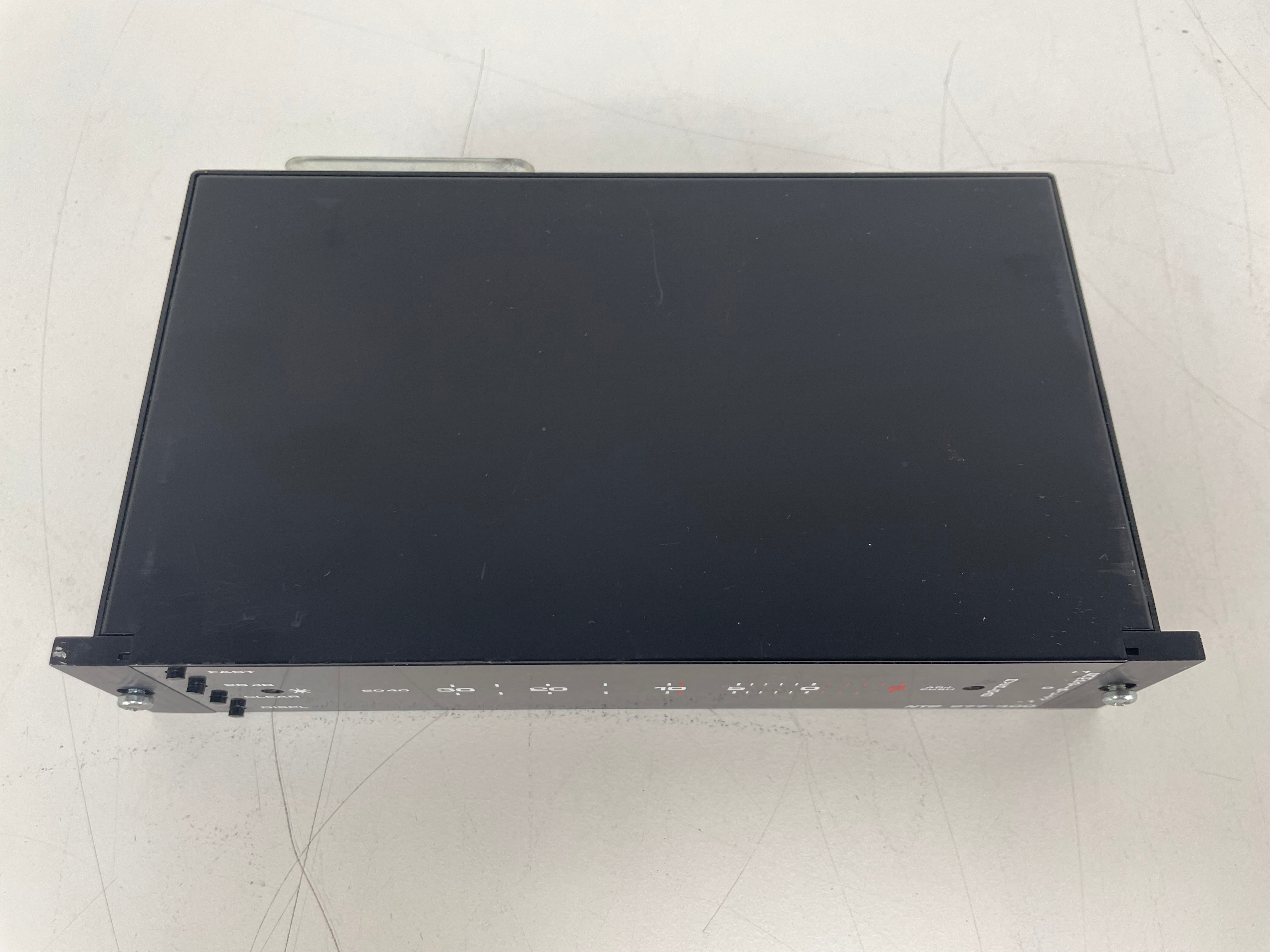

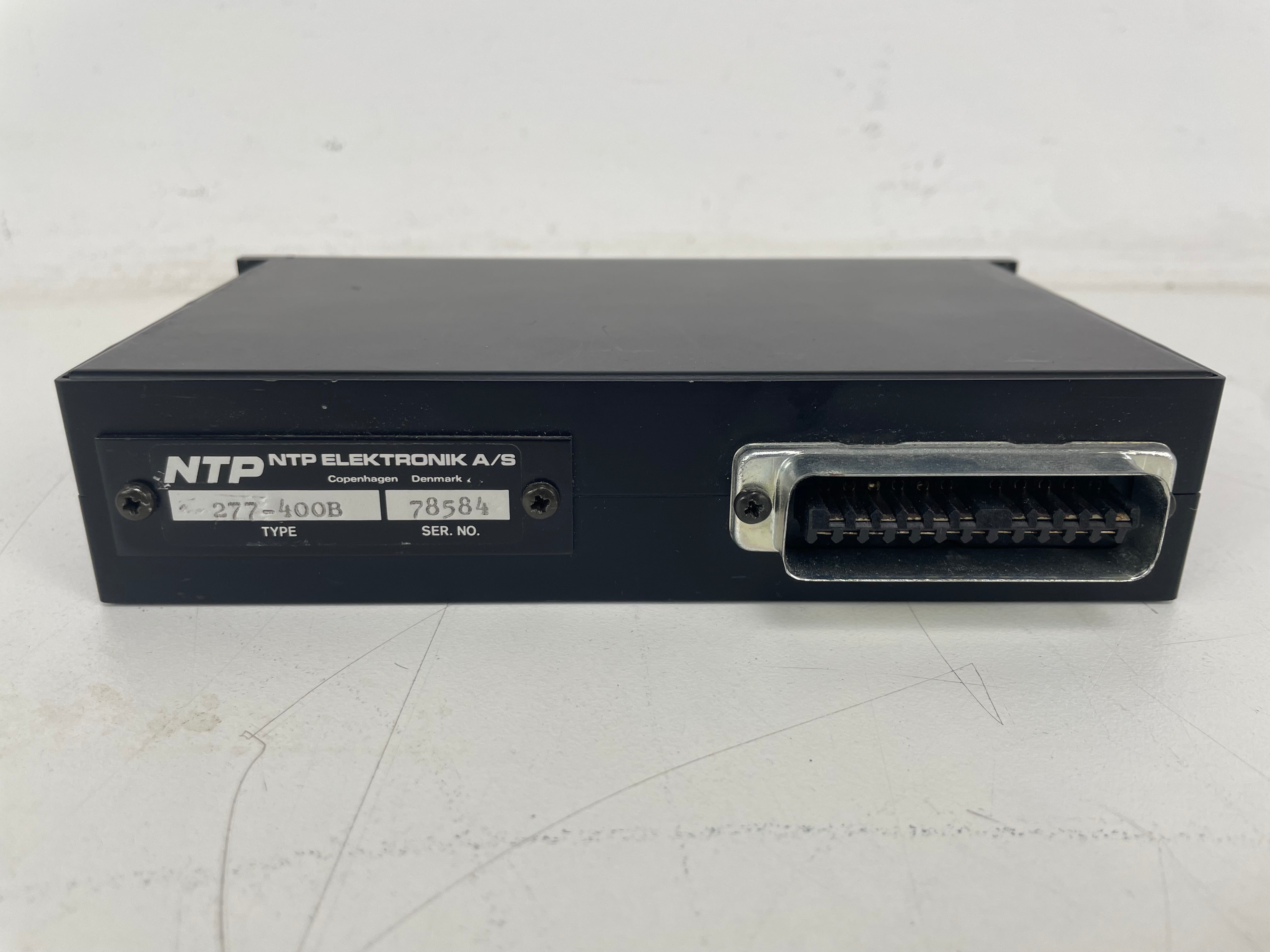

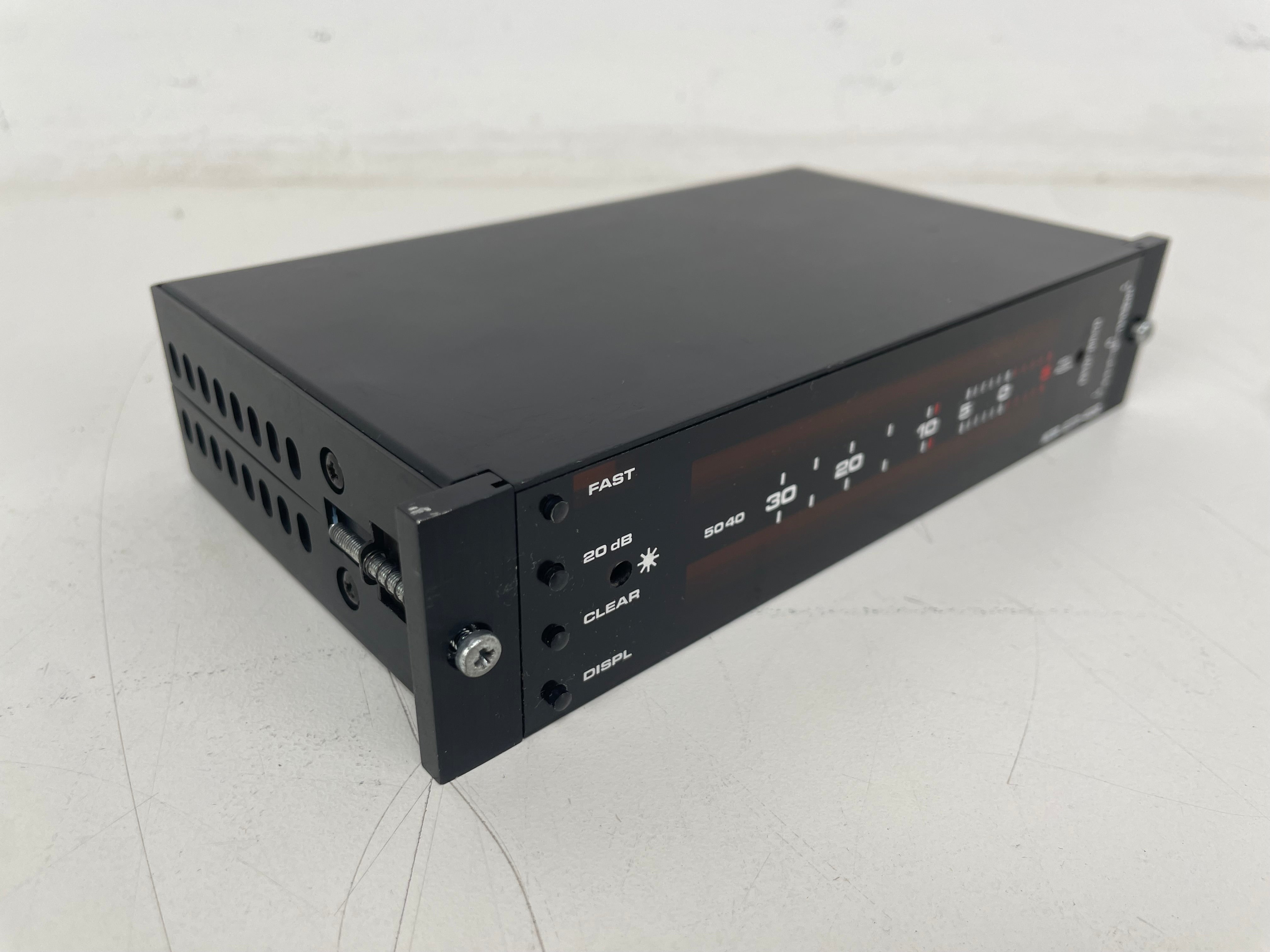

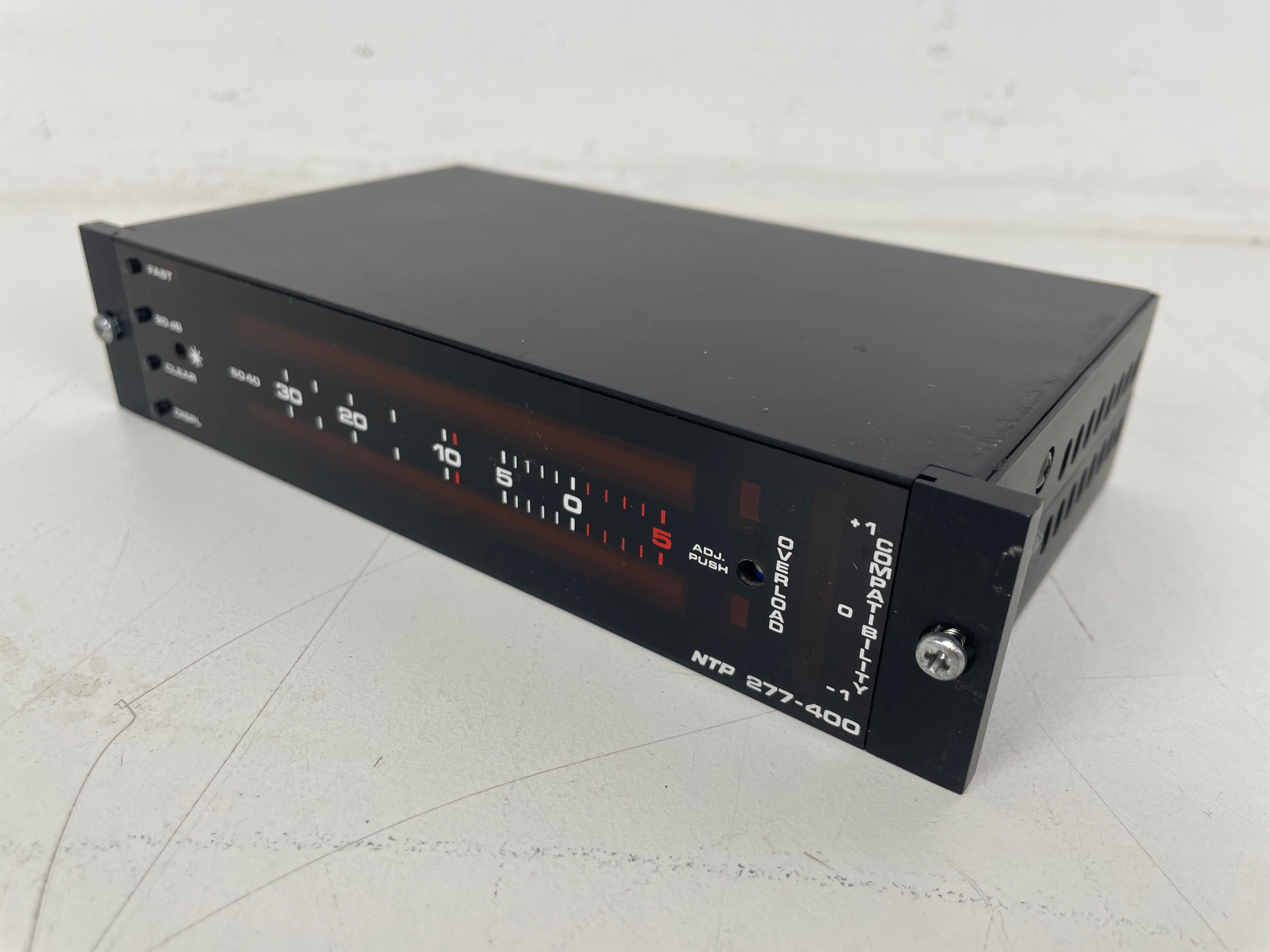

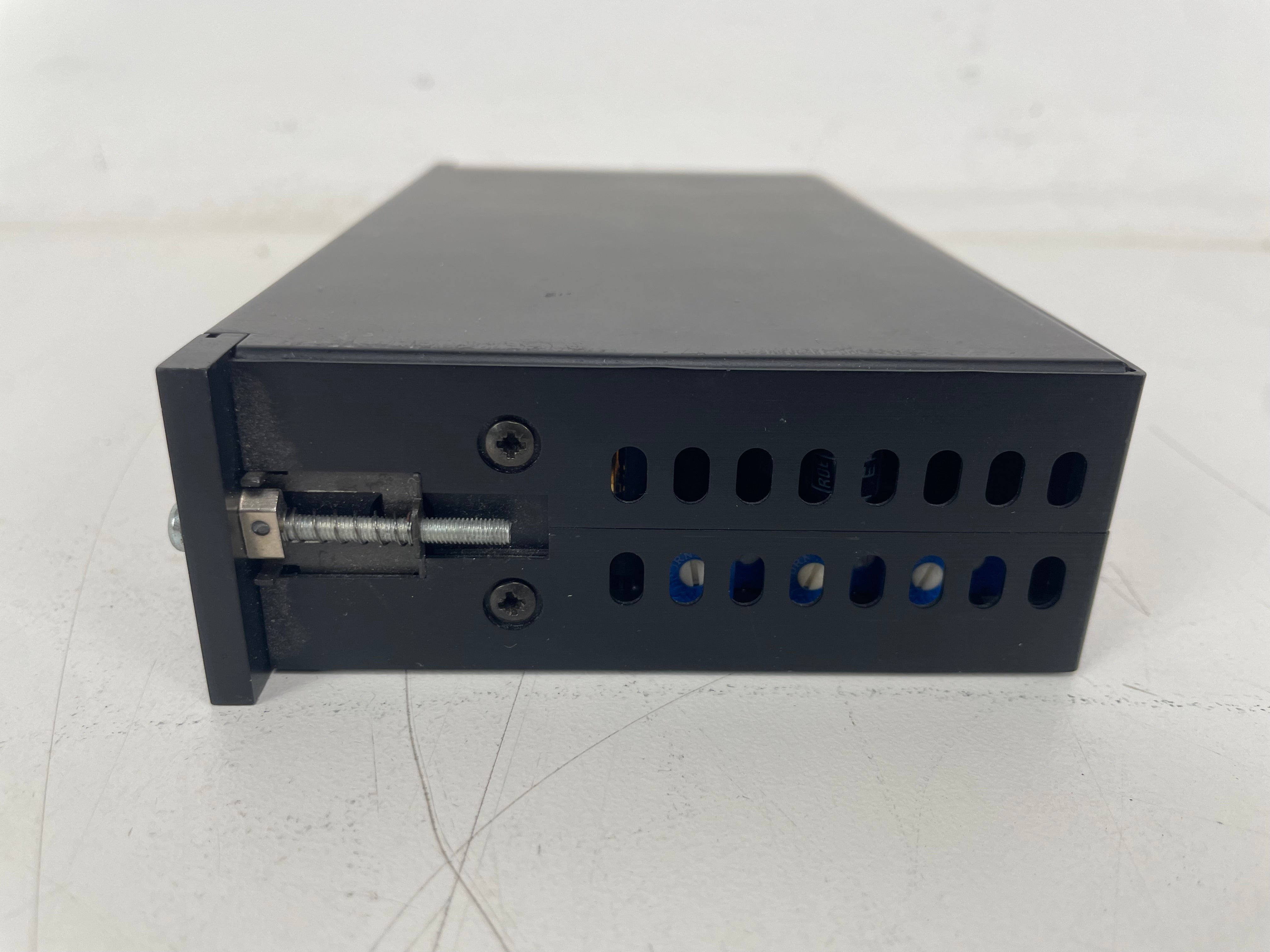

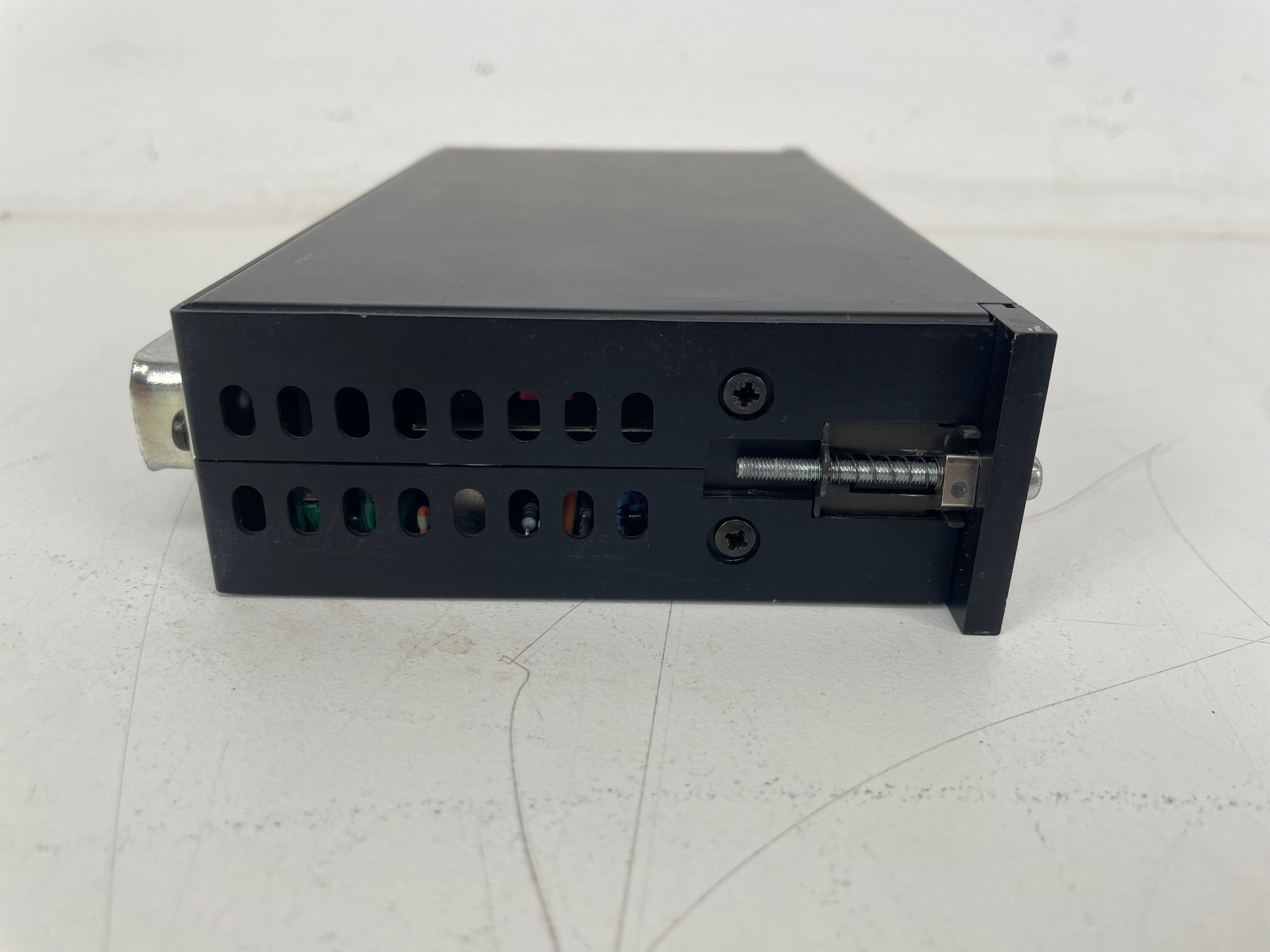

For sale: an NTP 277-400 Stereo PPM RMS Phase Correlation Meter, a professional broadcast and studio metering unit designed for accurate monitoring of stereo levels, RMS values, and phase relationships.
This unit is being sold as-is. Due to not being able to fully test this. But it came out of a working studio.
Cosmetic condition:
The unit is in used condition with minor cosmetic wear.
- Light wear from use
- Minor signs of rack installation and handling
- Front panel remains clean and readable
- Overall well-preserved appearance
⚠ Functional status
❓ Untested / functionality not verified
❌ Sold as-is

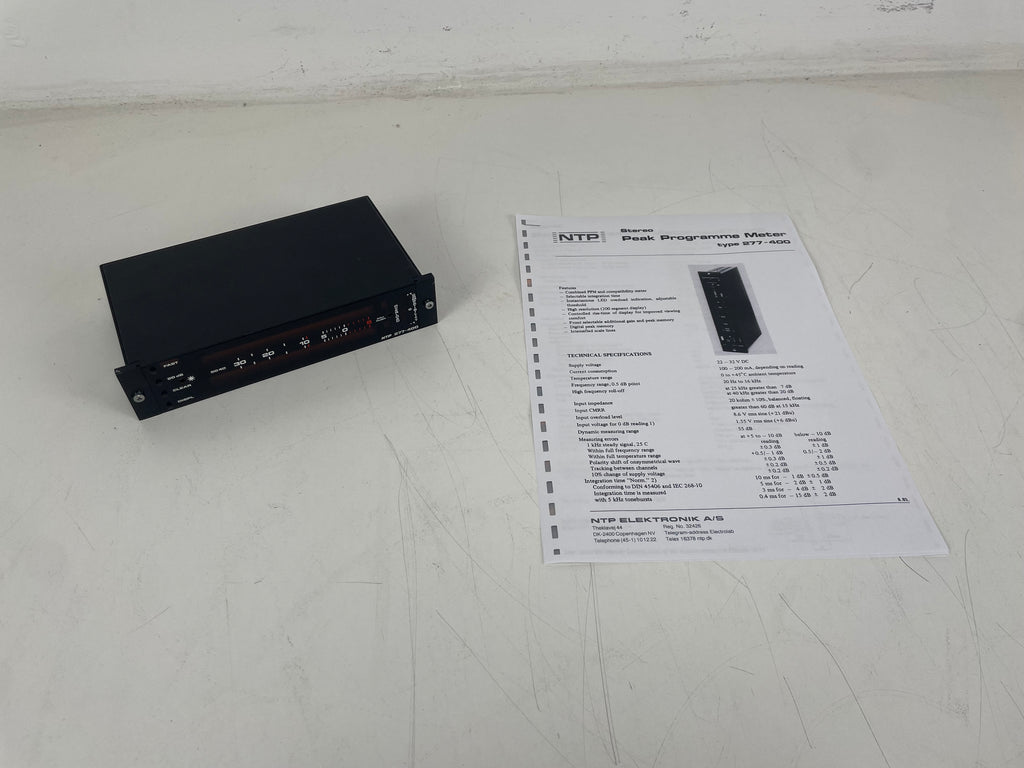

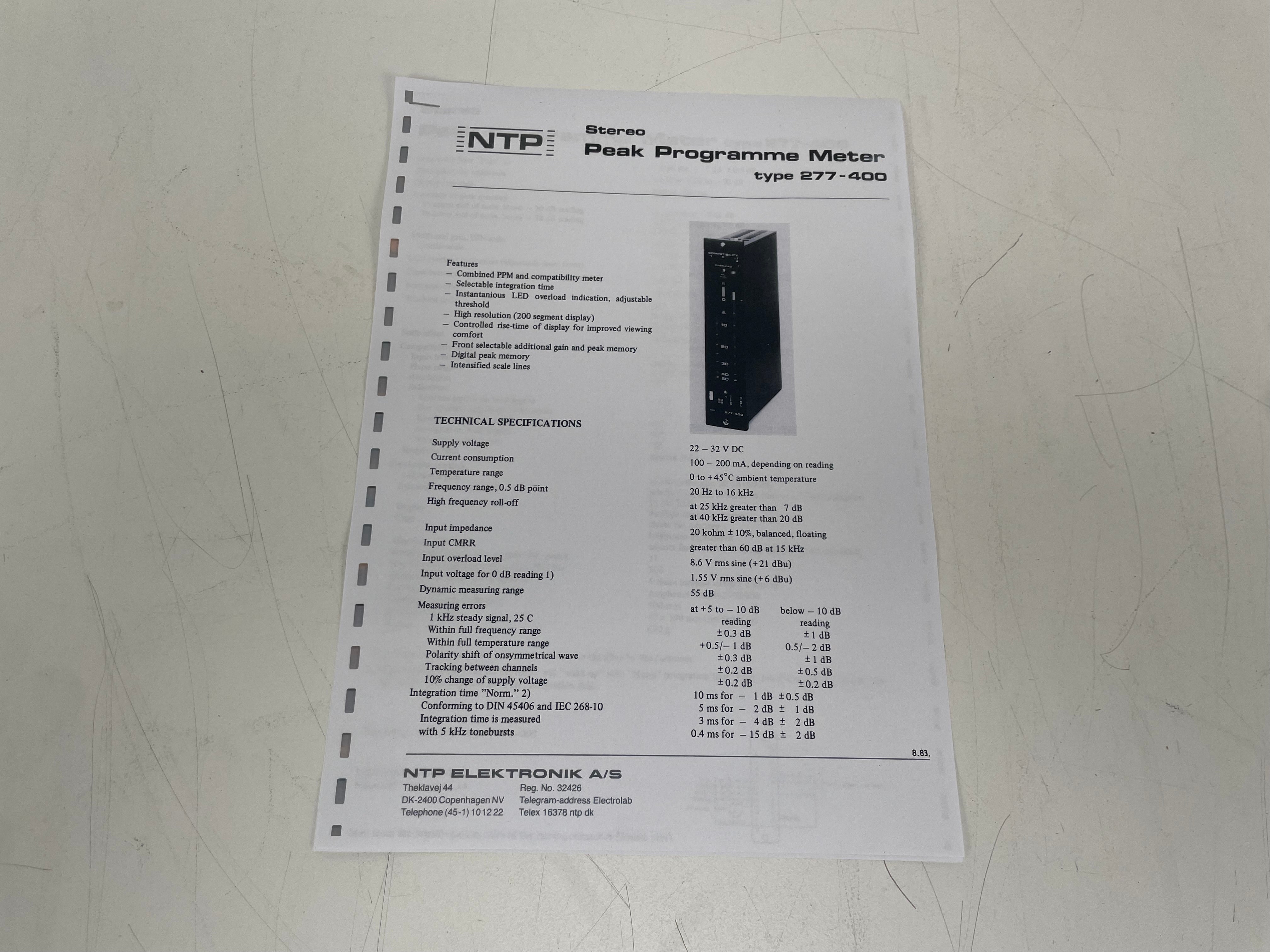

Specs:
Supply voltage
Current consumption
Temperature range
Frequency range, 0.5 dB põint
High frequency roll-off
Input impedance
Input CMRR
Input overload level
Input voltage for 0 dB reading 1)
Dynamic measuring range
Measuring errors
22-32 V DC
100 - 200 mA, depending on reading
0 to +45°C ambient temperature
20 Hz to 16 kHz
at 25 kHz greater than 7 dB
at 40 kHz greater than 20 dB
20 kohm ± 10%, balanced, floating
greater than 60 dB at 15 kHz
8.6 V rms sine (+21 dBu)
1.55 V rms sine (+6 dBu)
55 dB
at +5 to 10 dB below - 10 dB
1 kHz steady signal, 25 C reading reading
Within full frequency range ±0.3 dB ±1 dB
Within full temperature range +0.5/-1 dB 0.5/-2 dB
Polarity shift of onsymmetrical wave ±0.3 dB ±1 dB
Tracking between channels ±0.2 dB ±0.5 dB
10% change of supply voltage ±0.2 dB ±0.2 dB
Integration time "Norm." 2) 10 ms for - 1 dB ±0.5 dB
Conforming to DIN 45406 and IEC 268-10
Integration time is measured
with 5 kHz tonebursts
5 ms for 2 dB ± 1 dB
3 ms for - 4 dB 2 dB
0.4 ms for - 15 dB ± 2 dB
Dimensions (LxWxH): 19x10x5cm
Weight: 1 Kg
Volts: v (If it’s 200V or higher, you’ll need an adapter in the USA)
