For sale: a Mackie Big Knob Studio Command System, a practical studio monitor controller designed for managing multiple audio sources, monitor speakers, and headphone feeds from one central desktop unit.
The Big Knob is well suited to project studios, production rooms, and editing setups where fast source selection and convenient volume control are important.
Cosmetic condition:
The unit is in used condition with minor cosmetic damage.

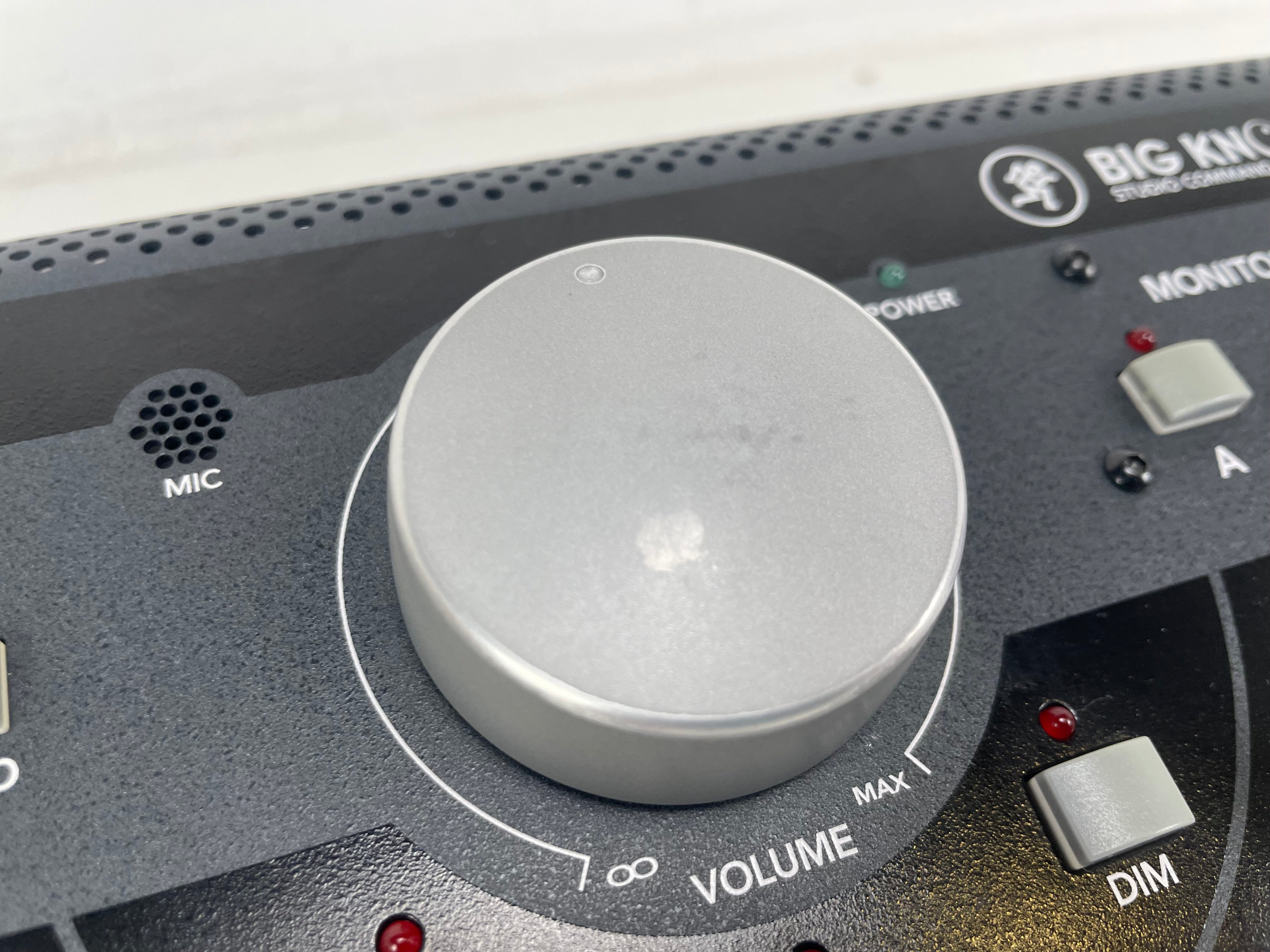

- Paint on the main Big Knob control is lightly faded
- General signs of age and previous use
- Housing and controls remain presentable
- No heavy cosmetic damage reported

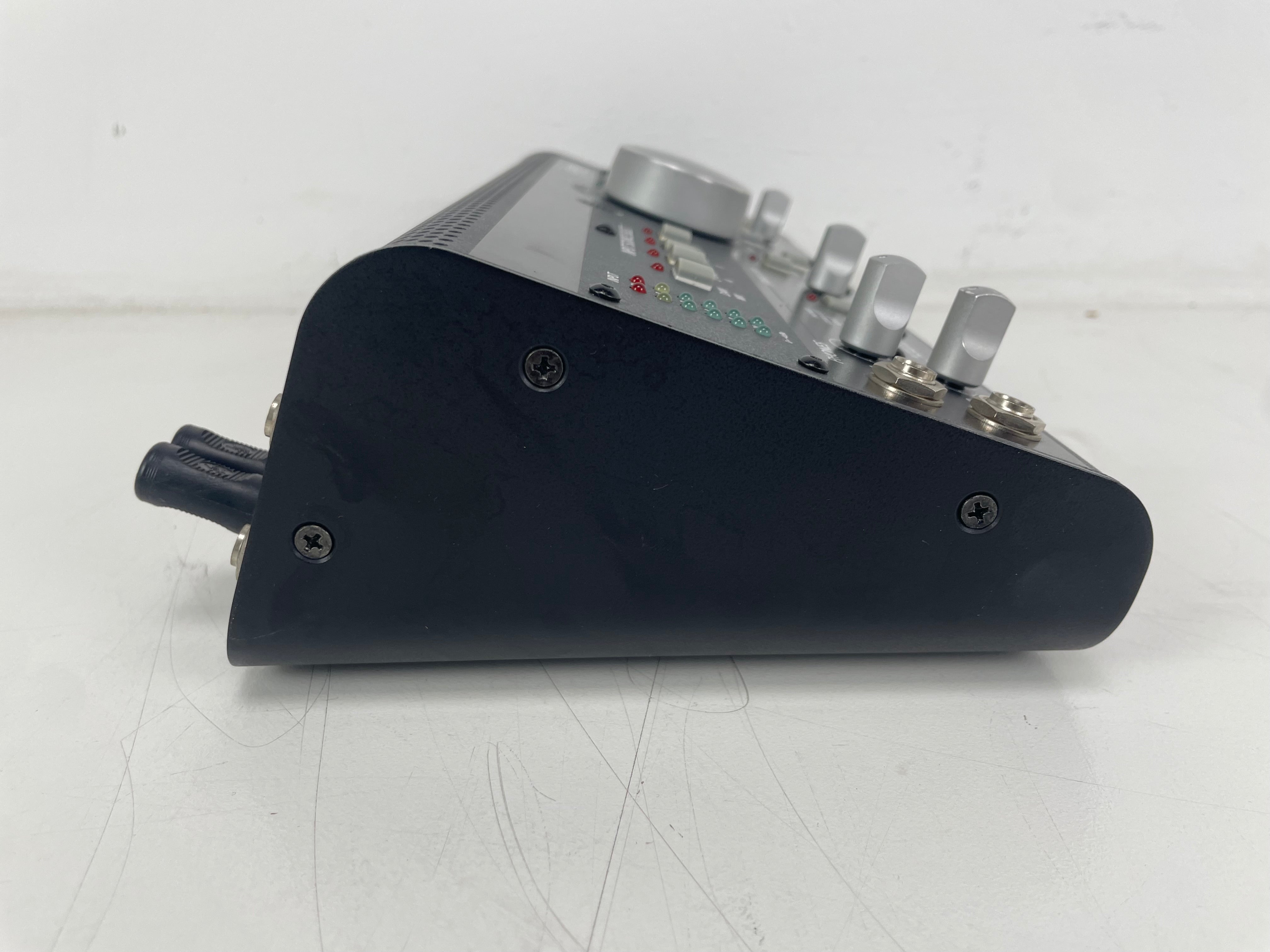

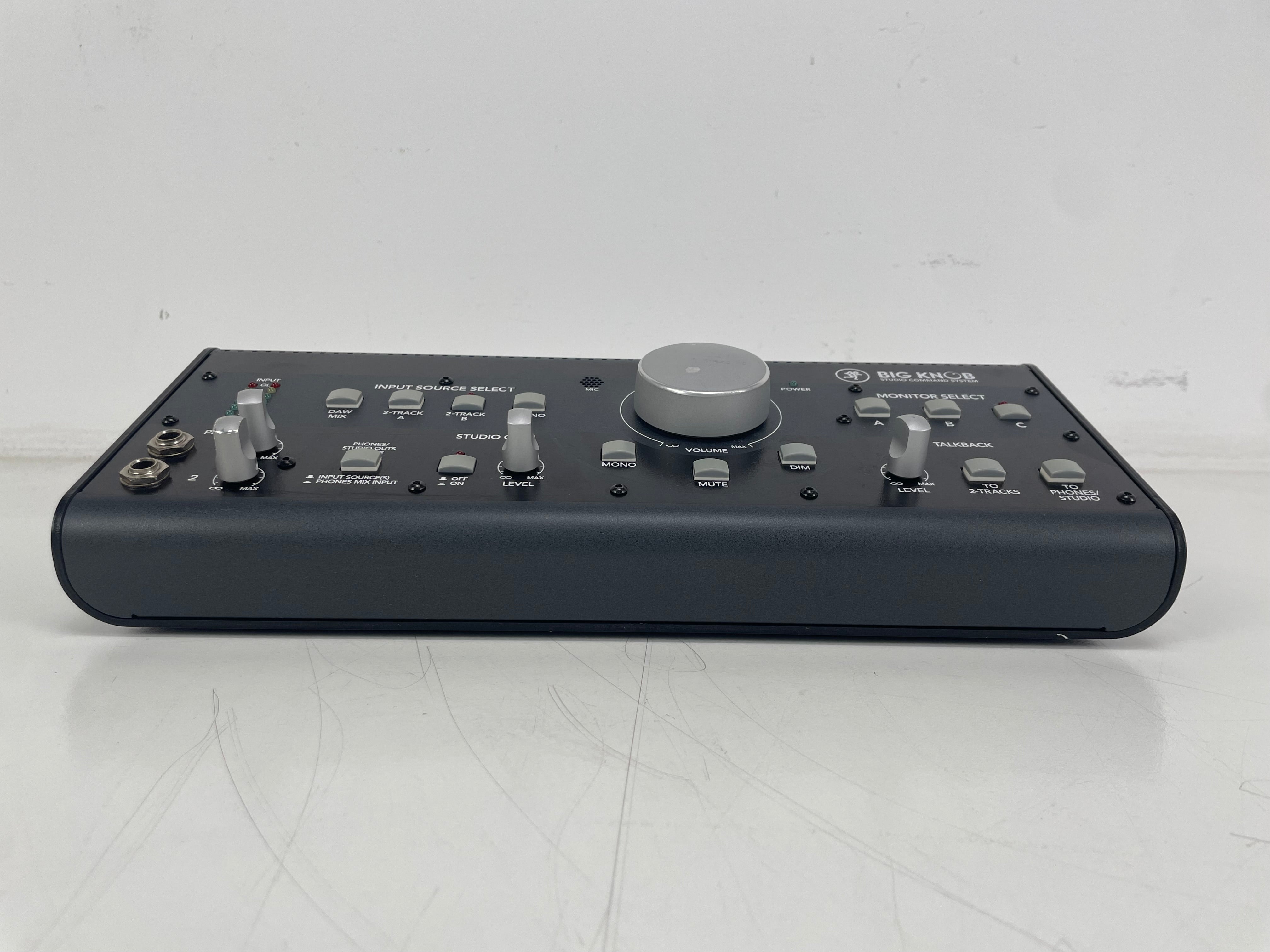

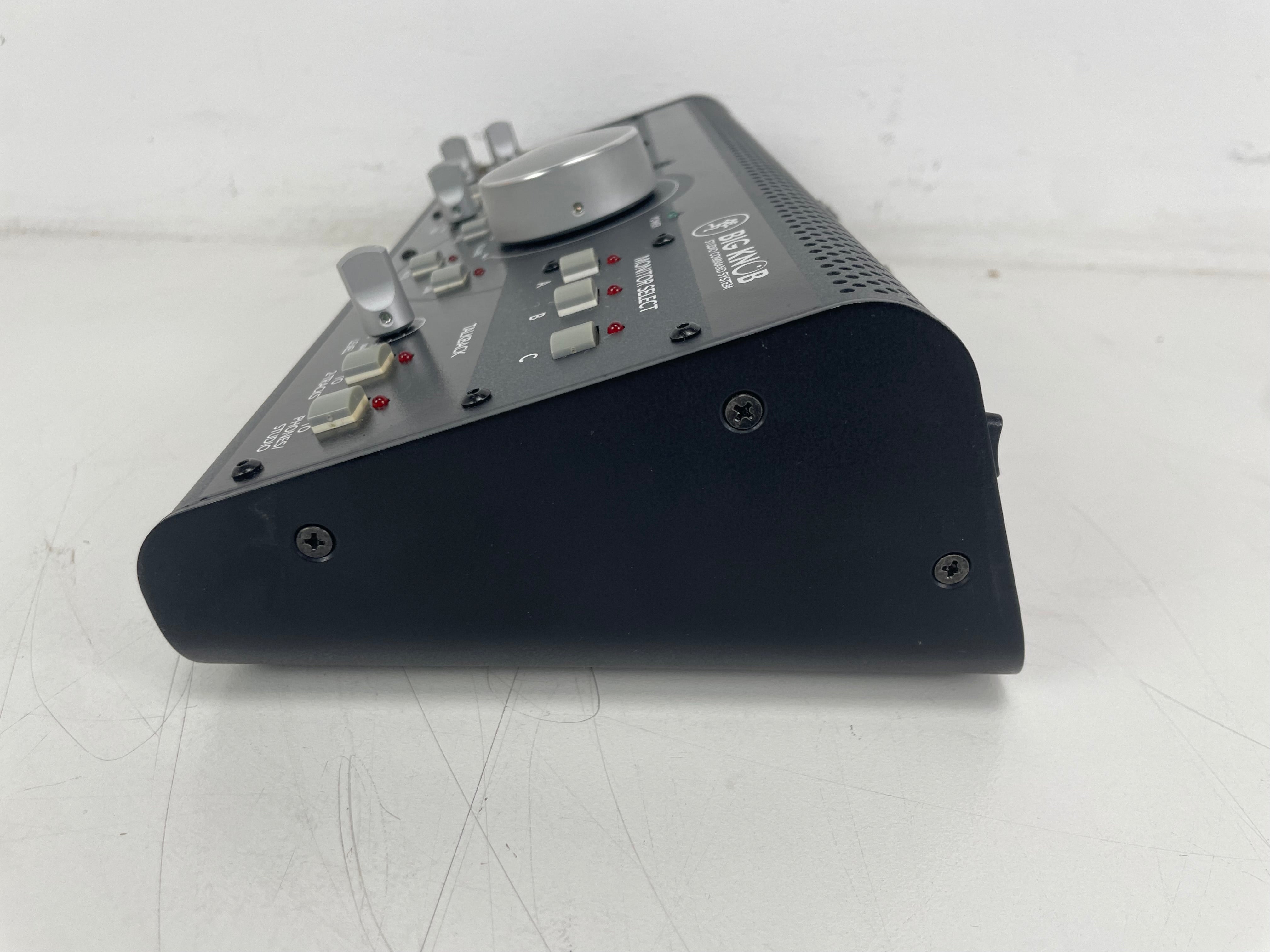

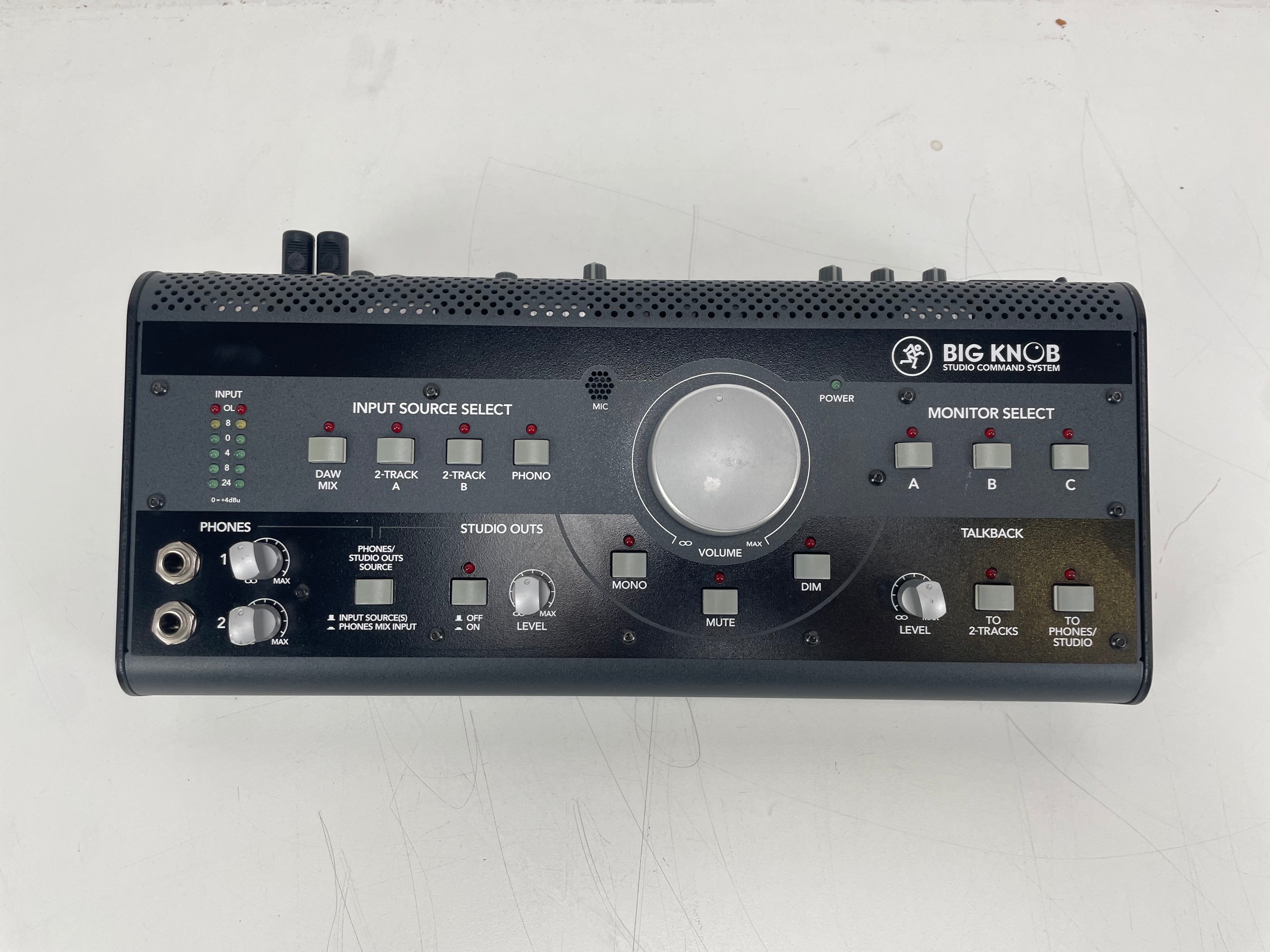

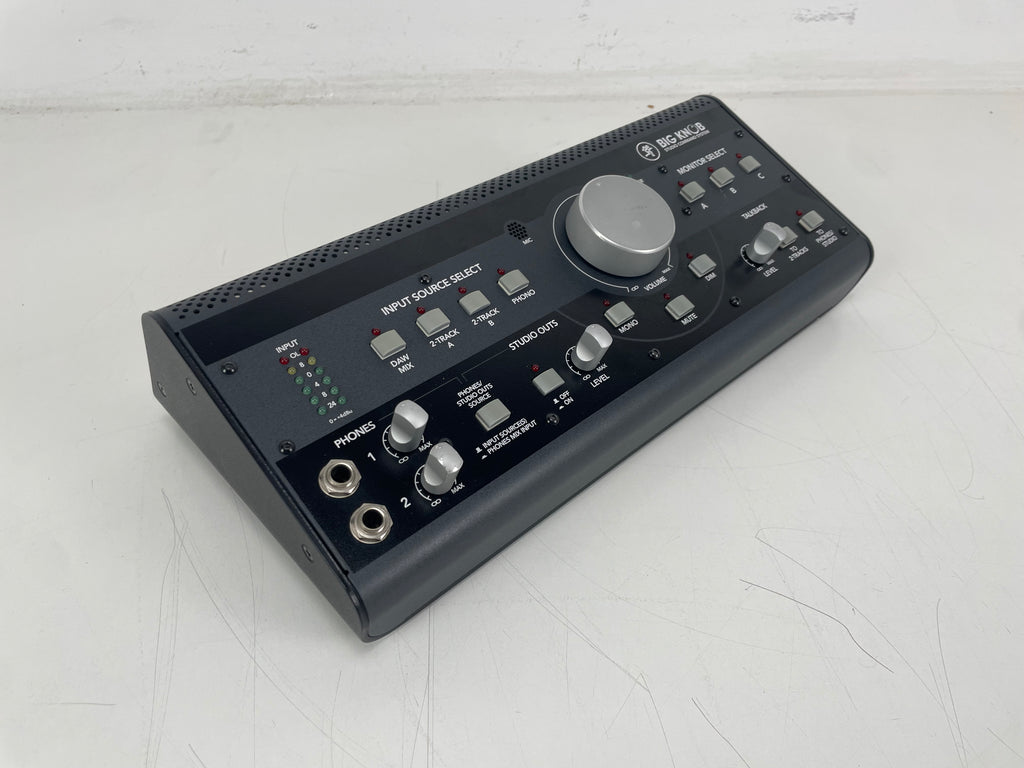

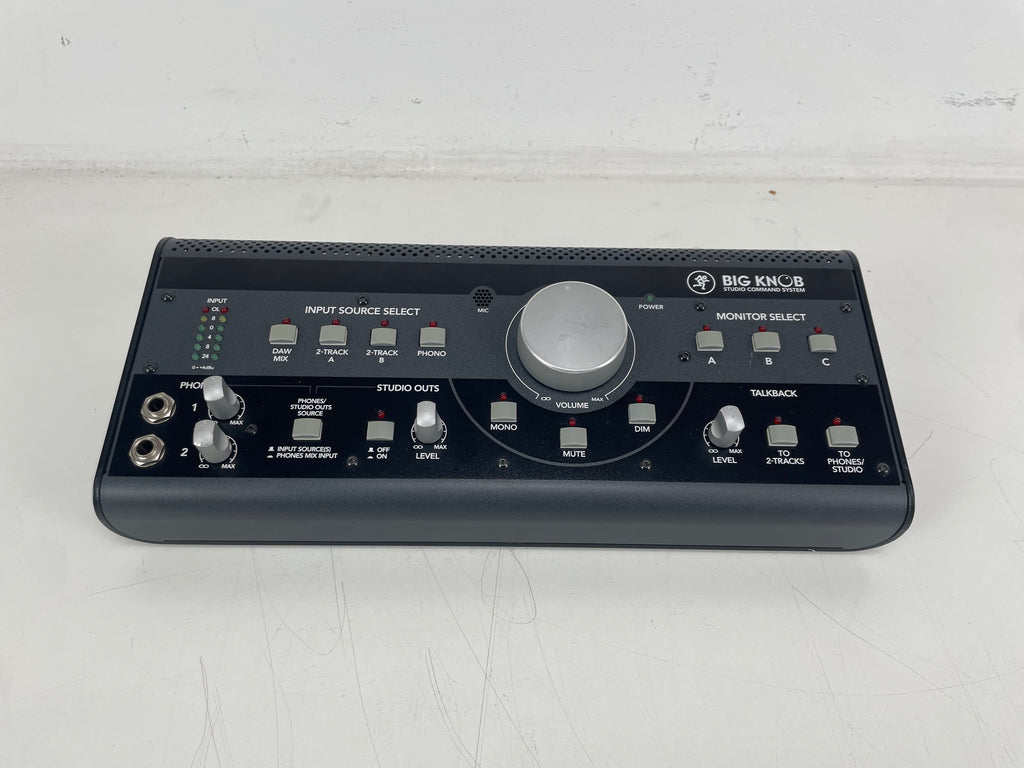

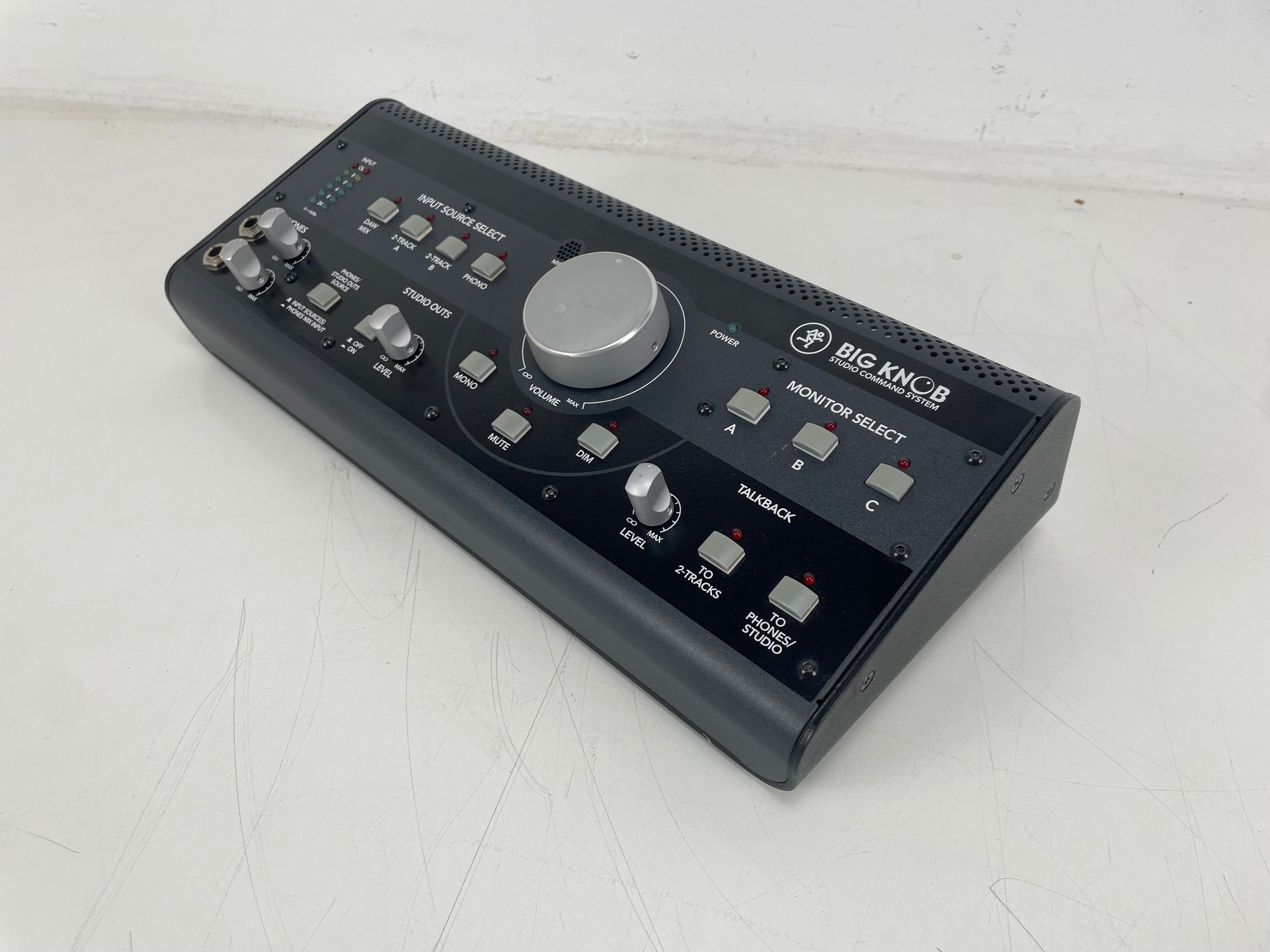

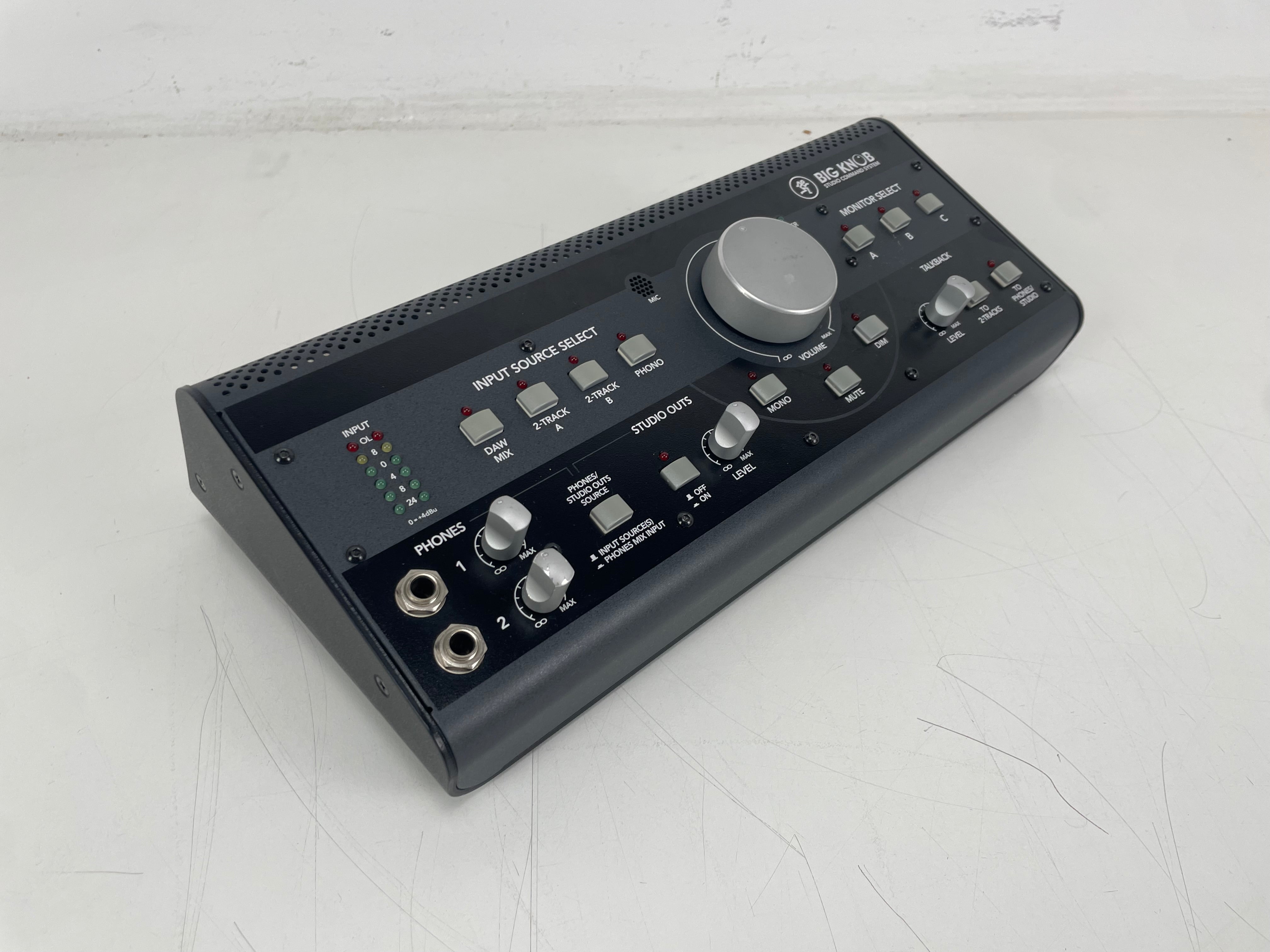

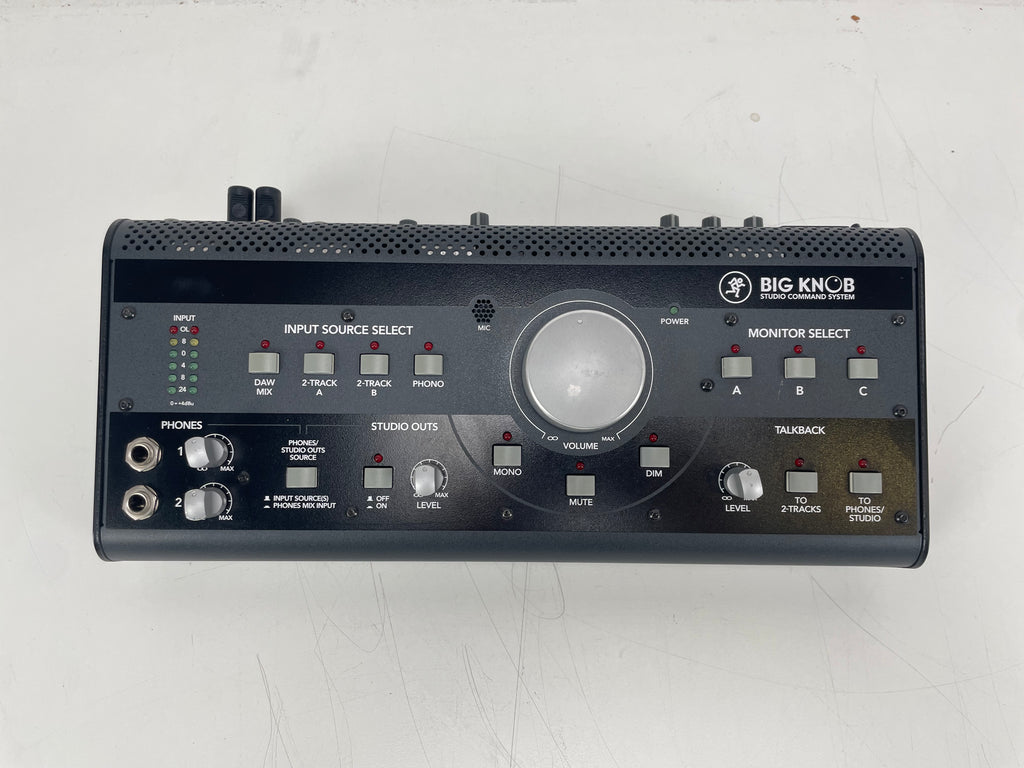

- Please review the photos for the exact condition

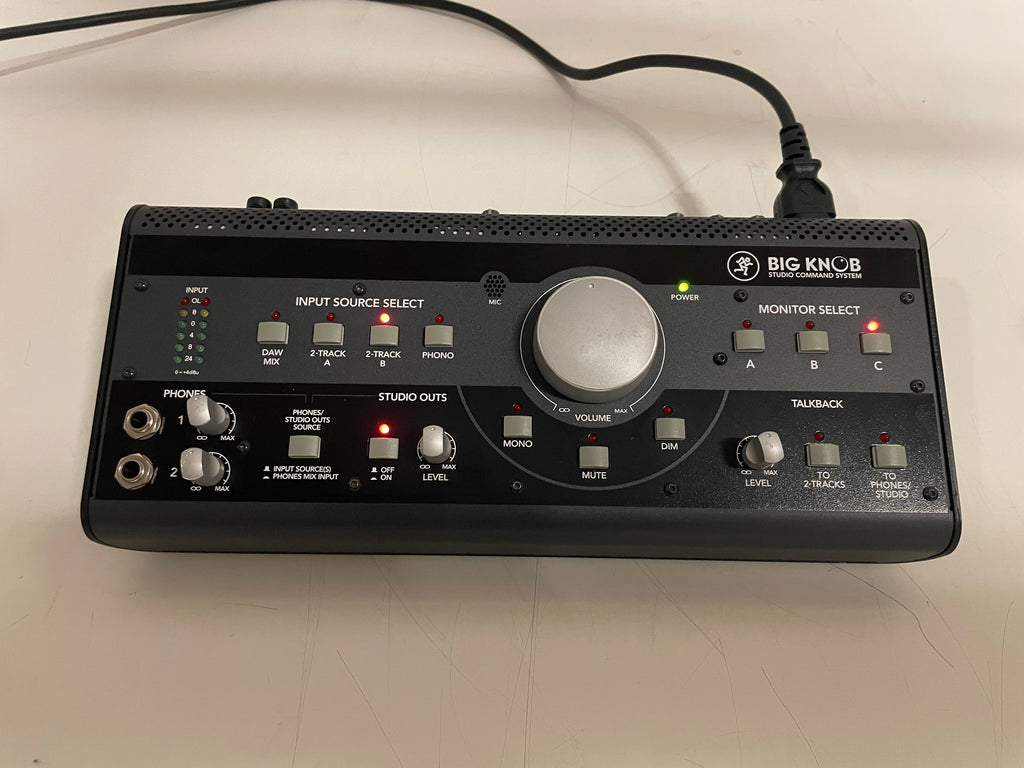

🎚️ Functional status
✔ Fully working
✔ Main volume control tested
✔ Inputs and outputs checked
✔ Monitor and source selection functions tested
✔ Ready for studio use
Specs:
- Type: Studio monitor controller / studio command system
- Frequency Response:
- 10 Hz – 50 kHz, +0/−1 dB
- 5 Hz – 100 kHz, +0/−3 dB
- Phono RIAA Accuracy: ±0.5 dB, 20 Hz – 20 kHz
- Dynamic Range:
- Line inputs: 112 dB minimum
- Phono input: 93 dB minimum
- Noise Floor: −90 dBu typical
- Equivalent Input Noise: 0.89 µV / −119 dBu maximum
- Crosstalk:
- Adjacent inputs: 90 dB at 1 kHz
- Left-to-right/right-to-left: 70 dB at 1 kHz
- Input Trim Range: ±10 dB
- Output Trim Range: −14 dB to 0 dB
- Dim Attenuation: −20 dB
- Maximum Monitor Output Gain: 34 dB
- Maximum Studio Output Gain: 34 dB
- Maximum Headphone Output Gain: 34 dB
Input Levels
- Line Inputs, +4 dB setting: +4 dBu nominal / +28 dBu maximum
- Line Inputs, −10 dB setting: −10 dBu nominal / +14 dBu maximum
- Phono Input: 5 mV nominal / 79 mV maximum
Output Levels
- Line Outputs, +4 dB setting: +4 dBu nominal / +22 dBu maximum
- Line Outputs, −10 dB setting: −10 dBu nominal / +8 dBu maximum
Impedance
- Balanced Line Input: 24 kΩ
- Unbalanced Line Input: 12 kΩ
- Phono Input: 47 kΩ / 220 pF
- Balanced Line Output: 300 Ω
- Unbalanced Line Output: 150 Ω
- Headphone Output: 150 Ω
Metering & Talkback
- Input Meters: 6-segment LED meters
- Meter Indicators: OL, +8, 0, −4, −8 and −24 dB
- Talkback AGC Range: ±15 dB
- Talkback Output Range: Off to +10 dB
- Nominal Microphone Sensitivity: 80 dB SPL

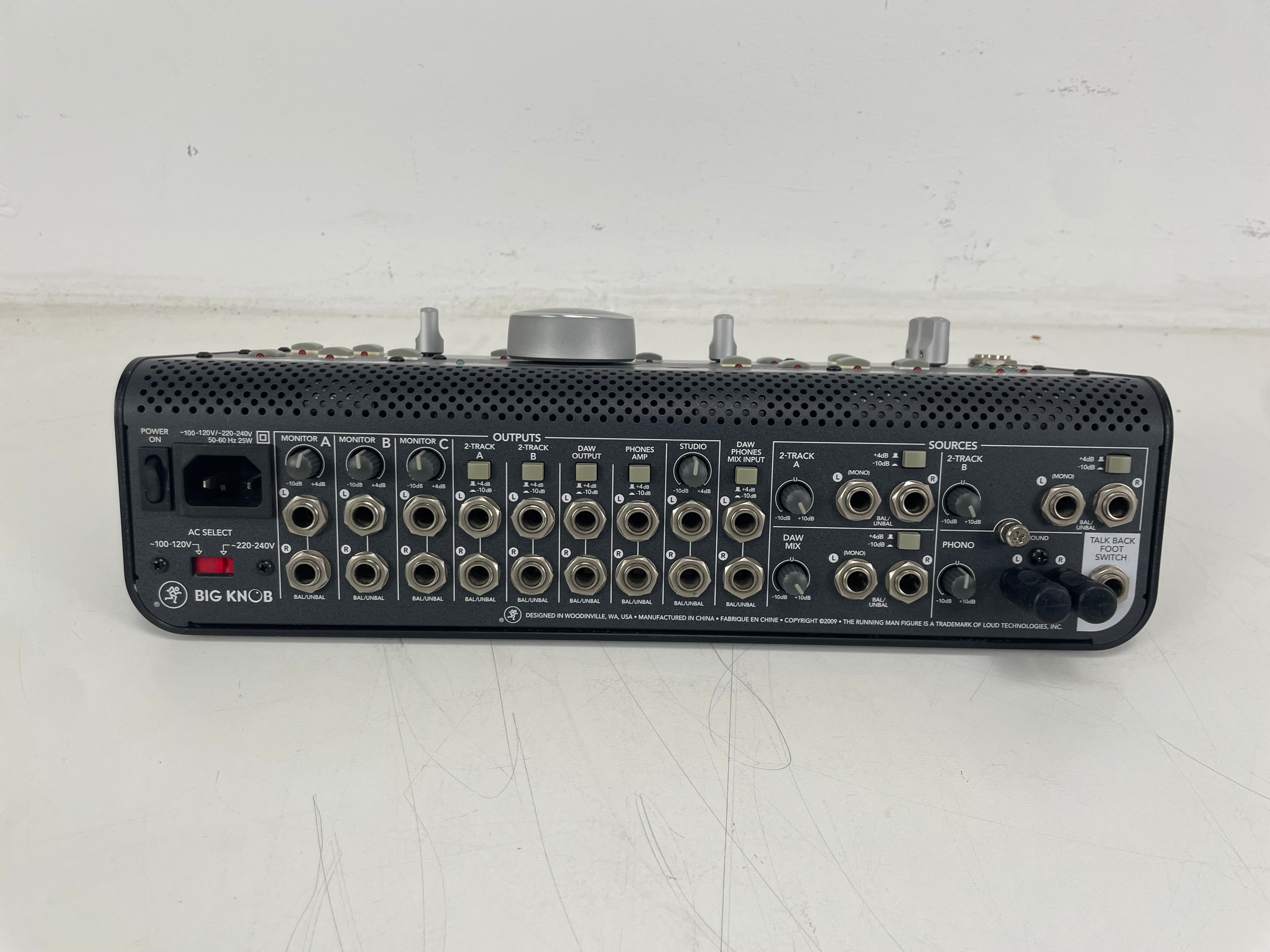

Connections & Control
- Three selectable monitor outputs
- Dedicated studio output
- Two independent headphone outputs
- DAW input and output connections
- Two stereo 2-track inputs and outputs
- Dedicated phono input
- Built-in talkback microphone
- Mono, mute and dim functions
- Separate source and monitor selection
Dimensions (LxWxH): 343 × 150 × 81 mm
Weight: 5 Kg
Volts: 100-240v (If it’s 200V or higher, you’ll need an adapter in the USA)
