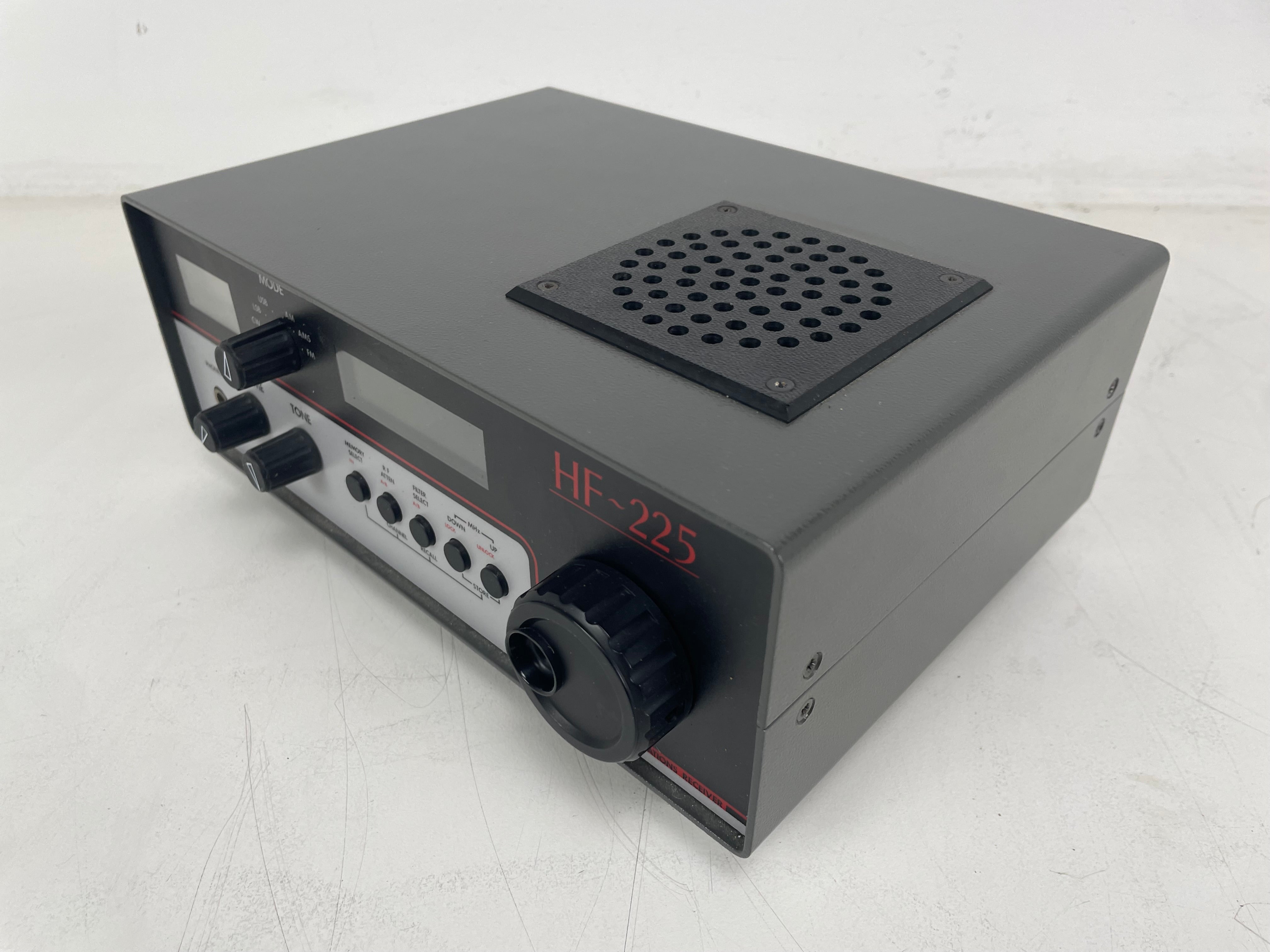

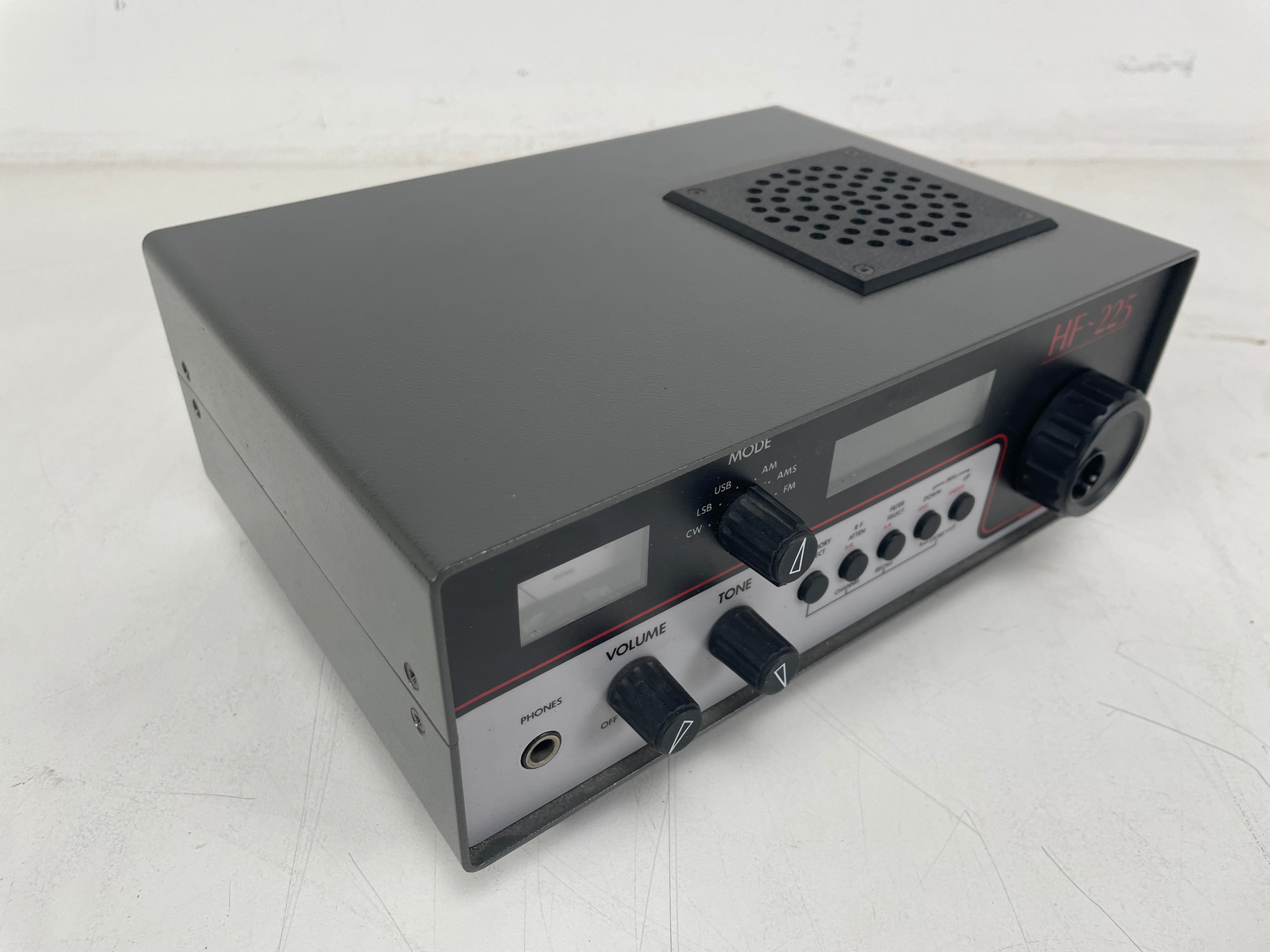

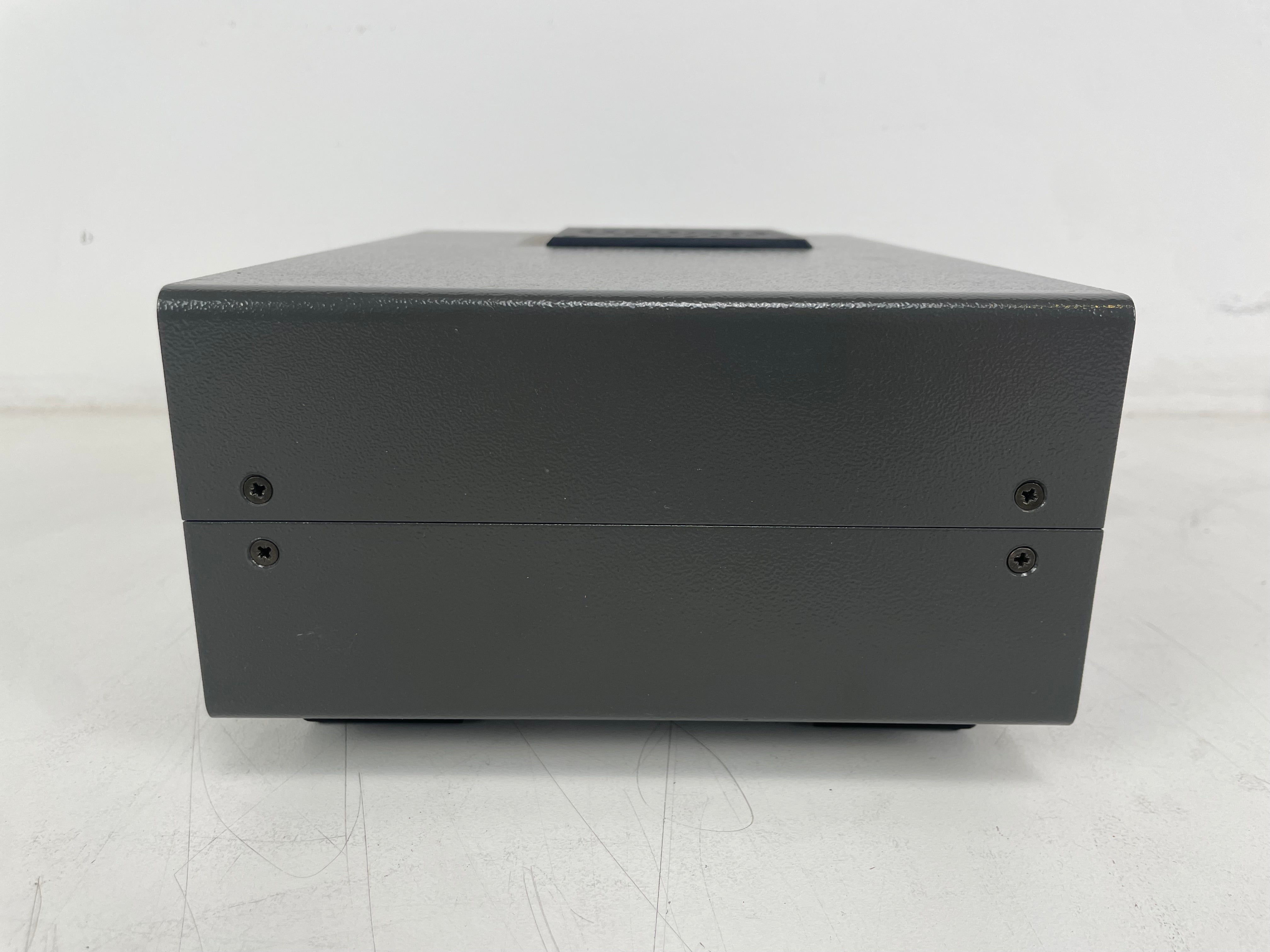

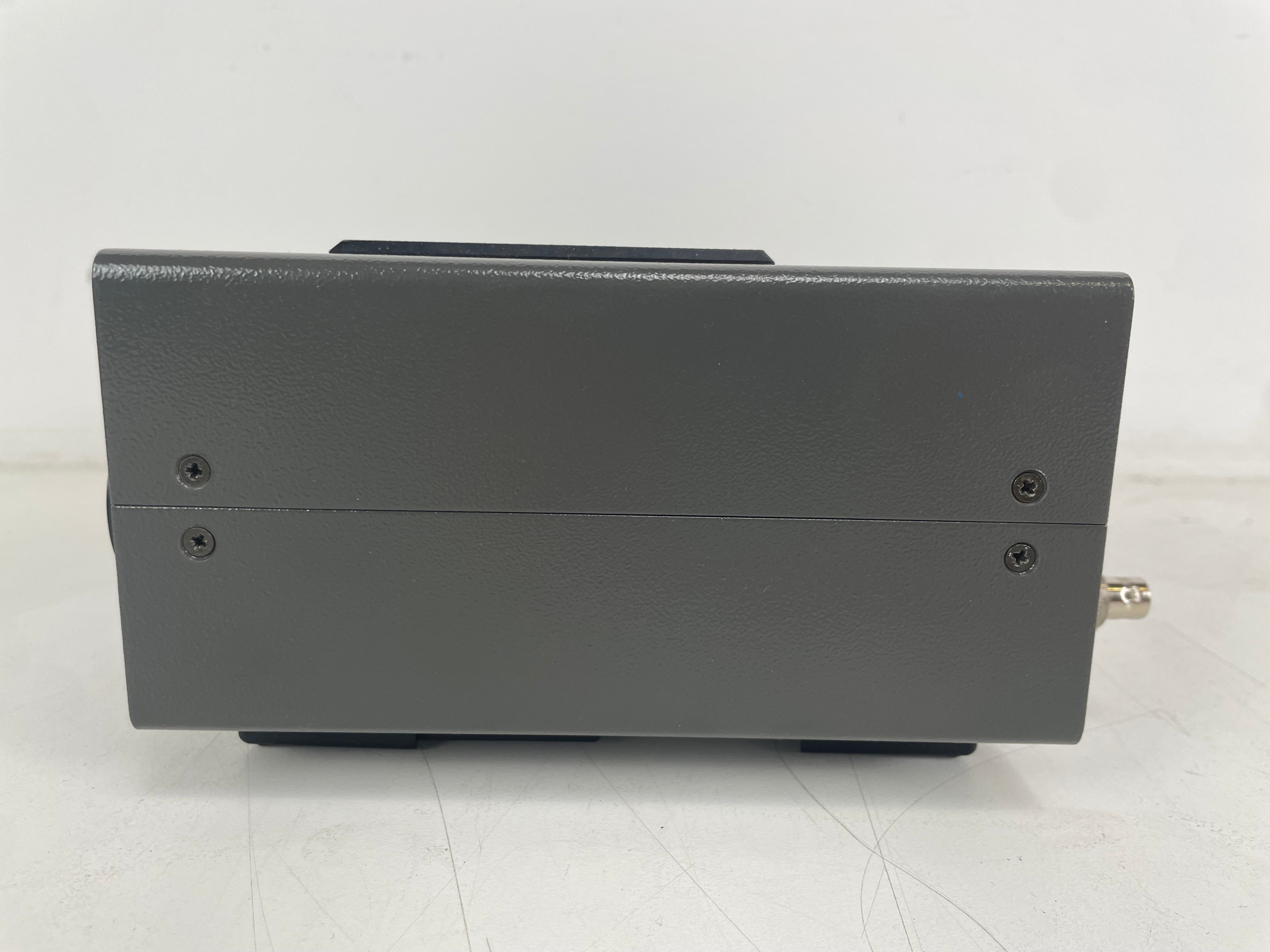

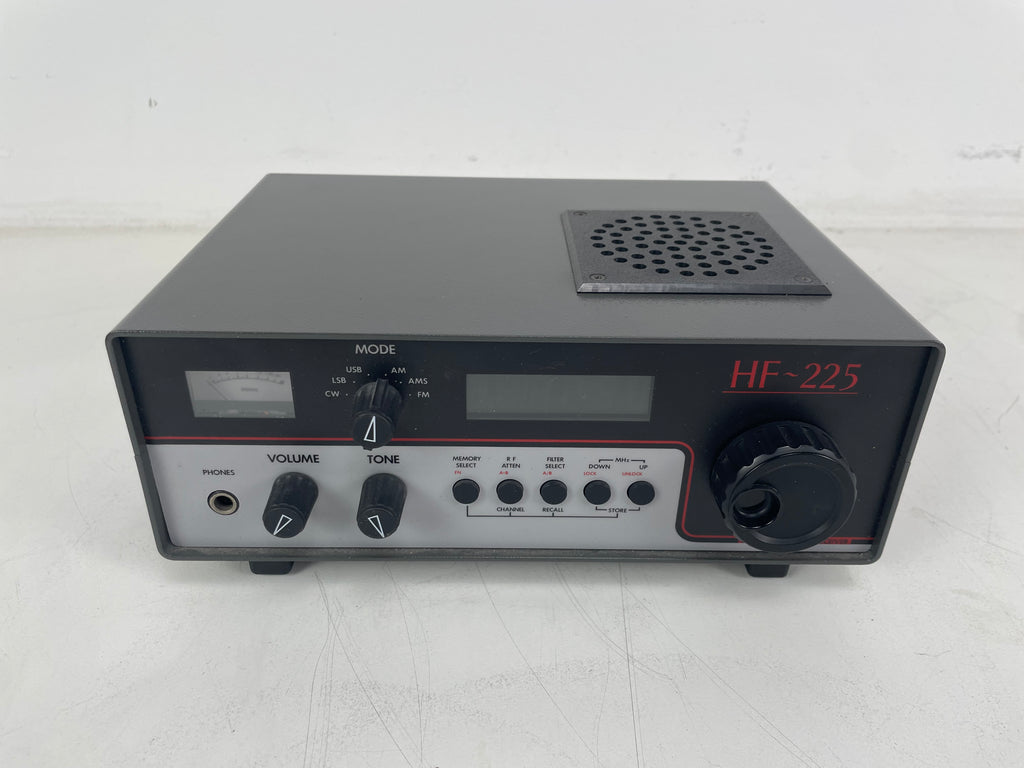

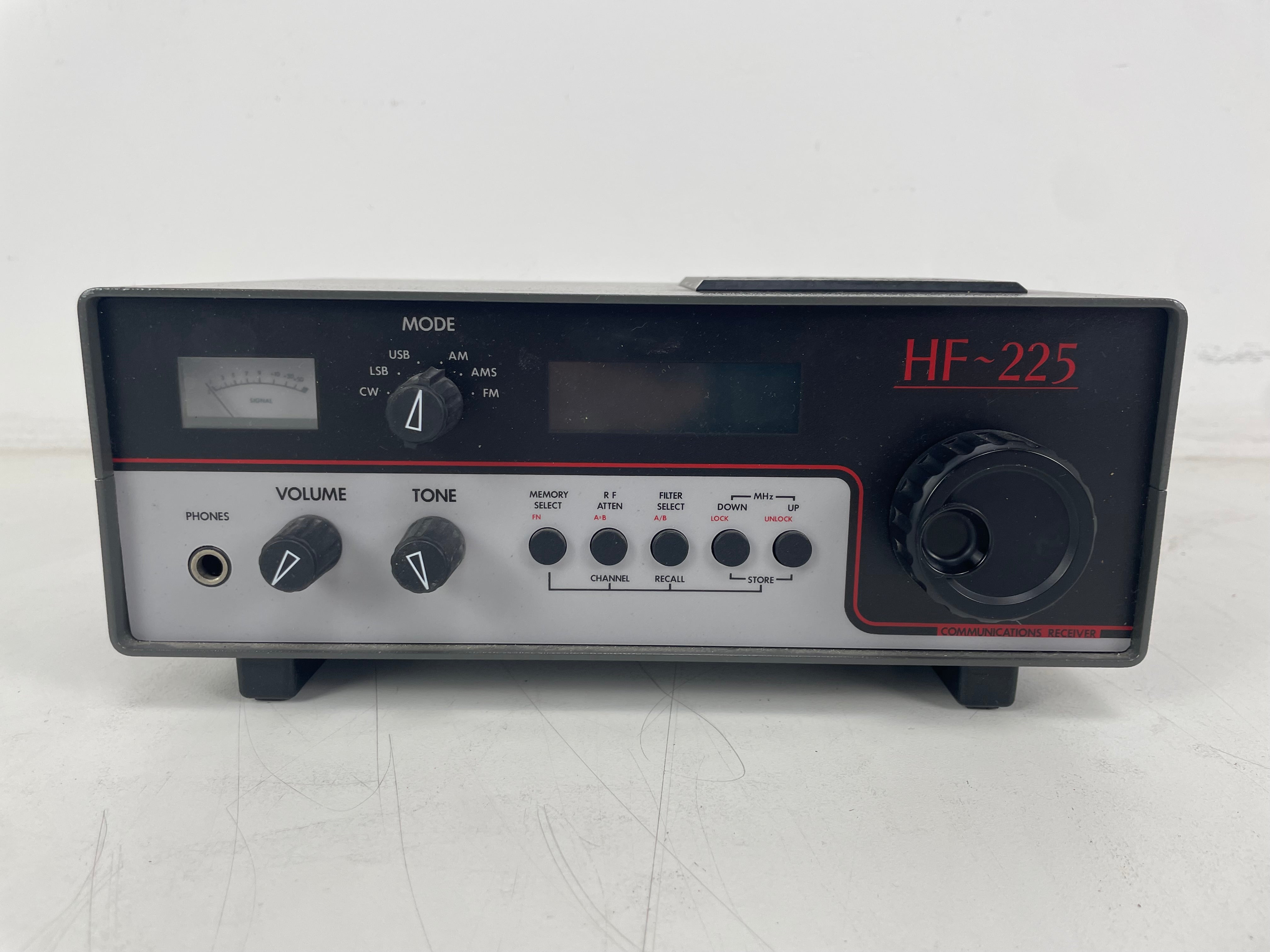

For sale: a Lowe HF-225 high-frequency (HF) receiver, a well-regarded communications receiver designed for shortwave listening and general radio monitoring.
The HF-225 is known for its solid performance, clean receiver design, and excellent usability, making it a popular choice among radio enthusiasts and shortwave listeners.

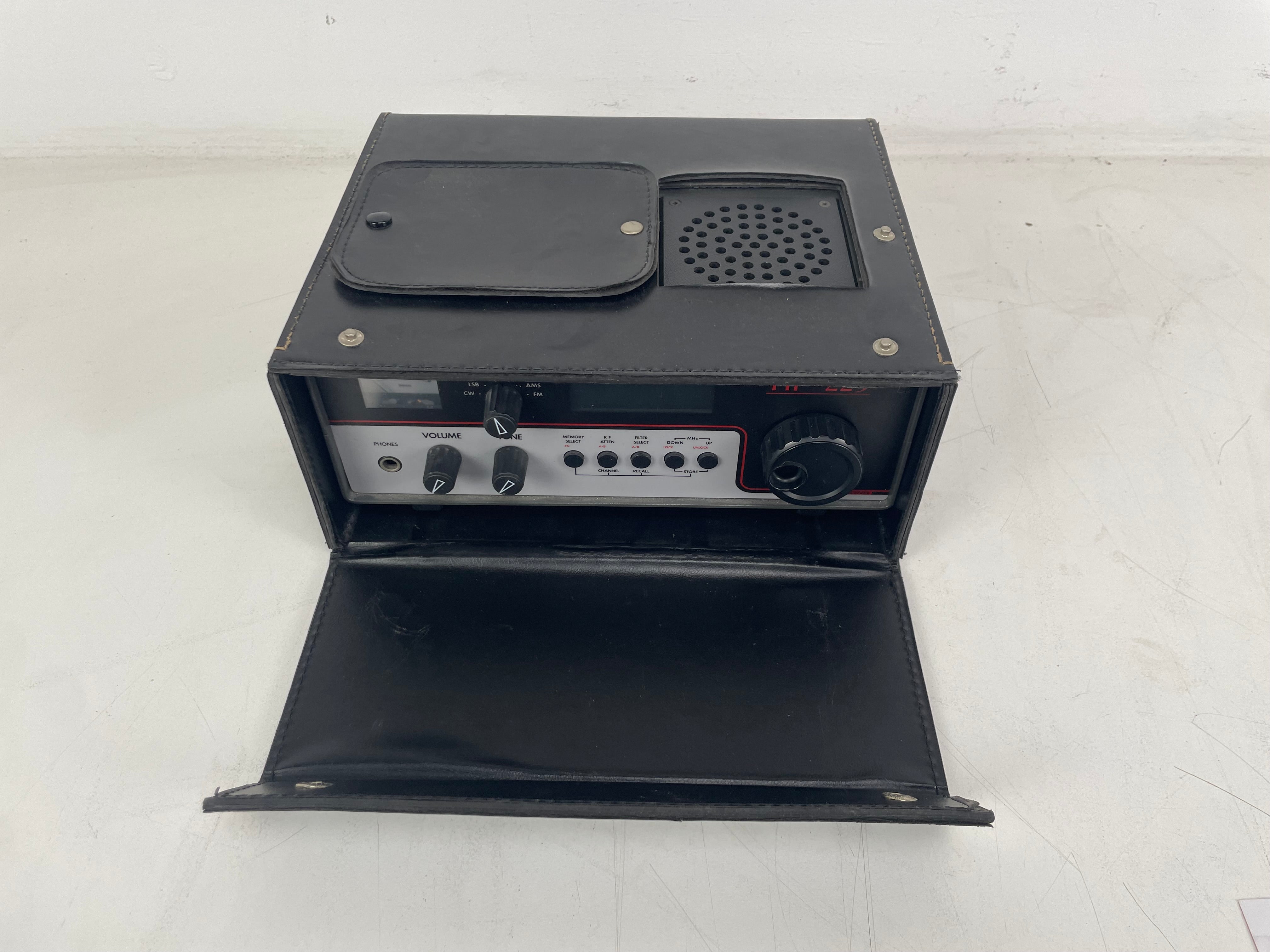

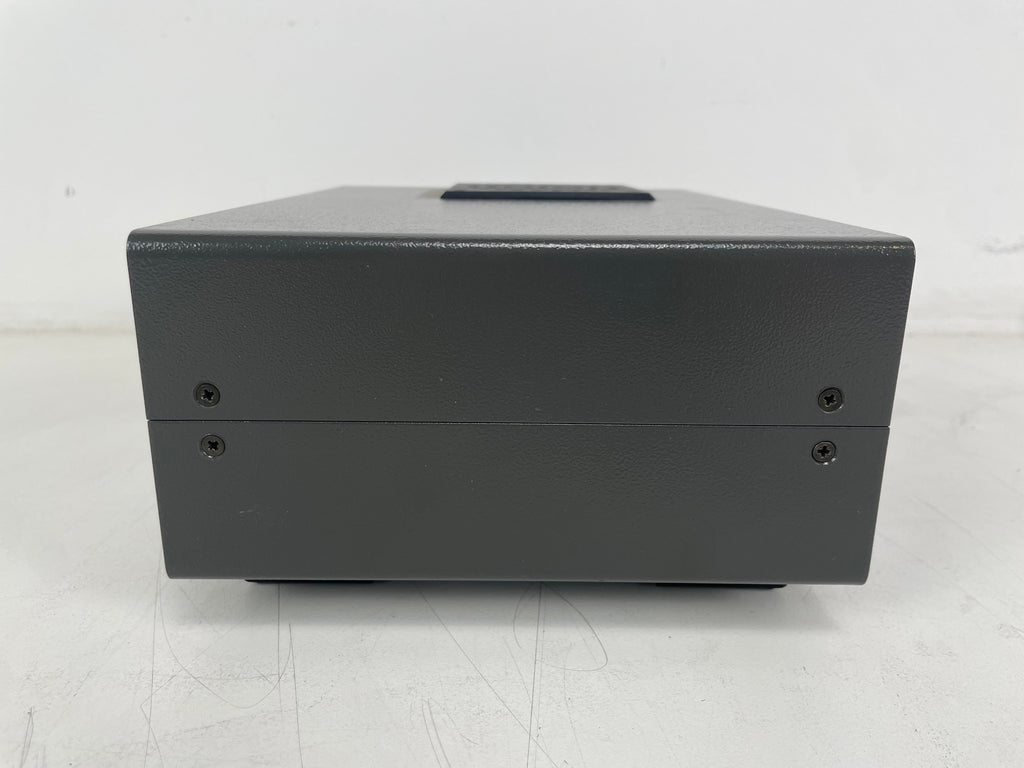

This unit comes complete with its original protective case.
Cosmetic condition:
The receiver is in mint cosmetic condition.
- Extremely clean overall appearance
- Very well preserved
- Includes original case
- Minimal to no visible signs of use
š” Functional status
ā Untested / sold as-is
ā Powers on not confirmed
ā Suitable for collection, restoration, or testing
Specs:
| GENERAL |
| Type: |
HF receiver |
| Frequency range: |
0.03-30 MHz |
| Tuning steps: |
| AM: |
Ā 50 Hz |
| AMS/SSB/CW: |
Ā 8 Hz |
| FM: |
Ā 125 Hz |
|
| Frequency stability: |
±30 Hz per hour @ 20°C (68°F) |
| Mode: |
AM / SSB / CW (FM and AM-synchro (AMS) option) |
| Channels / memory management: |
30 regular RAM storage with lithium battery backup |
| Power supply: |
12 VDC (Internal NiCd battery pack) or 10-15 VDC external (Male barrel jack, center positive) |
| Current drain / power consumption: |
250-300 mA (Typical) |

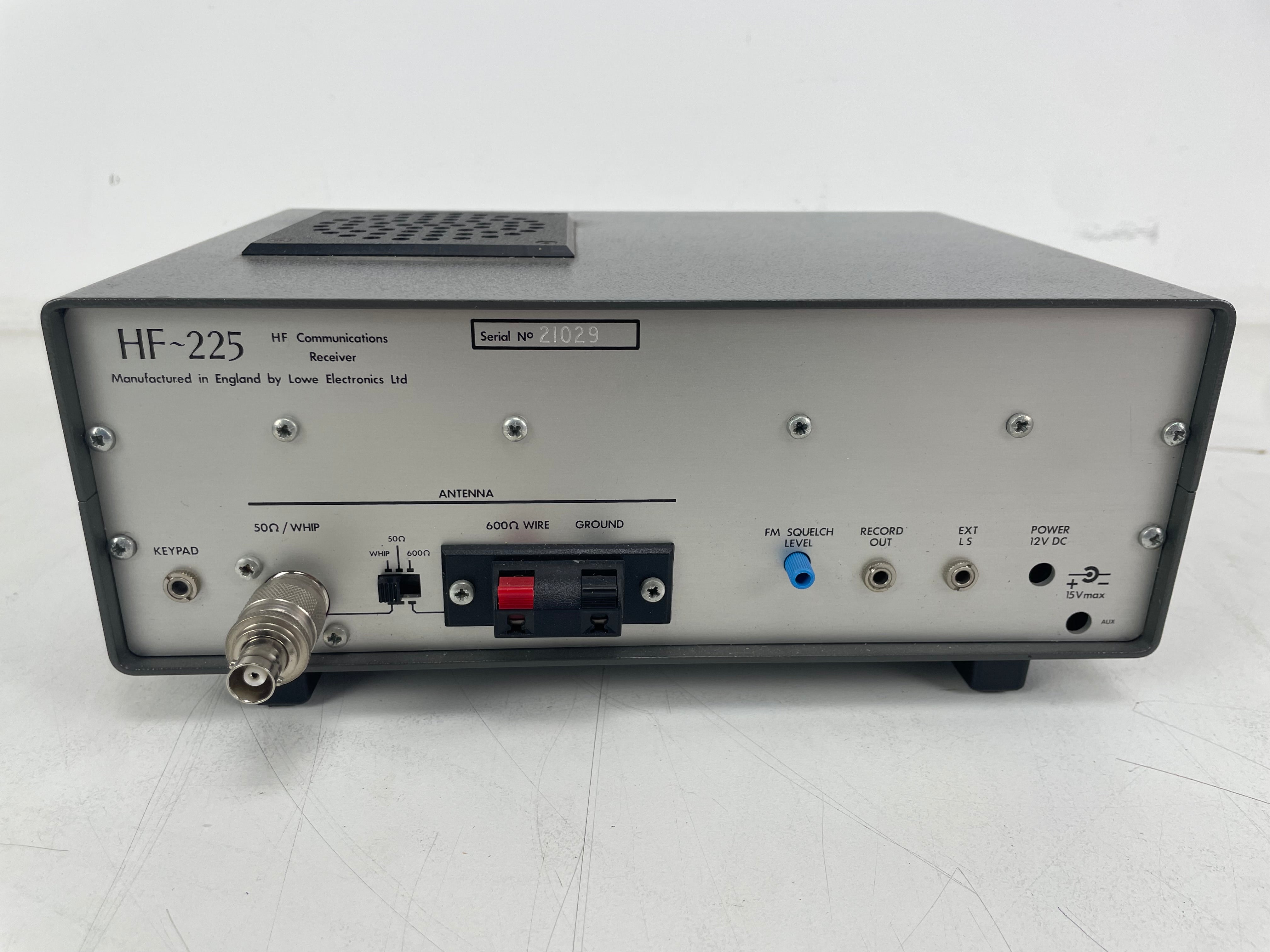

| Antenna impedance / connector: |
50 ohm / SO-239 600 ohm / Spring terminals |
| Dimensions (W*H*D): |
253*109*204 mm (9.96*4.29*8") |
| Weight: |
1.9 Kg (4.19 lb), without batteries |
| Other features: |
NB. Attenuator (20 dB). 200 Hz CW audio peak filter. |
|
|
|
|
| RECEIVER SECTION |
| Receiver system: |
Double conversion superheterodyne 1st IF: 45 MHz 2nd IF: 455 KHz |
| Sensitivity: |
AM (No reference) 0.06-2 MHz: <1.2 uV 2-30 MHz: <0.9 uV FM (No reference) 0.06-2 MHz: <1 uV 2-30 MHz: <0.9 uV SSB (No reference) 0.06-2 MHz: <0.6 uV 2-30 MHz: <0.5 uV |
| Squelch sensitivity: |
|
| Noise figure: |
|
| Selectivity: |
AM/AMS/SSB (Selectable) 2.3 KHz (-6 dB), 3.4 KHz (-60 dB) 5.9 KHz (-6 dB), 9.8 KHz (-60 dB) 8.8 KHz (-6 dB), 12.9 KHz (-60 dB) 10.6 KHz (-6 dB), 21.5 KHz (-60 dB) FM 12 KHz (No reference) CW 2.3 KHz (-6 dB), 3.4 KHz (-60 dB) |
| Image rejection: |
|
| AF output power / speaker: |
1.6 W at 5% distortion / 8 ohm 2 W at 5% distortion / 4 ohm |
| External speaker connector: |
TS "Minijack" (3.5 mm), 4-8 ohm |
|
|
|
|
| MISCELLANEOUS |
| Manufactured: |
England, 1989-1998 (Discontinued) |
| Additional info: |
New price 1992 in Sweden: SEK 6450:- |
| Related documents: |
User manualĀ (2.2 MB) Service manualĀ (4.7 MB) |
