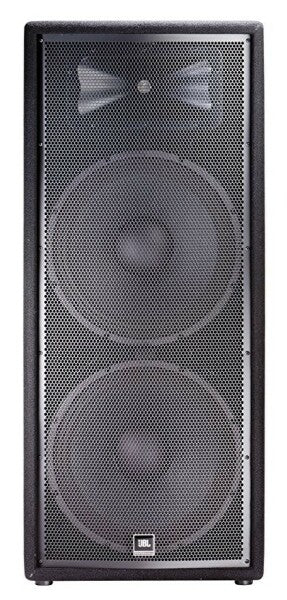

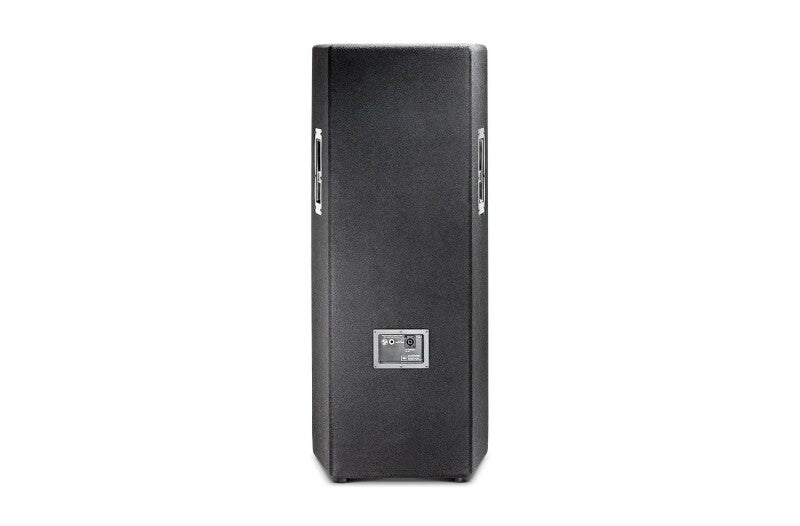

JBL JRX225D Dual 15" Two-Way Sound-Reinforcement Loudspeaker
This JBL JRX225D Speaker is in brand new condition. Unfortunately the box got hit and created a very little damage on the grill. It has a very little dent from about 1 Inch. can't be seen with the eye but if you feel the grill you can feel the little dent. In original factory box. The box only got opened to asses the damage to the grill.
Features:
- Dual JBL low frequency drivers with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more crosssectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.
- JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.
- The advanced network topology crossover design shapes frequency response and delivers coherent summation in the crossover region.
- A "Quasi 3-Way" design offers the extra bass for which a dual fifteen system is designed, but without sacrificing performance in the critical mid-range. The upper woofer produces mid-frequencies and bass, while the lower woofer concentrates on bass only. The reduction in mid-range phase cancellation greatly improves midrange sound quality and coverage.
- High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating.
- Progressive Transition™ high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response.
- The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.
- SonicGuard™ protects the highfrequency driver from excess power without interrupting the performance.
- Non-resonant, all-steel handles are used.
- Attractive 18-gauge perforated, steel grille protects components from damage.
Specs:
- Power rating: 500 W / 2000 W
- Frequency range: 42 Hz - 18 kHz
- Frequency response: 62 Hz - 13 kHz
- Maximum SPL: 133 dB
- Nominal impedance: 4 ohms
- Crossover frequency: 2.2 kHz
- High frequency driver: JBL 2414H-C , 1" exit compression driver mounted on Progressive Transition™ Waveguide
- Low frequency driver: JBL M115-8A x 2
- Input connectors: Neutrik® Speakon® NL-4 (x1); .25 in TS phone jack (x1); parallel
Weight (kg): +/- 48 KG
Dimensions (cm): 50x113x50
Beware! Needs special transport!! Please ask quote for exact shipping costs!!!
We ship worldwide.
-Shipping in the EU up to 30 KG (max)
-Shipping outside of the EU up to 20 KG (max)
Please note: ‘’Whenever an item exceeds the weight noted above. Please ask us for a shipping quote before making a purchase. The shipping costs are estimated in our shop because we do not know the shipping address’’
Working condition: Full working condition
Missing or damage: See description for details
Pictures: See pictures for the cosmetic condition of this lot
Buying terms: Sold as is!
